Digital Oscilloscope 3-in-1 with Multimeter and Signal Generator, Dual Channel 100 MHz, 4.3" Touch Screen, Black, for Electronics and Service
You already have the maximum available quantity in your cart.

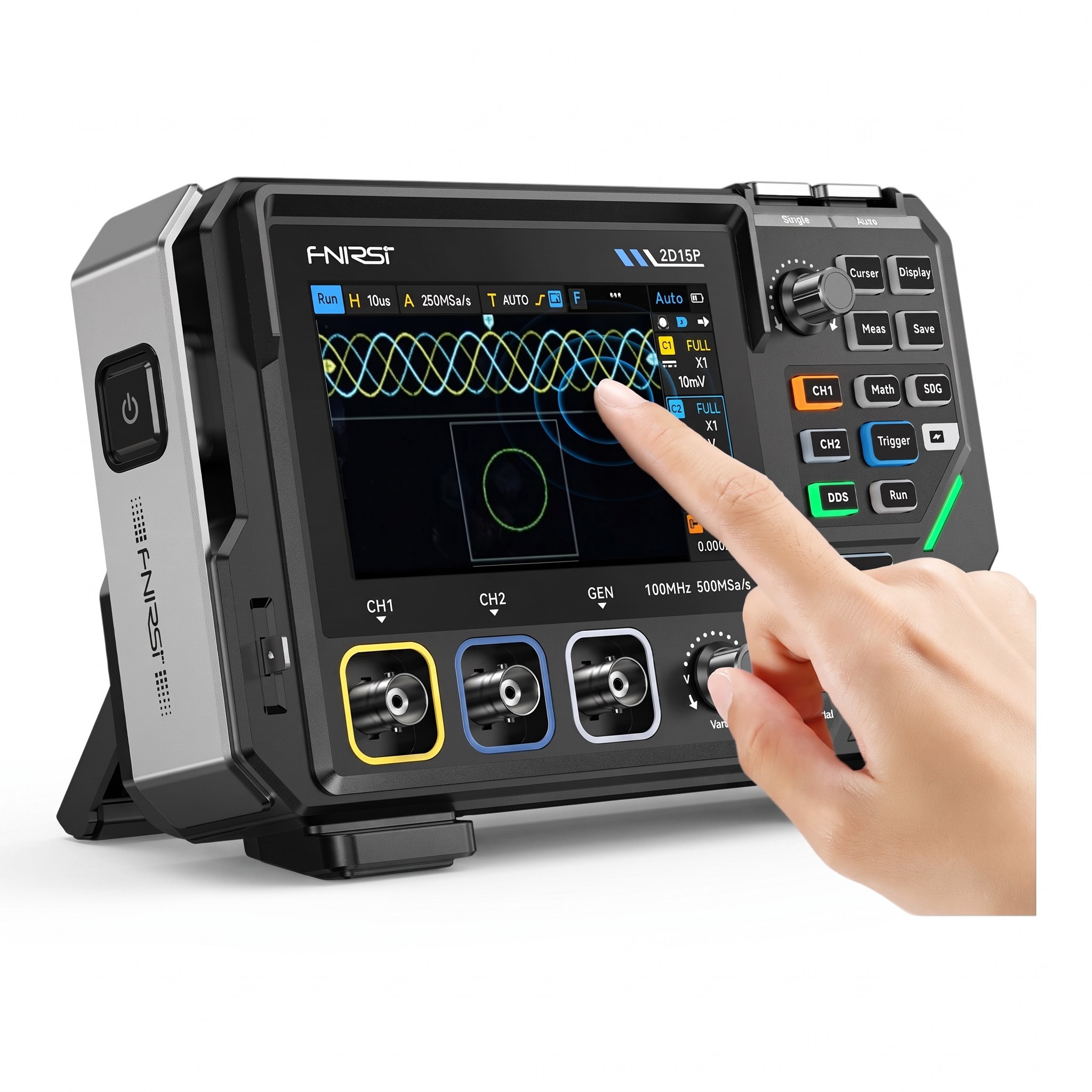

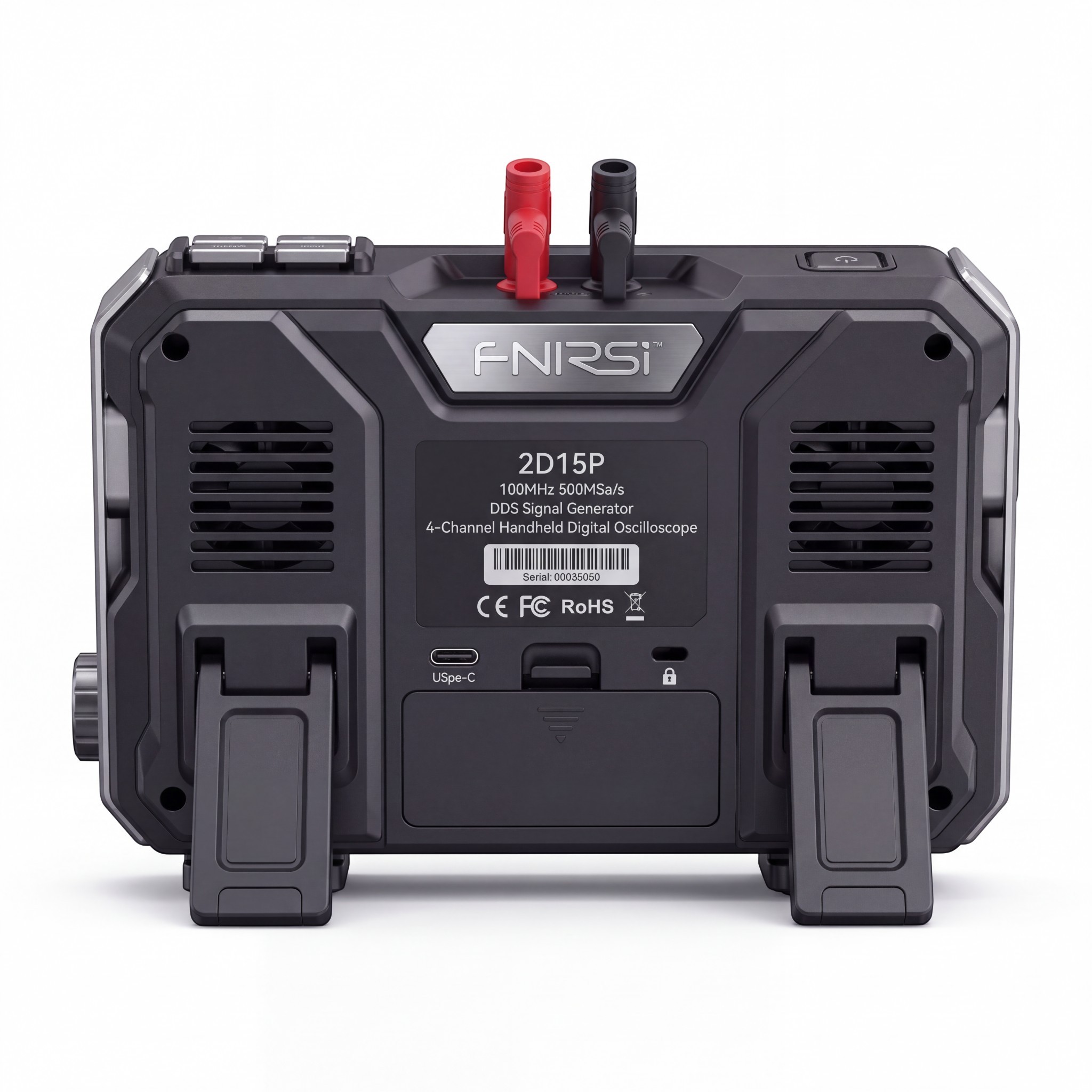

The digital oscilloscope 3-in-1 combines a dual-channel oscilloscope, digital multimeter, and signal generator in one compact device. An analogue bandwidth of 100 MHz and a sampling rate of 500 MSa/s allow for precise capture and analysis of waveforms during electronics development, servicing, and education. The controls combine a 4.3-inch capacitive touch screen with physical buttons and rotary knobs. Thanks to the built-in rechargeable battery, the device can be used on a workbench or in the field. The black design with a foldable stand measures 23 × 11 × 16 cm and weighs 1,100 g.
Main Features
- Oscilloscope with 2 channels: bandwidth 100 MHz (one channel) / 50 MHz (both channels), sampling 500 MSa/s
- Memory depth 10K / 100K / 1M points
- Time base 5 ns/div – 50 s/div, vertical sensitivity 10 mV/div – 10 V/div
- Input impedance 1 MΩ, coupling AC/DC, maximum input voltage 800 V (with probe ×10)
- Bandwidth limit to 20 MHz for more accurate ripple and noise suppression measurements
- Trigger modes automatic, normal, and single; triggering on rising, falling, or both edges
- Dot, vector, and colour (colour temperature) display, 128 levels of grey, adjustable persistence (min / 2 s / 5 s / 10 s / 20 s / 50 s / ∞)
- Sampling rate up to approximately 1,200 waveforms per second for capturing abnormal signals
- 13 measured parameters (e.g. RMS, Vpp, frequency, period, duty cycle) and cursor measurement
- 6 mathematical operations: A+B, A−B, A×B, A/B, −A, |A| in both time and frequency domains
- True RMS multimeter 19,999 digits: DC voltage up to 1000 V, AC voltage up to 750 V, AC/DC current up to 9.999 A, resistance 1.9999 kΩ – 19.999 MΩ, capacitance 9.999 nF – 99.99 mF, diode and continuity test

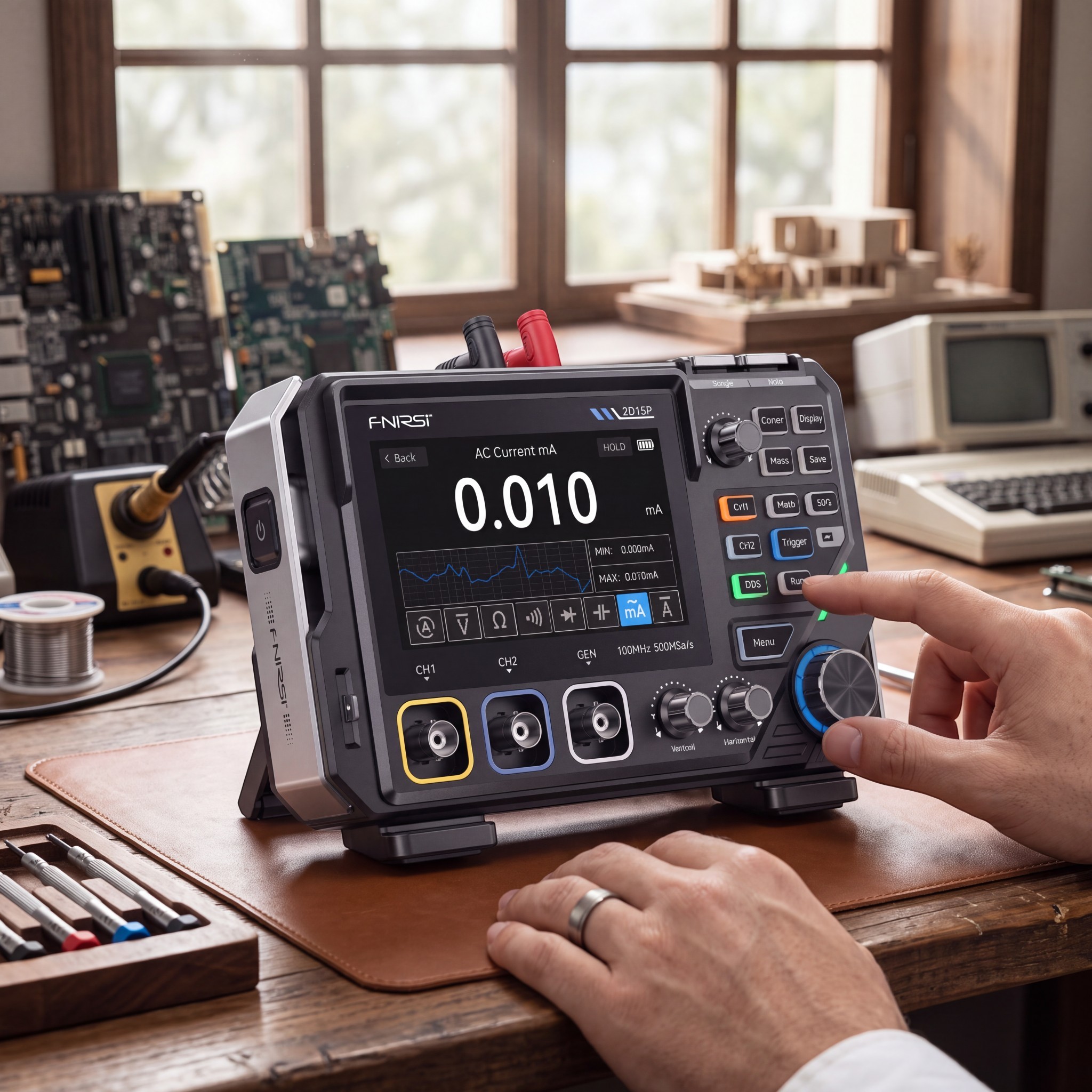

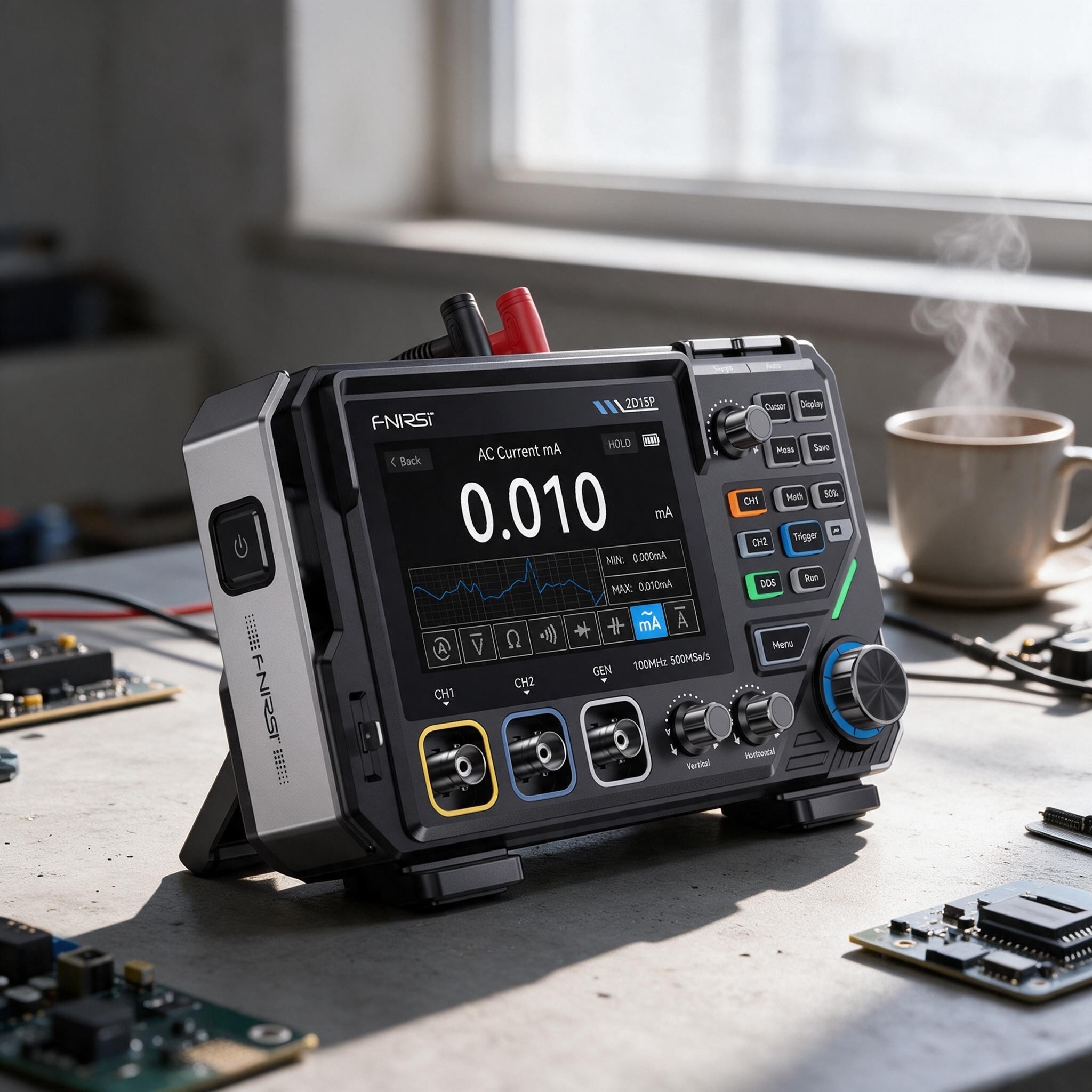

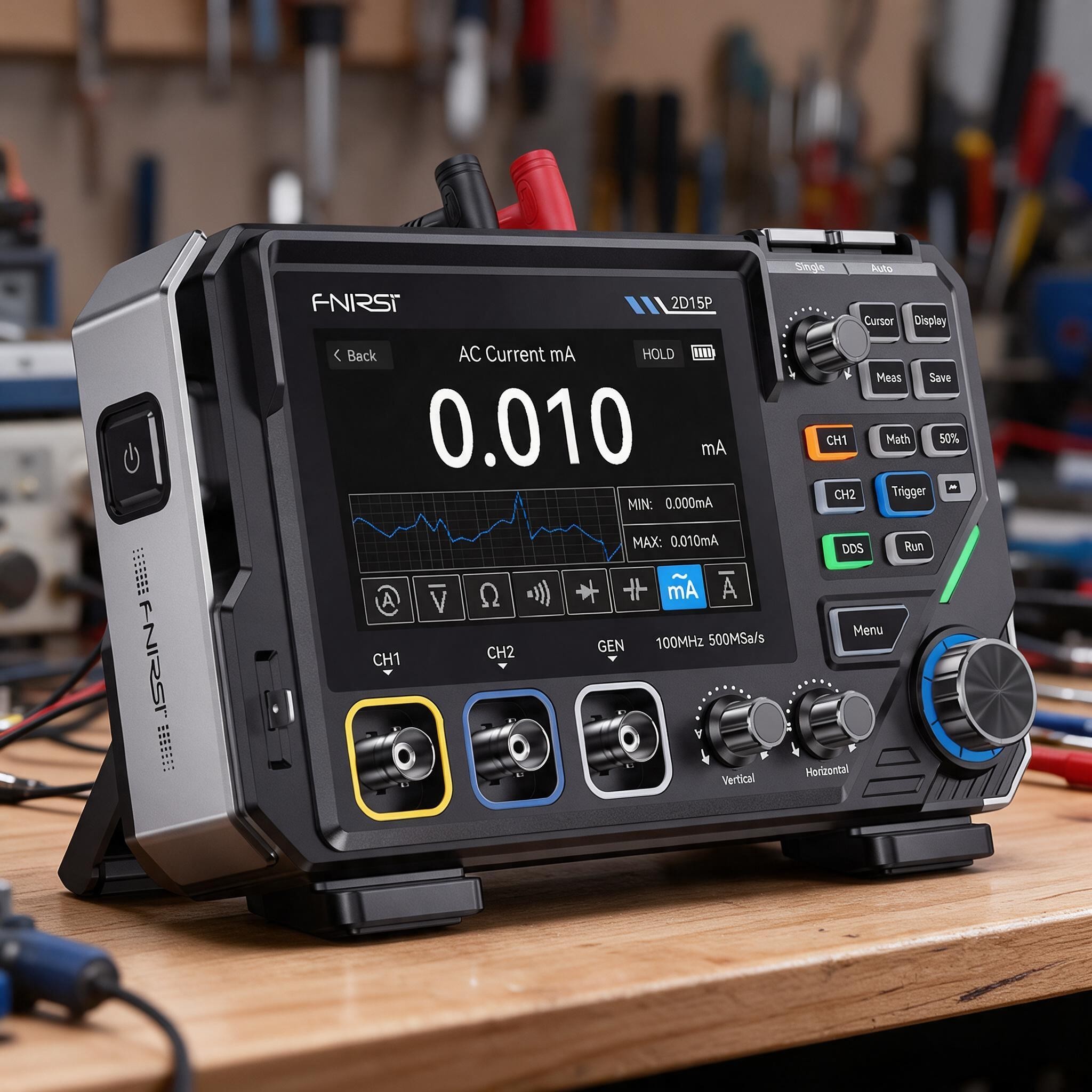

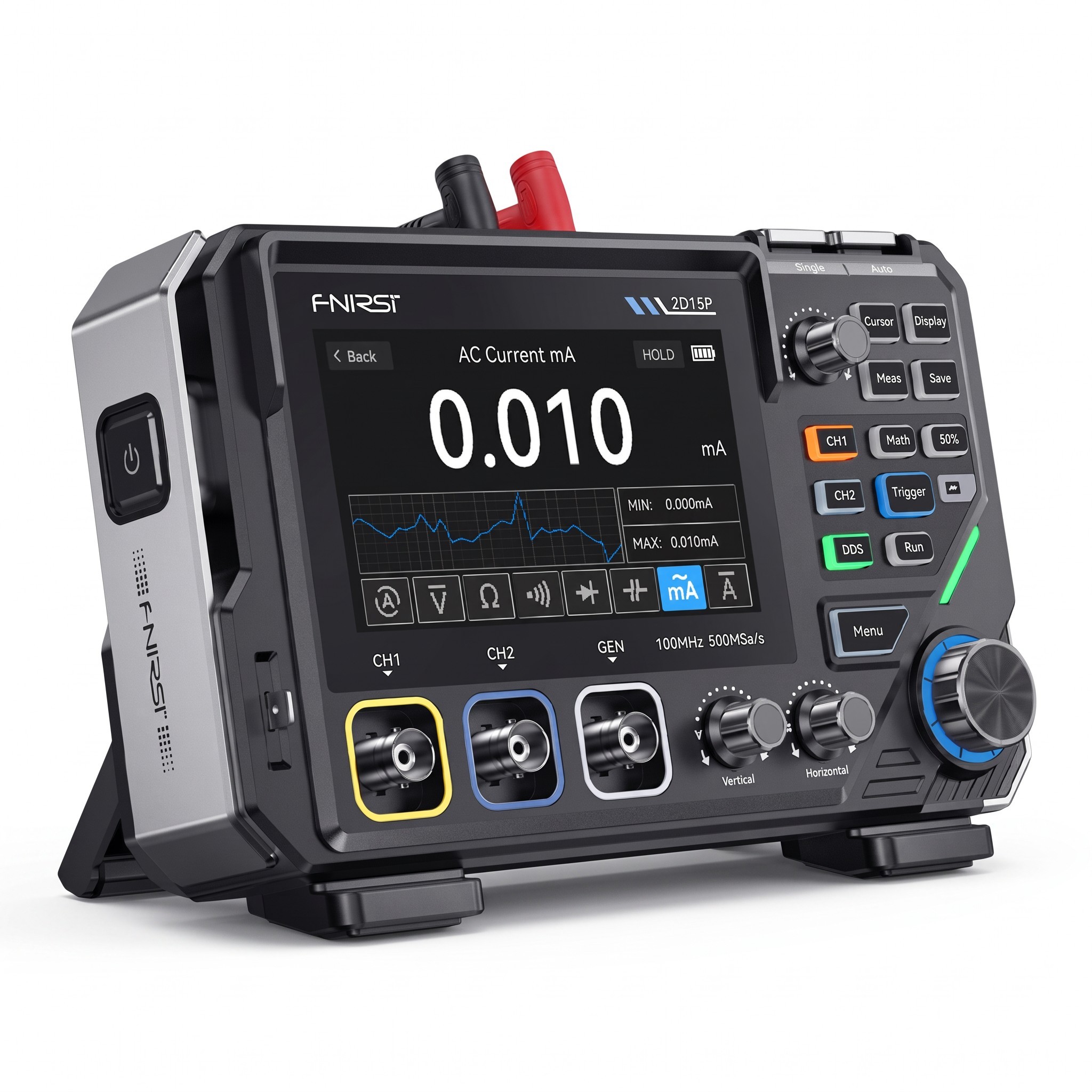

- Graphical display of multimeter measurement trends with MIN/MAX values and HOLD function
- Single-channel DDS signal generator 0–10 MHz, amplitude 0.1–3.0 Vpp, duty cycle 0–100 %
- 9 generator waveforms: sine, square, triangle, DC, noise, half wave, full wave, positive and negative staircase
- Capture and export of waveforms via USB, firmware updates
- Rechargeable lithium 5000 mAh battery with USB-C charging, automatic shutdown after 15/30/60 min

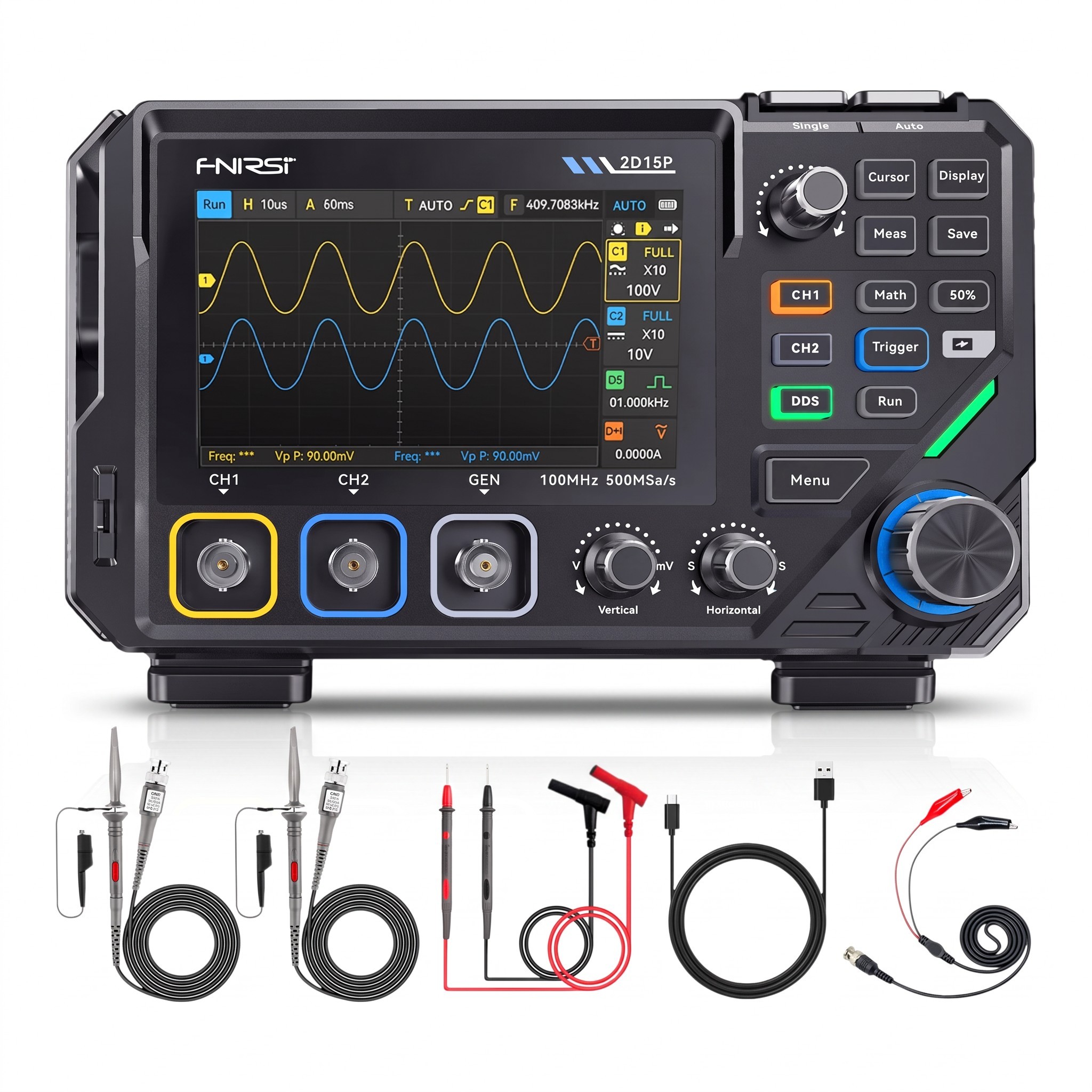

- Package contents: 1× oscilloscope with multimeter and generator, 2× oscilloscope probe P6100, 1× test leads for multimeter, 1× BNC cable with crocodile clips, 1× USB-A to USB-C cable, 1× user manual
The device replaces three separate measuring instruments and saves space on the workbench. The oscilloscope part is used for tuning circuits, monitoring waveforms, and measuring ripple in power supplies. The multimeter with current measurement up to 9.999 A and capacitance covers standard service measurements. The built-in generator allows a test signal to be applied to the measured circuit without additional equipment. It is suitable for electronics development, equipment maintenance, research, education, and field measurements.
