Digital Multimeter 3-in-1 DM40C with Oscilloscope and Signal Generator, True RMS, 3.5" IPS Touch Screen, Orange, for Electronics
You already have the maximum available quantity in your cart.
The DM40C digital multimeter combines a multimeter, oscilloscope, and signal generator in one compact device. It is a multimeter with a resolution of 4 5/6 digits and a maximum display of 59999. It measures DC voltage, AC voltage, current, resistance, capacitance, frequency, and temperature, and it can also test diodes and continuity. The True RMS function and AC+DC measurement allow for accurate measurement of non-sinusoidal and composite signals. The built-in oscilloscope displays the signal waveform directly on the screen, making the device useful for electronics repairs, development, service, and education.
- 3-in-1 device: digital multimeter, oscilloscope, and signal generator
- Automatic range selection mV/V and µA/mA/A without mode switching
- Measurement of DC voltage up to 1000 V and current up to 10 A
- DC voltage: 600 mV / 6 V / 60 V / 600 V / 1000 V, accuracy ±(0.03 % + 5 d)
- AC voltage: 600 mV to 750 V, accuracy ±(0.3 % + 15 d)
- DC and AC current: 600 µA to 10 A
- Resistance 600 Ω to 60 MΩ, capacitance 6 nF to 60 mF
- Frequency 10 Hz to 60 MHz, temperature −40 °C to 1000 °C
- Diode measurement with four-step voltage drop evaluation and audible signal, continuity test up to 1 kΩ
- True RMS and simultaneous measurement of AC+DC
- Relative measurement (REL), MAX/MIN, value hold (HOLD), and trend graph with time base of 160 / 320 / 640 ms
- Oscilloscope with sampling frequency of 50 MSa/s and bandwidth of 10 MHz
- Oscilloscope: 1 channel, 10-bit resolution, memory 64 kpts, time base 100 ns – 50 s, sensitivity 10 mV – 10 V/division (×1), input impedance 1 MΩ, AC/DC coupling
- Triggering Auto / Normal / Single, rising and falling edge, mathematical functions FFT and ABS
- Signal generator: sine, triangle, and sawtooth 1 Hz – 50 kHz (0.5–3.0 Vpp), square 1 Hz – 50 kHz with duty cycle 0–100 % and 100 kHz – 10 MHz (3.0 Vpp)

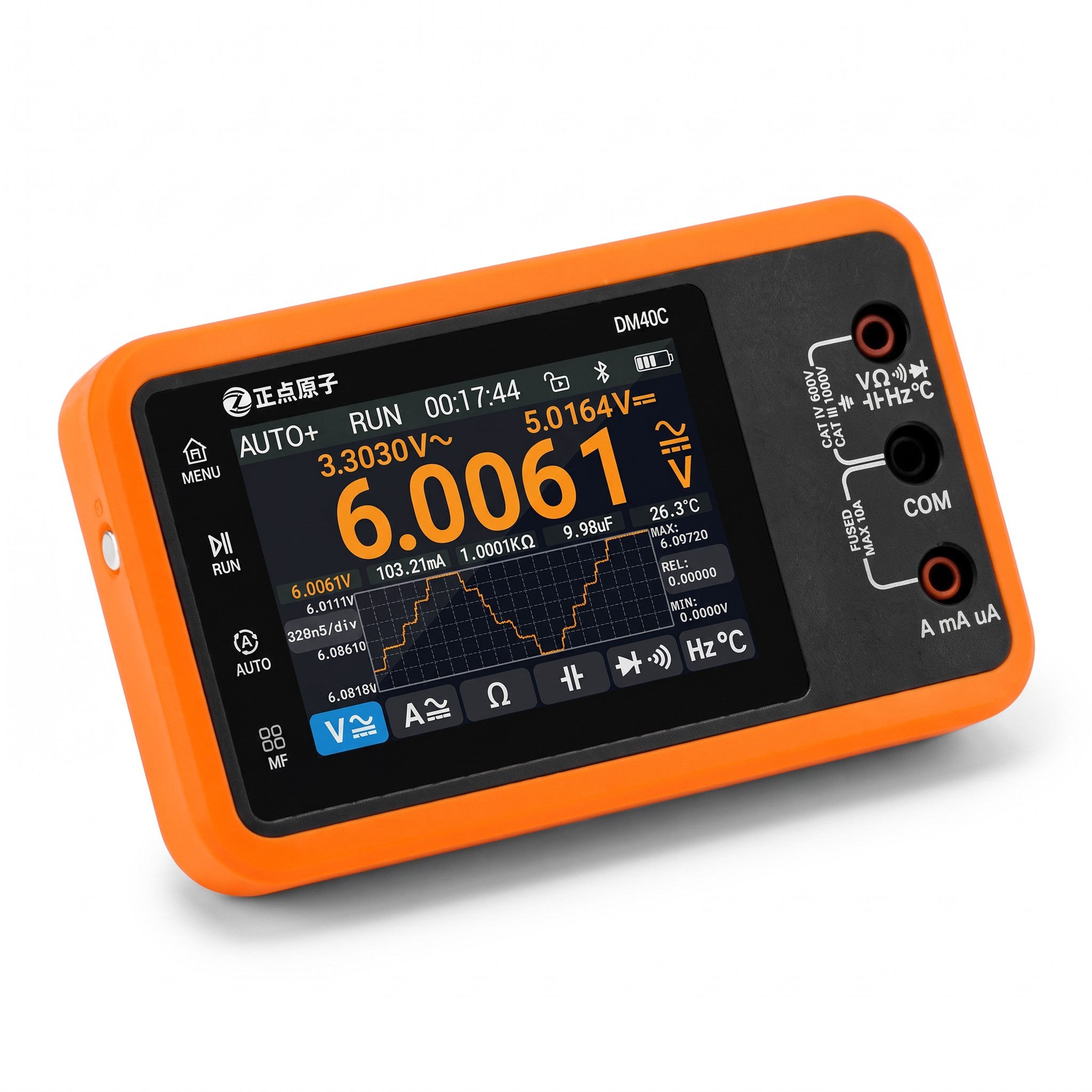

- 3.5" IPS touch screen with a resolution of 480 × 320 px
- Battery life approximately 12 hours in multimeter mode and 10 hours in oscilloscope mode, automatic dimming and shutdown

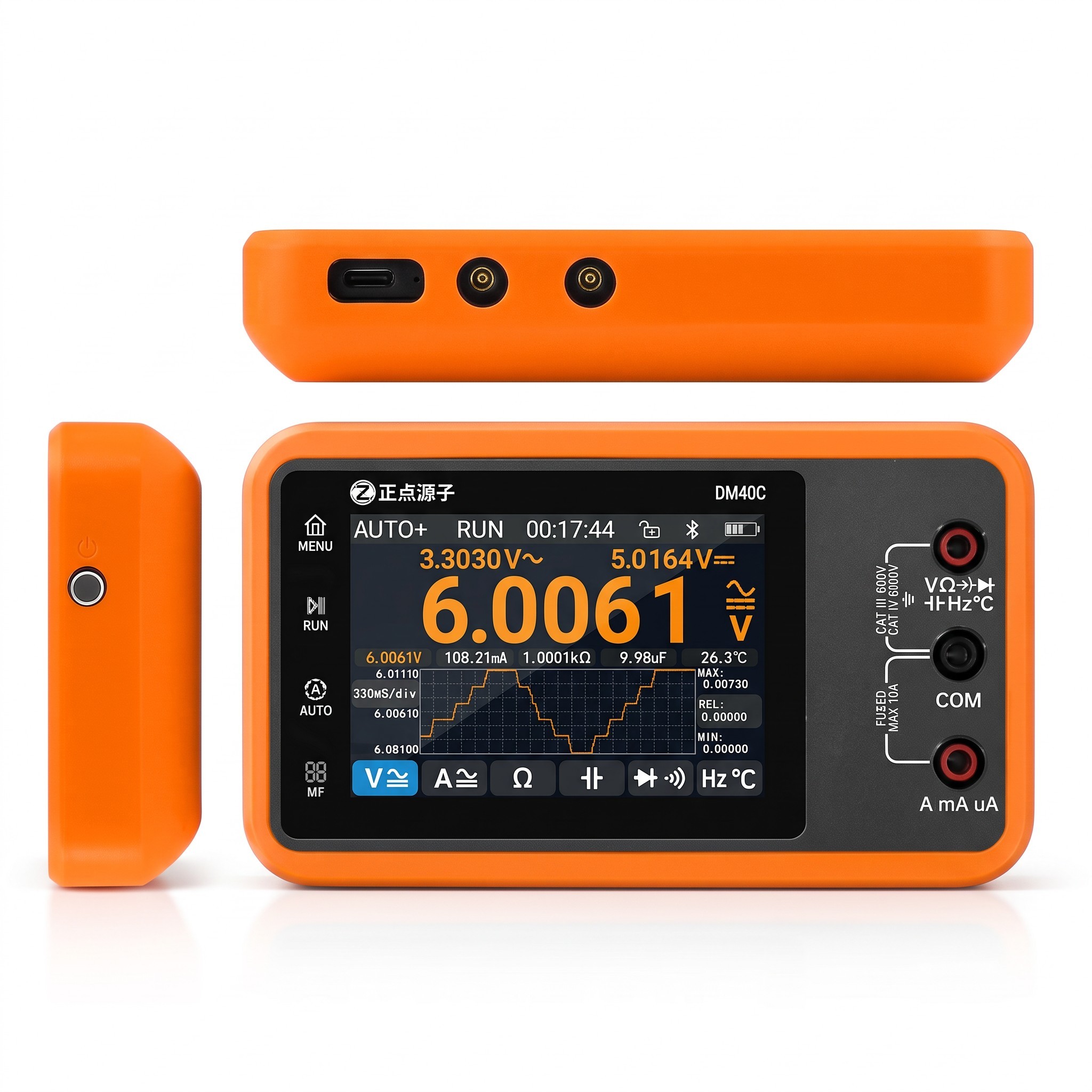

- USB-C interface for file transfer and firmware updates, MCX connectors and banana sockets
- Dimensions 140 × 83 × 25 mm, weight approximately 260 g, orange protective case and stand
- Operating conditions: 0–40 °C, humidity up to 75 %

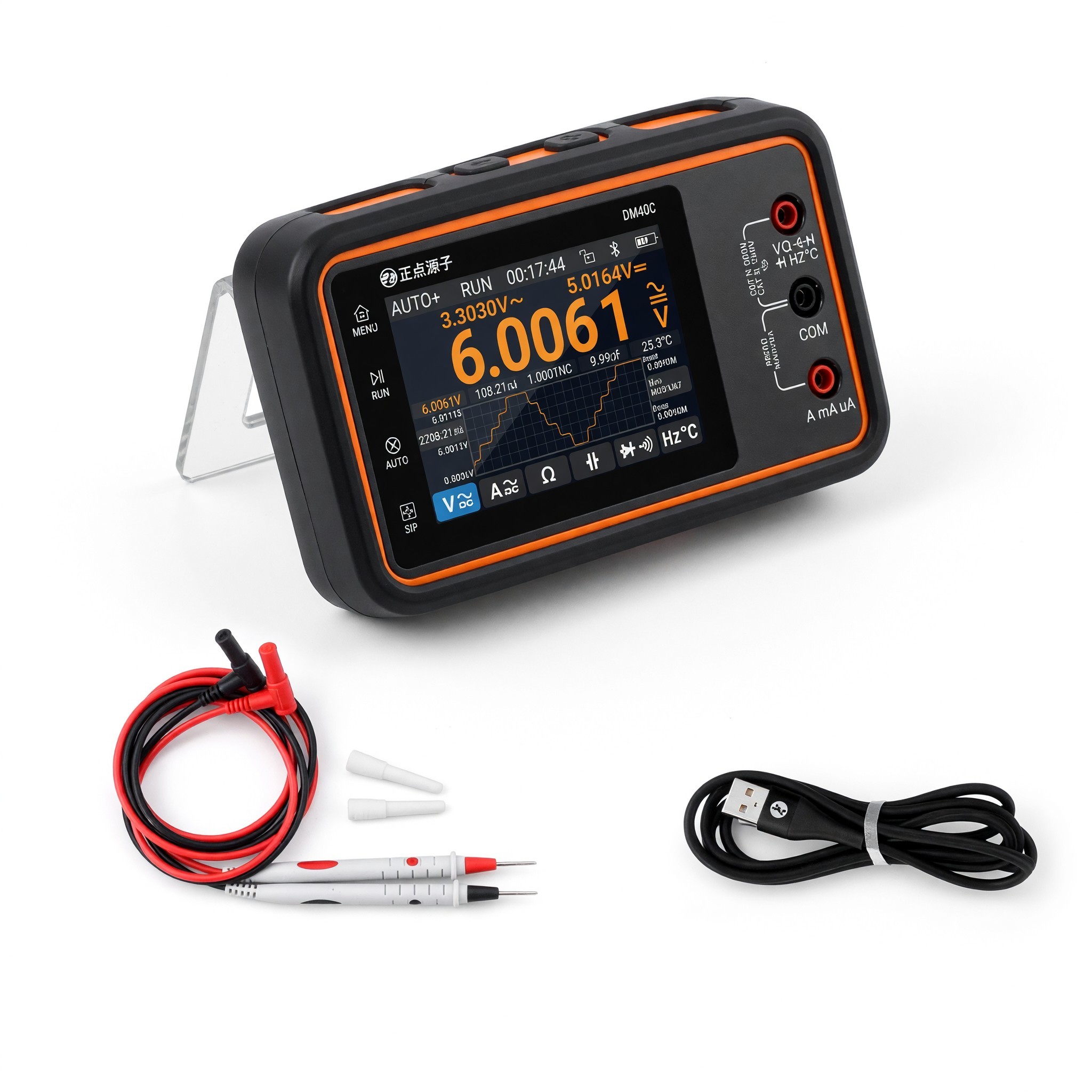

- Package contents: DM40C multimeter (including stand and PVC case), 1.2 m USB-C cable, pair of test probes

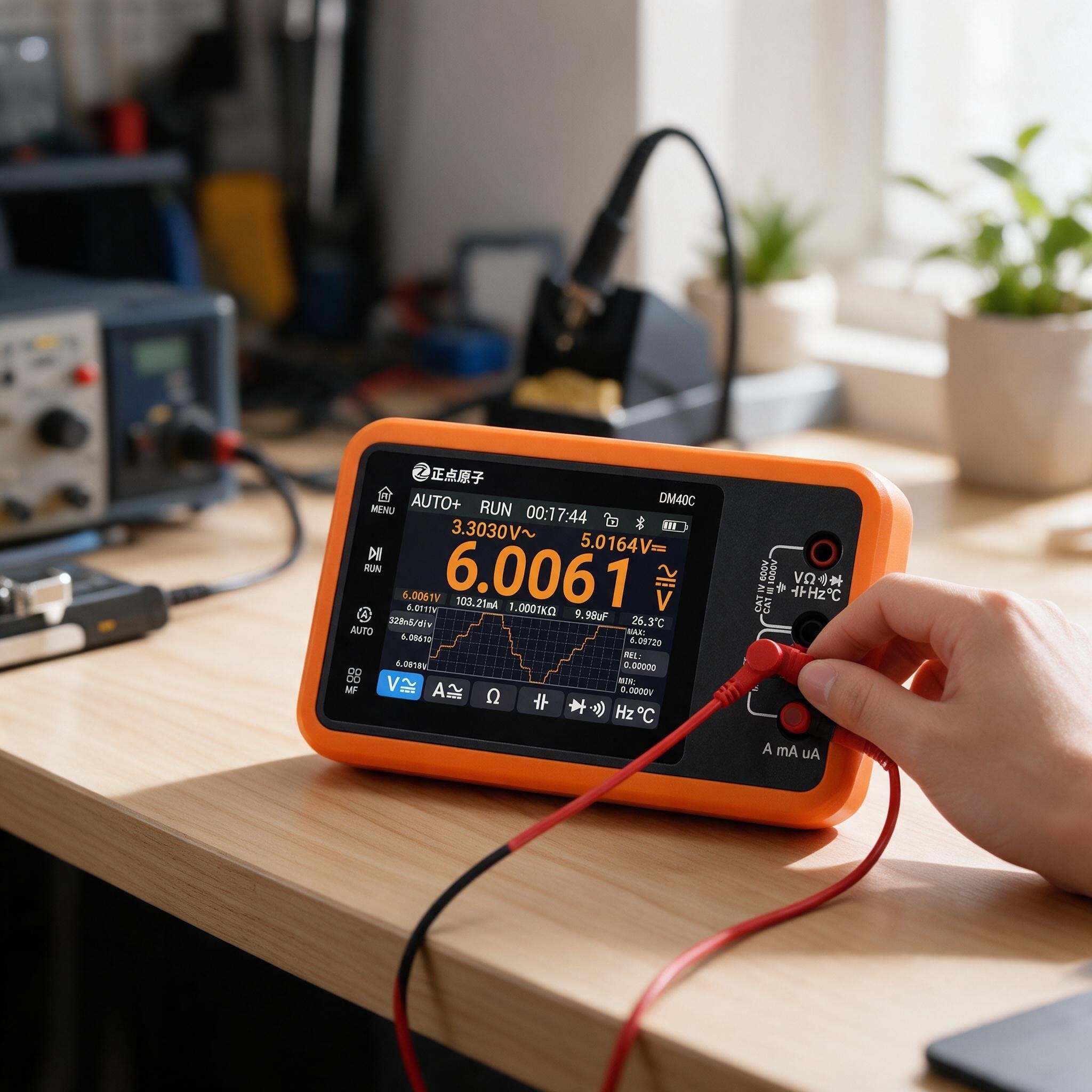

The DM40C replaces three separate devices on the workbench and, with its dimensions of 140 × 83 × 25 mm, easily fits into a tool bag. The multimeter covers common measurements of voltage, current, resistance, capacitance, frequency, and temperature, while the oscilloscope adds the display of signal waveforms up to 10 MHz. The signal generator serves as a source of test waveforms during circuit revival and tuning. The touch screen and automatic range selection speed up work, as there is no need to manually switch modes. The device is suitable for electricians, service technicians, developers, students, and hobbyists in electronics.
