Digital Frequency Inverter with RS485, 750 W, Output 0.4 kW, 220 V, 6x10.2x13.2 cm, Black, for Small Three-Phase Motors

Digital Frequency Inverter with RS485, 750 W, Output 0.4 kW, 220 V, 6x10.2x13.2 cm, Black, for Small Three-Phase Motors

Built-in inverter with MCU Inside technology, RS485 serial interface and rotary control. ON/OFF and FWD/REV buttons for easy manual operation of the motor. Full description
In stock
Delivery €1.59
30-day return policy
€63.71
Safe shopping Safe shopping
Overview
Digital Frequency Inverter with RS485, 750 W, Output 0.4 kW, 220 V, 6x10.2x13.2 cm, Black, for Small Three-Phase Motors

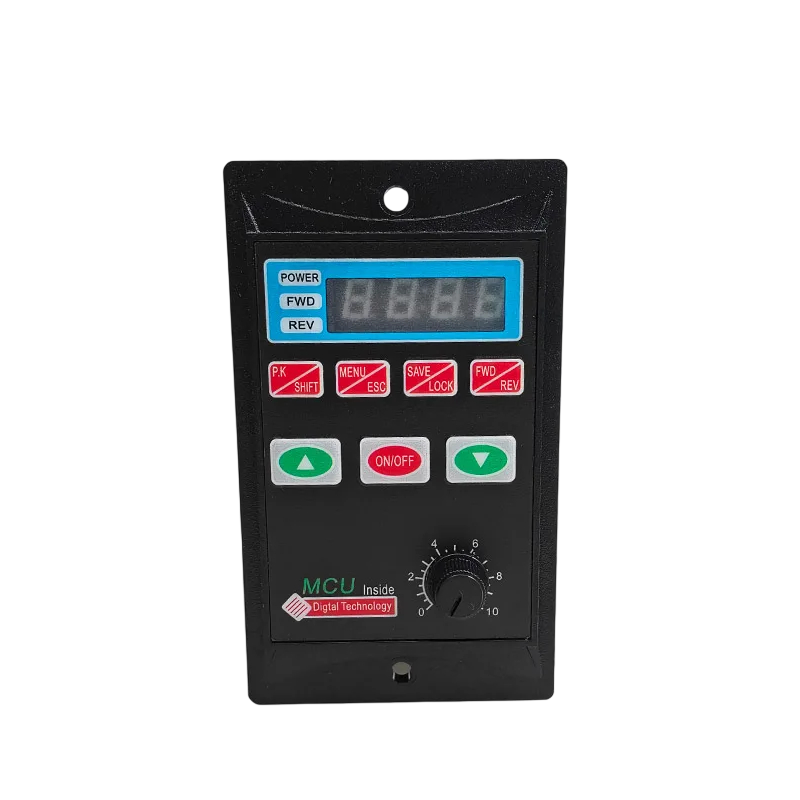

This version of the frequency inverter comes in a panel format with controls arranged in a vertical compact front. Inside, it operates with a microprocessor unit MCU Inside, which controls the output three-phase voltage for a motor with a power of 0.4 kW. Power supply of 220 V is fed to the input terminals, the output is directed to the motor, and the additional RS485 communication interface allows connection to the machine bus or PLC. At the top of the panel, there is an LED display with indicators for POWER, FWD, and REV, which informs the operator about the current status of the drive. Below the display, the control buttons P.K/SHIFT, MENU/ESC, SAVE/LOCK, and FWD/REV are arranged, complemented by green arrows and a large red ON/OFF button.

Features:

  • Microprocessor Control MCU ensures stable operation and precise parameter settings
  • RS485 Communication for remote control and integration into automated systems
  • Output Power 0.4 kW for driving small three-phase motors
  • LED Digital Display with POWER, FWD, and REV indication
  • Rotary Controller 0–10 for smooth manual adjustment of speed
  • P.K/SHIFT and MENU/ESC buttons for navigation in the parameter menu
  • SAVE/LOCK function for saving settings and locking against accidental interference
  • FWD/REV button for quick direction change of the motor
  • Central ON/OFF button in a prominent colour for easy locating
  • Mounting holes for installation into the cabinet door or machine control panel

Contents of the package:

  • 1x panel frequency inverter
  • 1x user manual

This panel inverter, focused on local manual operation, is suitable for machines where the operator needs to control the motor directly from the front of the workstation. The MCU control unit ensures precise adherence to set parameters and stable motor operation even with load fluctuations. The RS485 bus adds the possibility of diagnostics, data collection, and remote control from a superior PLC or HMI panel. The manual potentiometer with a numerical scale allows for quick speed changes without entering the programming menu. Suitable applications include small lathes, drills, conveyors, winders, pumps, and drives for customer machines assembled in the light industry.
