Digital Clamp Meter for AC Leakage Current 0.05 mA–60 A, Jaws 30 mm, LCD 1999, Automatic Range, for Electrical Installation Diagnostics
You already have the maximum available quantity in your cart.

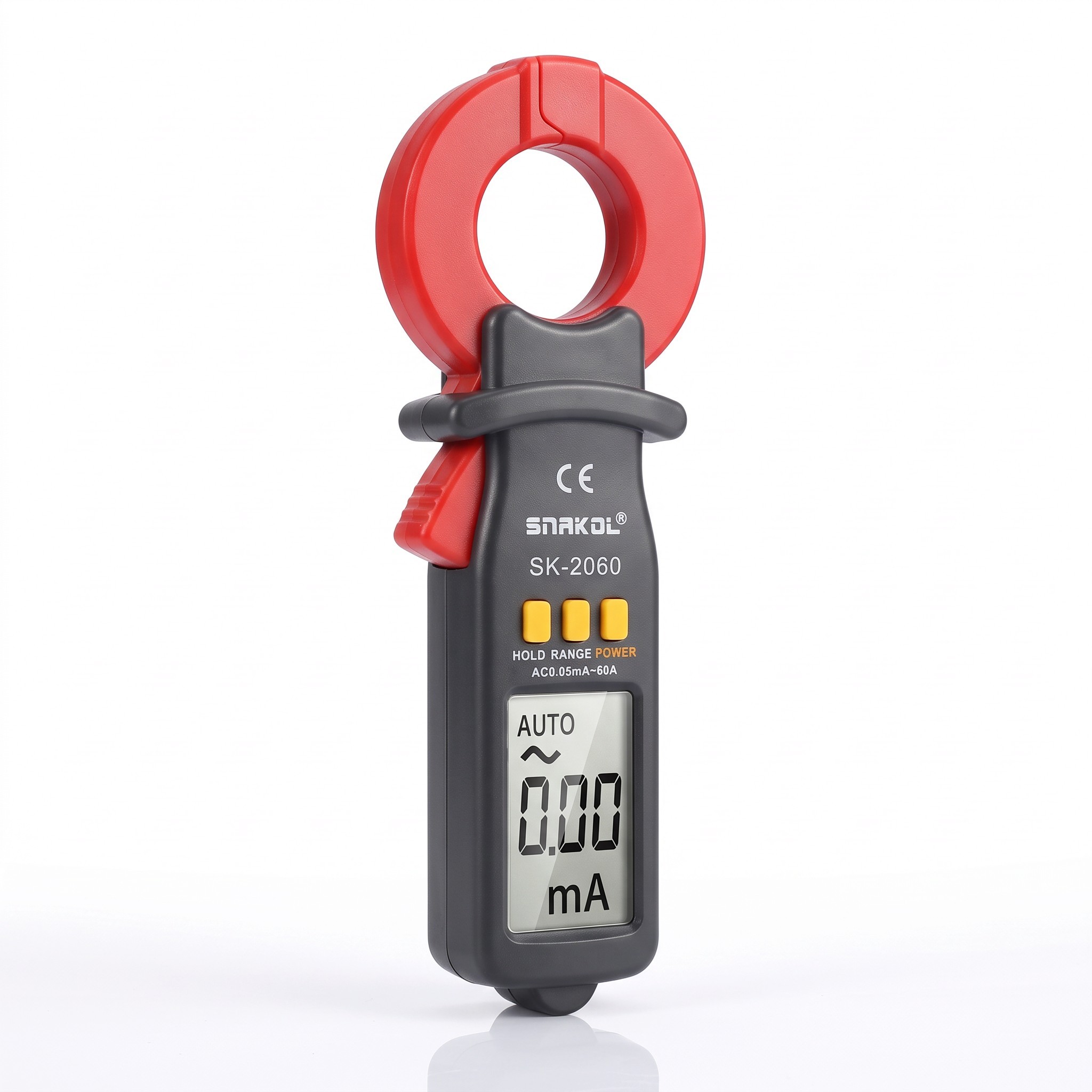

The digital clamp meter for leakage current is designed for non-contact measurement of alternating current in the range of AC 0.05 mA to 60 A. With the finest resolution of 0.01 mA, it reliably detects even very small leakage currents on earthing conductors, making it suitable for diagnosing electrical installations in homes, workshops, and industrial environments. Measurement is straightforward: by pressing the trigger, the jaws open, clamp around the conductor, and the measured value is immediately displayed on the LCD screen. In addition to measuring leakage current on the earthing conductor, the device can also check for current imbalance in single-phase and three-phase systems, which helps in identifying the causes of unwanted current leakage. Its compact dimensions of 170 × 61 × 27 mm, low weight, and wrist strap facilitate work in switchboards, confined spaces, and on-site.
- Non-contact current measurement without the need to disconnect the circuit
- Measurement ranges: AC 20 mA, 200 mA, 2 A, 20 A, and 60 A
- Resolution according to range: 0.01 mA / 0.1 mA / 1 mA / 10 mA / 100 mA
- Accuracy at 50/60 Hz: ±(1.5 % + 5) for ranges up to 20 A, ±(1.5 % + 10) for the 60 A range
- Automatic and manual range selection – in manual mode, the range is switched using the RANGE button
- Jaws with a maximum diameter of 30 mm for conductors of various cross-sections
- Control using three buttons: HOLD, RANGE, and POWER
- Large LCD display with a maximum displayed value of 1999
- HOLD function to freeze the measured value, indicated by the symbol „H“
- Low battery indication symbol on the display
- Automatic shut-off after approximately 10 minutes without button press
- Power supply: 2× AAA 1.5 V batteries
- Operating temperature: 0 °C to 50 °C
- Dimensions: 170 × 61 × 27 mm
- Weight: 136 g without batteries
- Wrist strap protects the device from falling

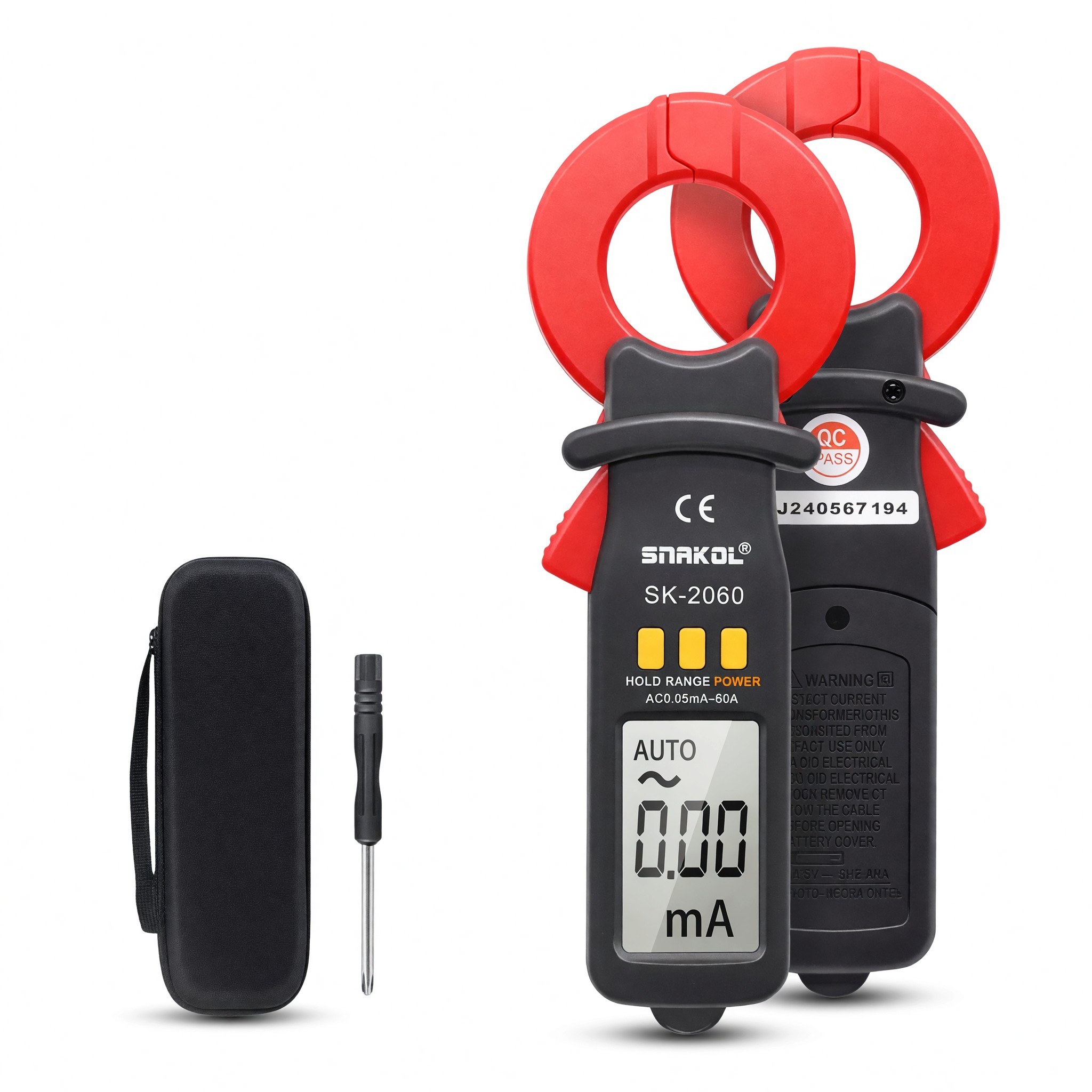

- Package contents: meter, storage case, wrist strap, small screwdriver, user manual, box
When checking leakage current on the earthing conductor, simply press the trigger, close the jaws around the earthing conductor, and read the measured value on the display, or hold it using the HOLD button. For measuring imbalance, all working conductors are inserted into the jaws simultaneously, meaning two conductors for a single-phase system, three for a three-phase three-wire system, and four for a three-phase four-wire system, while the protective earthing conductor is not included. In a three-phase five-wire system, the protective conductor must be measured separately, apart from the four working conductors. Automatic switching between five ranges, the value hold function, and automatic shut-off simplify operation and save batteries, which can be easily replaced by unscrewing the cover with the included screwdriver. The meter is thus a practical tool for electricians, service technicians, and experienced DIY enthusiasts who need to quickly determine the magnitude of leakage current and verify the condition of earthing conductors in the installation.
