DALY Smart BMS 7S-24S 100 A Active Balancer Bluetooth RS485 and CAN for LiFePO4 Batteries Red Protection for Lithium Batteries

DALY Smart BMS 7S-24S 100 A Active Balancer Bluetooth RS485 and CAN for LiFePO4 Batteries Red Protection for Lithium Batteries

Smart protective electronics with active cell balancing and communication via Bluetooth, RS485, and CAN. Suitable for building and managing lithium batteries. Full description
In stock
Delivery €1.59
30-day return policy
€130.52
Safe shopping Safe shopping
Overview
DALY Smart BMS 7S-24S 100 A Active Balancer Bluetooth RS485 and CAN for LiFePO4 Batteries Red Protection for Lithium Batteries

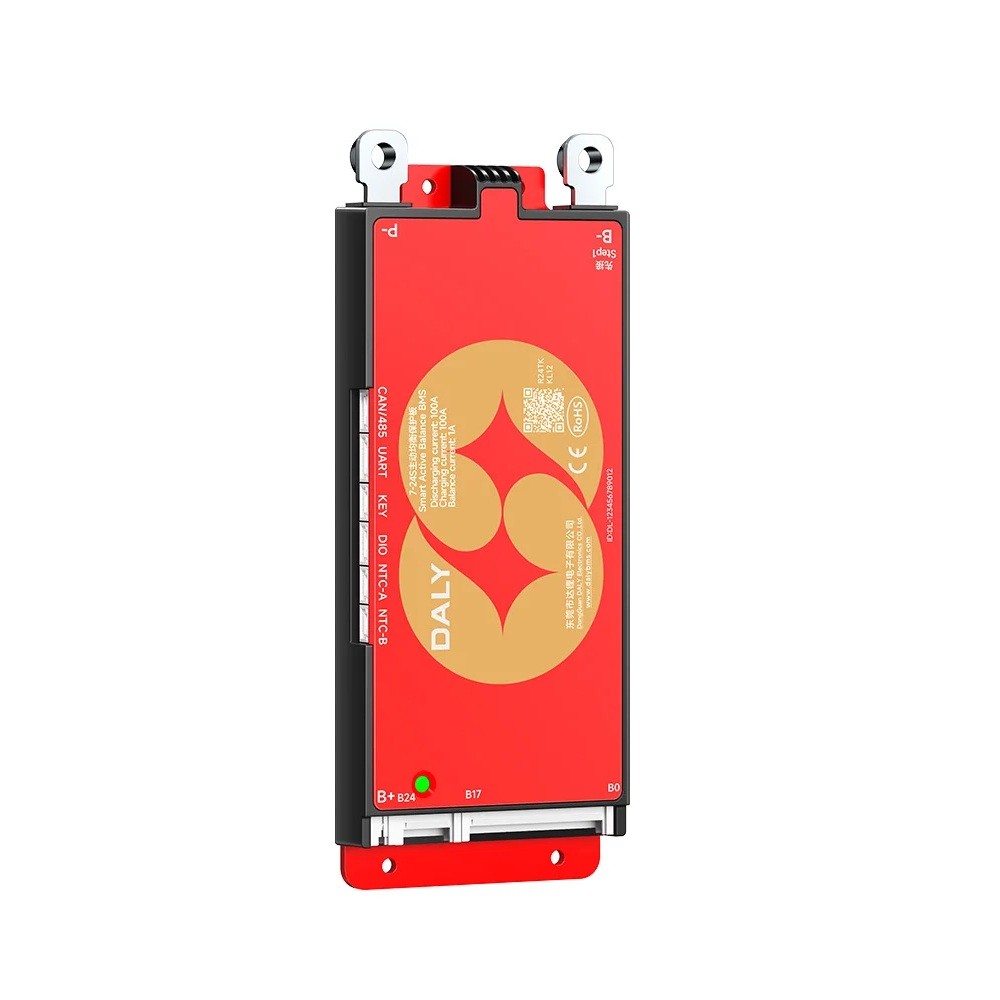

The DALY Smart BMS is an intelligent protective board for LiFePO4 lithium batteries configured in series from 7 to 24 cells. It handles a continuous charging and discharging current of 100 A and a peak discharging current of up to 150 A. With support for 7S-24S LiFePO4 batteries, it is suitable for building and maintaining your own batteries. You can monitor the battery status and individual cells wirelessly via Bluetooth in a mobile application. The board measures cell voltages ranging from 1.5 to 4.5 V and operates at a voltage above 10 V.

Built-in active balancing with a current of 1 A equalises the voltages of individual cells and increases the usable capacity and lifespan of the entire battery. In addition to Bluetooth, the board also offers communication via RS485 and CAN for connection to inverters and superior systems. The Smart BMS automatically manages charging and discharging while protecting individual cells from overcharging, deep discharging, and short circuits. Wireless management through the mobile application allows convenient monitoring of voltage, current, and charge status at any time.

Main features:

  • Cell support — 7S-24S LiFePO4 batteries
  • Discharging and charging current — continuously 100 A
  • Peak discharging current — up to 150 A
  • Active balancing — current 1 A
  • Communication — Bluetooth, RS485, and CAN, as well as UART
  • Cell voltage measurement — 1.5 to 4.5 V
  • Operating voltage — above 10 V
  • Colour — red
  • Operating temperature — -30 to 70 °C
  • Storage temperature — -40 to 85 °C

Package contents:

  • 1x DALY Smart BMS 7S-24S 100 A

This protective board represents a practical solution for assembling reliable lithium batteries for solar systems in caravans and boats. The active balancer and smart protection extend the lifespan of the cells and enhance the safety of the entire assembly. Reliable operation is ensured over a wide range of operating temperatures from -30 to 70 °C. Wireless management via Bluetooth and support for RS485 and CAN facilitate integration into superior systems. The red design with clear connectors simplifies installation and wiring.
