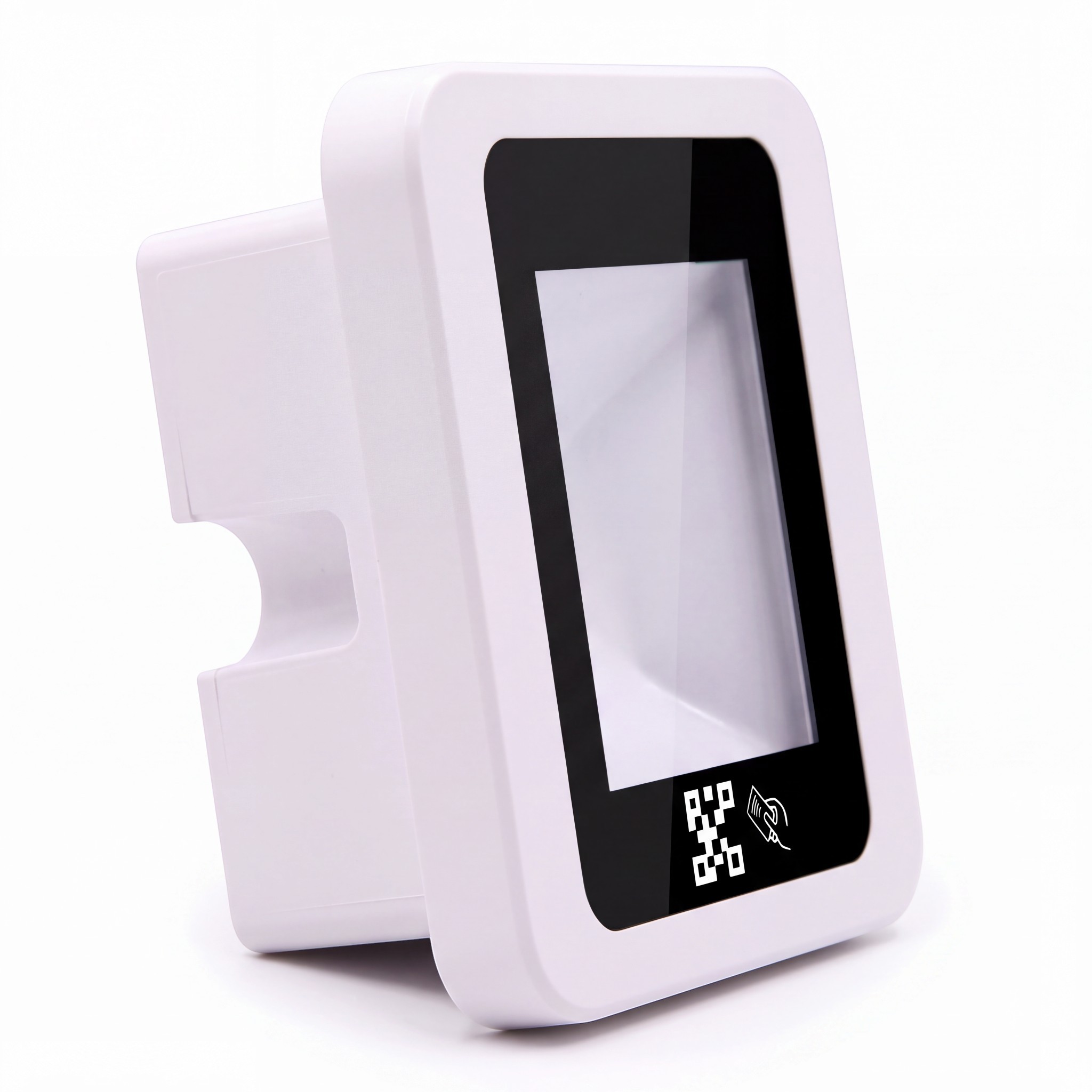

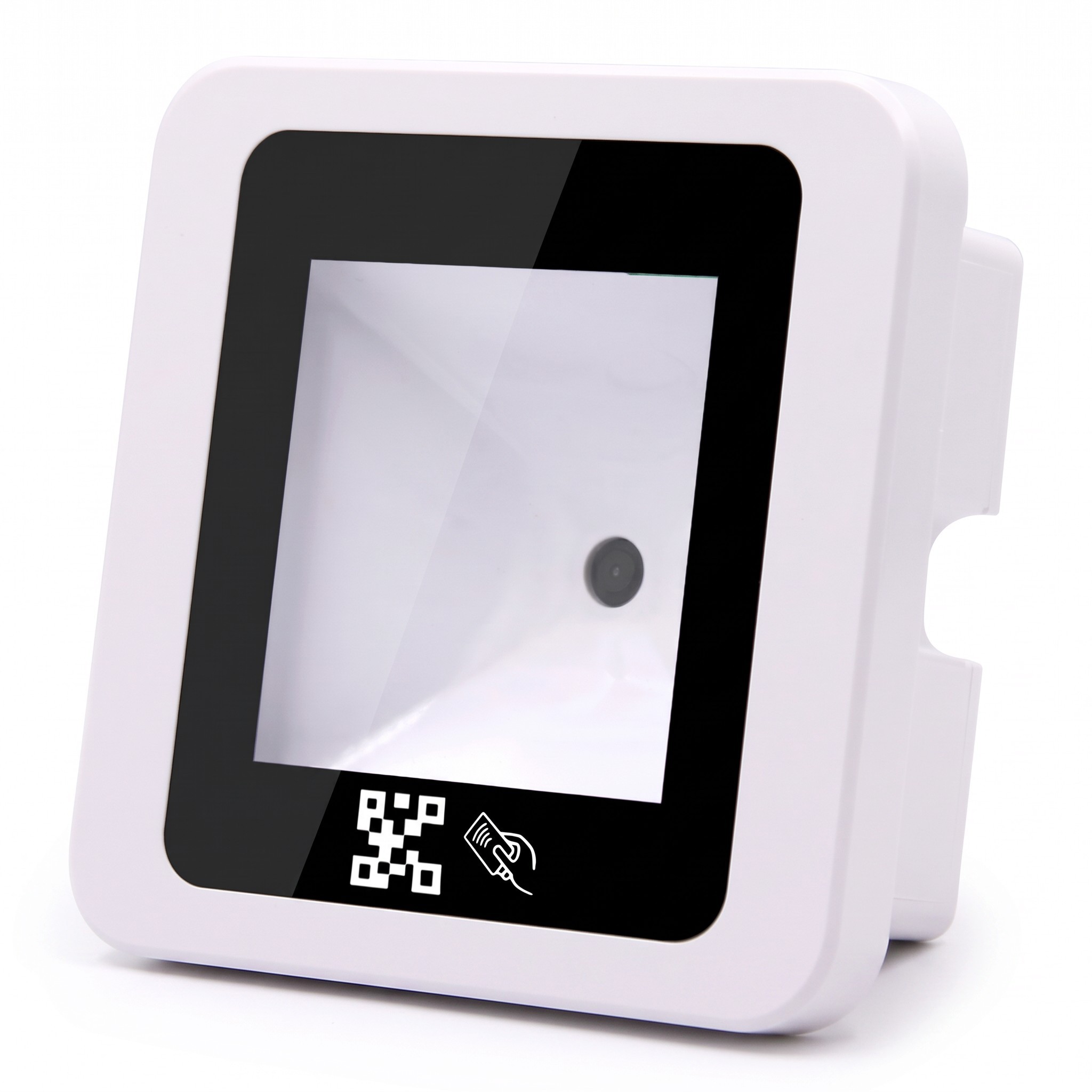

Built-in QR and Barcode Reader with RFID 13.56 MHz Mifare, 86 × 86 mm, Wiegand USB RS485, White, for Access Control and Entry Systems
You already have the maximum available quantity in your cart.

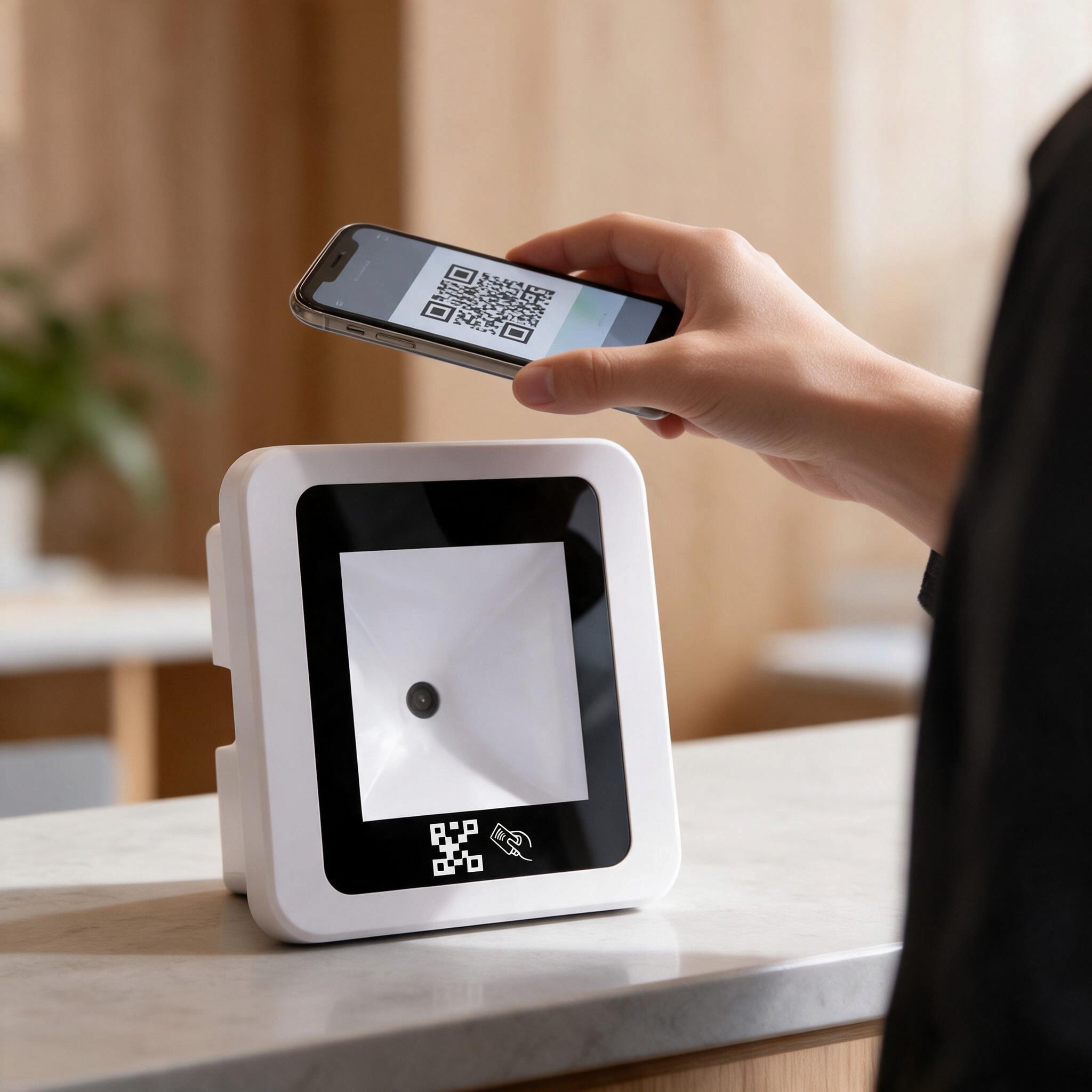

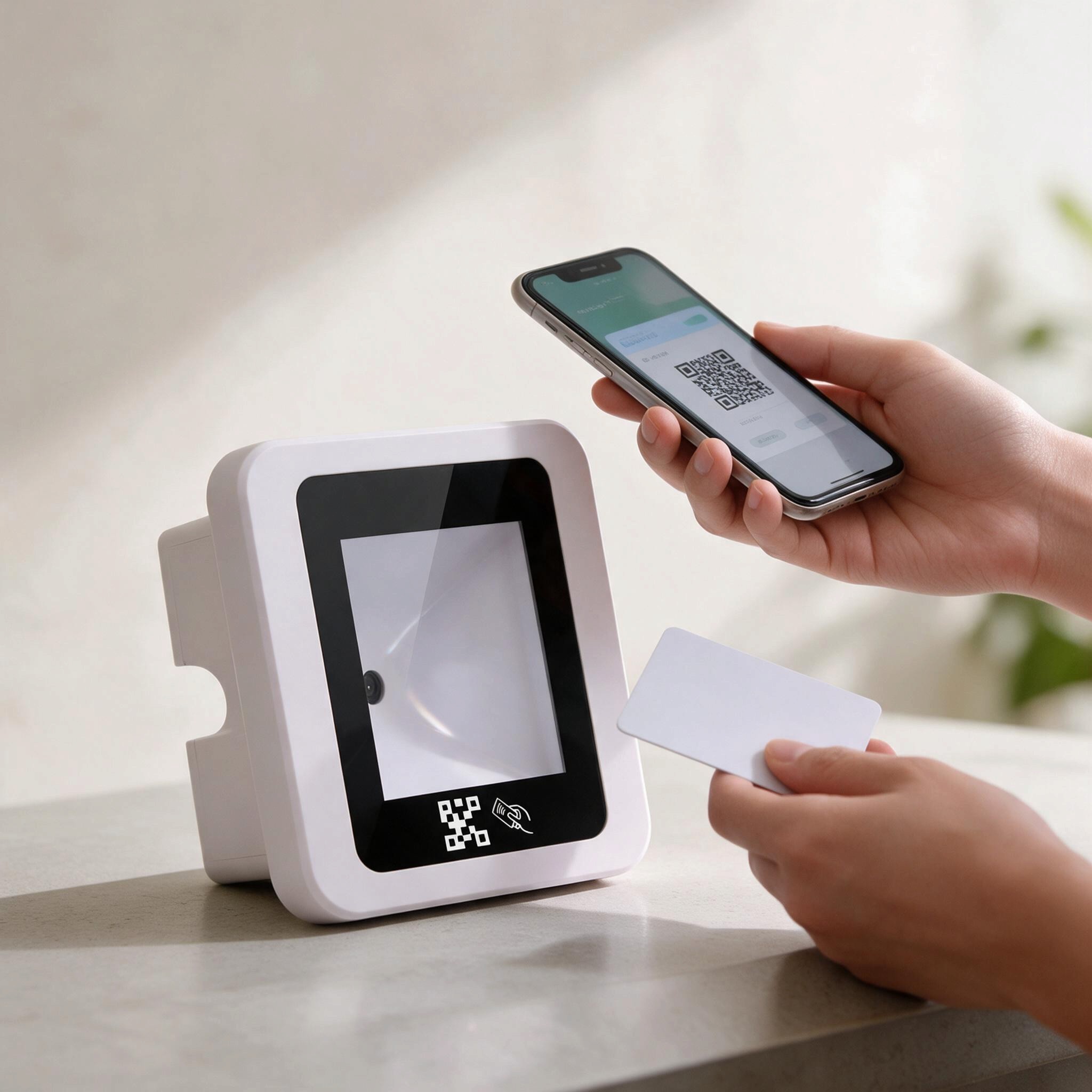

The built-in QR code and barcode reader in white combines optical code scanning with contactless reading of RFID cards Mifare 13.56 MHz. It is designed for integration into access control systems, entry gates, visitor terminals, and other devices where entry is verified by code or card. The reader recognises 1D barcodes and 2D QR codes printed on paper or plastic as well as displayed on mobile phone screens. For connection, it offers interfaces Wiegand 26/34, USB, RS232 and RS485, allowing it to be connected to standard access controllers as well as to a computer. It is applicable in managing entries in office buildings, residential communities, administrative halls, tourist areas, and smart homes.
- Codes read: 1D barcodes, 2D and QR codes, including coloured, distorted, and dirty codes
- Code source: paper, plastic, mobile phone screen or other displays
- Card reading: RFID Mifare 13.56 MHz cards at a distance of 3–6 cm
- QR code reading distance: 0–20 cm
- Reading speed: under 200 ms
- Reading method: automatic induction with confirmation beep
- Decoding: image-based, camera with a central tilt of 45°
- Communication interfaces: Wiegand 26/34, USB, RS232, RS485
- Power supply: DC 12 V, operating current 800 mA
- Fail Safe security mode with a signal for safe operation even during power failure or system failure
- Supported operating systems: Windows XP, 7, 8, 10 and Linux
- Status indication: red light for operation, green for feedback, light green for network connection
- Material: PC casing, scanning window made of tempered glass
- Dimensions: 86 × 86 × 42 mm
- Weight: 150 g
- Operating temperature: −20 °C to 70 °C
- Operating humidity: 10–90 %

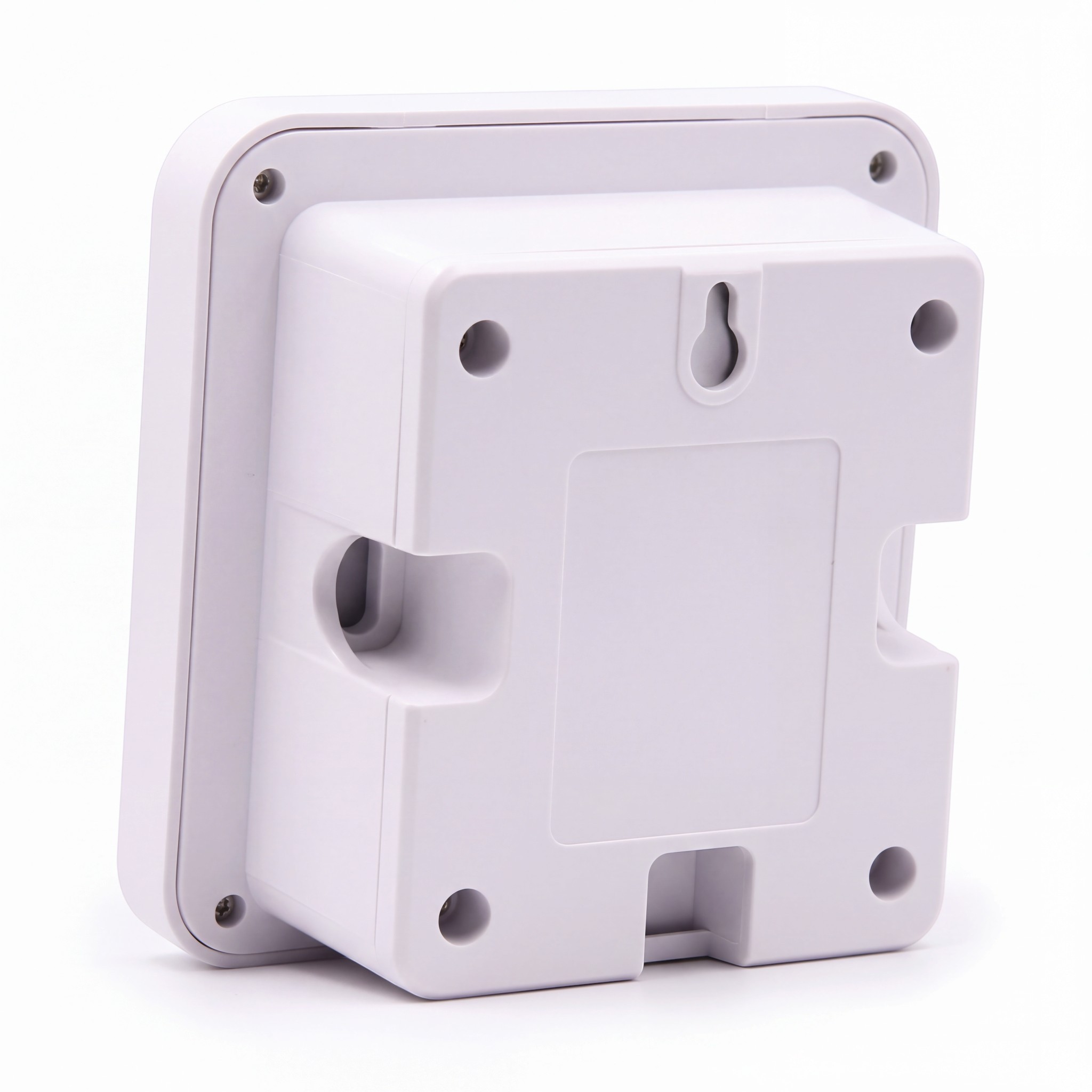

- Reset: hole on the back for factory reset, after reset the reader automatically restarts
- Colour: white
- Package contents: 1× built-in QR code and RFID card reader
The white built-in QR code and RFID card reader Mifare allows entry verification with one device for printed codes, mobile codes, and access cards. Compact dimensions of 86 × 86 × 42 mm facilitate integration into entry panels and terminals. The range of Wiegand, USB, RS232, and RS485 interfaces simplifies connection to existing control systems and software platforms. The tempered glass scanning window and operating range from −20 °C to 70 °C enable use in various operating conditions. The reader is sold individually, which is practical for new installations, replacements, and upgrades of existing access control systems.
