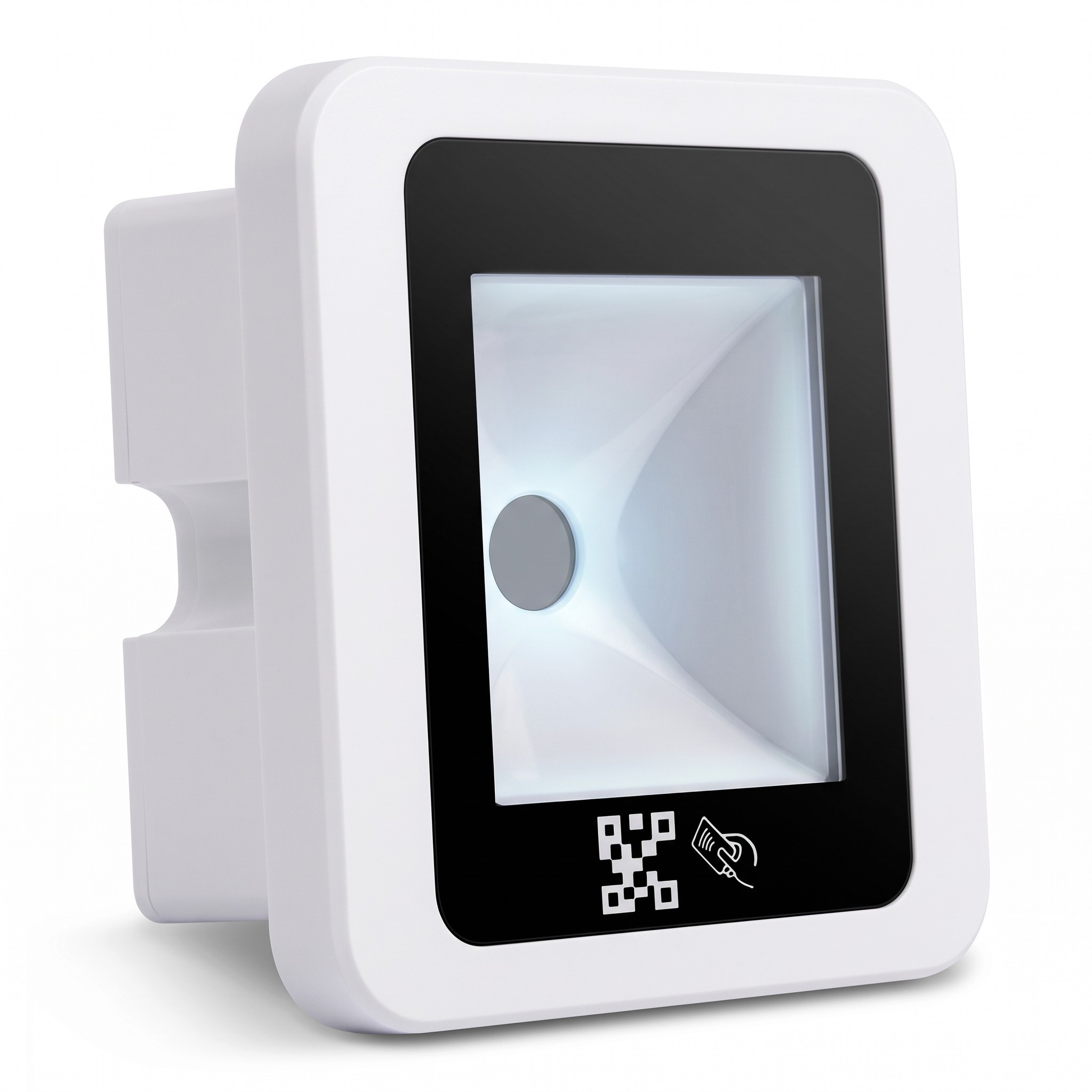

Built-in Barcode and QR Code Reader with RFID 125 kHz EM, 86 × 86 mm, USB, RS232, RS485, Wiegand, White, for Access Control and Entry Gates
You already have the maximum available quantity in your cart.

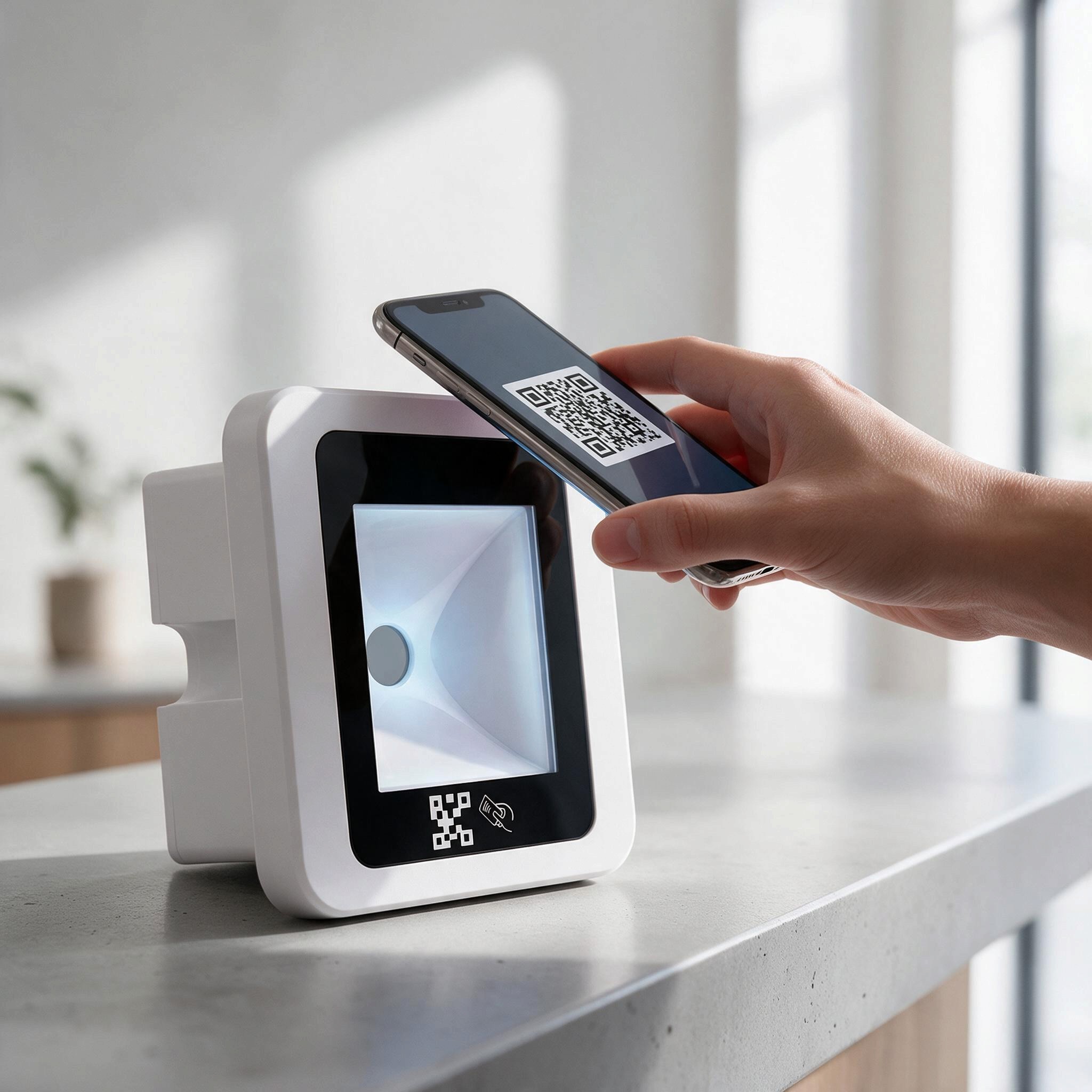

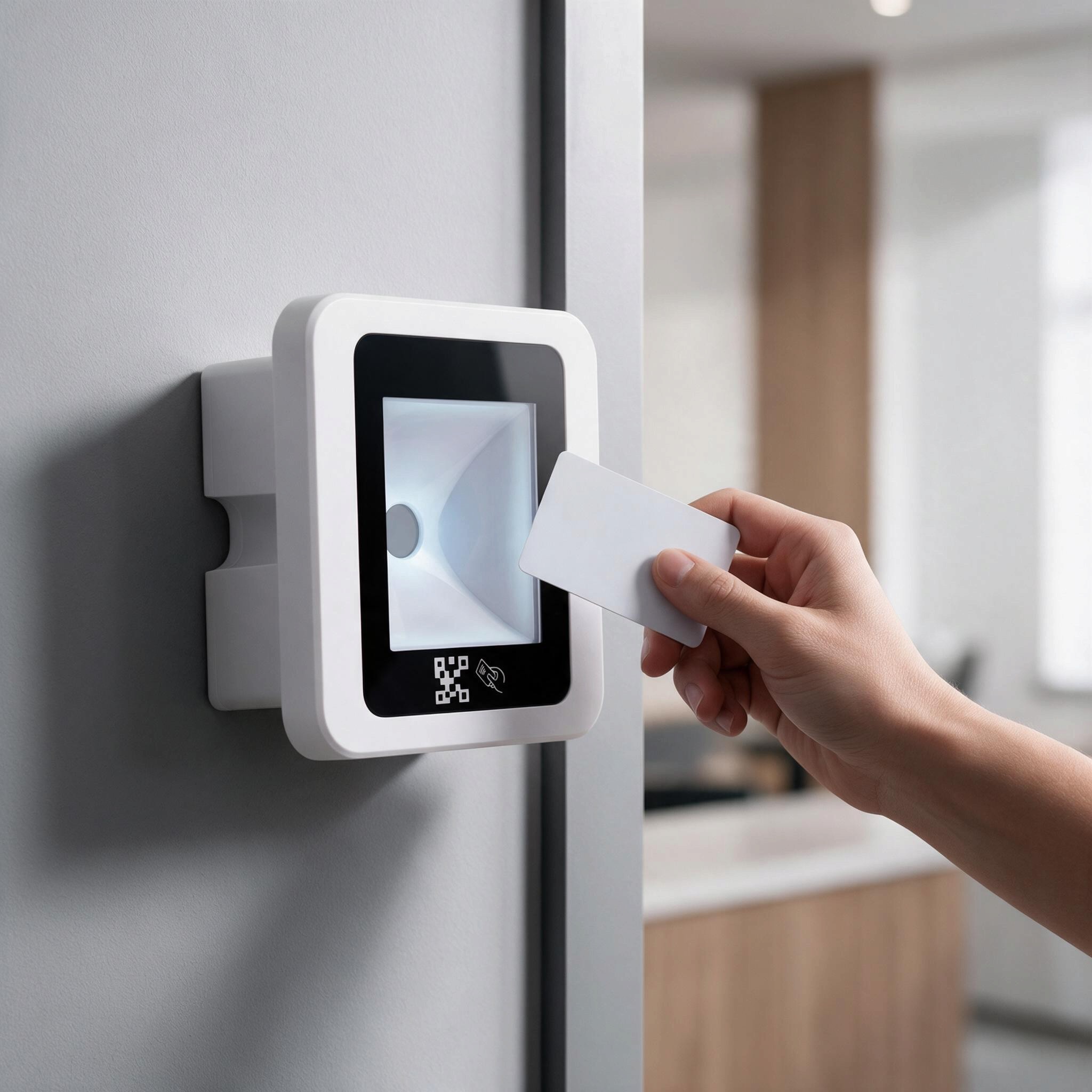

The built-in R35D reader in white combines the reading of QR codes and 1D/2D barcodes with the detection of RFID EM 125 kHz cards in a single device. It is designed for integration into access systems, entry gates, door panels, and self-service terminals for visitors. It decodes codes using an image sensor and can recognise them from paper, plastic, and mobile phone displays. Thanks to the Wiegand output, it can be connected to standard access control units and transmit the read data to third-party systems. It is suitable for visitor management in office buildings, residential complexes, administrative halls, at entrances to tourist areas, or in smart homes.
- Device Type: Combined built-in QR code, barcode, and RFID card reader, model R35D
- Supported Cards: EM cards with a frequency of 125 kHz
- Supported Codes: QR codes, one-dimensional and two-dimensional barcodes, including coloured, distorted, and dirty codes
- Communication Interfaces: Wiegand 26/34, USB, RS232, and RS485
- Decoding Mode: Image decoding, reading angle 45° with a central lens
- Reading Function: Automatic code detection and sound signalling via a buzzer
- Reading Distance: Card 3–6 cm, QR code 0–20 cm
- Reading Speed: less than 200 ms
- Power Supply: 12 V DC, operating current 800 mA
- Fail Safe security mode with signal for power failure or system failure
- Status Indicators: red – operation, green – feedback, light green – network
- Material: polycarbonate (PC), scanning window made of tempered glass
- Dimensions and Weight: 86 × 86 × 42 mm, 150 g
- Operating Conditions: temperature −20 °C to 70 °C, humidity 10–90 %
- Compatible Operating Systems: Windows XP, 7, 8, 10 and Linux

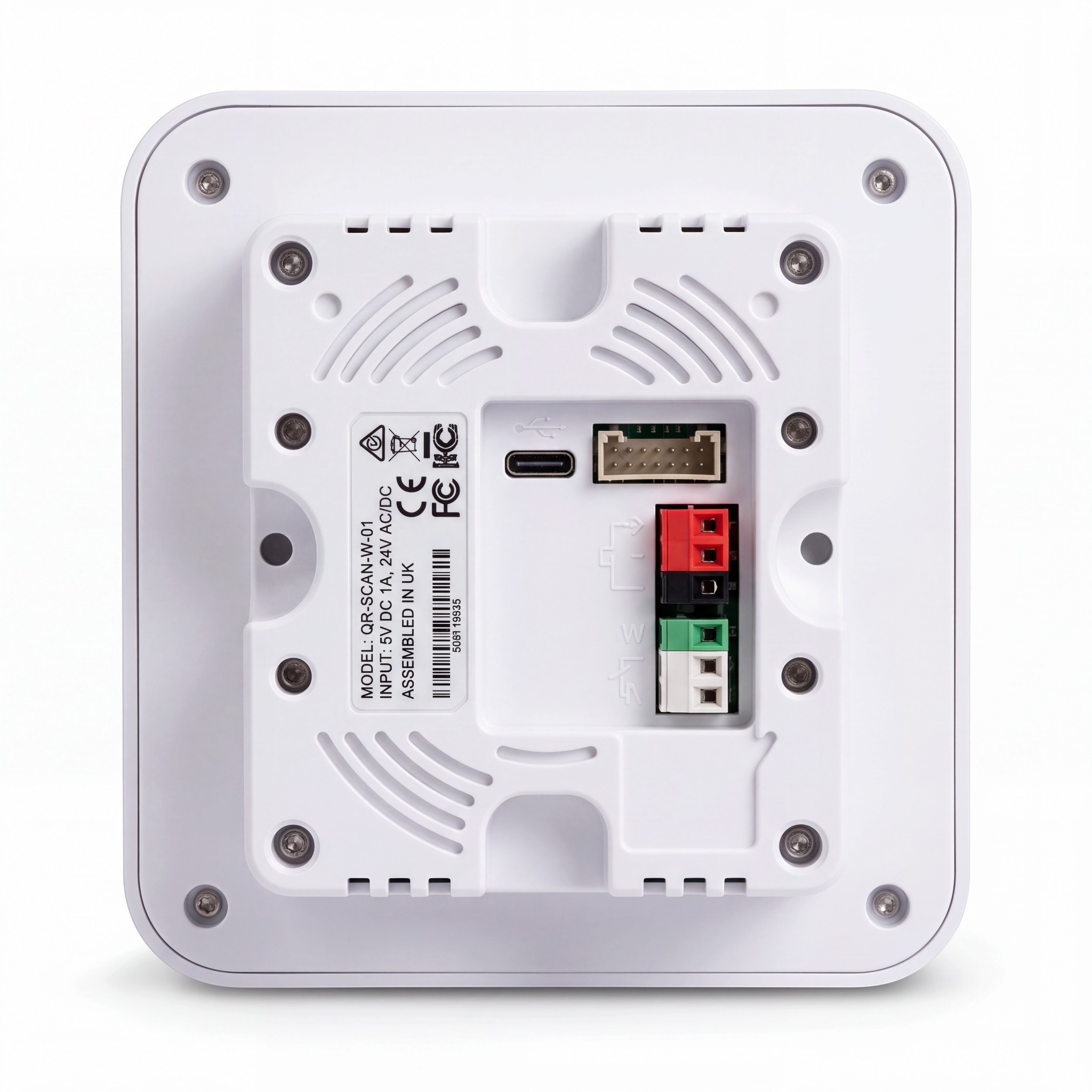

- Factory Reset: reset hole on the back of the reader
- Colour: white
- Package Contents: 1× built-in R35D barcode reader
The R35D reader is suitable for modernising existing access systems that previously only worked with cards. In addition to EM cards 125 kHz, it also allows for the verification of QR codes issued to visitors on paper or sent to mobile phones. Its compact dimensions and front panel made of tempered glass facilitate integration into posts, gates, and wall panels, while the white finish fits well into office and residential interiors. The wide range of interfaces simplifies connection to control units and computers. The reader is sold individually, making it suitable for device replacement or smaller installations.
