AC/DC Clamp Meter 600 A with Power Measurement, True RMS 10000 Counts, 25 mm Jaws, TFT Display, Black, for Electricians and Workshops

AC/DC Clamp Meter 600 A with Power Measurement, True RMS 10000 Counts, 25 mm Jaws, TFT Display, Black, for Electricians and Workshops

Measures current up to 600 A, voltage, resistance, capacitance, frequency, and temperature. Simultaneous measurement of voltage and current with power calculation, curve recording, and USB-C charging. Full description
In stock
Delivery €1.59
30-day return policy
€78.12
Safe shopping Safe shopping
Overview
AC/DC Clamp Meter 600 A with Power Measurement, True RMS 10000 Counts, 25 mm Jaws, TFT Display, Black, for Electricians and Workshops

The black clamp meter measures both alternating and direct current without the need to disconnect the circuit, while also offering the functions of a full-featured digital multimeter. The True RMS technology with a resolution of 10,000 counts ensures accurate readings even when measuring non-sinusoidal waveforms in modern electrical circuits. The clamp ammeter can handle AC/DC currents up to 600 A, alternating voltage up to 750 V, and direct voltage up to 999.9 V. The jaws with a 25 mm opening can encompass wires in distribution boards, circuit breaker boxes, and electrical appliances. This meter is suitable for electricians, service technicians, building maintenance, as well as experienced DIY enthusiasts and home workshops.

Main Features:

  • AC/DC current measurement: ranges 99.99 A and 600.0 A, accuracy ±(2.5 % + 10)
  • Direct voltage: ranges 9.999 V / 99.99 V / 999.9 V, accuracy ±(0.5 % + 3)
  • Alternating voltage: ranges 9.999 V / 99.99 V / 750.0 V, accuracy ±(1 % + 3)
  • Resistance: from 999.9 Ω to 99.99 MΩ, accuracy ±(1.5 % + 3)
  • Capacitance: from 9.999 nF to 99.99 mF, accuracy ±(2.0 % + 5), for ranges 9.999 mF and 99.99 mF ±(5.0 % + 20)
  • Frequency: from 9.999 Hz to 9.999 MHz, accuracy ±(0.1 % + 2)
  • Temperature: −55 to 1300 °C (−67 to 2372 °F) with the included temperature probe, accuracy ±(2.5 % + 5)
  • Diode test, continuity check, non-contact voltage detection (NCV), and phase conductor identification (LIVE)
  • Simultaneous measurement of voltage and current with automatic power calculation thanks to the design with two measuring chips
  • Automatic range selection, HOLD function, and MIN/MAX value display
  • Curve recording mode for monitoring value fluctuations, viewing up to 8 sets of data, and storing up to 30 sets of historical measurements
  • Leakage current detection
  • Protection of all ranges against damage due to incorrect connections
  • Colour 2.0" TFT display with backlighting for good readability
  • Powered by a built-in 3.7 V lithium battery with USB-C charging (5 V / 1 A)
  • Dimensions 193 × 74 × 32 mm, weight 194 g

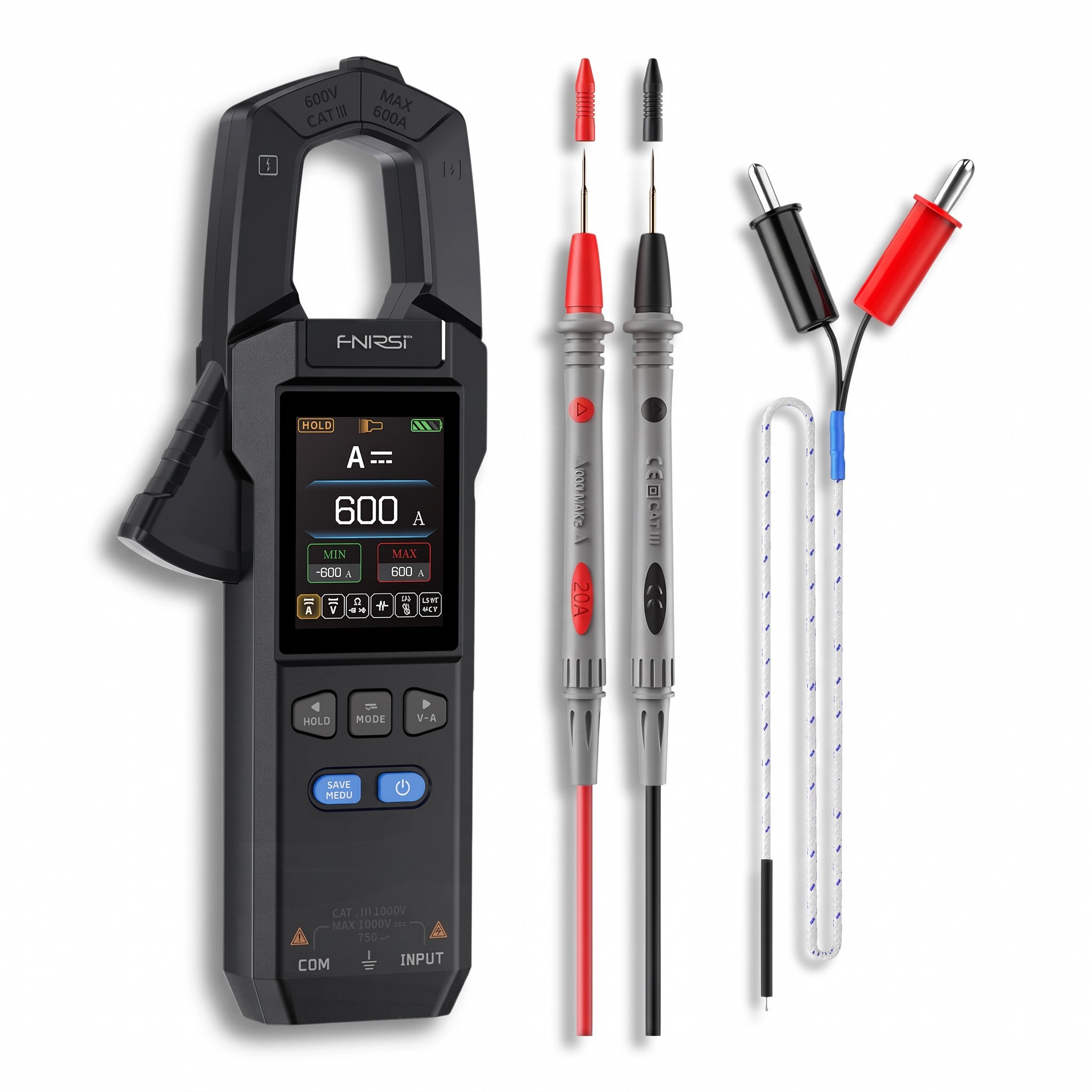

  • Package contents: clamp meter, a pair of measuring probes with protective caps, temperature probe, USB-C charging cable, user manual, box

The clamp meter combines a clamp ammeter, digital multimeter, thermometer, and voltage detector in one device. The simultaneous display of voltage and current with power calculation facilitates monitoring the consumption of electrical devices and the loading of circuits. Curve recording and memory of measured values help track data fluctuations during diagnostics and compare measurement results. USB-C charging eliminates the need for battery replacements, and the compact size allows for convenient carrying in a tool bag. The device is suitable for installation, checks, and maintenance of electrical installations in homes, workshops, and industrial settings.
