Outdoor Wall Socket with Circuit Breaker, Waterproof, 220 V / 16 A, 175 × 125 × 75 mm, ABS Plastic, Grey, for Home and Electric Vehicle Charging
You already have the maximum available quantity in your cart.

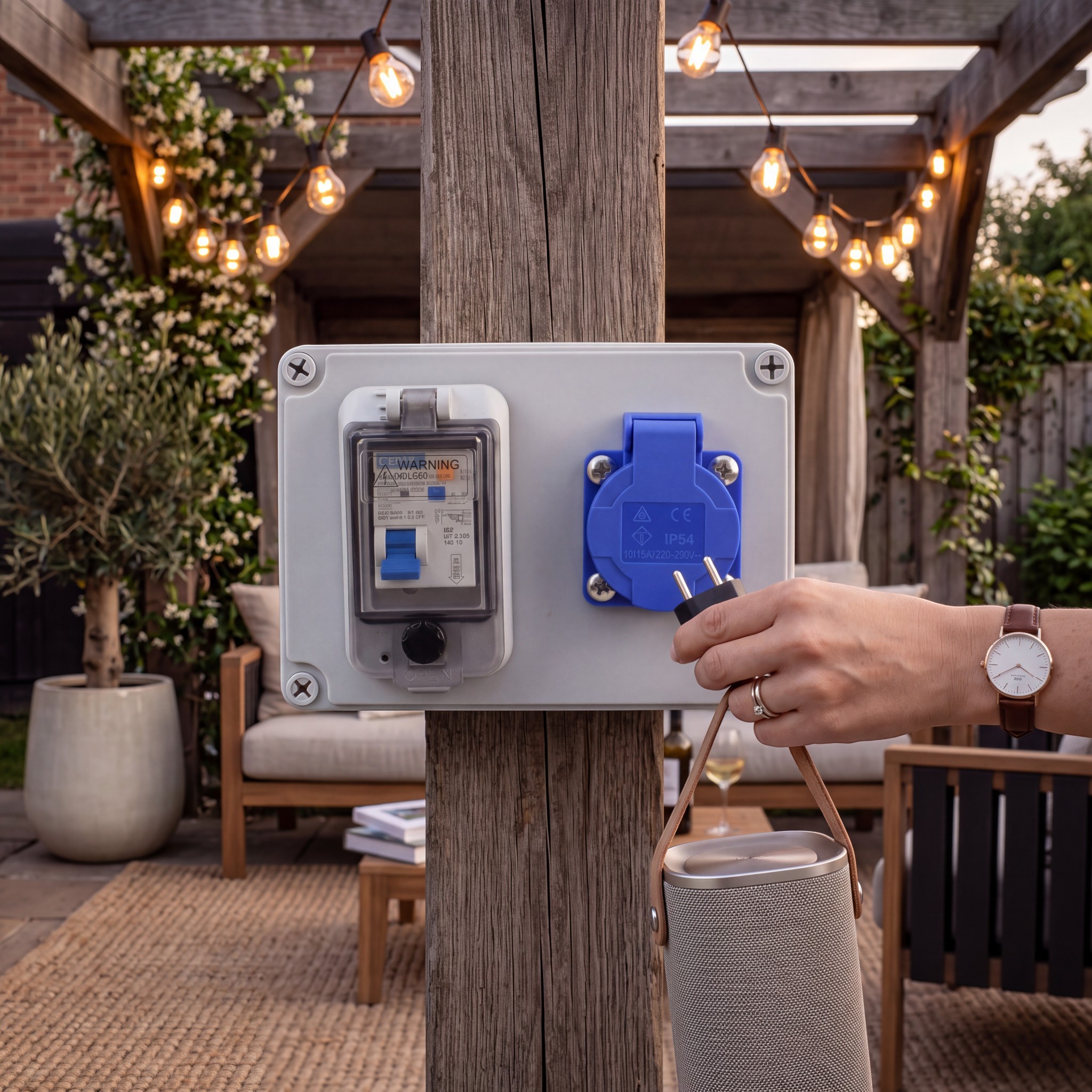

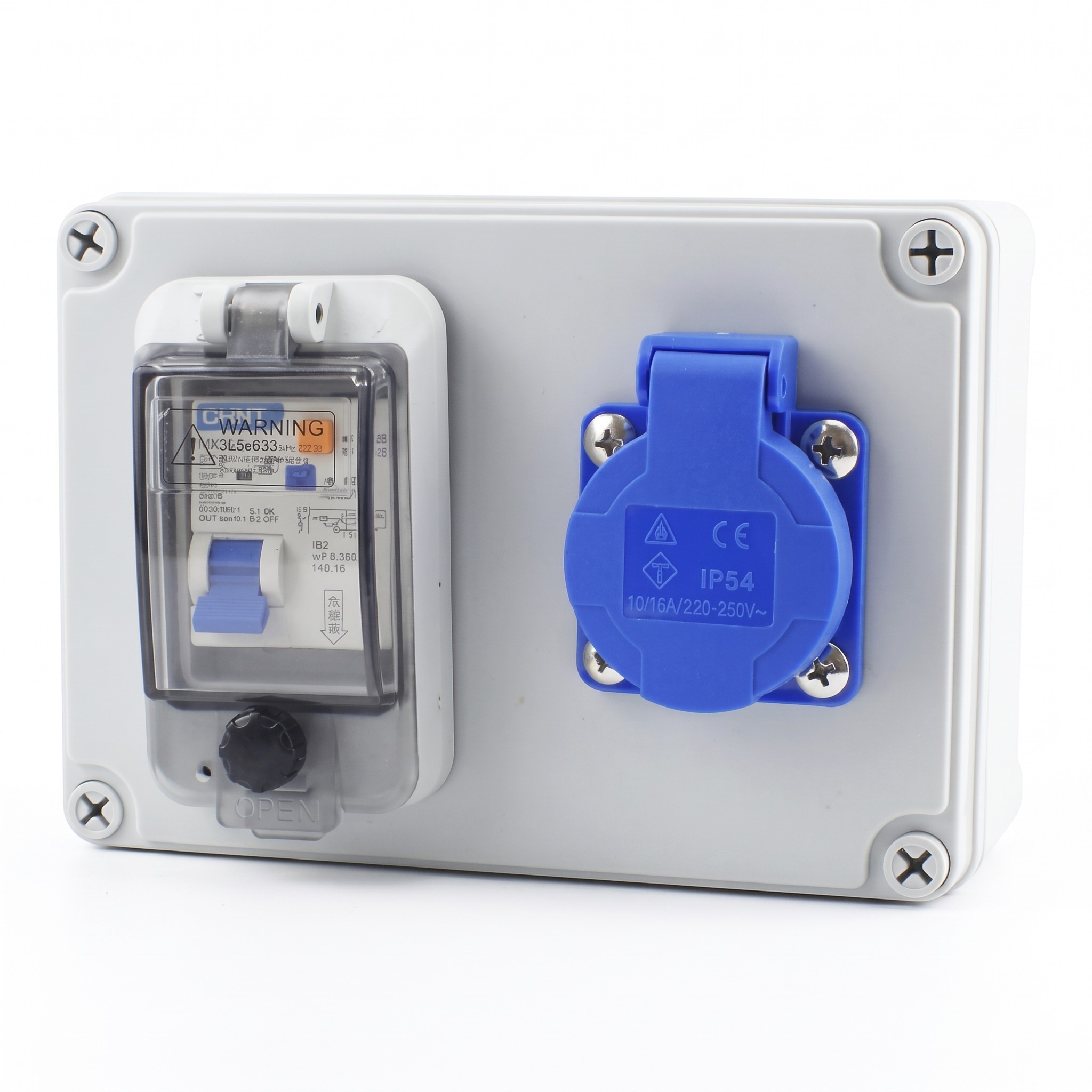

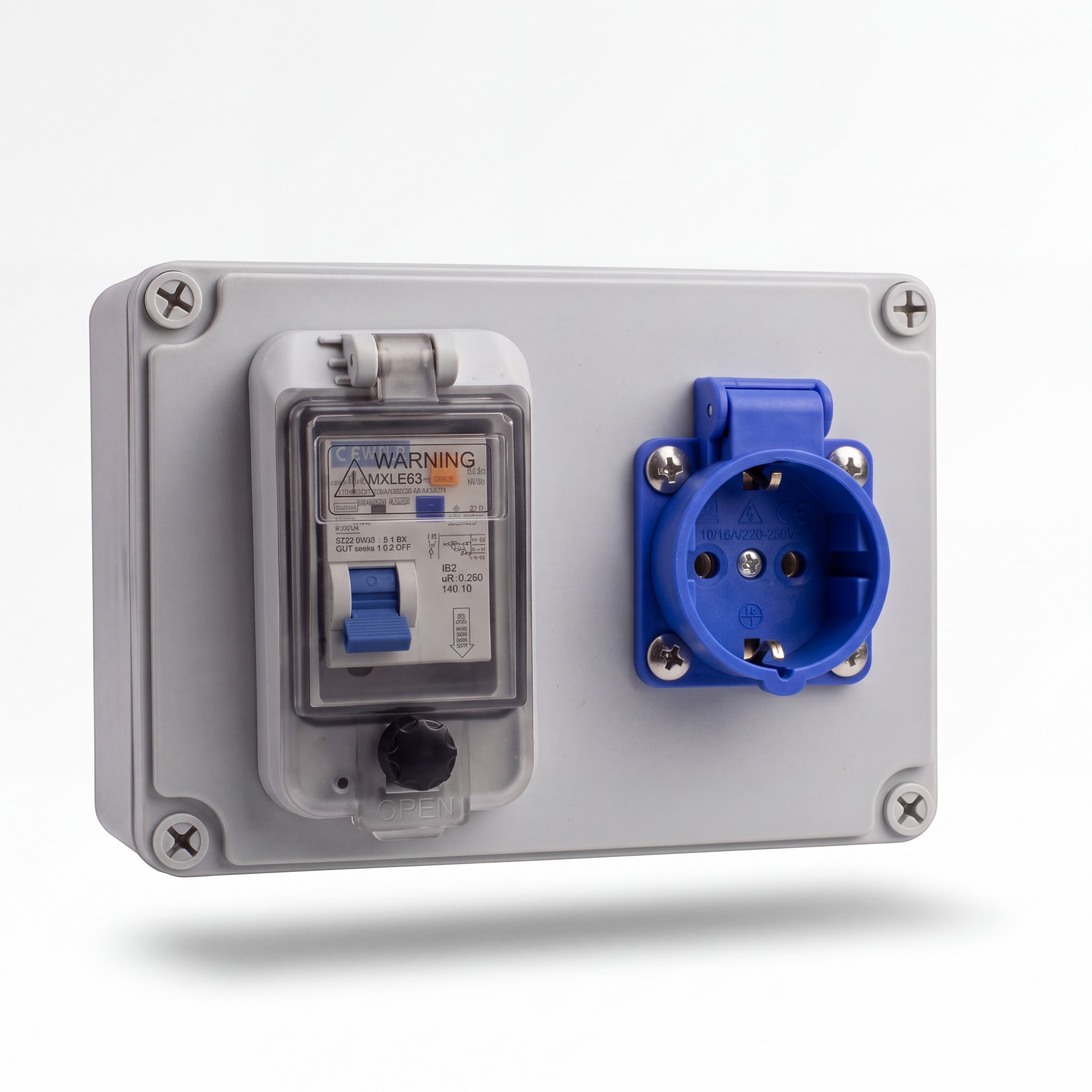

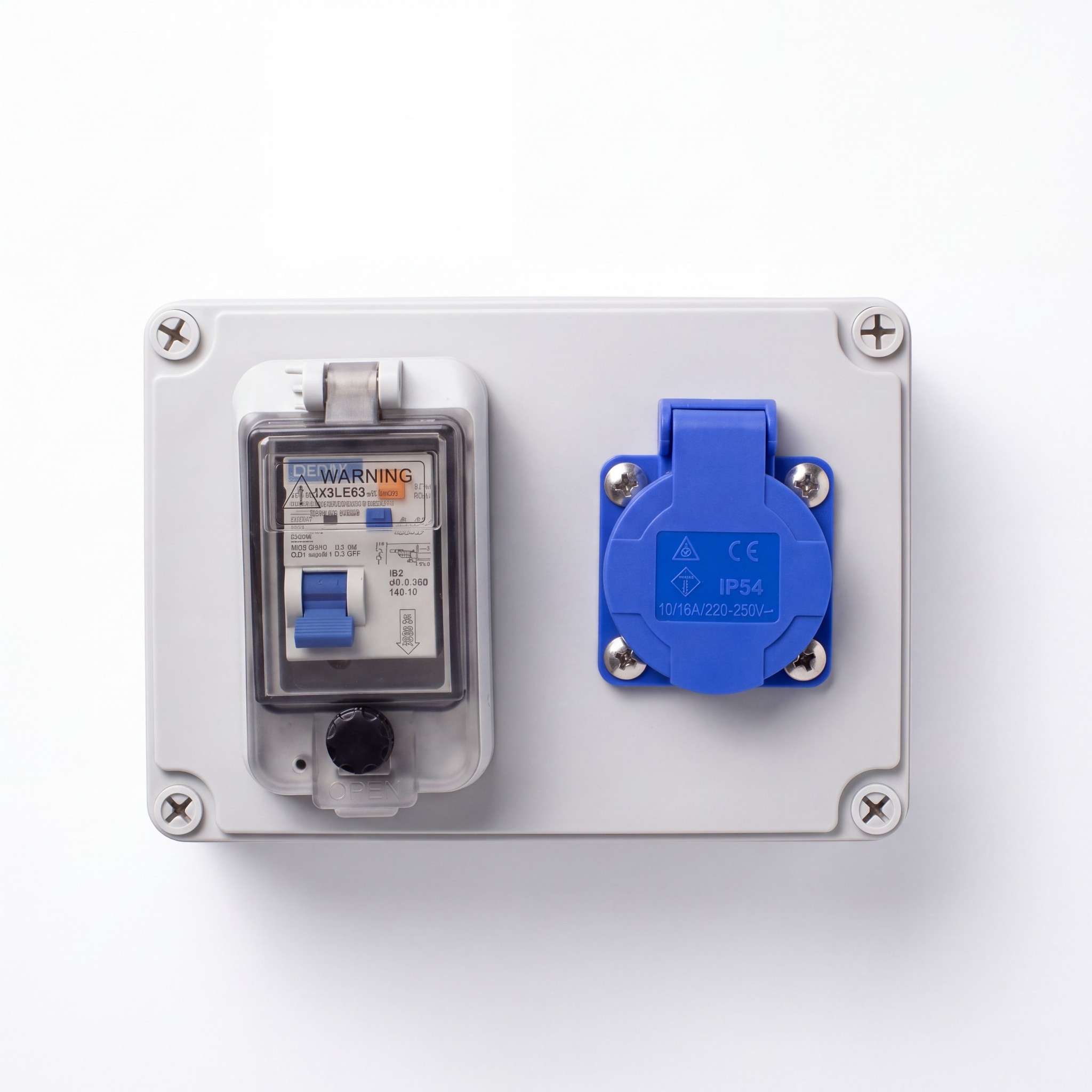

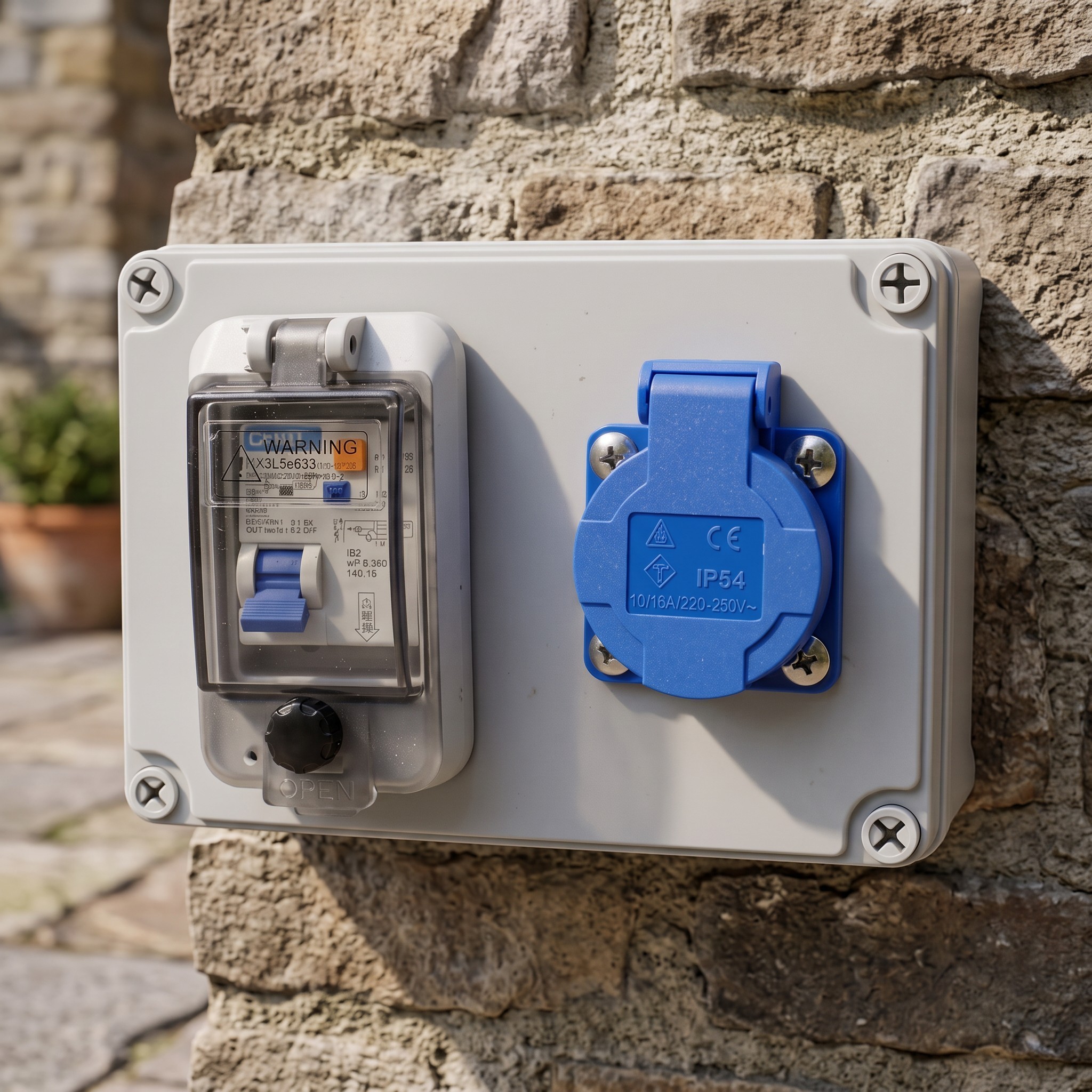

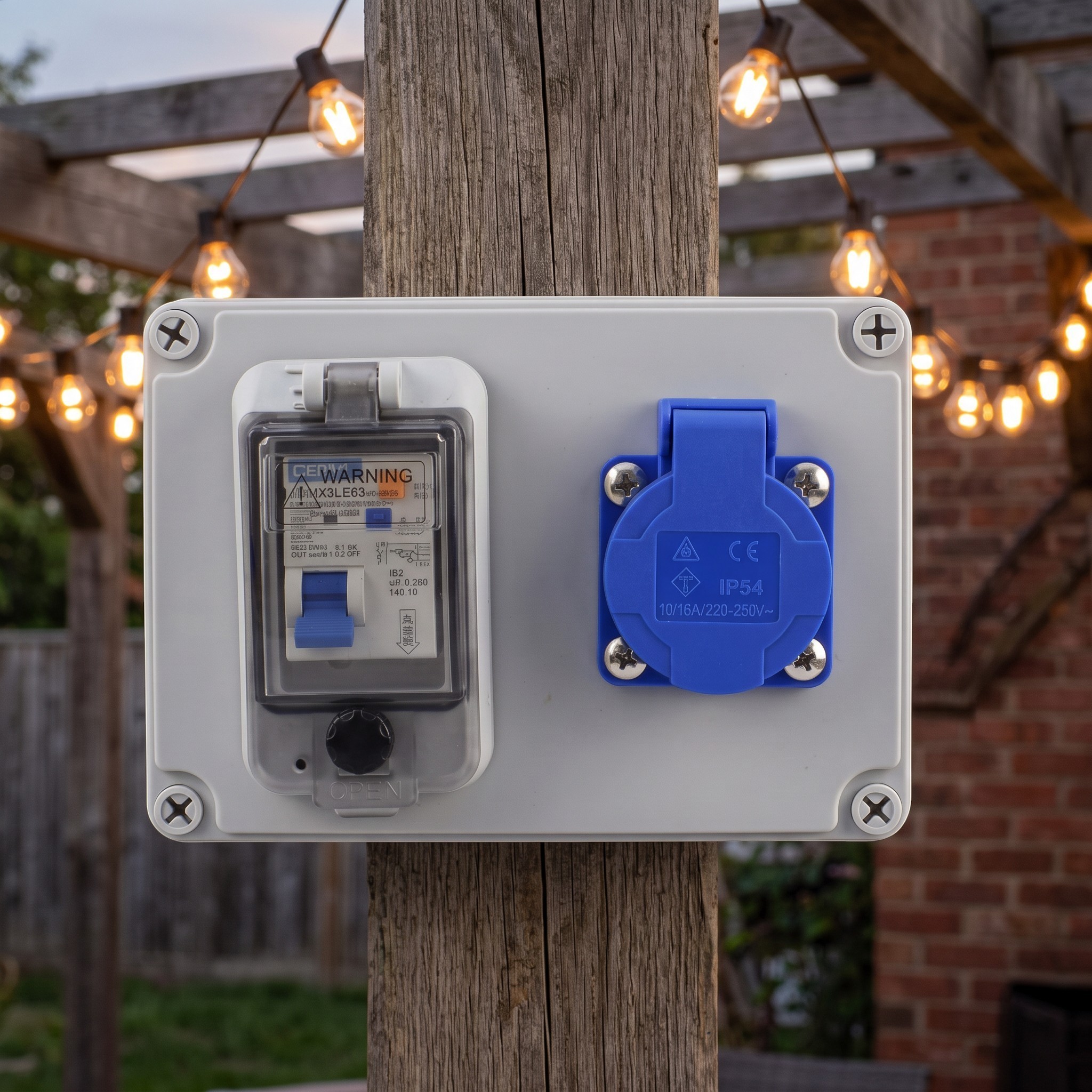

The outdoor wall socket with circuit breaker is a compact enclosure that combines a 220 V / 16 A socket with a circuit breaker, providing a separately protected point for connecting electrical appliances directly to the wall. Thanks to its waterproof design, this multifunctional socket is intended for outdoor use at home and can also be used indoors where a socket with its own circuit breaker is needed. The socket enclosure also serves as a wall-mounted charging socket for vehicles, allowing you to charge electric vehicles from a standard single-phase supply. The enclosure is made of grey ABS plastic, measures 175 × 125 × 75 mm, and, due to its wall-mounted design, does not take up space on the floor. The blue socket is protected by a hinged lid, and the circuit breaker is located under a transparent hinged cover with sealing, allowing the position of the lever to be seen without opening it.
- Design: outdoor wall socket with circuit breaker – 1 socket and 1 circuit breaker placed side by side in one enclosure
- Circuit breaker: integrated 2P 16 A circuit breaker protects the socket circuit from overload and short circuit and also serves for manual disconnection of the socket
- Socket: rated current 16 A, rated voltage 220–250 V, designed for single-phase supply and connection of standard electrical appliances
- Socket lid: hinged protective lid covers the socket when no plug is inserted
- Circuit breaker cover: transparent hinged cover with sealing that flips upwards and allows direct access to the circuit breaker lever when opened
- Protection class: enclosure IP67, socket with hinged lid IP54
- Material: enclosure made of ABS plastic, which is resistant to impacts and wear
- Colour: grey enclosure, blue socket and blue circuit breaker lever
- Dimensions: 175 × 125 × 75 mm (width × height × depth)
- Installation: wall-mounted, the lid of the enclosure is secured at the corners with four plastic screws, and the socket is attached to the lid with four metal screws
- Cable entry: opening on the side of the enclosure for the incoming supply cable
- Usage: outdoor and indoor spaces, household, connecting electrical appliances and charging vehicles
- Package contents: 1× outdoor wall socket with circuit breaker (including internal wiring)
The outdoor socket with circuit breaker is designed for households that require a protected 220 V socket on the exterior wall of the house, in indoor spaces, or as a dedicated point for charging vehicles. Since both the circuit breaker and the socket are housed in one enclosure, you can switch off the circuit directly at the point where the appliance is connected, for example, when the socket is not needed for an extended period. The hinged lid protects the socket and the transparent cover with sealing protects the circuit breaker, ensuring that both parts remain covered when not in use. The ABS plastic enclosure, measuring 175 × 125 × 75 mm, is mounted on the wall, the supply cable is fed into it through a side opening, and the internal wiring is included in the package. We recommend that the connection of the socket to the electrical installation be carried out by a person with appropriate electrical qualifications.
