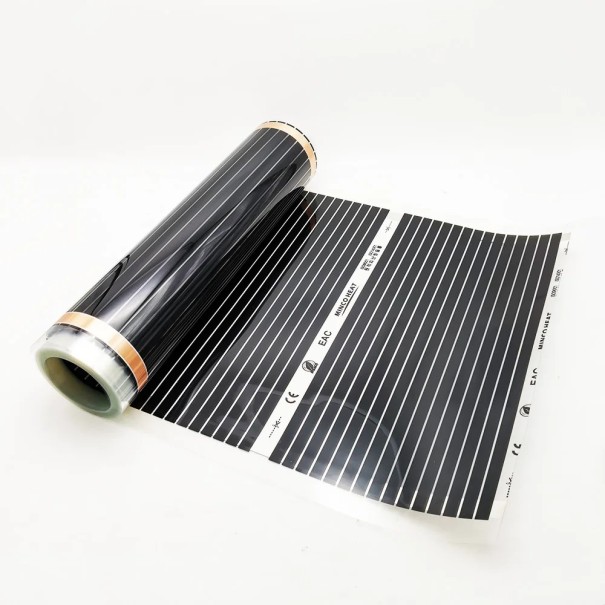

Infrared Heating Film for Underfloor Heating 50 x 200 cm Carbon Heating Film on a Roll Cuttable Heating Film for Dry Installation Under the Floor
The infrared heating film measuring 50 x 200 cm is a modern solution for comfortable underfloor heating in homes, offices, and recreational properties. The film generates pleasant radiant heat that spreads evenly across the entire surface, ensuring high user comfort without dust circulation and drafts. Due to its very low construction height, it can be used where there is no space for traditional water-based underfloor heating. This piece covers an area of approximately 1 m², making it suitable for smaller rooms as well as for supplementing an existing heating system. The heating film is supplied on a roll, allowing flexible planning of the layout in the floor.
The heating element consists of a carbon layer laminated between protective films, with conductive strips located on the sides for connection to the power supply. This principle ensures even temperature distribution across the entire surface and a rapid heat-up time upon activation. The film operates as infrared radiant heating, which warms objects and surfaces in the room, not just the air. This results in a perceived temperature that is higher even at lower thermostat settings, making the heating pleasant and economical. It is particularly suitable for use under floating floors, laminate, vinyl, or compatible carpets, always following the manufacturer's recommendations for the specific flooring.
Installation of the heating film is carried out using the so-called dry method on a prepared flat substrate. The film can be shortened as needed along the marked lines with scissors, but installation procedures must be followed, and electrical connections should be made by a qualified professional. For comfortable and safe operation, it is recommended to use a room or floor thermostat with a sensor, which allows precise temperature settings and time programmes. With proper design and connection, it is an economical and long-term maintenance-free heating system with a quick response to changes in settings.
Main Features:
- Infrared carbon heating film for electric underfloor heating indoors.
- Dimensions of one piece 50 x 200 cm, covering approximately 1 m² of area.
- Very low thickness – suitable where there is limited construction height of the floor.
- Even radiant heat across the entire surface for pleasant and stable heating without drafts.
- Can be shortened along marked lines, easy to adapt to the room layout.
- Suitable for dry installation under floating floors, vinyl or carpets according to the flooring manufacturer's recommendations.
- Operates with a thermostat for precise temperature control and economical operation.
- Long lifespan, no moving parts, and minimal maintenance requirements.
- Package contents: 1x heating film for underfloor heating 50 x 200 cm.
This heating film is suitable for both new builds and renovations, providing comfortable heating with a quick response to changes in settings. Thanks to the radiant heating principle, it helps create a pleasantly warm environment while limiting dust circulation, which is particularly appreciated by allergy sufferers. When using a quality thermostat, the system can be easily programmed according to users' daily routines, achieving an optimal balance between comfort and energy consumption. The infrared heating film represents a modern, flexible, and practical solution that transforms any room into a comfortable and cosy space all year round.
