LAUNCH X431 Diagnostic Scanner with ECU Coding Bluetooth VCI DBScar VII Red-Black for 160 Car Brands Bi-directional and Active Tests
You already have the maximum available quantity in your cart.

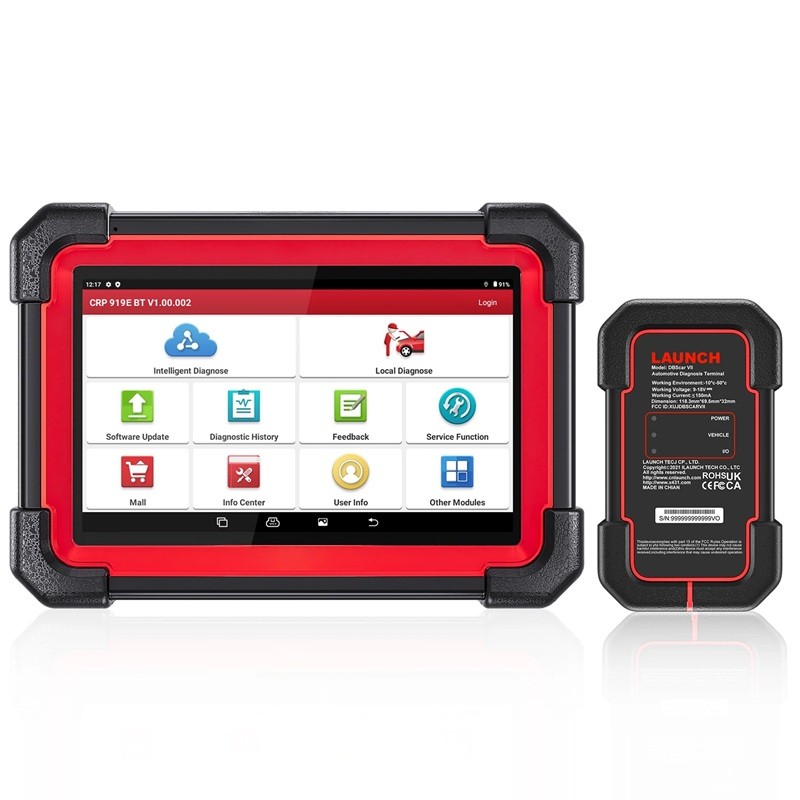

The LAUNCH X431 CRP919E BT diagnostic scanner is a professional automotive diagnostic tablet for complete diagnostics of all vehicle systems at original equipment level. It communicates wirelessly thanks to the VCI DBScar VII connector connected via Bluetooth with a range of up to 10 m, allowing you to work without cables between the tablet and the vehicle. In addition to reading and clearing fault codes, it also handles ECU coding and bi-directional active tests of individual components. Automatic VIN reading and intelligent diagnostics quickly identify the vehicle and the likely fault. The tablet runs on the Android system with a 7-inch touchscreen display and a fast quad-core processor. It covers more than 160 vehicle brands from 1996 to 2025 and supports 23 languages. Communication with modern vehicles is ensured by CAN FD, DOIP protocols, and FCA AutoAuth verification.
Main features:
- Diagnostics of all systems — reading and clearing codes, data streams, and service functions
- ECU coding — online coding for VW, Audi, Škoda, Ford, Lincoln and Mazda
- Bi-directional control — more than 4000 active tests of vehicle components
- 35+ service functions — oil reset, SAS, ABS, DPF, injectors, brakes, and TPMS
- Wireless VCI — DBScar VII connector via Bluetooth with a range of 10 m
- Auto VIN and auto scan — vehicle recognition from 2006 and reading up to 7000 codes
- Data stream — eight-channel graphical display of parameters in real-time
- Protocols — CAN FD, DOIP and FCA AutoAuth verification
- Expansion modules — compatibility with BST360, i-TPMS, VSP600 and key programmer

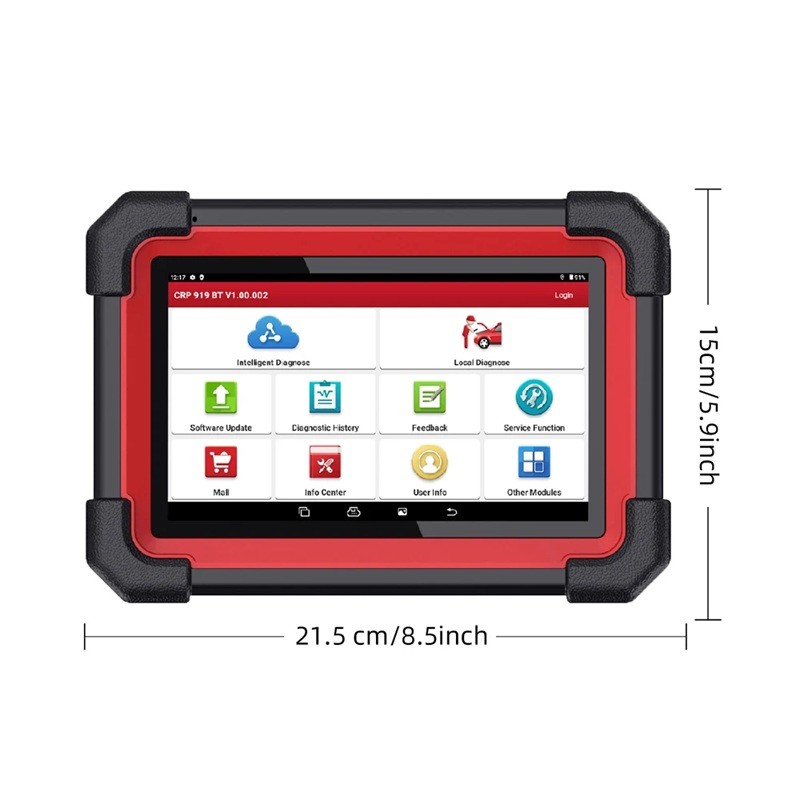

- Display — 7-inch touchscreen display with a resolution of 1024 x 600
- Hardware — Android 10, quad-core processor 2.0 GHz, 4 GB RAM and 64 GB storage
- Power — built-in 6300 mAh battery and 8 MP camera
- VCI parameters — 9 to 18 V, current up to 150 mA and dimensions 118.3 x 69.5 x 32 mm

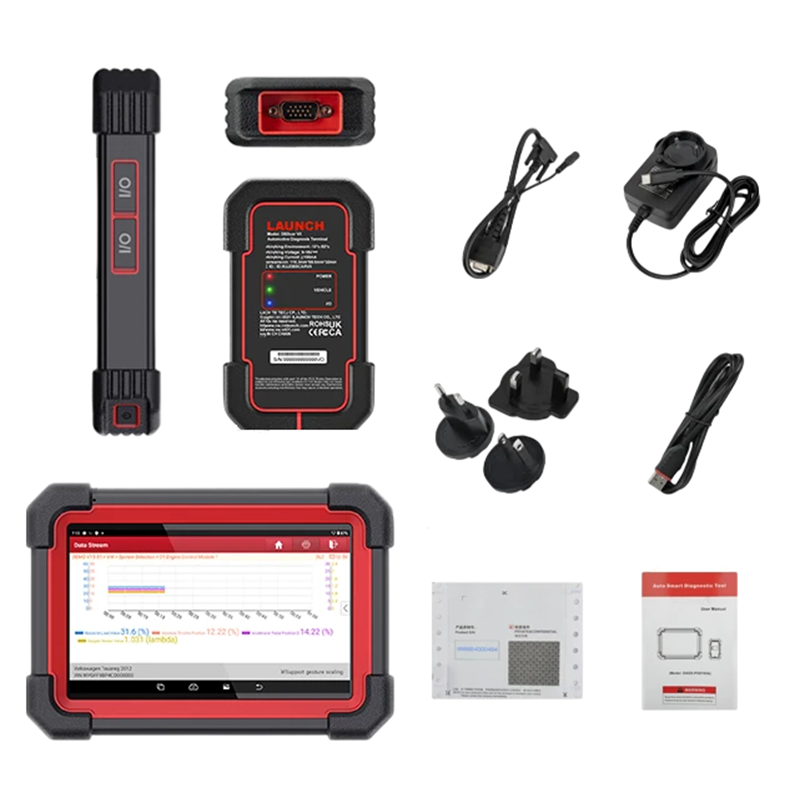

Package contents:
- 1x LAUNCH X431 CRP919E BT tablet
- 1x DBScar VII VCI connector
- 1x diagnostic cable
- 1x power adapter
- 2x interchangeable plug adapters
- 1x USB Type-A to Type-C cable
- 1x envelope with password
- 1x quick guide
The LAUNCH X431 CRP919E BT scanner is appreciated by mechanics and demanding users who want workshop diagnostics in a compact form. Wireless connection via Bluetooth allows free movement around the vehicle during measurements. With ECU coding, bi-directional tests, and 35 service functions, you can handle advanced repairs as well as regular maintenance. The option to expand with BST360, i-TPMS and VSP600 endoscope modules further increases the versatility of the device. Before purchasing, we recommend verifying compatibility with the specific vehicle and required function.
