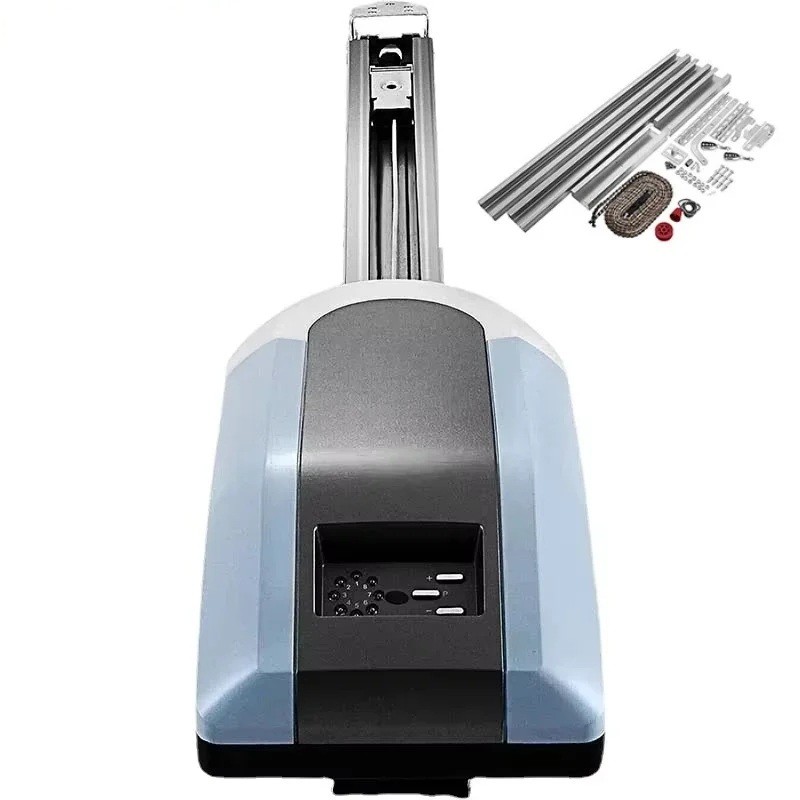

Garage Door Opener Drive 800 N Rail 3 m AC 220V DC Motor Blue Grey Automatic for Sectional Doors
You already have the maximum available quantity in your cart.
This garage door opener drive is designed for automating the opening and closing of garage doors in a home environment. With a pulling and pushing force of 800 N, it can handle typical loads and is suitable for doors with a maximum area of up to 12 m². The device uses a combination of AC 220 V power supply and a 24 V DC motor.
The assembly includes a guide rail of 3 metres in length, ensuring smooth door movement. The travel speed reaches 120 mm per second, allowing for efficient operation. The integrated lighting automatically turns on when activated and switches off after 3 to 5 minutes.
The drive is equipped with a remote control operating at a frequency of 433.92 MHz, which allows for convenient remote operation. The design of the device is compact, and the individual parts can be assembled using the included installation accessories.
- Pulling and pushing force: 800 N
- Power supply: AC 220 V / motor 24 V DC
- Motor power: 120 W (max. 154 W)
- Length of guide rail: 3 m
- Usable door area: max. 12 m²
- Travel speed: 120 mm/s
- Remote control frequency: 433.92 MHz
- Automatic lighting with switch-off after 3–5 minutes
- Compact design for home installation
Package contents:
- 1× garage door opener
- 2× remote controls
- 1× set of guide rails (3 m)
- 1× set of installation accessories
- 1× user manual
The device is designed as a complete solution for the automatic control of garage doors. With the included set of rails and accessories, the drive can be easily installed. Control via remote control enhances comfort for everyday use.
The combination of a stable construction and practical features enables reliable operation. This drive is suitable for users seeking a functional solution for automating garage doors with clearly defined parameters.
