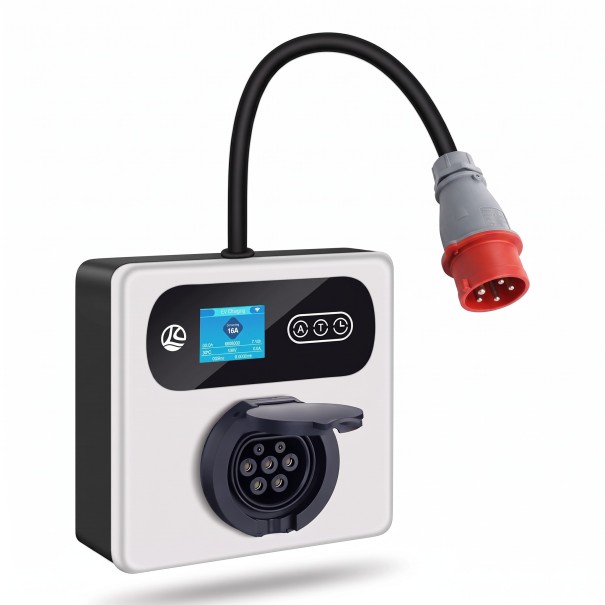

11 kW 16 A 3-Phase Electric Vehicle Charger, Wall-Mounted CEE Wallbox with Type 2, LCD Display and Wi-Fi, IP54, White, Home and Mobile Charging
You already have the maximum available quantity in your cart.
The wall-mounted electric vehicle charger with a three-phase output of 11 kW and Type 2 socket is designed for charging at home and on the go. The power supply is provided by a short cable of 0.5 m with a red CEE plug (5 pins, 380–450 V), allowing you to connect the charging station to a three-phase socket in your garage, at a cottage, or in a company facility. The colour LCD display continuously shows the charging status, set and actual current, voltage of each phase, temperature, instantaneous power, and consumption in kWh. The charging current can be selected according to the capacity of the circuit breaker, so the wallbox can adapt to weaker domestic supplies. Thanks to the Wi-Fi connection and mobile application, you can set the current, charging time, and delayed start directly from your phone.
- Power and current: 11 kW, 16 A, 3 phases, 380–450 V
- Adjustable charging current: 6, 8, 10, 13 and 16 A
- Type 2 socket on the charger body, supply cable 0.5 m with CEE plug (5 pins)
- Charging time adjustable in the range of 1–15 hours
- Delayed start time 1–15 hours for charging at a cheaper tariff
- Control via touch buttons A / T / L on the front panel or through the mobile application via Wi-Fi
- Colour LCD display: charging status, set current, actual current and voltage, temperature, power and consumption in kWh
- Long press of button A resets monthly consumption, long press of button T clears Wi-Fi settings for new pairing
- IP54 rating; the CEE plug itself has an IP44 rating, so do not expose it to direct rain
- Dimensions 20 × 20 × 10 cm
- Colour white with black front panel, red CEE plug
- To connect the vehicle, a Type 2 (female) – Type 2 (male, vehicle side) charging cable is required
- Set the current, charging time, and delay before connecting the vehicle
Package contents: charger (wallbox) with supply cable and CEE plug, wall mount for the connector, carrying bag.
Compact dimensions of 20 × 20 × 10 cm and the carrying bag allow you to transport the charger in the boot and use it wherever a three-phase CEE socket is available. The combination of adjustable current, delayed start, and consumption measurement provides an overview of how much energy you have actually supplied to the vehicle and allows charging during lower electricity prices. Control remains accessible even without a phone – all three functions can be set using the touch buttons directly on the front panel. For outdoor use, it is advisable to place the charger under an overhang or in a sheltered area, as the CEE plug has a lower rating than the charger body itself. The charging station is suitable for both permanent placement at home and as a mobile solution for travel and charging away from home.
