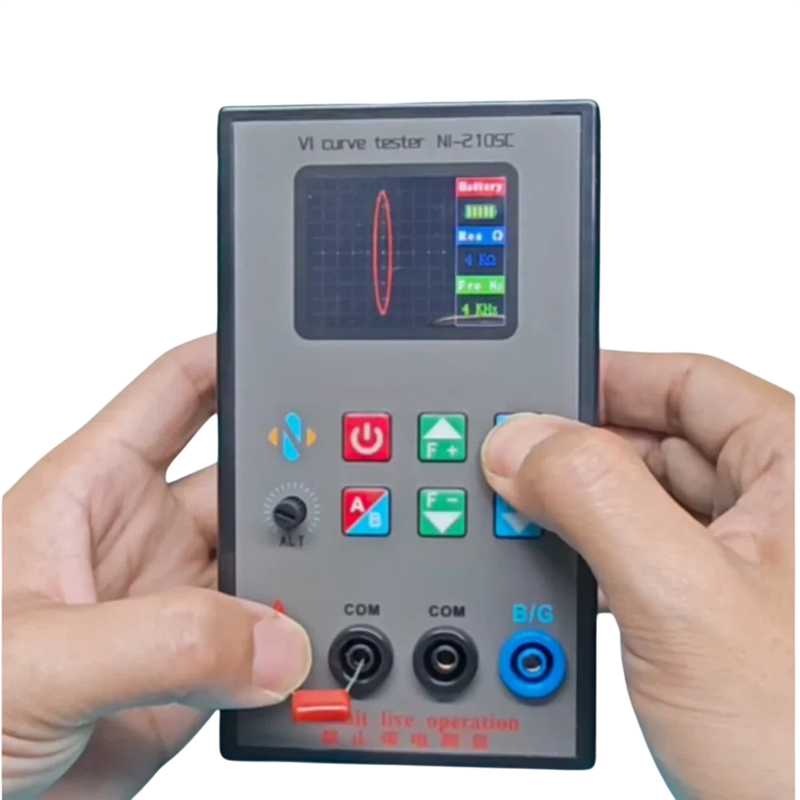

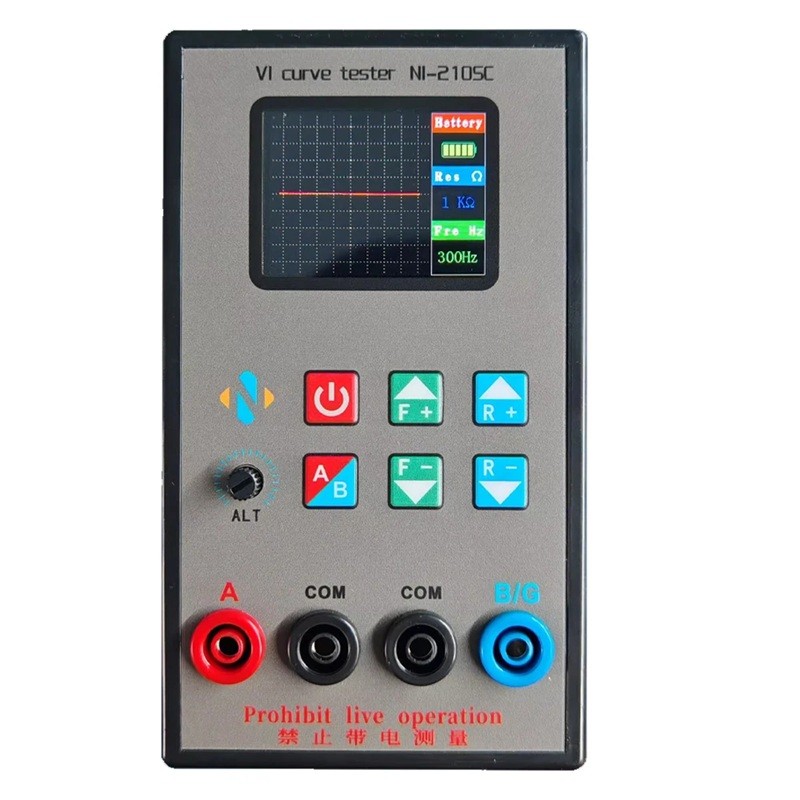

NI-210SC Curve Tester with 2.0 TFT Display Dual-Channel Circuit Meter with Lithium Battery Grey for Electronics and Circuit Board Repairs
You already have the maximum available quantity in your cart.
The NI-210SC Curve Tester is a practical device for locating faulty electronic components using the volt-ampere characteristic method. Measurements are conducted on a powered-off circuit, allowing you to detect shorts, interruptions, and damaged components without risk. The device features a colour 2.0 TFT display and dual-channel simultaneous display, which enables comparison of the measured component with a reference. The volt-ampere method displays the characteristic of the component as a curve, the shape of which reveals the condition of the element. The internal resistance can be set to values from 50 Ω to 7 KΩ and the frequency in the range of 20 Hz to 15 kHz, allowing you to adapt to various types of components. The test voltage of 4 V is safe even for sensitive elements. Thanks to the built-in lithium battery, the device is fully portable and does not require connection to an oscilloscope. Operation using clear buttons and the ALT rotary knob is quick and straightforward.
Main features:
- Principle — measurement of the VI curve on a powered-off circuit
- Display — colour 2.0 TFT with graphical display of the curve
- Dual-channel display — simultaneous comparison of two components
- Adjustable resistance — 50 Ω, 500 Ω, 1 KΩ, 2 KΩ, 3 KΩ, 4 KΩ, 5 KΩ, 6 KΩ, and 7 KΩ
- Adjustable frequency — 20 Hz to 15 kHz
- Test voltage — 4 V
- Power supply — built-in lithium battery with USB charging
- No oscilloscope required — everything is displayed on its own screen
- Controls — F+/F- R+/R- A/B buttons and ALT knob
- Usage — repair of electronics and printed circuit boards

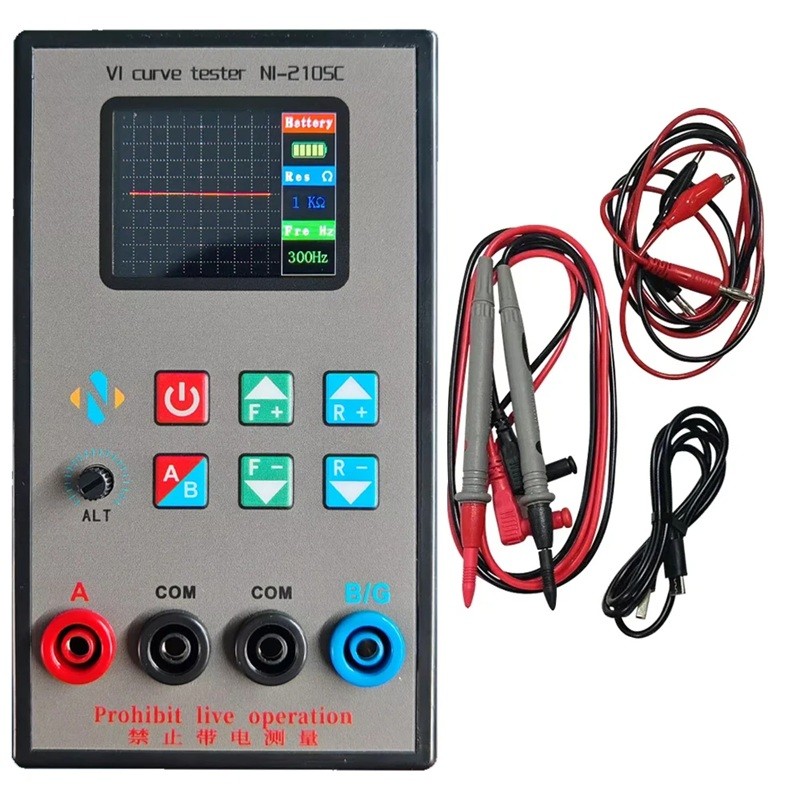

Contents of the package:
- 1x NI-210SC curve tester
- 1x set of measuring probes
- 1x set of cables with alligator clips
- 1x USB charging cable
The NI-210SC tester is a useful tool for electronics repair technicians who need to quickly locate a faulty component on a board. The VI curve method allows testing of resistors, capacitors, diodes, transistors, and other elements without desoldering them. With adjustable resistance and frequency, you can precisely tailor the measurement to the specific component. The dual-channel display facilitates comparison with a functional reference board and speeds up fault finding. Its compact design with its own battery allows for work anywhere without additional equipment. This tool is appreciated by service technicians and advanced DIY enthusiasts, but it is essential to ensure that circuits under voltage are not measured.
