Universal Oil Cooler 6 Rows 393 x 189 x 20 mm Aluminium Silver Kit with 1.2 m Hose and Clamps for Engine, Transmission and Differential
You already have the maximum available quantity in your cart.

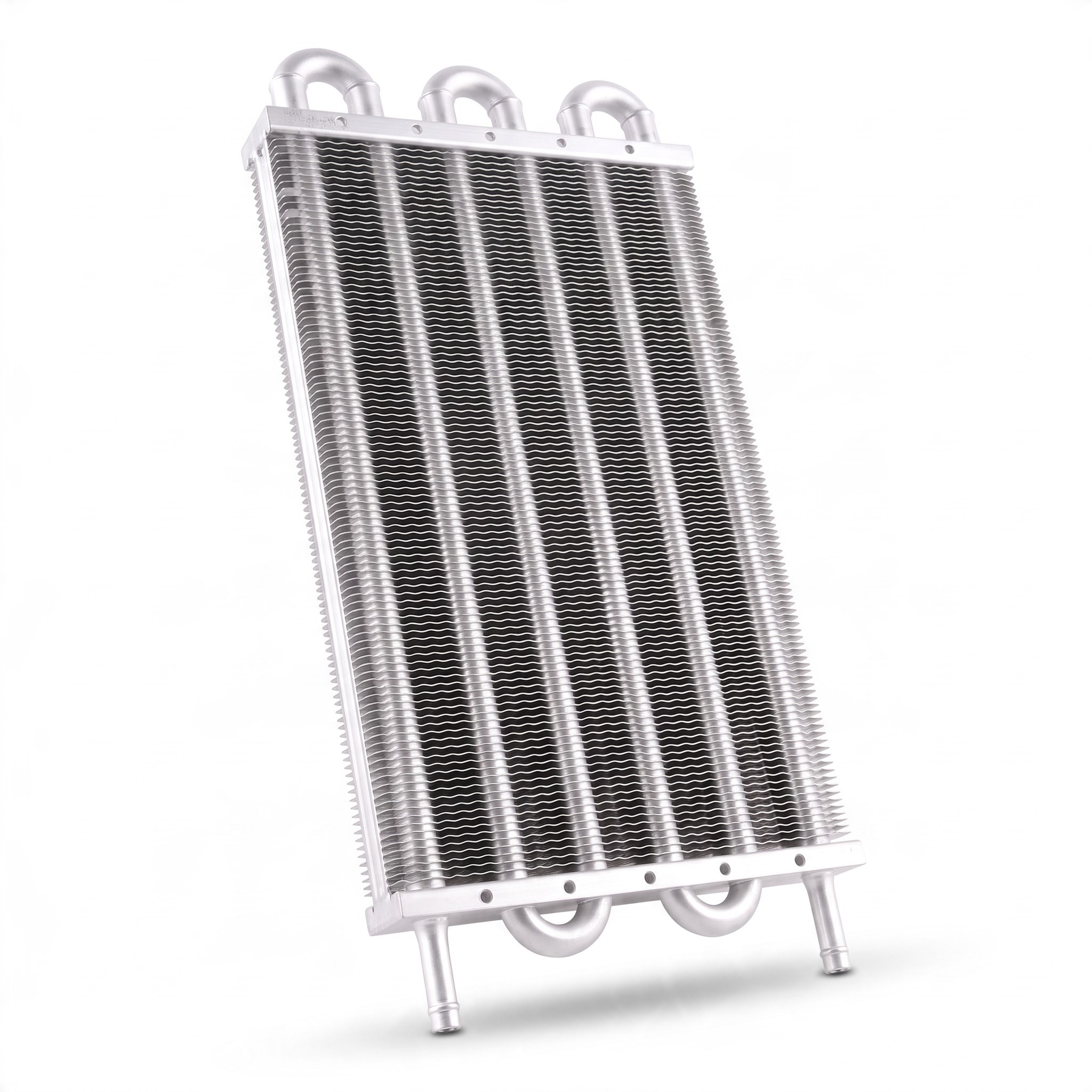

The universal oil cooler is an aluminium cooler with 6 rows of tubes and corrugated fins in silver colour. Its dimensions are 393 x 189 x 20 mm and the surface is anodised. The cooler is designed for most passenger vehicles and is used for cooling engine oil, transmission oil, or rear differential oil. It is mounted in front of the engine radiator or air conditioning condenser using the included mounting rods, brackets, and foam pads. The package also includes a hose with a length of 1.2 m, hose clamps, and an adapter with a brass nut.
- 6 Row Design — The cooler consists of six parallel tubes, which are connected at the ends by bends into a U-shape. Oil flows through all rows sequentially and transfers heat to the fins.
- Dimensions — The cooler measures 393 mm in length, 189 mm in width, and 20 mm in depth. Its slim profile allows it to fit into tighter spaces in front of the engine radiator.
- Corrugated Fins — Dense corrugated fins between the tubes increase the surface area for heat dissipation. Air flowing through the cooler thus removes heat from the oil.
- Anodised Aluminium — The cooler is made from aluminium with an anodised surface in silver colour. This treatment protects the material and enhances its durability.
- Outlets and Hose — The cooler has two outlets with a diameter of 10 mm. The included hose is 1.2 m long and has a diameter of 10 mm and is secured to the outlets with hose clamps.
- Application — The cooler is suitable for cooling engine oil, transmission oil, or rear differential oil. It is particularly useful for modified cars that experience higher loads, such as during track driving.
- Installation in Front of Radiator — The mounting rods are threaded through the holes in the oil cooler and foam pads are placed on them. The rods are then passed through the core of the engine radiator or condenser, secured with brackets from the rear, and any excess length of the rods is cut off.
- Installation Warning — When threading the rods through the core of the radiator, do not use excessive force. This could damage the fins or puncture the engine radiator tube.
- Foam Pads — Four foam pads are adhered to the oil cooler after removing the protective paper. They separate the two coolers and compress slightly when the brackets are tightened.

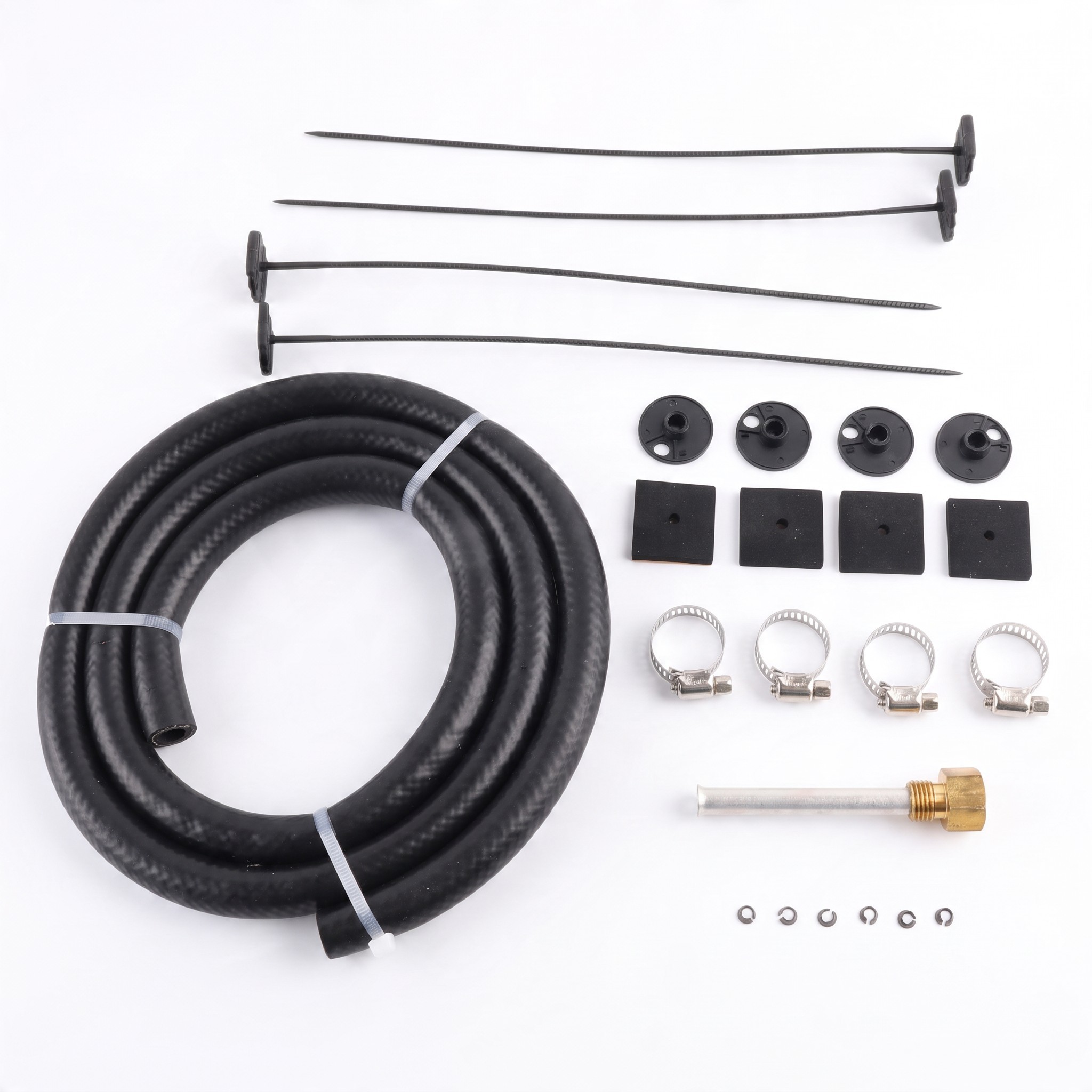

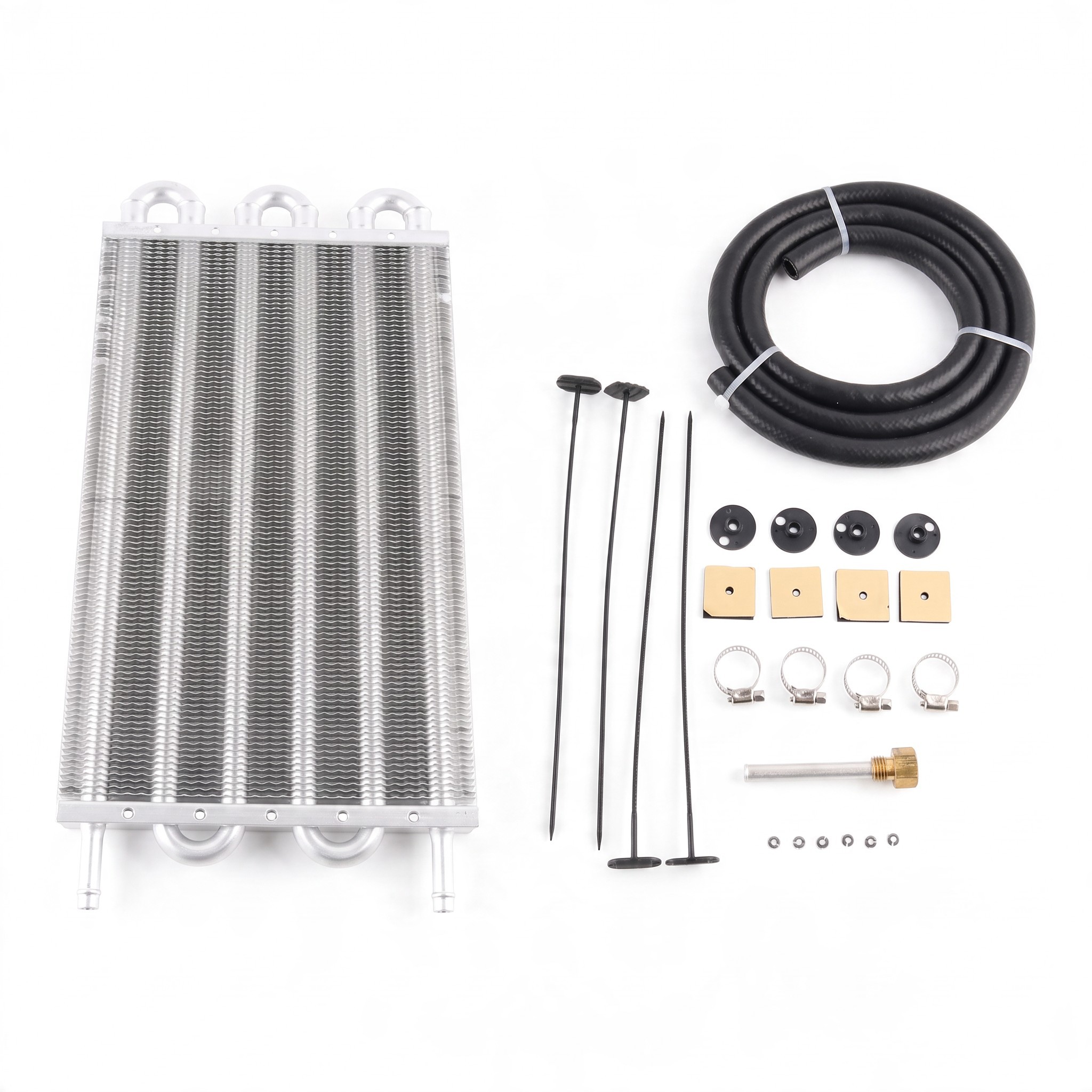

- Package Contents — 1x aluminium oil cooler with 6 rows, 1x 1.2 m hose, 4x hose clamps, 4x mounting rods, 4x mounting brackets, 4x foam pads, 1x adapter with brass nut, 6x small ring.
The universal oil cooler with 6 rows is made from anodised aluminium and has dimensions of 393 x 189 x 20 mm. It is suitable for cooling engine oil, transmission oil, or differential oil in most passenger vehicles. It is installed in front of the engine radiator or condenser using the included rods, brackets, and foam pads. The kit also includes a hose with a length of 1.2 m, hose clamps, and an adapter for connection. Before ordering, please ensure that you have sufficient space in front of the engine radiator for a cooler measuring 393 x 189 mm.
