Universal Oil Cooler 6 Rows 393 x 189 x 20 mm Aluminium Black Kit with 1.2 m Hose and Clamps for Engine, Transmission and Differential
You already have the maximum available quantity in your cart.

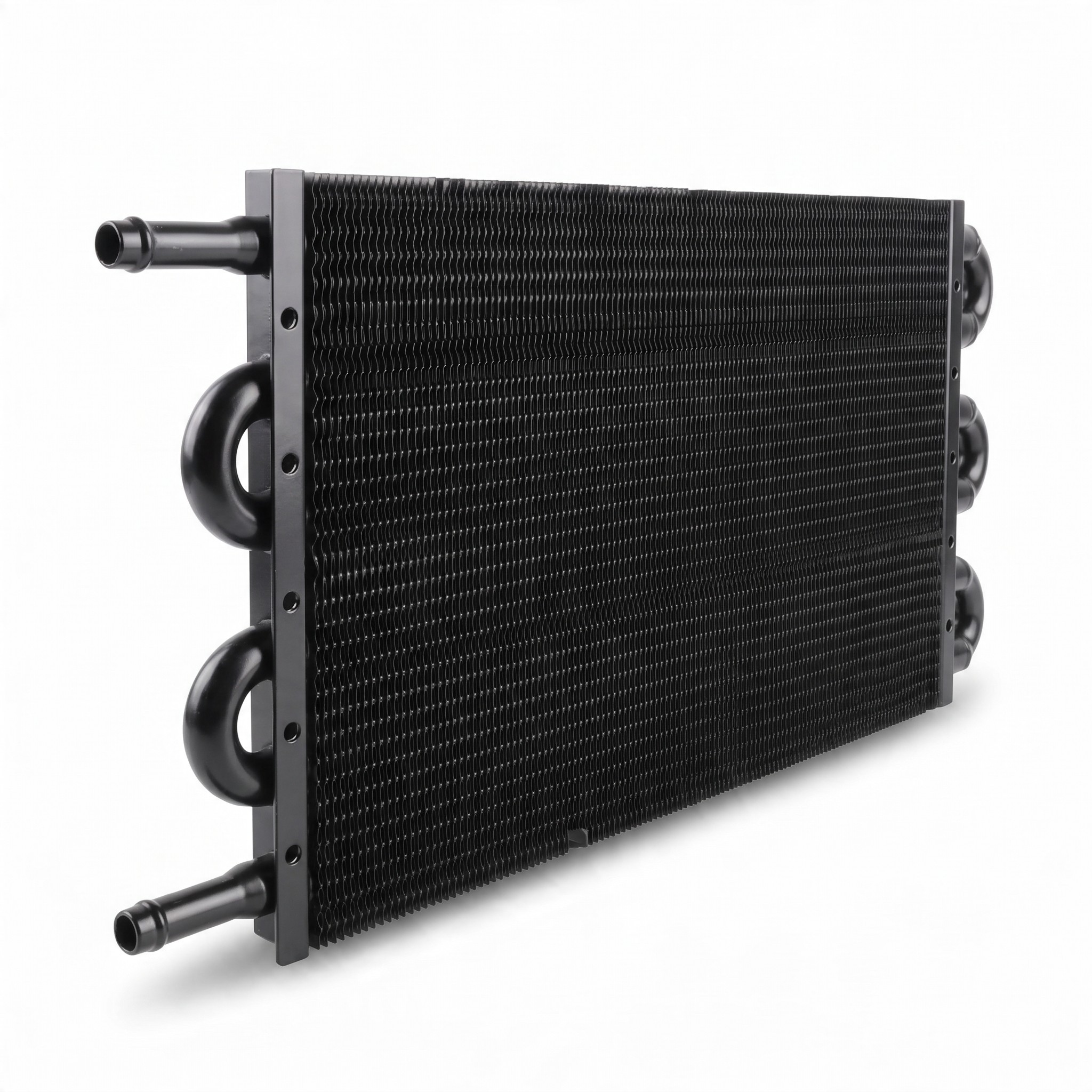

The universal oil cooler with 6 rows is made from aluminium with a black anodised finish. It has dimensions of 393 x 189 x 20 mm and the tubes are interspersed with dense corrugated fins. The cooler can be used in most passenger cars for cooling engine oil, transmission or rear differential. It is mounted in front of the engine radiator or air conditioning condenser using the mounting rods, brackets and foam washers included in the kit. A 1.2 m long hose, hose clamps, and an adapter with a brass nut are also included for connection.
- 6 Row Design — Six parallel tubes are connected at the ends with bends into a U-shape. Oil passes through all the tubes sequentially, transferring heat to the fins.
- Dimensions — The cooler measures 393 mm in length, 189 mm in width, and 20 mm in depth. Please measure the space in front of the engine radiator where you intend to install it before ordering.
- Corrugated Fins — The corrugated fins between the tubes increase the surface area of the cooler. The air flowing through them dissipates heat from the oil.
- Black Anodised Aluminium — The cooler is made from aluminium and its surface, including bends and brackets, is anodised in black. This finish protects the material and enhances its durability.
- Mounting Brackets — There are brackets with holes for mounting rods at both the top and bottom edge. With multiple holes, you can choose the suitable position for fastening.
- Outlets and Hose — Both outlets have a diameter of 10 mm and are located on the same side of the cooler. The included hose is 1.2 m long and has a diameter of 10 mm and is secured with hose clamps.
- Application — The cooler is suitable for engine oil, transmission oil, or oil in the rear differential. It is particularly useful for modified cars under higher loads, such as when driving on a track.

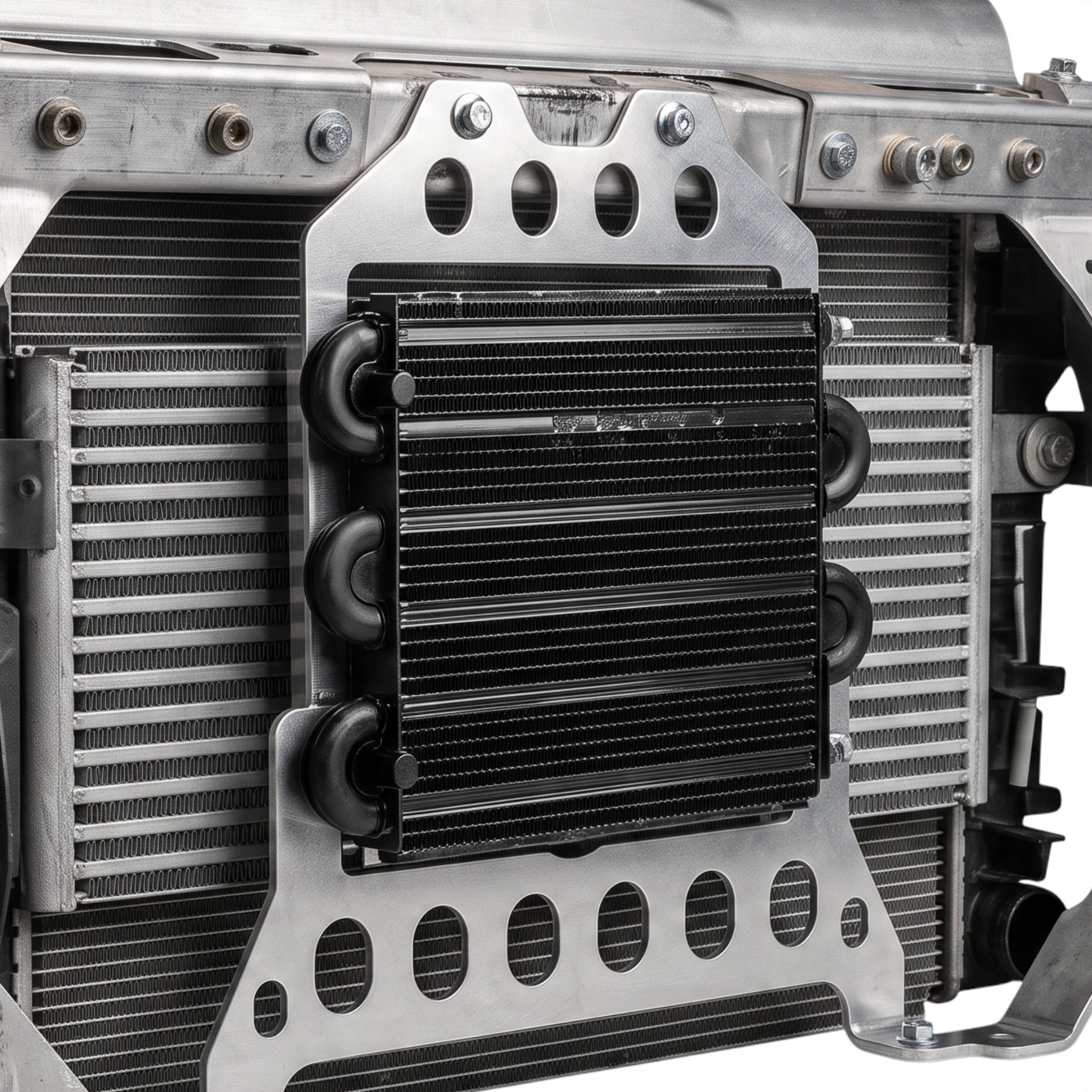

- Installation Instructions — Pass the rods through the holes in the oil cooler and place the foam washers with adhesive backing onto them. Then, thread them through the core of the engine radiator or condenser, secure the brackets, and cut off any excess length of the rods.
- Installation Warning — Carefully and gently thread the rods through the core of the cooler. Excessive force may damage the fins or puncture the engine radiator tube.

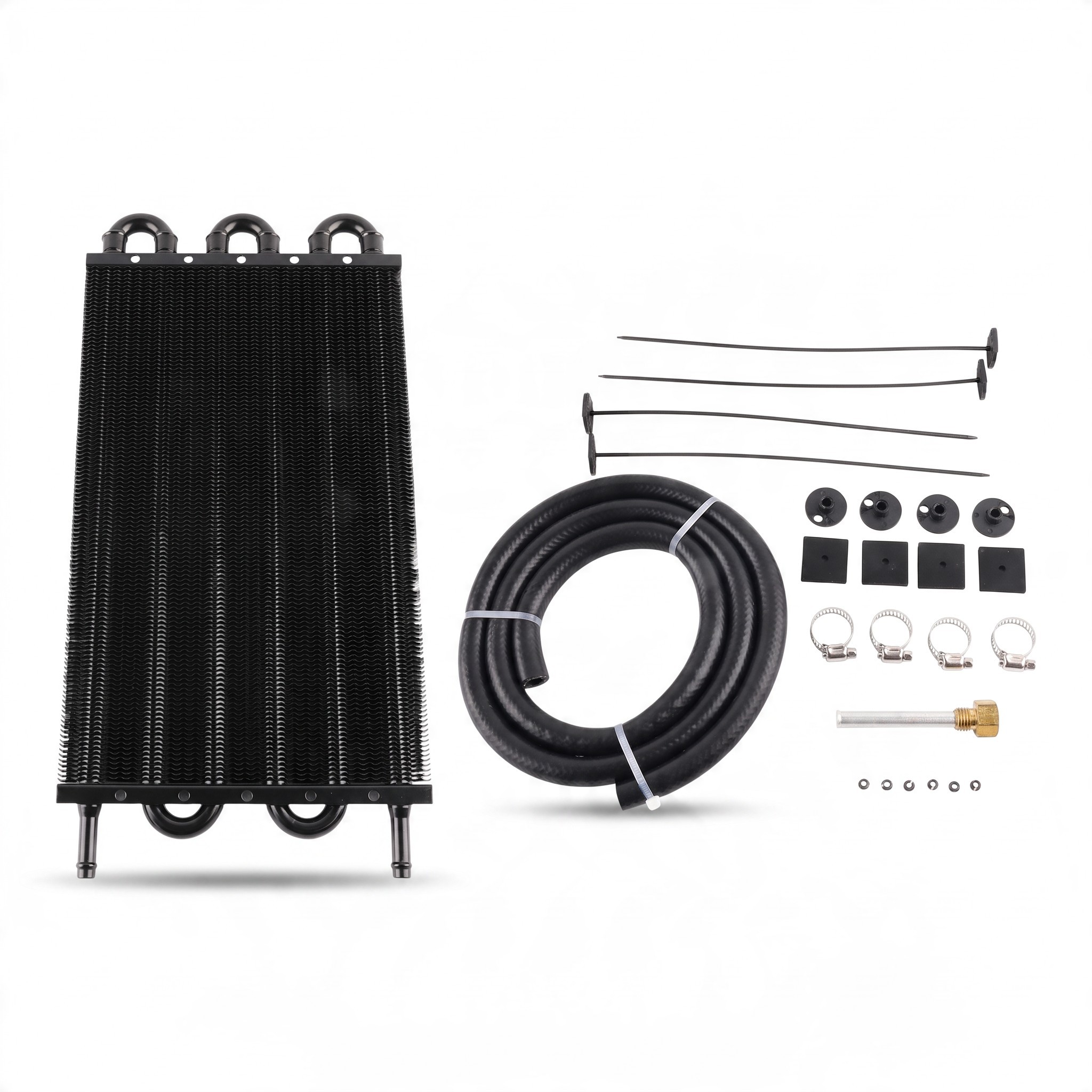

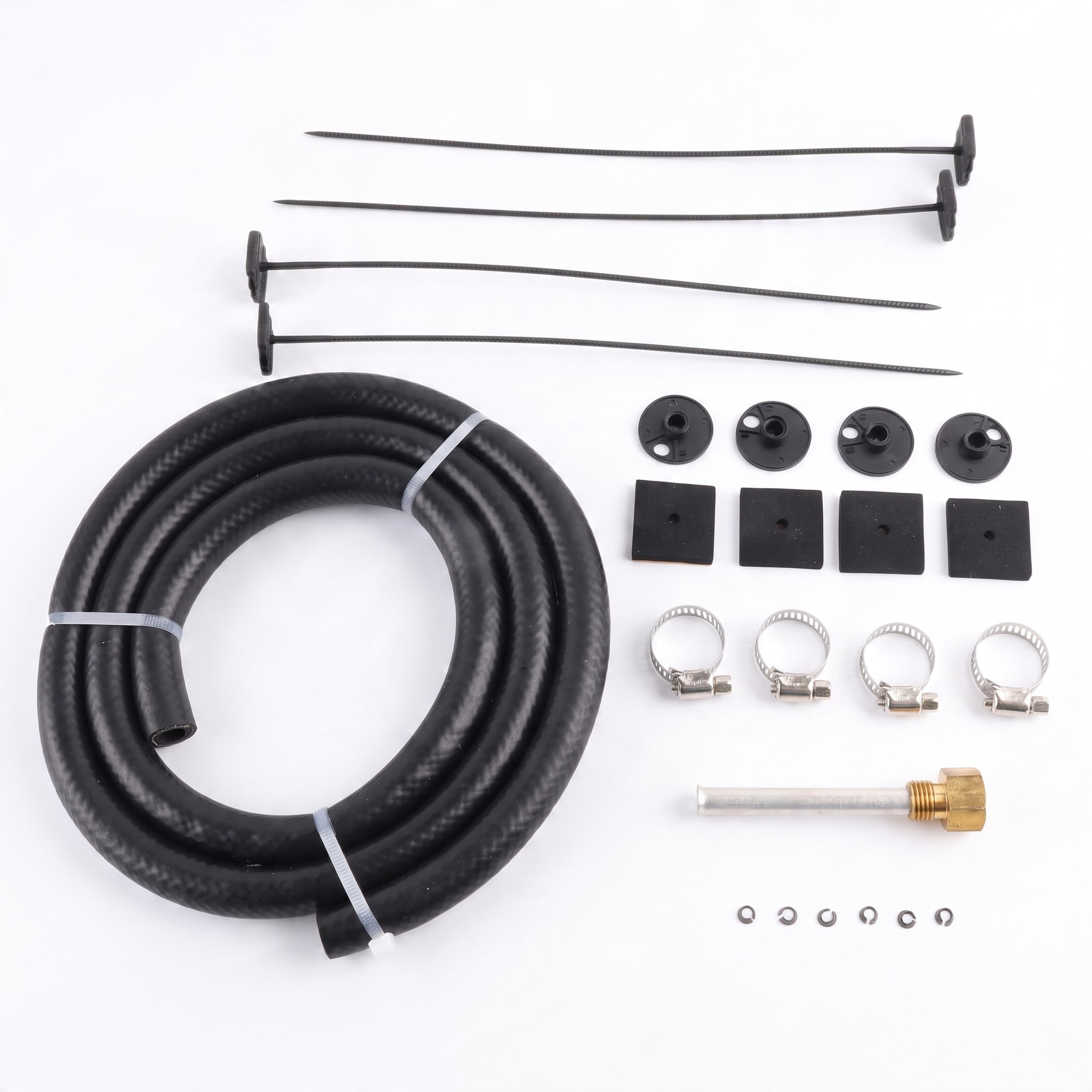

- Package Contents — 1x aluminium oil cooler with 6 rows, 1x 1.2 m hose, 4x hose clamps, 4x mounting rods, 4x mounting brackets, 4x foam washers, 1x adapter with brass nut, 6x small connecting parts.
The universal oil cooler with 6 rows is made from aluminium with a black anodised finish and measures 393 x 189 x 20 mm. It is used for cooling engine oil, transmission or differential in most passenger cars. It is mounted in front of the engine radiator or condenser using rods, brackets and foam washers from the kit. The package also includes a 1.2 m hose, hose clamps, and an adapter for connection. Before ordering, please ensure that you have sufficient space in front of the engine radiator for a cooler measuring 393 x 189 mm.
