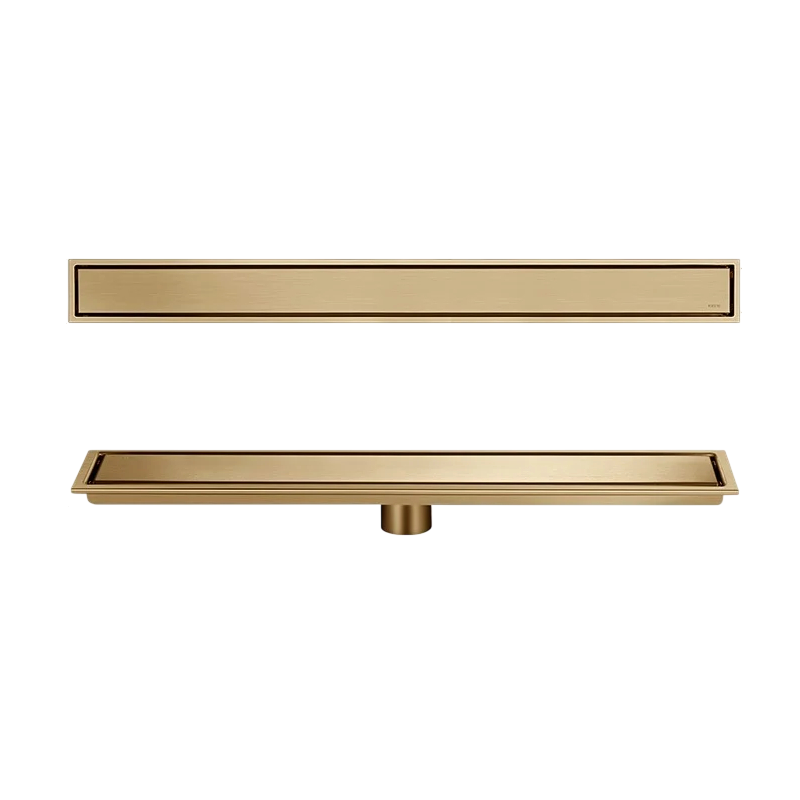

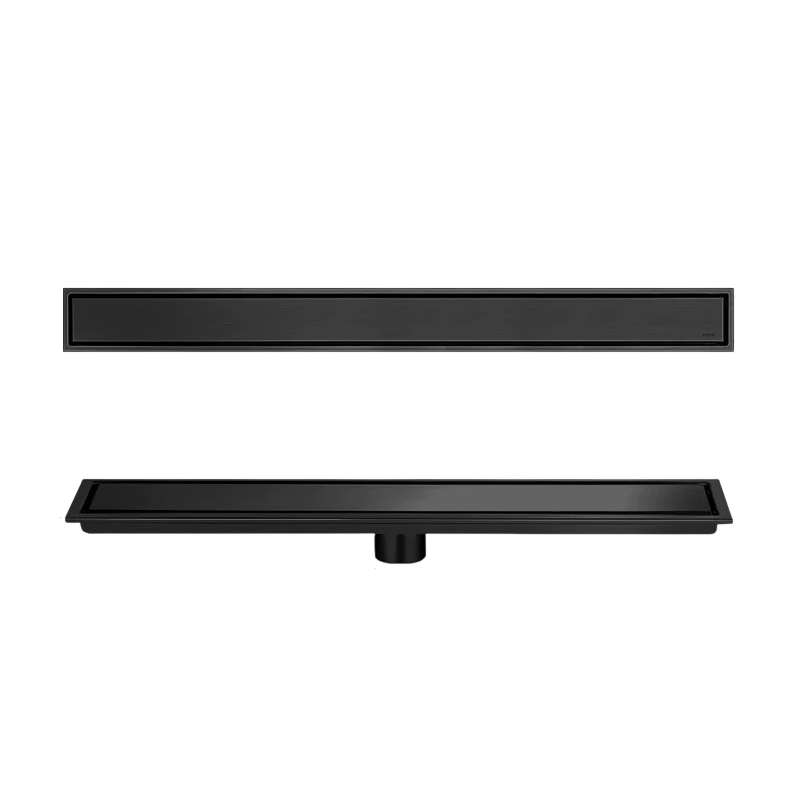

Tile Floor Drain for Bathroom 60 x 10 cm with Central Outlet Cover for Tiling 7 cm Wide and 2 cm Deep Neck Diameter 4 cm
| Colour:
|
You already have the maximum available quantity in your cart.

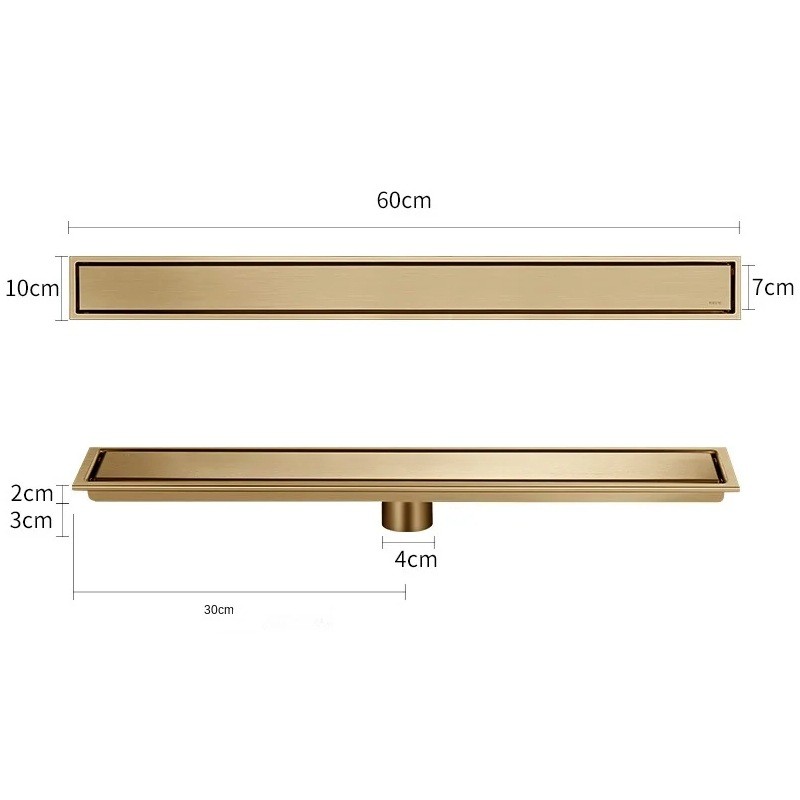

The drainage measuring 60 cm in length and 10 cm in width is designed as a tile drain, where a piece of tile is fitted into the top instead of a standard grate. The insert area measures 7 cm in width and is 2 cm deep, allowing tiles to be laid with an adhesive layer. Only a thin stainless steel border remains visible from the finished floor, surrounding the inserted tile. The neck with a diameter of 4 cm is positioned exactly in the middle of the length, 30 cm from each end, and extends 3 cm below the bottom of the cover. The drain is made of stainless steel 304, with a mounting depth specified from 60 mm, and is suitable for use in bathrooms, shower cubicles, toilets, and balconies.
- Tile instead of Grate – the upper surface consists of an inserted tile, not a perforated cover, so the drainage does not appear as a technical element in the floor and allows the surrounding tiling to stand out. It is suitable for large-format tiles, mosaics, and floors with bold patterns where a metal grid would be distracting.
- Length 60 cm – the elongated body covers a wide shower entry or a longer stretch of floor, and with a width of ten centimetres, only a slim strip remains visible in the tiling. The elongated shape can be run along the wall or across the shower space depending on the bathroom layout.
- Insert Area 7 x 2 cm – the internal space is 7 cm wide and 2 cm deep, so the tile, once fitted, ends exactly at the level of the surrounding floor and creates no step. The border around the area holds the tile in place and forms a clean transition to the tiling.
- Central Outlet – the neck is positioned in the middle of the length, 30 cm from both ends, so the waste flows under the centre of the body, and it does not matter which side the drain is fitted. Water also travels the same distance from both ends to the neck.
- Neck 4 cm – the outlet extends 3 cm below the bottom and connects to standard waste pipes of corresponding diameter, without the need for atypical reducers or fittings outside the standard range. A diameter of 4 cm is the standard size for bathroom drains.
- Stainless Steel 304 – both the frame and internal surface can withstand water, steam, and bathroom chemicals, are corrosion-resistant, and the surface can be kept clean simply by wiping it dry. Stainless steel does not absorb, so it does not retain water stains or soap scum.
Contents of the package:
- 1x floor drain
Tile drainage of this format is suitable for bathrooms, shower cubicles, and balconies where the floor should appear visually continuous and the drain should be as unobtrusive as possible. The inserted tile continues the pattern of the surrounding tiling, so it can be walked on and cleaned just like the rest of the floor. The stainless steel design is intended to be in constant contact with water and steam, and the surface maintains its appearance even after years. The position of the neck in the middle of the length facilitates waste routing, as the pipe runs directly under the centre of the drain. A length of 60 cm offers a large catchment area while only a narrow border around the tile remains visible, ensuring the drain does not disrupt the overall impression of the floor.
