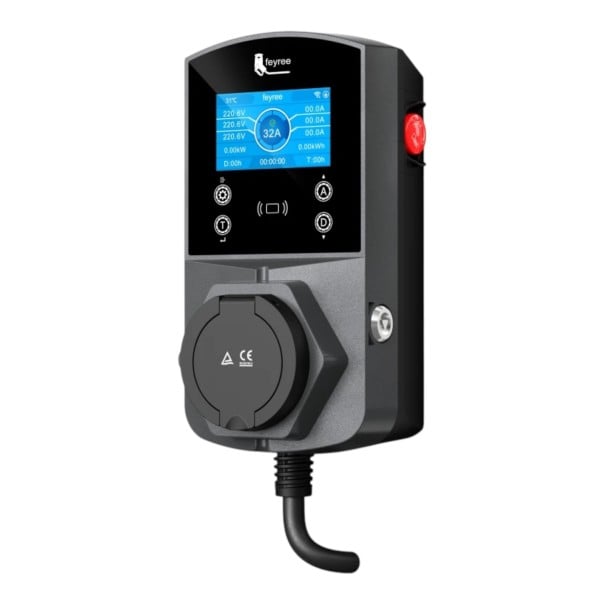

Smart Charger for Electric Vehicles Wallbox with Type 2 Socket, Control via Wi-Fi App, 22 kW, 32 A, RFID, IP66, Grey-Black, for Home
You already have the maximum available quantity in your cart.
The smart charger for electric vehicles in the wallbox design serves for home charging of electric cars with a power of up to 22 kW. The charging station is equipped with a Type 2 socket and is compatible with both single-phase and three-phase electrical installations. The charging power adjusts to the electrical installation and the maximum power supported by the vehicle. There is control via a Wi-Fi app, where you can monitor the charging process, adjust the current, and set a schedule. The wallbox in a grey-black design features a 4.3-inch colour display and is suitable for installation indoors and outdoors.
- Power and current: charging power of up to 22 kW, charging current can be set to 8, 10, 13, 16, 20, 25, or 32 A.
- Connection: supports single-phase and three-phase wiring.
- Charging socket Type 2: a protective plate covers the live contacts and protects against electric shock.
- Compatibility with vehicles: with the appropriate charging cable, it can charge cars with Type 2, Type 1, GB/T, or TS-NACS connectors.
- App: via Wi-Fi and Bluetooth, you can view the current status, start or stop charging, and set the current, delayed start, and charging duration.
- Charging scheduling: you can set two time periods during which charging is prohibited, for example, during peak energy times.
- Display and control: the colour 4.3-inch display shows the voltage and current of each phase, power in kW, energy charged in kWh, charging time, and temperature; the front panel has control buttons and an RFID card reader.
- Safety: Type B residual current protection (AC 30 mA + DC 6 mA) and an emergency stop button.
- Electronic lock with pulse motor: in the event of a sudden power outage, it automatically locks the charging connector to prevent theft of the cable.
- Protective features: protection against overvoltage, undervoltage, overcurrent, short circuit, overheating, lightning, and rain, as well as grounding protection, relay protection, and automatic stop after full charging.
- Temperature protection: charging automatically stops at temperatures above 85 °C and resumes when the temperature drops below 65 °C.
- Durability: IP66 rating, operating temperature from -30 °C to +50 °C, and ePTFE technology (waterproof and breathable) for heat dissipation.
- Dimensions and weight: 41 × 21 × 17 cm, 3.15 kg.
- Package contents: electric vehicle charger, 3× RFID card, 1× key for the electronic lock, 4× dowel, 4× screw, 1× set of mounting brackets; charging cable is not included.
This charging station is suitable for regular charging of an electric vehicle at home. The adjustable current from 8 to 32 A allows you to tailor the charging to the capabilities of the electrical installation and the needs of the vehicle. In the app, you can schedule charging for off-peak times and monitor its progress remotely via a smartphone. Protective features, the emergency button, and the locking of the connector contribute to safe charging. A cable with a connector compatible with the vehicle is required, and the connection to the electrical installation should be carried out by a qualified electrician.
