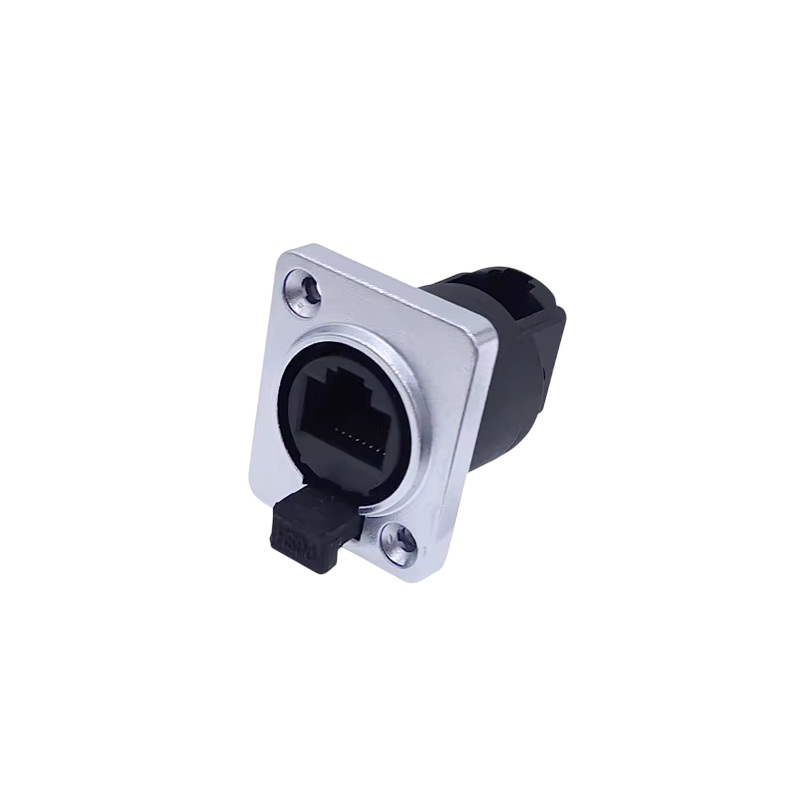

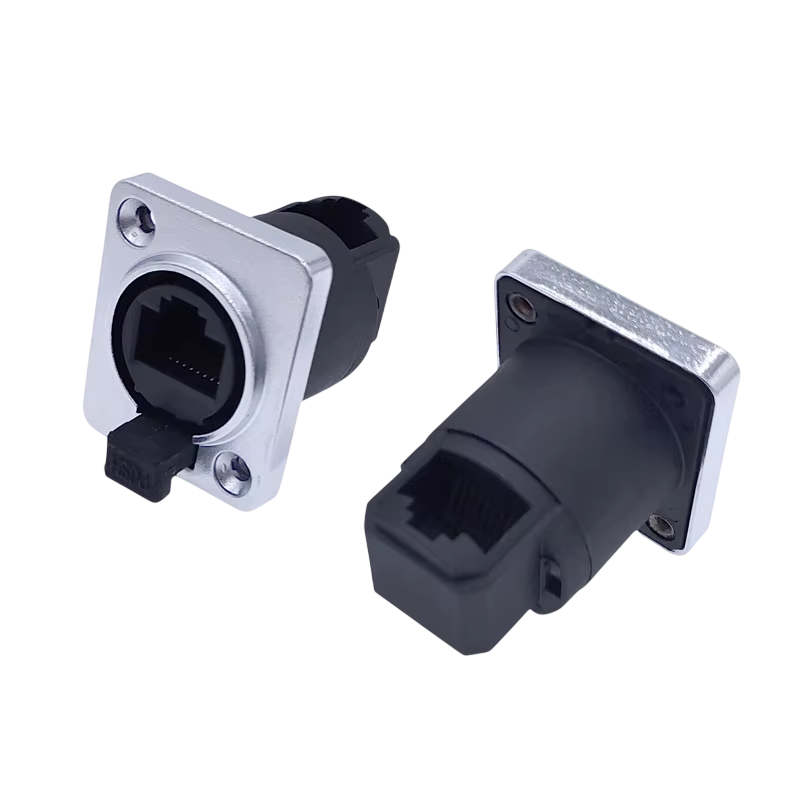

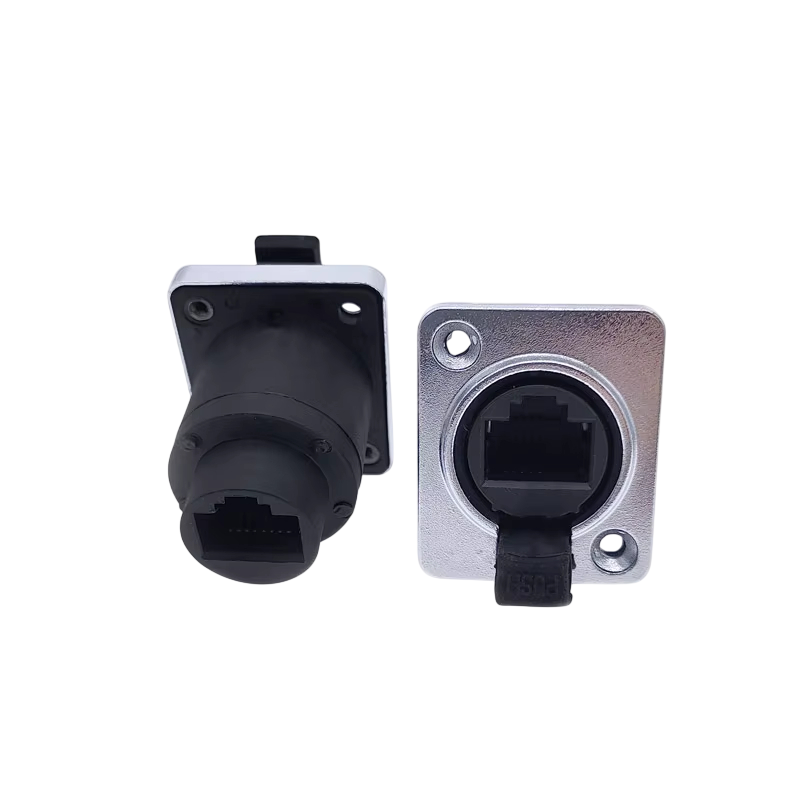

RJ45 Panel Connector IP65 Waterproof 8P8C Socket for Panel Mount Zinc Alloy and Plastic Silver Black for Industrial Networks
You already have the maximum available quantity in your cart.
The RJ45 panel connector is designed for use in environments where a reliable and protected network connection is required. With an IP65 rating, the connector is resistant to dust and splashing water, making it suitable for industrial and technical applications. The design allows for easy panel mounting and quick connection using a standard RJ45 interface. The combination of metal and plastic parts ensures strength and long service life. This type of connector is suitable for Ethernet networks in demanding operating conditions.

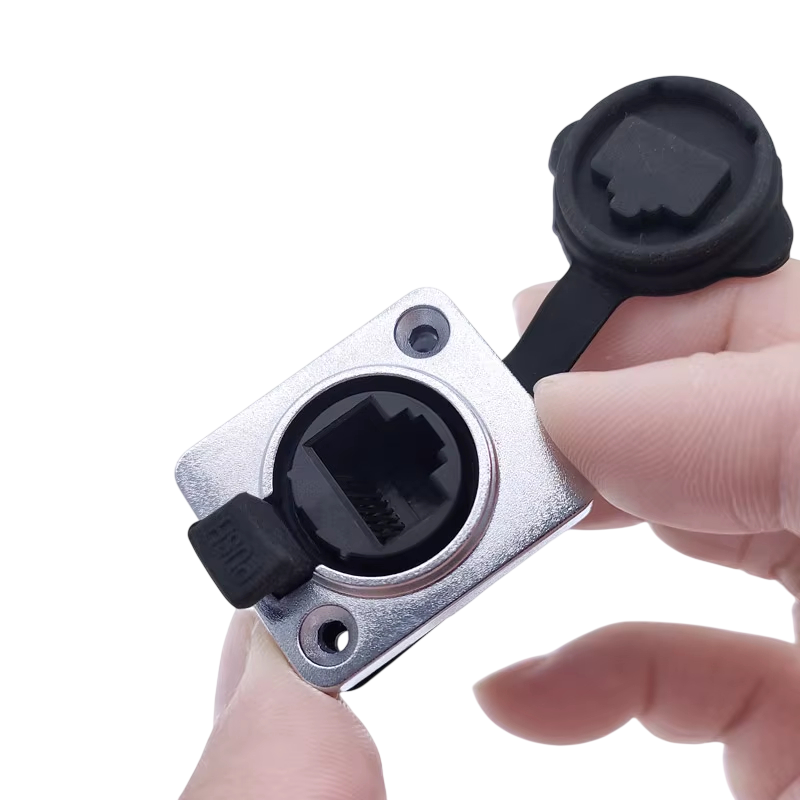

The connector uses the 8P8C standard and is compatible with common network cables. The cable connection is made by soldering, which ensures a secure and stable connection. Thanks to the design with a rubber cover, the connector is protected even when not in use. Mechanical resistance to vibrations and impacts allows its use in mobile or industrial devices.
- IP65 Protection Rating – protection against dust and water
- Connector Type 8P8C RJ45 for Ethernet connection
- Panel Mounting (Type D) for secure attachment
- Operating Voltage up to 500 V and test voltage 2500 V
- Durability of at least 500 connection and disconnection cycles
- Wire Range 0.15–0.2 mm² (26–24 AWG)
- Cable Diameter 5.5–7 mm
- Contact Resistance <1 mΩ, Insulation Resistance >500 MΩ
- Temperature Range -40 °C to 80 °C
- Material: Plastic body, metal parts made of zinc alloy, gold-plated contacts
- Resistance to vibrations, impacts, and mechanical stress
- Quick connection and disconnection with one hand
Contents of the package:
1× RJ45 panel connector
This connector is suitable for a wide range of applications, including industrial equipment, server systems, or communication technology. Due to its design, it withstands demanding conditions such as vibrations or dust. Stable electrical parameters ensure reliable data transmission. The practical design allows for easy installation and maintenance. It can be used in both fixed installations and mobile applications.
