Outdoor Distribution Box IP67 Made of ABS Plastic with Grey Transparent Lid, Dimensions 22 x 17 x 11 cm, Mounting Plate Included
| Colour:
|
You already have the maximum available quantity in your cart.

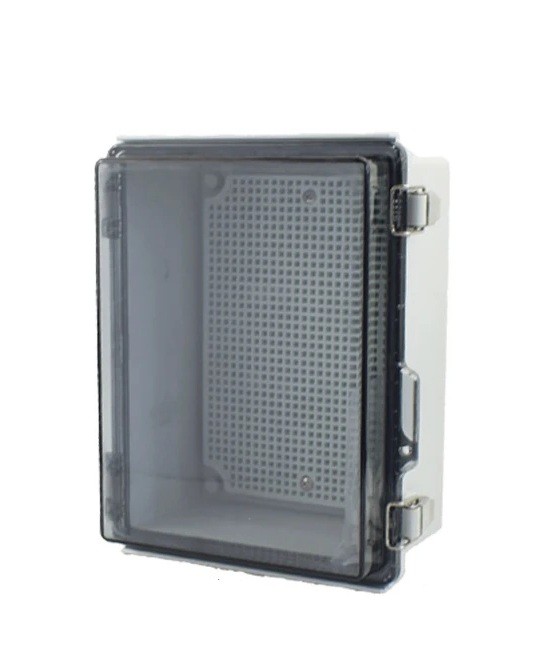

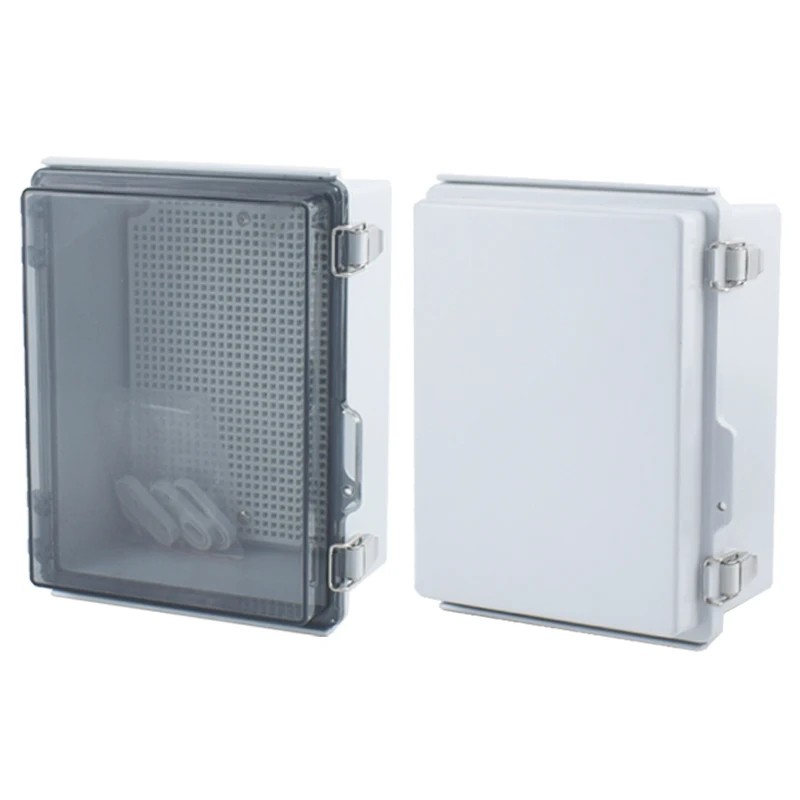

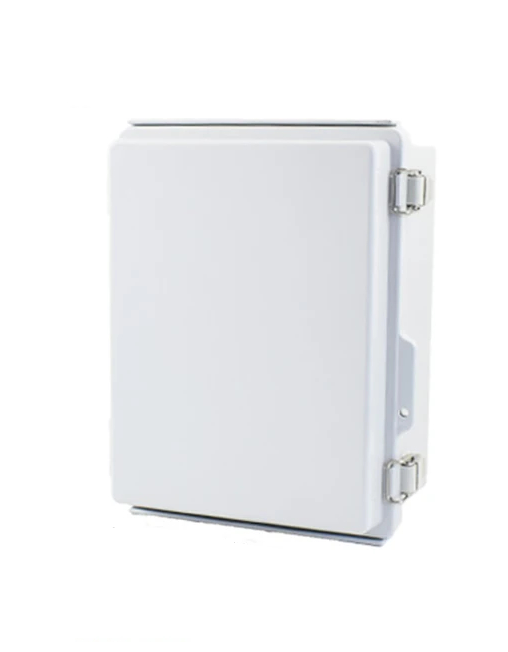

The outdoor distribution box is designed for housing electrical connectors, terminal blocks, circuit breakers, timer switches, and other small electrical components in outdoor or damp environments. The body of the box is made of ABS plastic in a light grey colour, the lid is in grey transparent finish and, when the buckles are tightened, it rests on a silicone seal with an IP67 rating according to the product information. The lid is attached to the body on hinges, allowing it to flip open and preventing it from being lost, with two metal buckles on the sides for secure tightening. The front of the lid features a hole for a padlock to prevent unauthorised access (lock not included in the package). The internal space is equipped with a mounting plate (backplane) with a regular grid of holes for securing components with screws.
- Outdoor Distribution / Connection Box
- Material: ABS plastic according to product information
- IP67 rating according to product information
- Body in light grey, lid in grey transparent
- Silicone seal between lid and body
- Hinged lid with two metal buckles

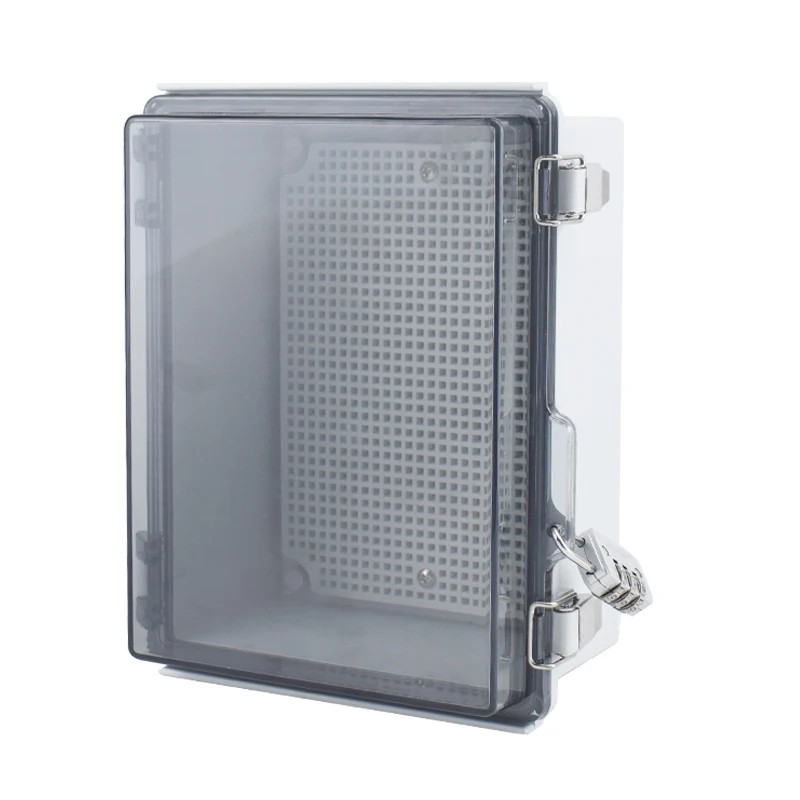

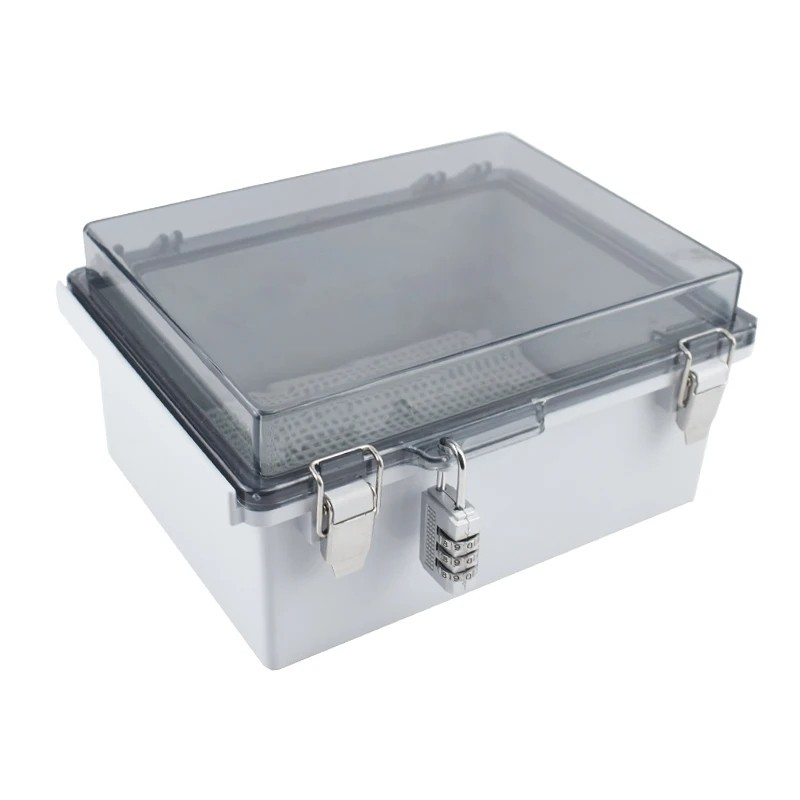

- Hole for padlock (lock not included in the package)

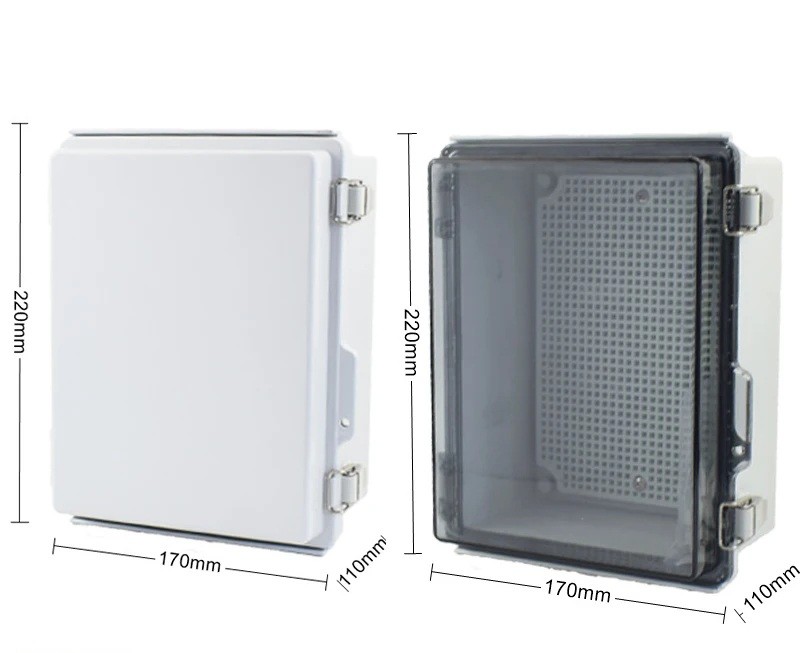

- External dimensions 22 x 17 x 11 cm

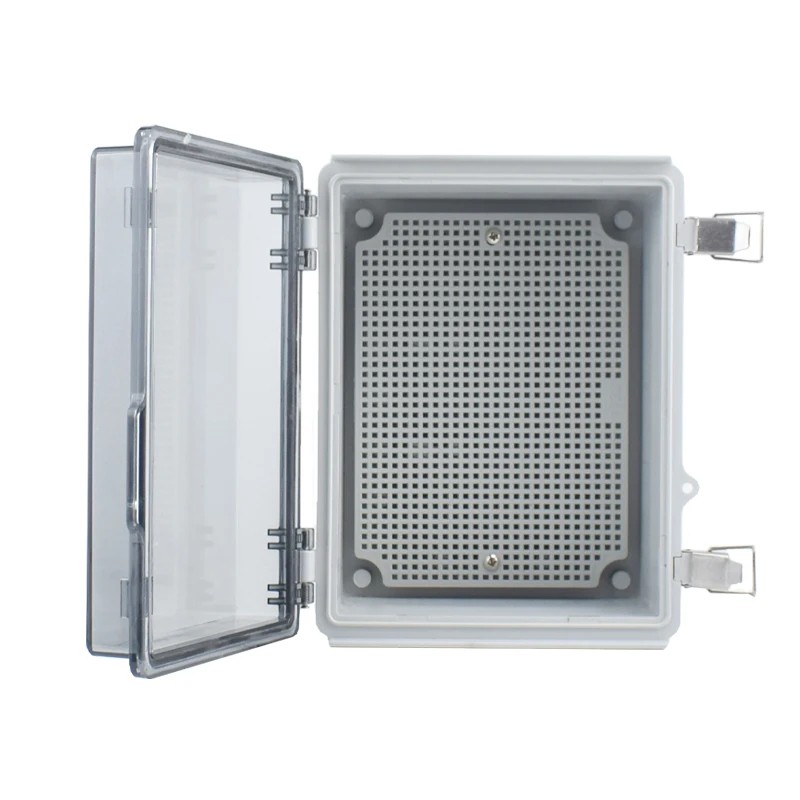

- Internal mounting plate with grid of holes

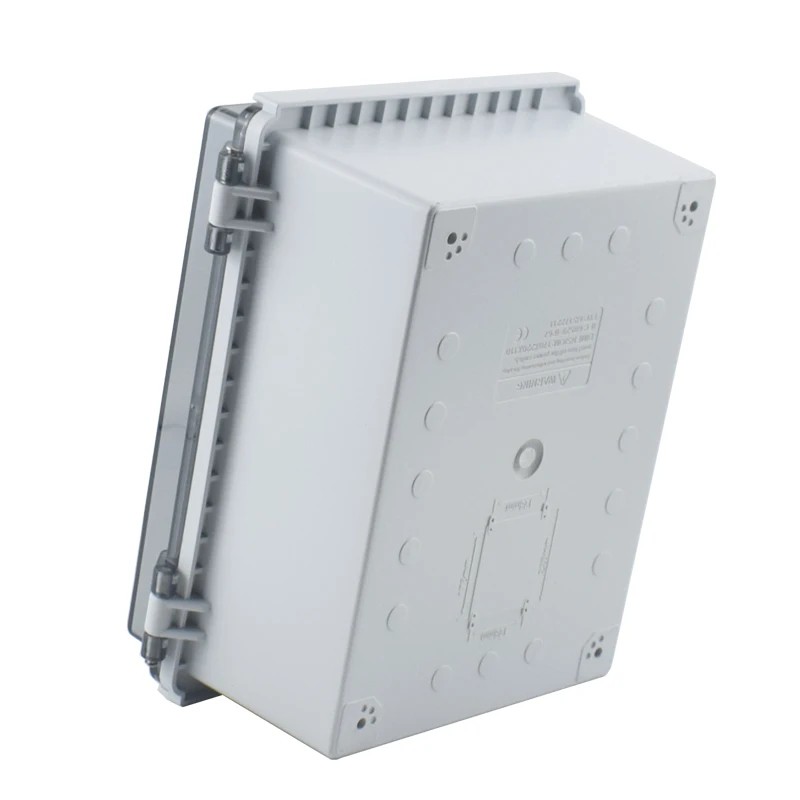

- Two mounting options for the box: with self-tapping screws or using corner brackets
- Suitable for both outdoor and indoor use
- Package contents: 1x box, 1x mounting plate, 4x corner bracket, 4x self-tapping screw
The box is used for housing electrical connections, circuit breakers, controllers, timer switches, IoT gateways, video recorders, irrigation control units, or extension sockets in gardens, terraces, on the facade of the house, in garages, sheds, basements, holiday homes, or industrial halls according to the product information. The IP67 rating according to the product information signifies resistance to dust and temporary immersion in water, meaning the box can withstand rain, spray from the lawn, and other common outdoor conditions. The internal mounting plate (backplane) is equipped with a regular grid of holes, into which rails, terminal blocks, or other components can be screwed without the need to drill into the body of the box. For wall or post installation, two methods can be used: direct drilling into the bottom of the box with self-tapping screws, or securing with the included corner brackets on the outside of the box, thus avoiding holes in the sealed area. Cable entries need to be drilled separately and fitted with cable glands to maintain the IP67 rating.
