LED Lighting Set for Electric Bicycle 05X Headlight Indicators and Brake Light 36 to 72 V DIY Cable with Loose Wires IPX5 Black
You already have the maximum available quantity in your cart.
The 05X LED lighting set enhances the electric bicycle with a headlight, indicators, and a rear brake light, all controlled from one location on the handlebars. It is designed for electric bicycles with a battery voltage of 36 to 72 V, including 36, 48, 52, 60, and 72 V, and connects to the bicycle's electrical system using a cable with loose wires for DIY installation. At the front, there is a round LED headlight, flanked by two orange arrow-shaped indicators. At the rear, there is a tail light with a red LED strip and reflector, with two additional indicators attached on either side. The set is powered by the electric bicycle's battery, eliminating the need to charge the lights separately.
- Type – LED lighting set for electric bicycles with indicators and brake light
- Voltage – 36 to 72 V (36, 48, 52, 60, and 72 V)
- Connection – cable with loose wires (red power +, black ground –, yellow brake signal –)
- Front Light – round LED headlight with mount

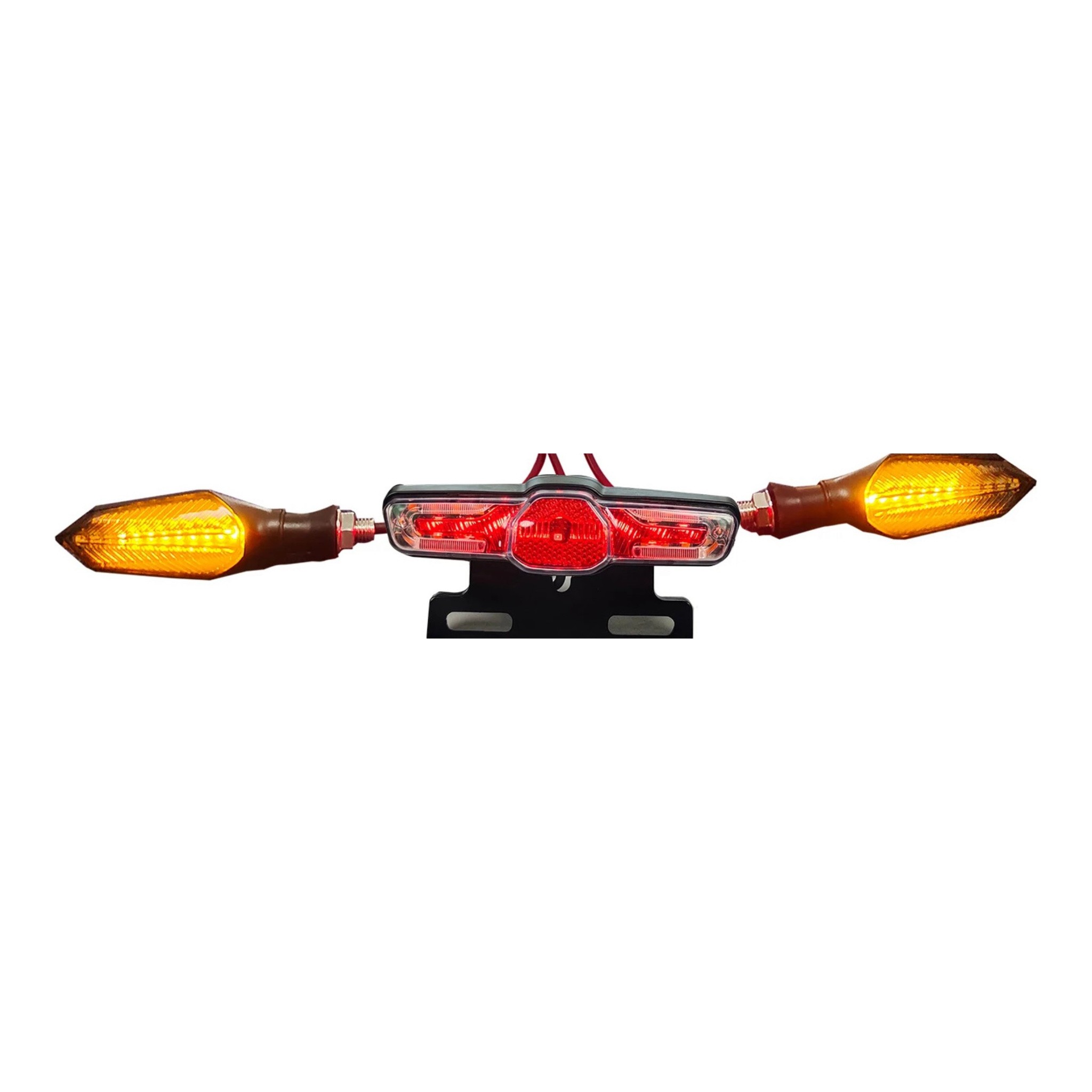

- Indicators – 2 front and 2 rear orange LED indicators in arrow shape

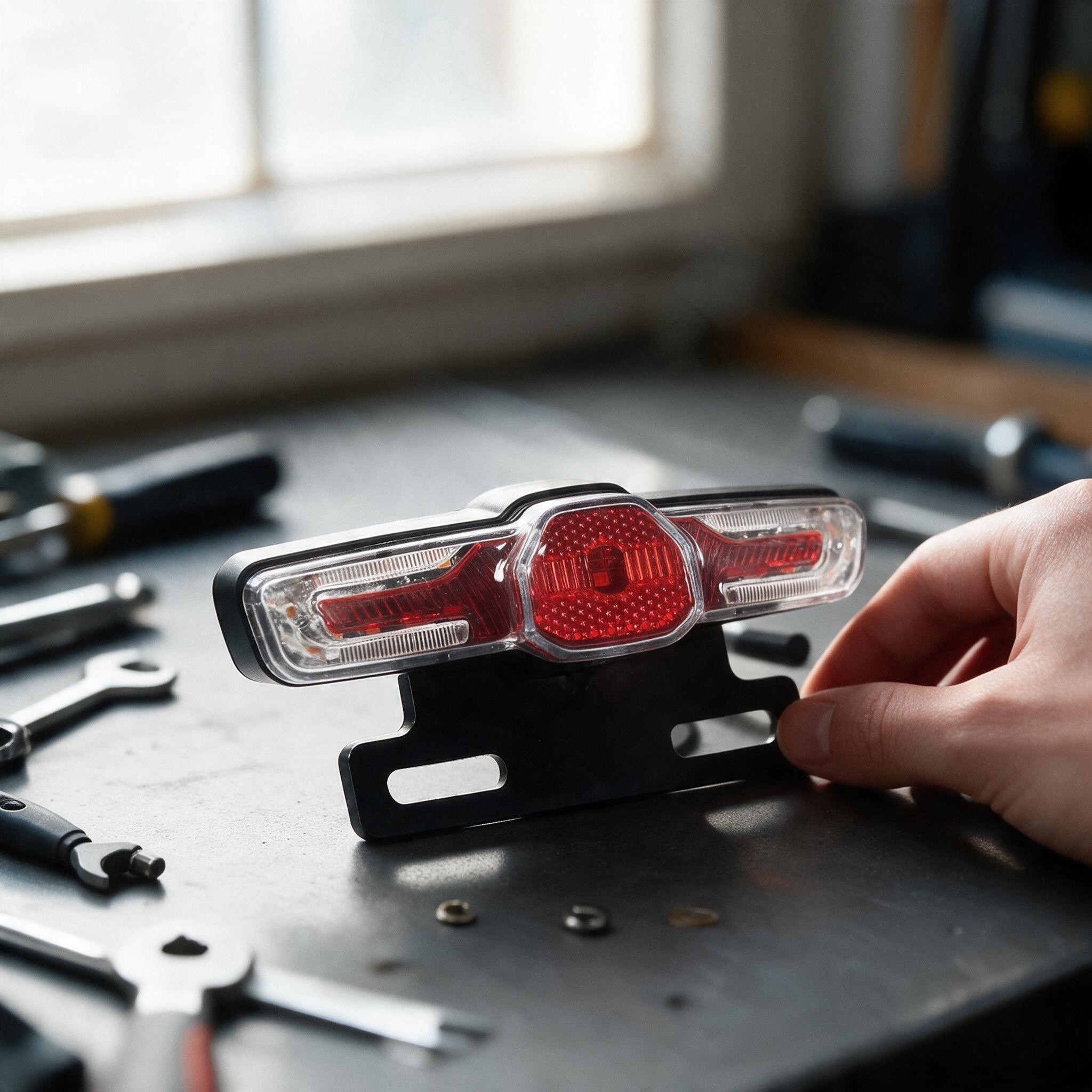

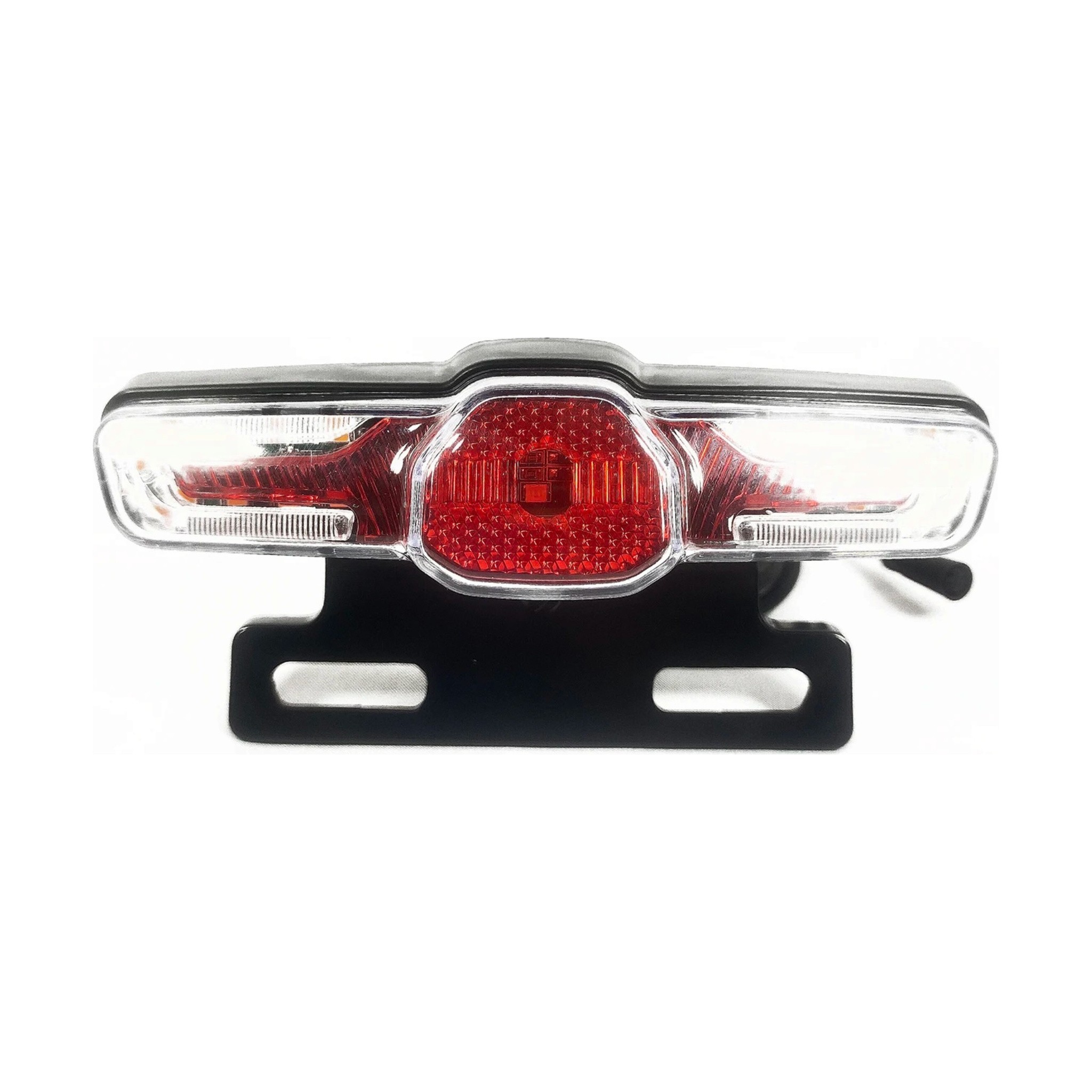

- Rear Light – tail and brake LED light with reflector and number plate holder
- Controller – buttons for turning the lights on and off, left and right indicators, and hazard lights
- Protection Rating – IPX5
- Material – plastic
- Colour – black

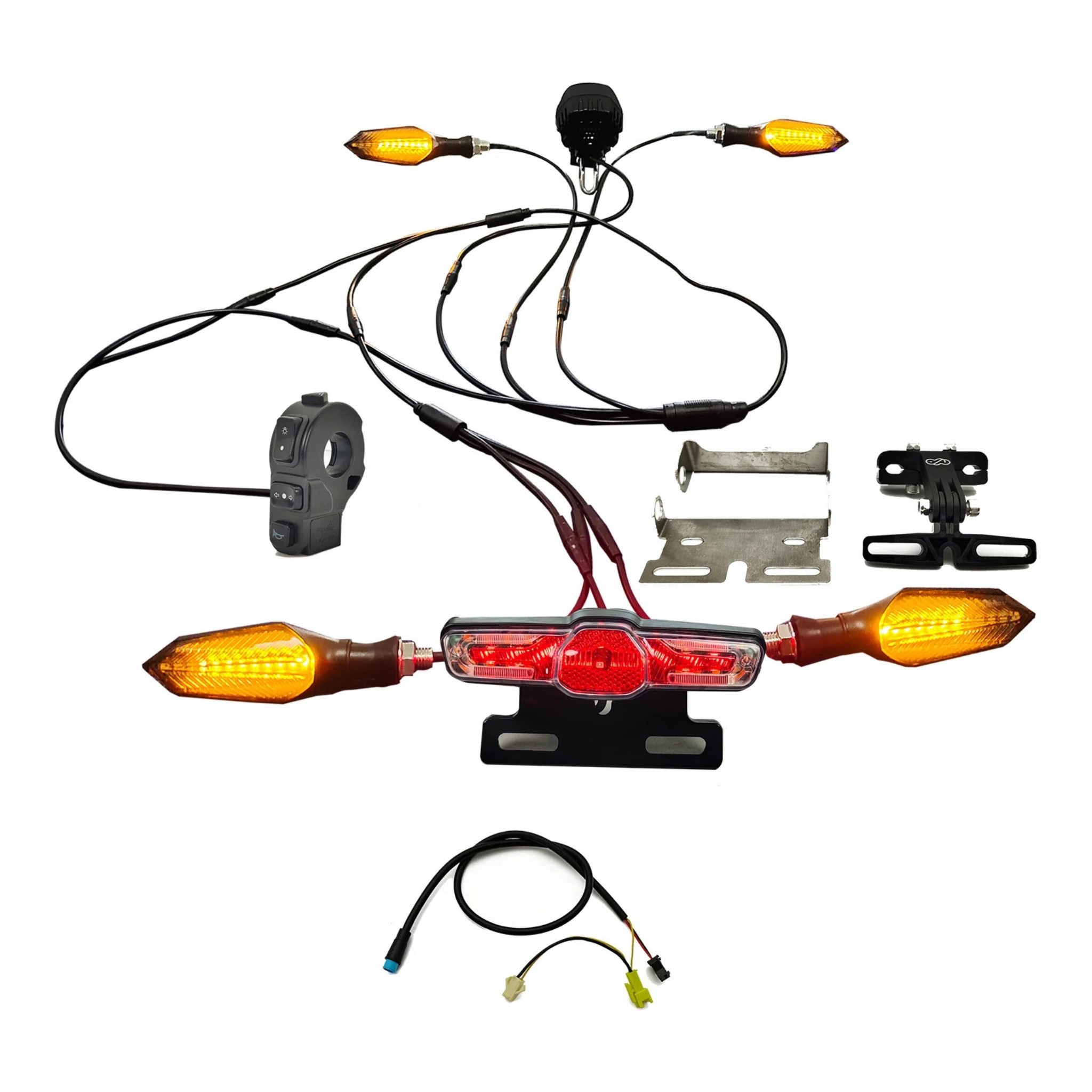

- Package Contents – 1x LED headlight, 2x front indicators, 1x rear light with 2 indicators and number plate holder, 1x handlebar controller, 1x cable harness, 1x connection cable with loose wires, 2x mounting brackets

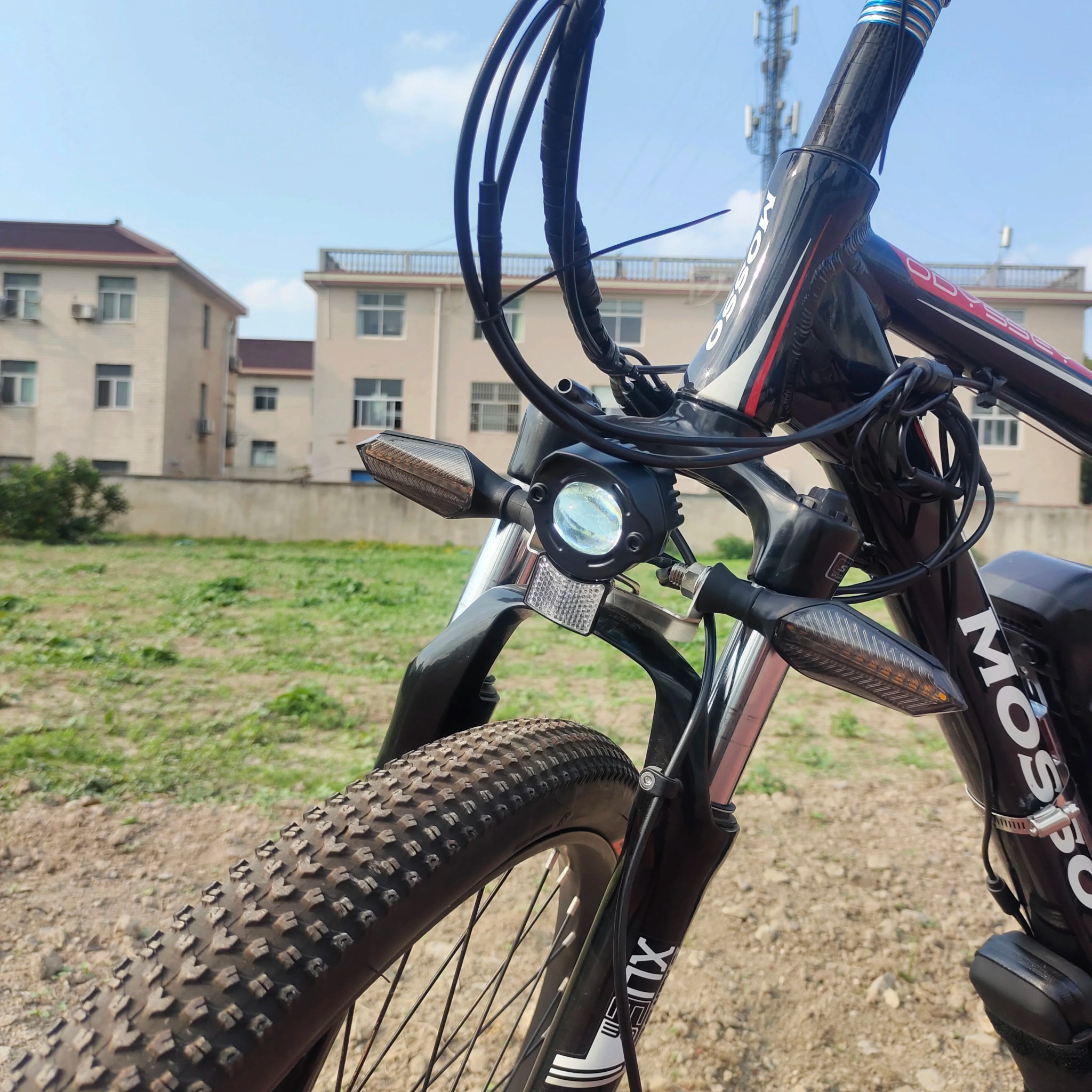

The headlight with front indicators attaches to the front of the bicycle, while the rear light with indicators is fitted using the number plate holder and included mounting brackets. The controller slides onto the handlebars, keeping the buttons within easy reach while riding. The cable harness connects all lights to the controller, and the individual parts connect via connectors, making it easier to route the cables along the frame. We recommend having the installation carried out by a professional, as it requires intervention in the bicycle's electrical system. The connection cable has a red wire for power +, a black wire for ground –, and a yellow wire for the brake signal –, allowing you to connect the set directly to the electric bicycle's wiring.
The controller features separate buttons for turning the lights on and off, for the left and right indicators, and for the hazard lights, which make all indicators flash simultaneously. When turning, simply press the button, and the corresponding indicators front and rear will flash orange. The rear light shines red and also serves as a brake light, alerting drivers behind you that you are slowing down. The headlight illuminates the path in front of the bicycle during dusk and night rides, and the indicators allow you to signal turns without letting go of the handlebars.
The 05X lighting set is a practical solution for electric bicycle owners who want to ride more safely and be more visible in traffic. Thanks to the power from the electric bicycle's battery, there is no need to worry about charging individual lights or replacing batteries. The IPX5 rating protects the lights from splashing water from the road and rain, ensuring they serve you throughout the year. The set is suitable for commuting to work, riding in the city, and longer trips on an electric bicycle.
