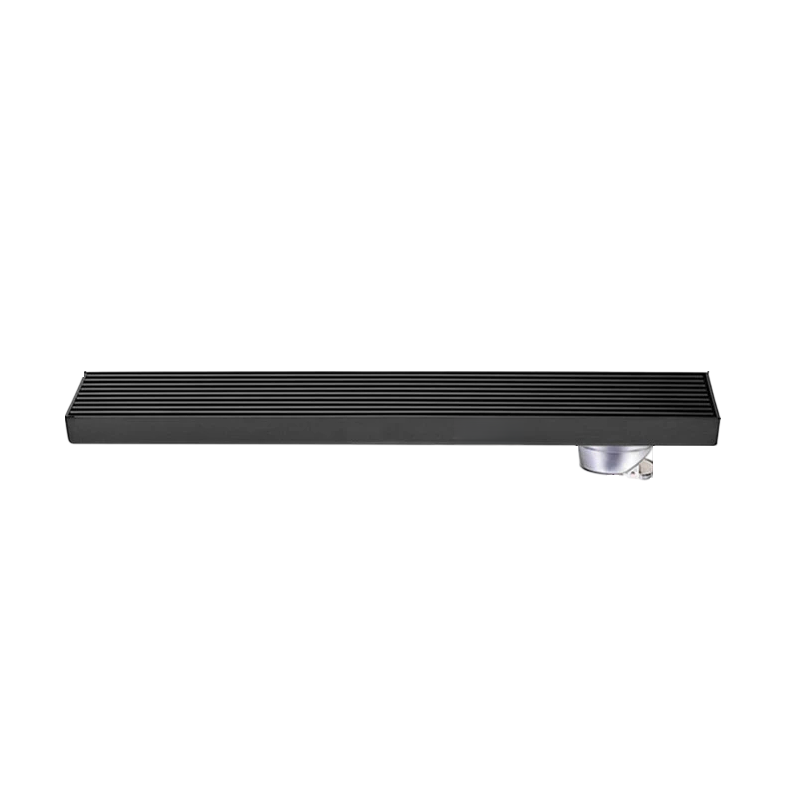

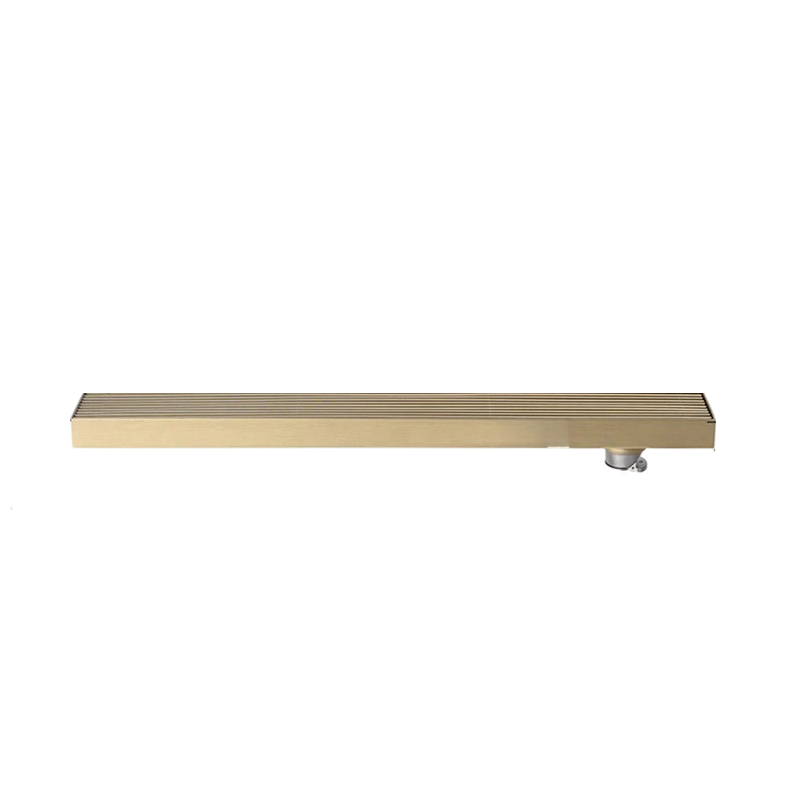

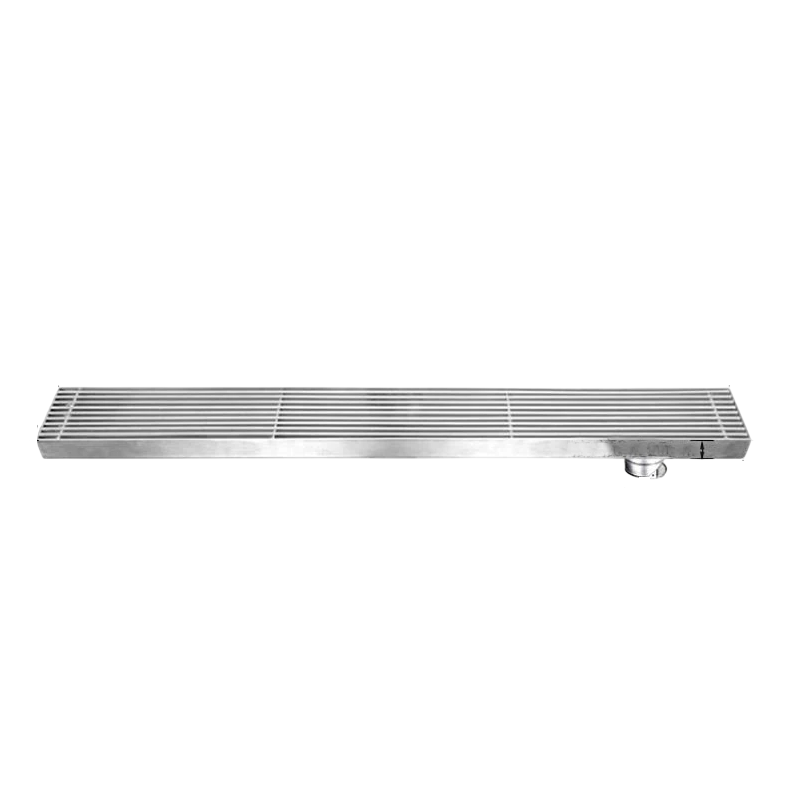

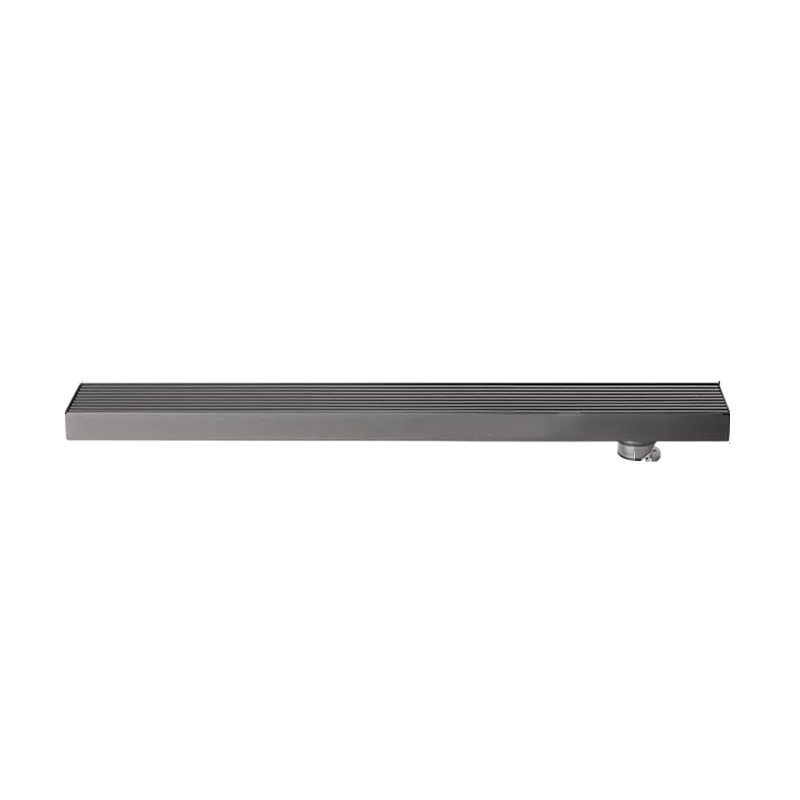

Recessed Shower Drain with End Outlet and Removable Grate 50 x 6.8 x 5.6 cm with Outlet Collar 4.5 cm and Hair Strainer
| Colour:
|
You already have the maximum available quantity in your cart.
The outlet positioned at the end of the drain is suitable for shower cubicles where the waste pipe exits at the wall, and the new drain must be adapted without cutting into the finished floor. The drain measures 50 x 6.8 x 5.6 cm, is recessed into the floor structure beneath the tiles, and only the grate with longitudinal bars remains visible at the surface, flush with the surrounding tiles and without a protruding frame. Stainless steel does not corrode in the bathroom, withstands hot water, steam, and soap, and the surface can be wiped clean at any time without losing its appearance even after years of use. The collar with a diameter of 4.5 cm is positioned 7.5 cm from the end of the bath, allowing the connection to be made precisely where the waste in the shower cubicle is typically prepared. The grate can be lifted from the bath by hand, revealing the strainer and the entire bottom of the drain, making it easy to clean the drain without disassembly, tools, or disturbing the surrounding tiles.
- End outlet – the collar with a diameter of 4.5 cm is positioned 7.5 cm from the end, simplifying the connection to the pipe at the wall or in the corner of the cubicle, saving space beneath the tiles and leaving the rest of the drain free.

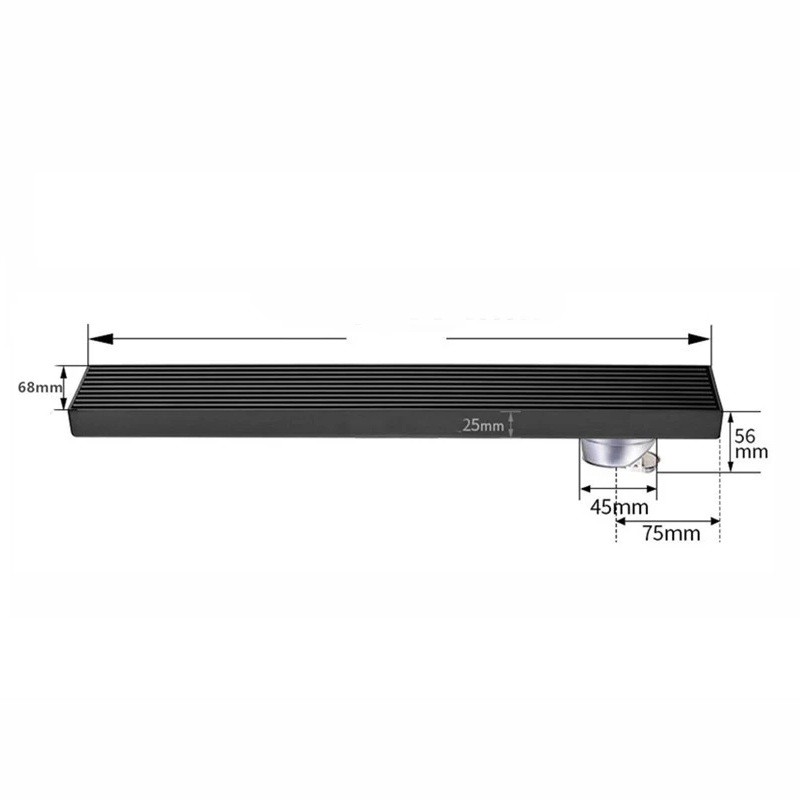

- Dimensions of the drain – the length of 50 cm, width of 6.8 cm, and height of 5.6 cm determine the size of the cutout in the tiles and how high the floor structure above the waste must be.
- Shallow basin – internal depth of 2.5 cm keeps the structural height low, so the drain does not require a deep space beneath the tiles or a thick layer of screed above the ceiling.

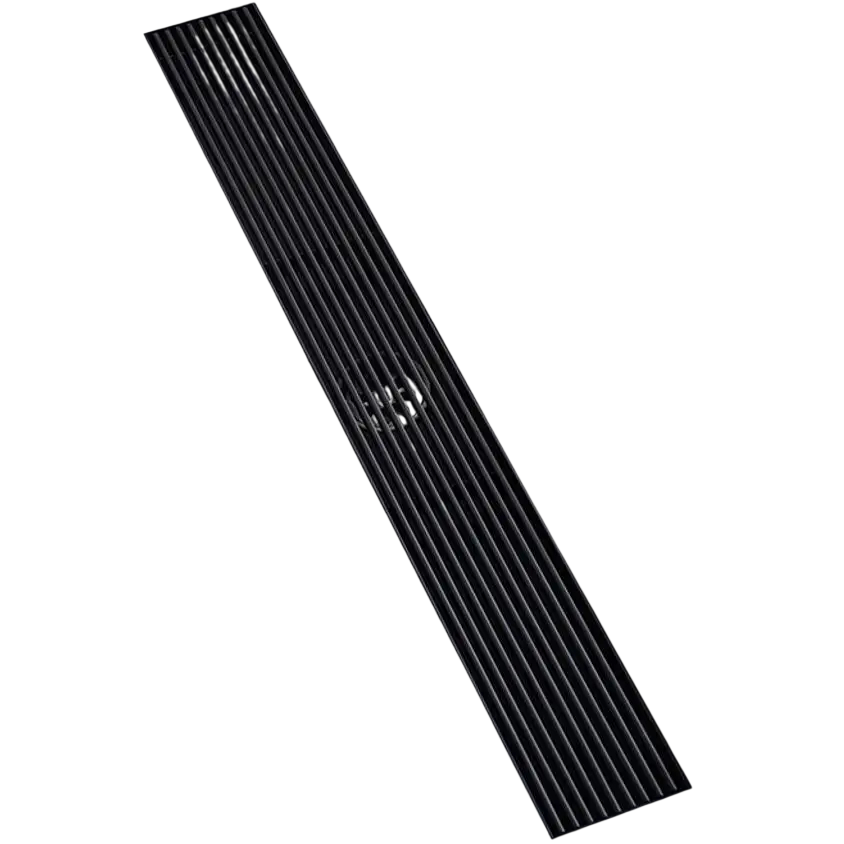

- Grate without screws – the grid holds by its own weight, can be removed by hand, rinsed under running water, and replaced without adjustment, screwing, or additional tools, making cleaning quick and easy.
- Hair strainer – the circular insert above the collar catches hair and coarse debris before they enter the waste pipe and settle in its bend, and it can be removed and rinsed.
- Stainless steel surface – the smooth surface can be wiped with a sponge or cloth, withstands common bathroom cleaning agents, and does not require abrasives, scouring pads, or polishes.
Package contents:
- 1x shower drain with outlet collar
- 1x removable grate
The drain with an outlet at the edge is used in bathrooms with a floor-level shower, where water drains directly from the tiles and the tray or shower cubicle edge is not an issue. It is also applicable during renovations when the tiles and flooring are changed, but the existing waste position remains where it was, and the new drain must be adapted to it in shape. The grate flush with the tiles creates only a thin line in the floor, allowing the cladding and grout to stand out and not acting as a disruptive element in the corner. Regularly removing the grate and rinsing the strainer keeps the drain clear, ensuring that water drains smoothly even after prolonged daily use of the shower. Before purchasing, it is advisable to verify the waste position, its diameter, and the height of the floor structure to ensure that the drain and existing installation connect without modifications. Installation is related to the slope of the floor and the laying of tiles, as the grate must be flush with the surrounding surface, water must slope towards it, and joints around it are sealed during tiling.
