Outdoor Distribution Box IP67 Made of ABS Plastic with Grey Transparent Lid, Dimensions 15 x 15 x 9 cm, Mounting Plate Included
| Colour:
|
You already have the maximum available quantity in your cart.
The outdoor distribution box is designed for housing electrical connectors, terminal blocks, circuit breakers, timer switches, and other small electrical components in outdoor or damp environments. The body of the box is made from ABS plastic in a light grey colour, the lid features a grey transparent design and, when the buckles are tightened, it sits against a silicone seal with an IP67 rating according to product information. The lid is attached to the body via hinges, allowing it to be flipped open and preventing loss, with two metal buckles on the sides for secure tightening. The front of the lid has a hole for fitting a padlock to prevent unauthorised access (lock not included). The internal space is equipped with a mounting plate (backplane) featuring a regular grid of holes for securing components with screws.
- Outdoor Distribution / Junction Box
- Material: ABS plastic according to product information
- IP67 rating according to product information

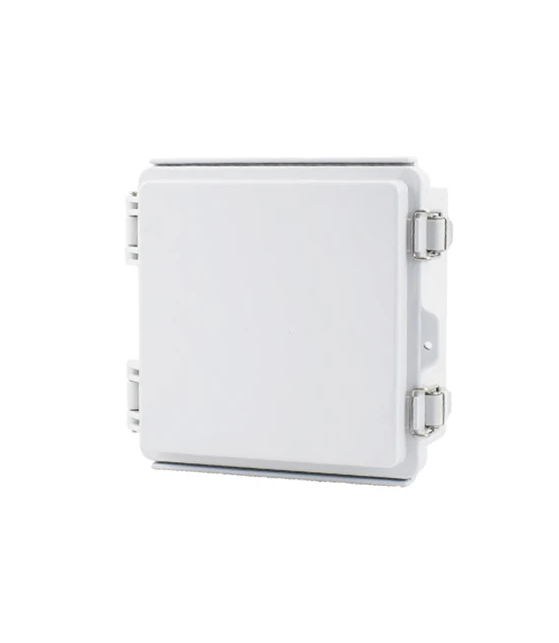

- Body in light grey, lid in grey transparent
- Silicone seal between lid and body
- Hinged lid with two metal buckles

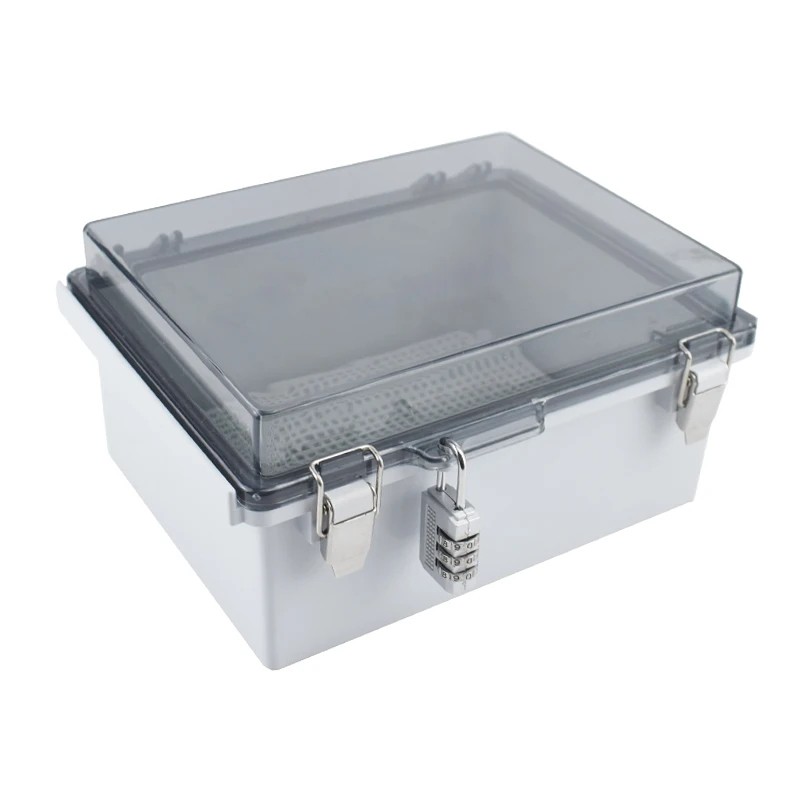

- Hole for padlock (lock not included)

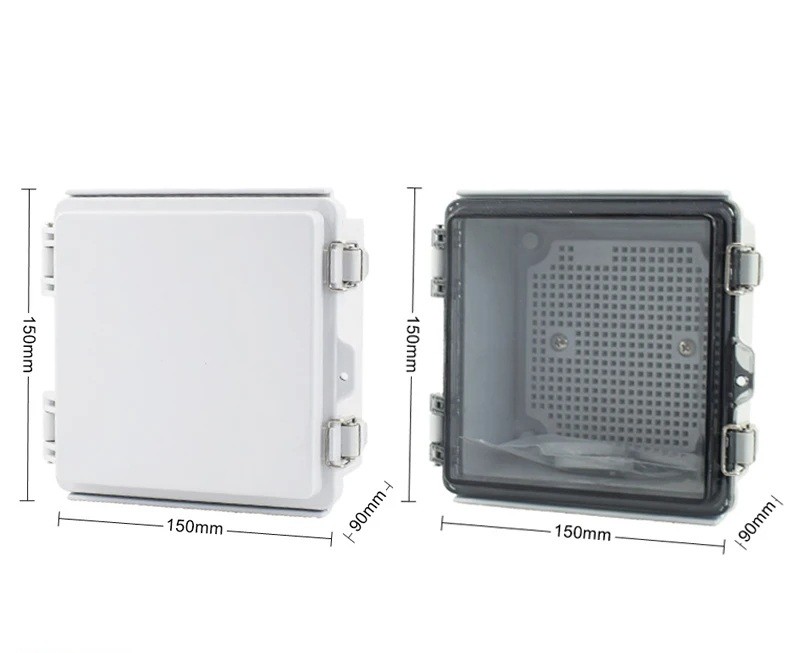

- External dimensions 15 x 15 x 9 cm

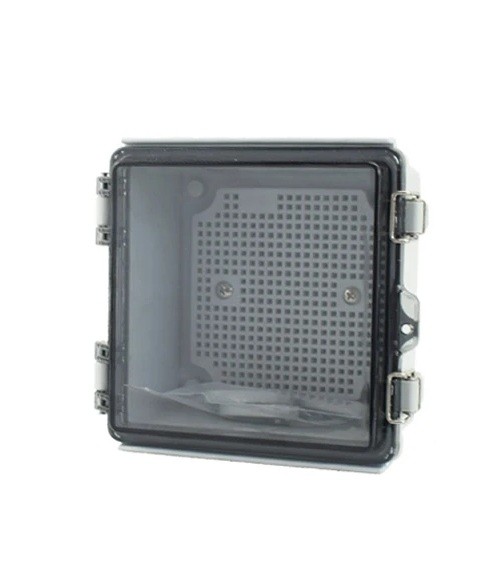

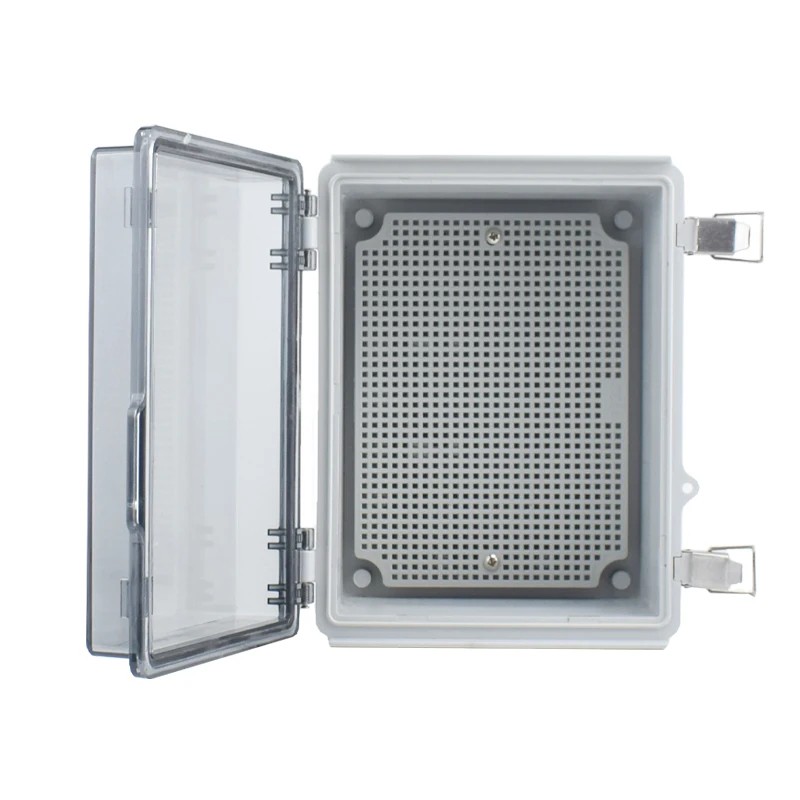

- Internal mounting plate with grid of holes

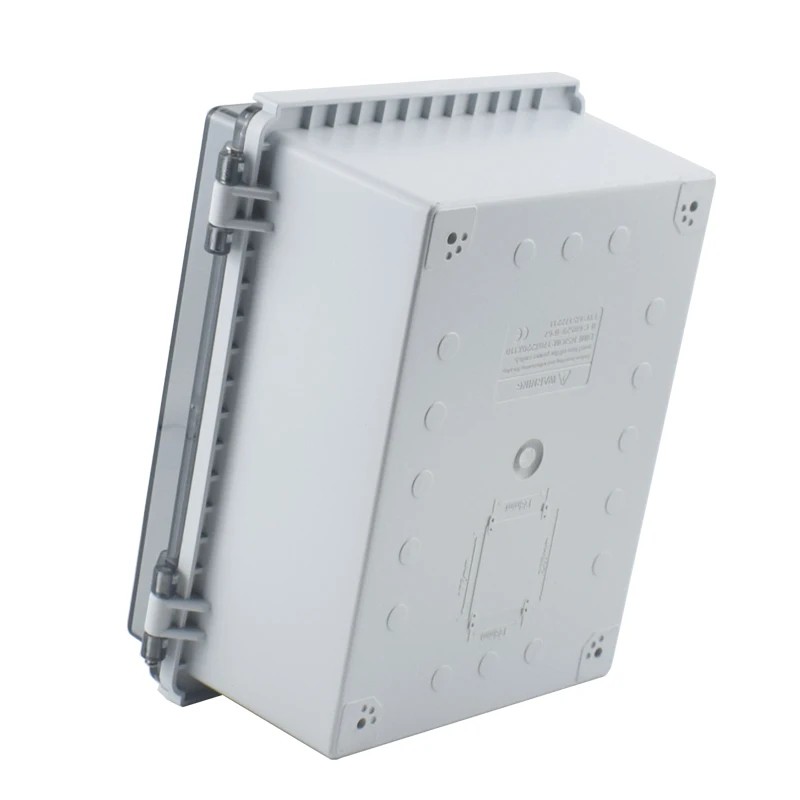

- Two mounting options for the box: self-tapping screws or using corner brackets
- Suitable for outdoor and indoor use
- Package contents: 1x box, 1x mounting plate, 4x corner bracket, 4x self-tapping screw
The box is used for housing electrical connections, circuit breakers, controllers, timer switches, IoT gateways, CCTV recorders, irrigation control units, or extension sockets in gardens, terraces, building facades, garages, sheds, basements, holiday homes, or industrial halls according to product information. The IP67 rating indicates resistance to dust and temporary immersion in water, meaning the box can withstand rain, spray from the lawn, and other common outdoor conditions. The internal mounting plate (backplane) is equipped with a regular grid of holes, into which rails, terminal blocks, or other components can be screwed without the need to drill into the box body. For wall or post installation, two methods can be used: direct drilling into the bottom of the box with self-tapping screws, or securing using the provided corner brackets on the outer side of the box, preventing holes from being created in the sealed space. Cable entries must be drilled separately and fitted with cable grommets to maintain the IP67 rating.
