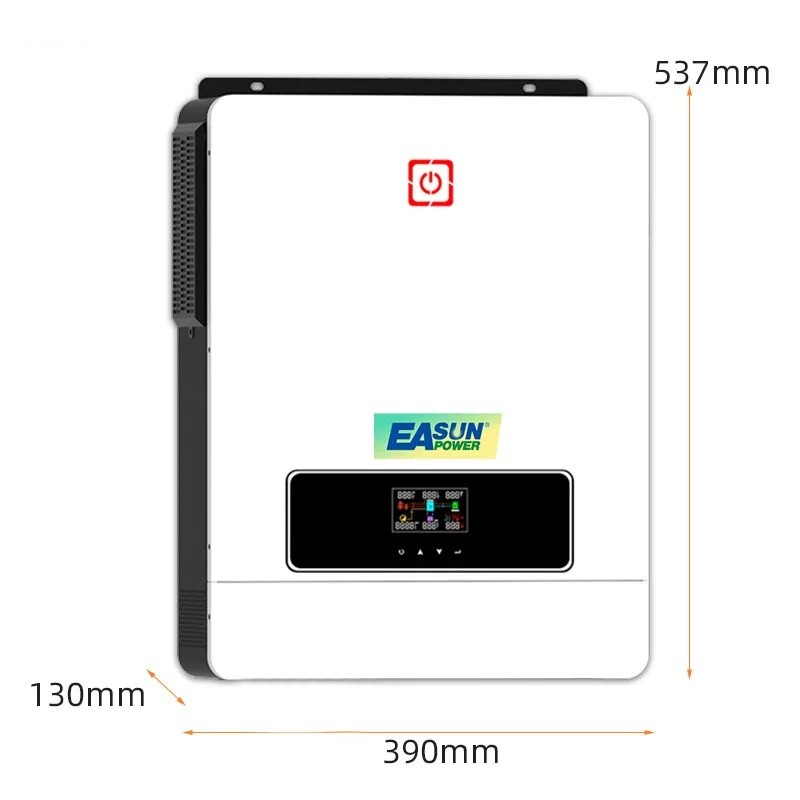

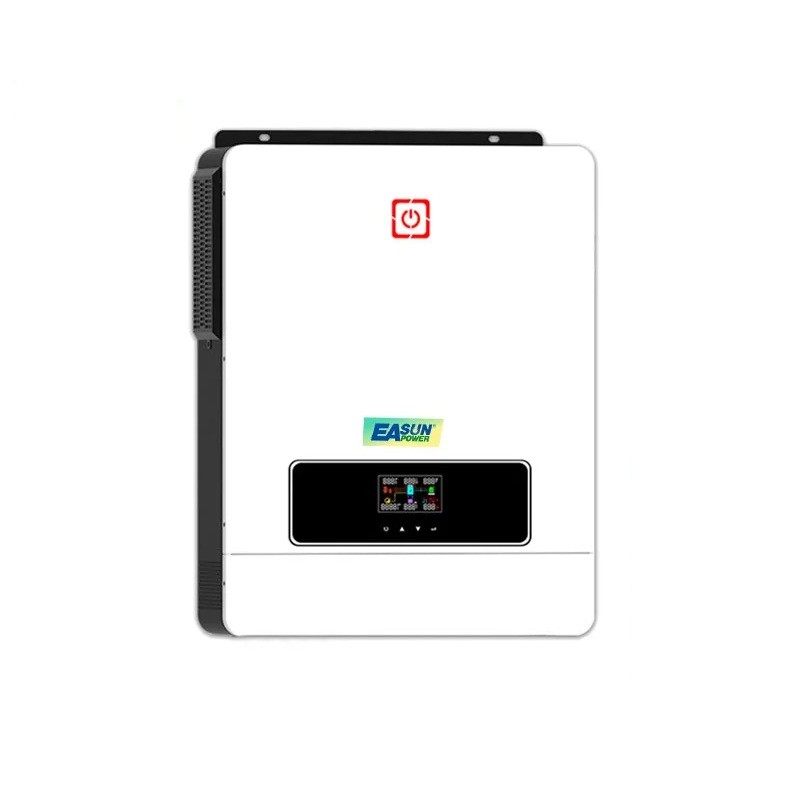

Hybrid Solar Inverter 10.2 kW 48 V with Two MPPT Charging 180 A and PV Array 10,200 W up to 500 V DC White On-Grid and Off-Grid for Photovoltaics
You already have the maximum available quantity in your cart.
The Hybrid Solar Inverter ISolar SML V with a power of 10.2 kW is designed for 48 V battery systems. Inside, there are two built-in MPPT controllers, allowing the panels to be divided into two separate branches. The maximum charging current reaches 180 A, the photovoltaic array can have a power of up to 10,200 W and a voltage of up to 500 V DC. The device can operate on-grid and off-grid, works even without a connected battery, and features cold start capability. The white body houses a colour display with buttons and a backlit power switch at the top.
Features:
- Power 10.2 kW — solution for 48 V battery systems in larger households.
- Two MPPT controllers — division of panels into two separate branches with independent tracking.
- Charging current 180 A — maximum current for charging batteries.
- PV array power 10,200 W — maximum power of connected photovoltaic panels.
- PV array voltage 500 V DC — maximum voltage of the photovoltaic array.
- Operation without batteries — ability to work even in a configuration without a connected battery.
- Cold start function — system start-up even under adverse conditions.
- On-grid and off-grid modes — operation off the grid as well as in conjunction with the distribution network.
- Colour display — graphical representation of the system status on the front.
- Control buttons — a quartet of elements below the display for navigating settings.
- Backlit power switch — separate power button at the top of the body.
- White colour — wall-mounted design with a black cooling grille on the side.
Package contents:
- 1x hybrid solar inverter
The inverter can be used in a home photovoltaic system, at a cottage, in a workshop, or in a business where higher consumption needs to be covered. Two MPPT controllers allow the panels to be divided across two roofs or different orientations, ensuring more even production throughout the day. The charging current of up to 180 A reduces the time needed to replenish batteries during sunny days. Operation without batteries along with on-grid and off-grid modes provides flexibility in system construction and later expansion with a battery. The colour display provides an overview of production and consumption directly at the inverter.
