Bathroom Floor Drain with Edge Outlet and Removable Grate 30 x 6.8 x 5.6 cm with Outlet Socket 4.5 cm and Removal Hook
| Colour:
|
You already have the maximum available quantity in your cart.
The variant of the drain with the outlet shifted to the edge is used where the waste pipe runs along the wall and cannot be pulled to the centre of the shower corner without demolition. The drain measures 30 x 6.8 x 5.6 cm, it is recessed under the tiles, and only the grate with longitudinal bars remains on the surface, flush with the floor. Stainless steel is suitable for the permanently damp area of the shower as it does not corrode, withstands hot water and soap, and the surface can be wiped clean at any time. The socket with a diameter of 4.5 cm is positioned 7.5 cm from the end of the drain, allowing the connection to the waste to be made at the edge rather than in the middle length as with central models. The included hook is used to remove the grate, which can be lifted even with wet hands without scratching the surrounding tiles.
- Edge Outlet – the socket with a diameter of 4.5 cm is positioned 7.5 cm from the end of the drain, which is convenient when running waste along the wall or in the corner of the shower.
- Dimensions – the drain has a length of 30 cm, a width of 6.8 cm, and a height of 5.6 cm, the internal depth of the drain is 2.5 cm and is used to calculate the floor structure.
- Removal Hook – the small hook fits between the bars of the grate and lifts it without prying with a knife or screwdriver, ensuring the edges remain undamaged.

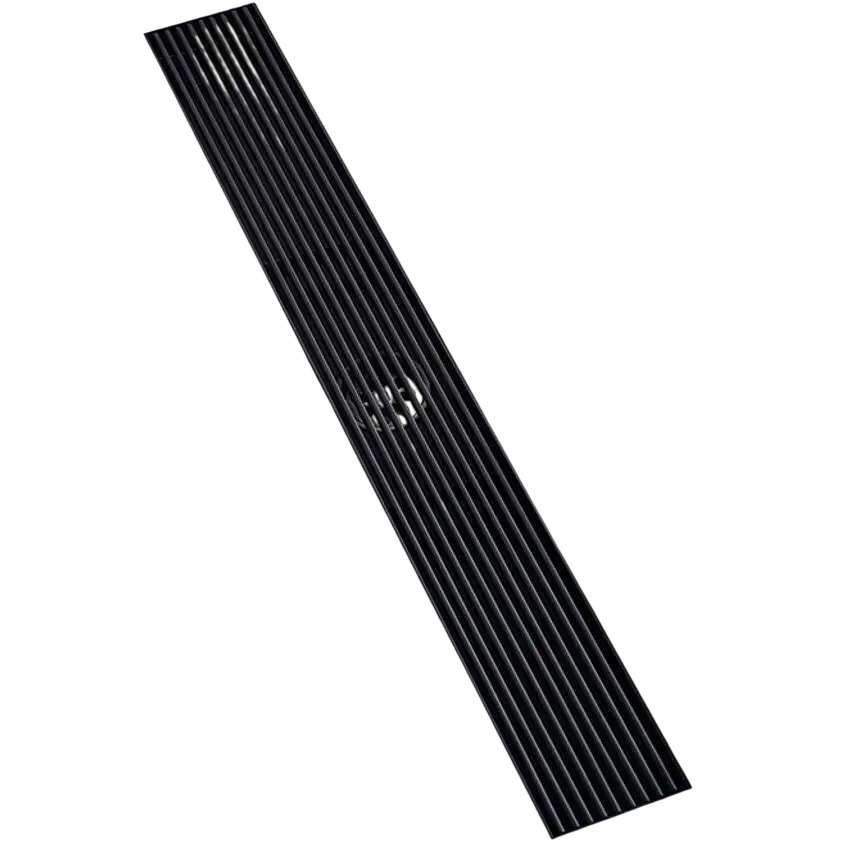

- Removable Grate – the grate can be completely removed, rinsed under running water, and returned without screwing or further adjustments.
- Sieve above the Outlet – the circular insert catches hair and coarse debris before it enters the waste pipe and can be removed and rinsed.
- Stainless Steel Surface – the material withstands moisture and soap, and can simply be wiped with a sponge or cloth without abrasive agents or steel wool.
Package Contents:
- 1x shower drain with outlet socket
- 1x removable grate
The drain with the edge outlet addresses situations where the waste is already built into the wall and a new inlet must be adapted without cutting into the floor. The length of 30 cm is suitable for smaller corners, for a toilet with a shower, or for draining part of the floor next to the shower tray. The grate is regularly removed and rinsed to prevent hair or soap residue from accumulating in the drain and to ensure smooth water flow. Before purchasing, it is advisable to verify the position of the waste, its diameter, and the height of the floor structure, as the drain is 5.6 cm high including the socket under the bottom. Installation is related to the slope of the floor and the laying of tiles, as the grate should be flush with the surrounding surface and the joints around it sealed.
