M6DAC Dual Channel Balancing Charger with 3.5 Inch IPS Display, 2x 15 A, AC 200 W / DC 700 W, 12.7 x 10.6 x 5.7 cm, EU Plug
You already have the maximum available quantity in your cart.

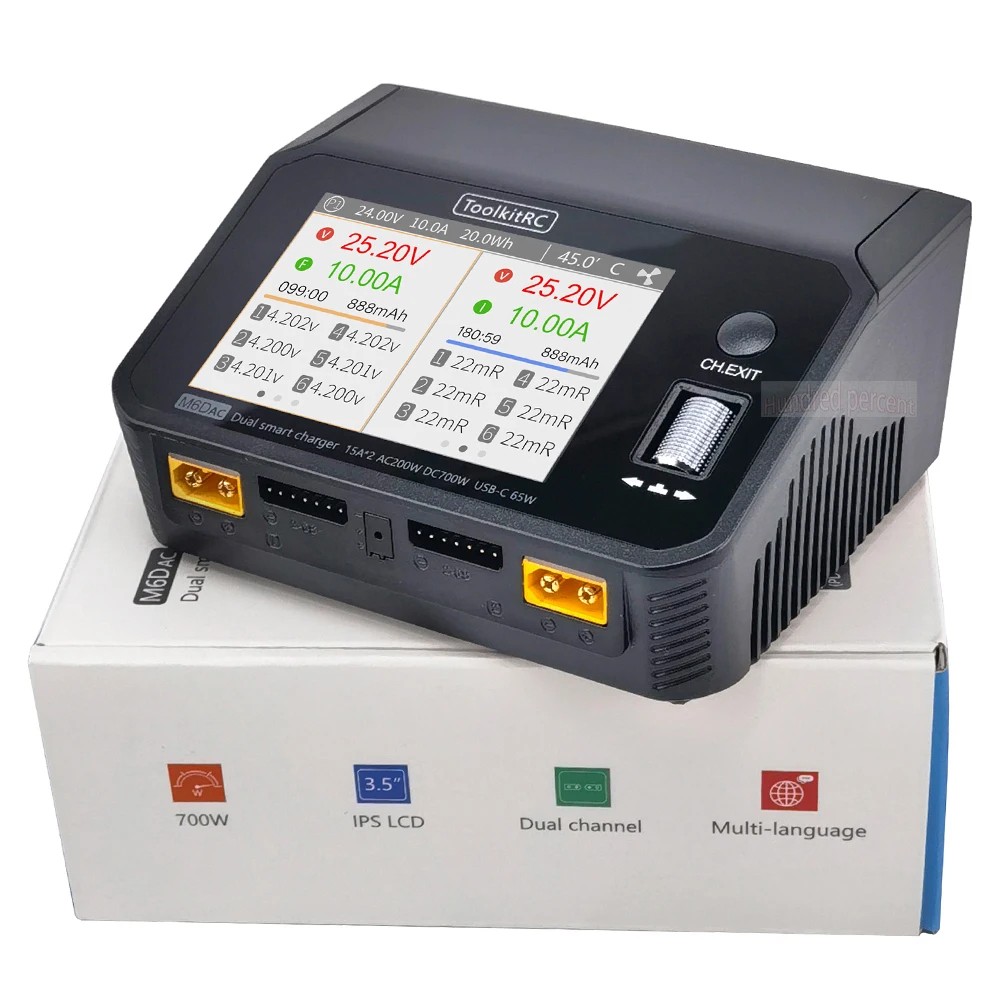

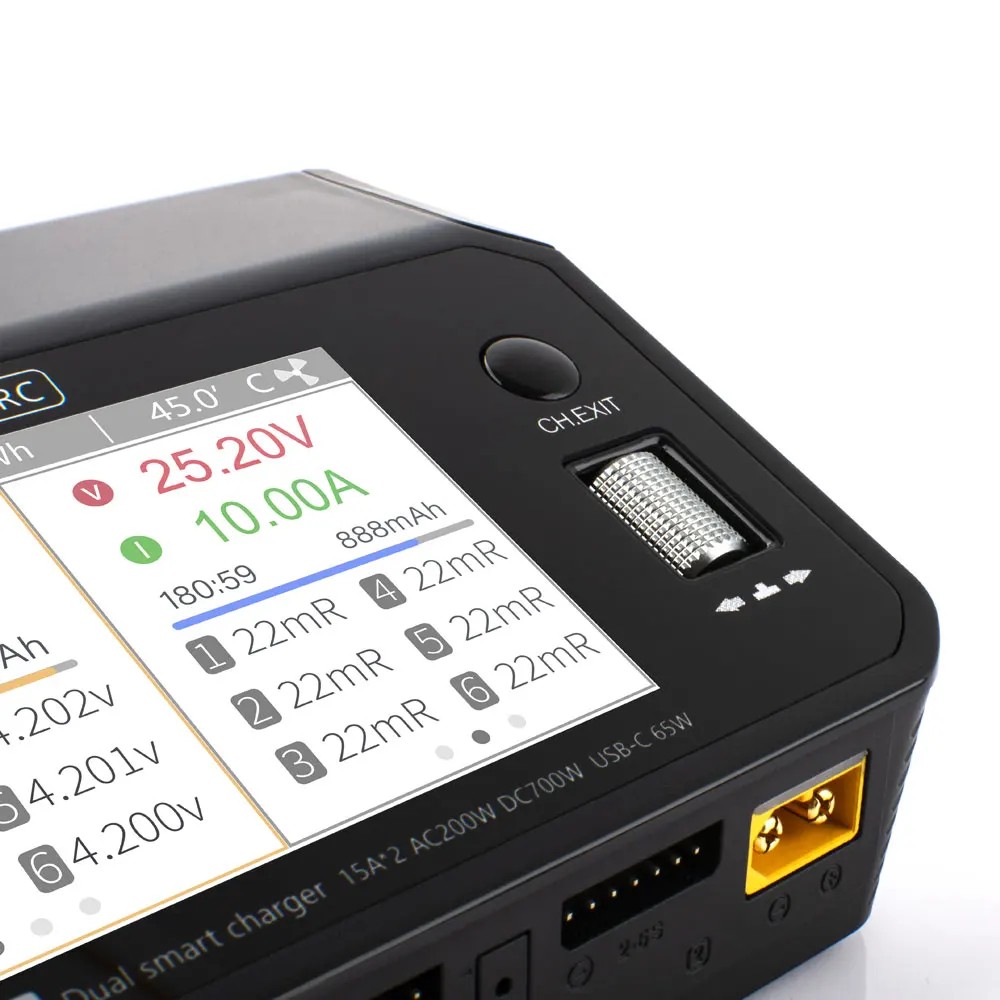

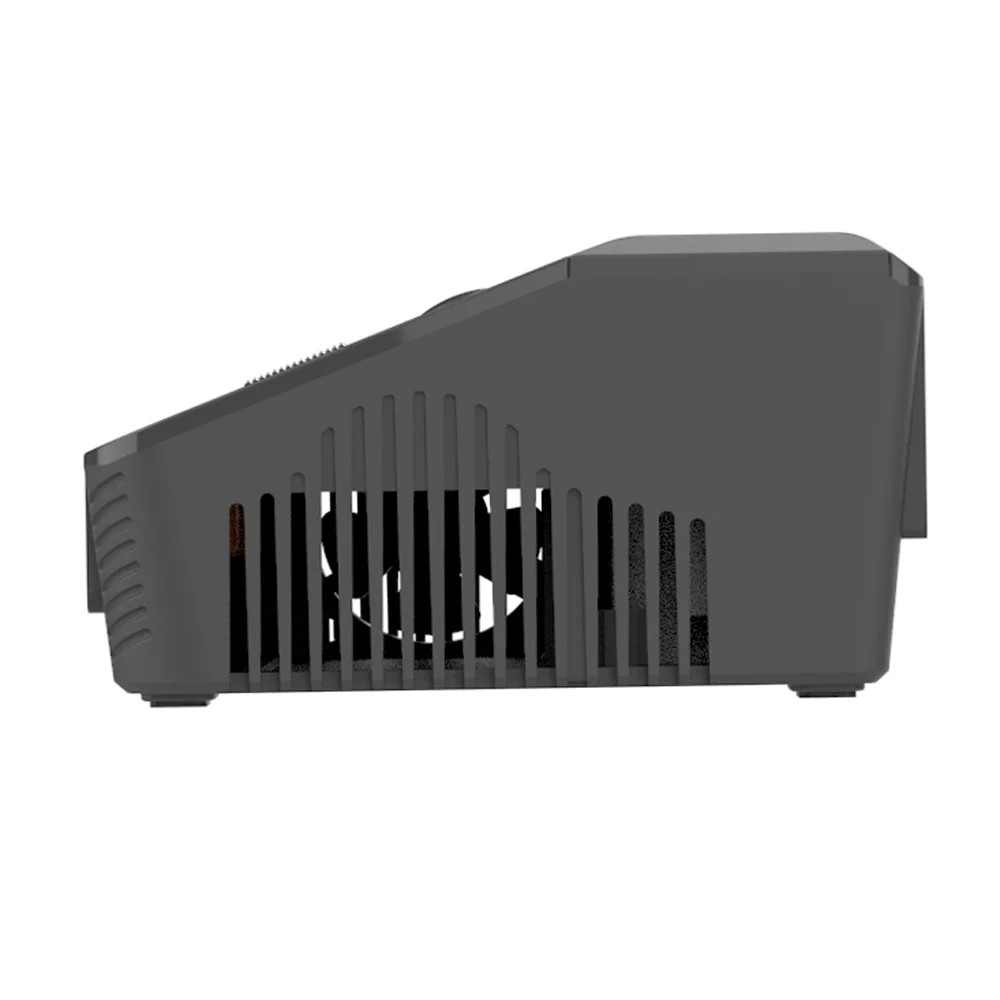

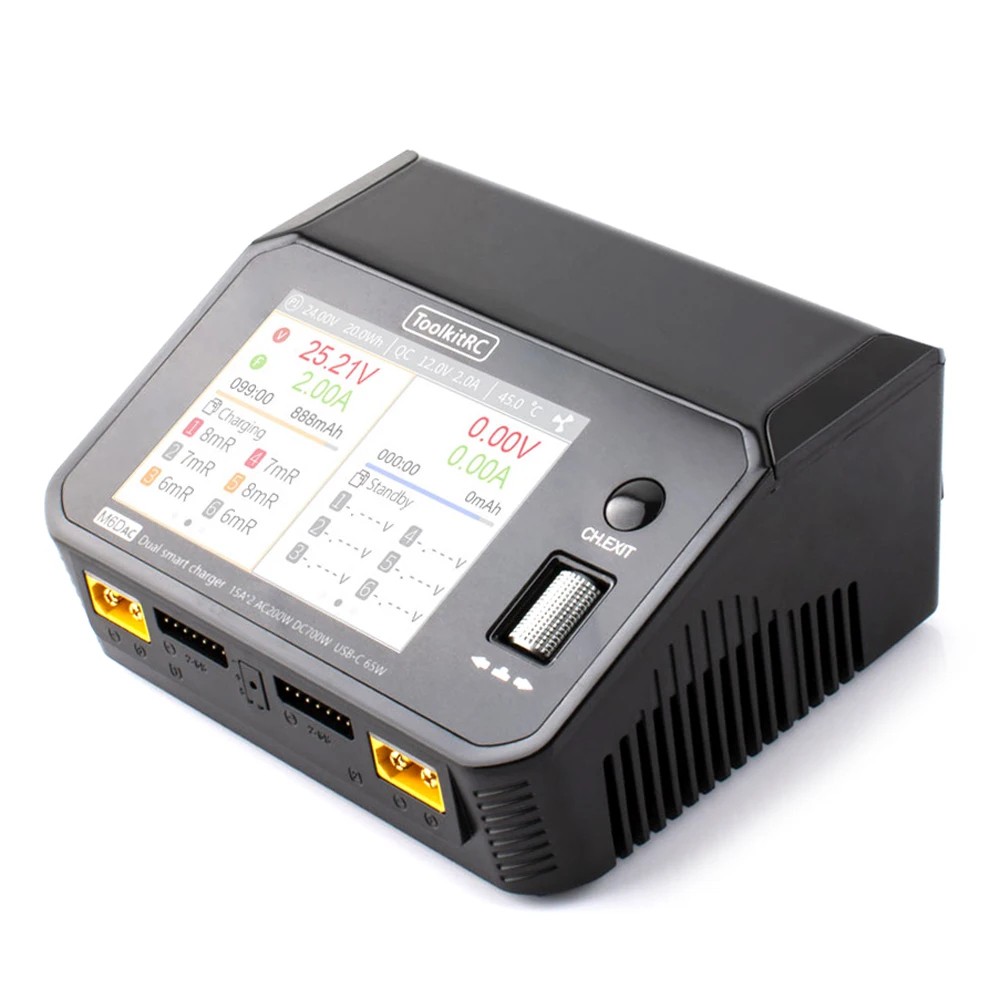

The M6DAC Dual Channel Balancing Charger from ToolkitRC is a device for charging and discharging rechargeable batteries with two independent channels and a 3.5-inch IPS display with a resolution of 480 x 320 pixels. The black body measures 12.7 x 10.6 x 5.7 cm and weighs 520 g, equipped with a rotary knob with a button and a separate CH.EXIT button for controlling both channels. The device operates in two charging modes according to the product information: in asynchronous mode, each channel can independently handle 0.1 to 15 A at a power of 350 W (a total of 700 W), in synchronous mode, both channels are combined and achieve a current of 0.1 to 25 A at a total power of 700 W. When powered from the mains, it achieves a total power of 200 W, and when powered from a DC source, 700 W. Included is a USB-C output supporting up to 65 W and protocols PD, QC, AFC, FCP, SCP, PE, SFCP, and VOC according to the product information.
- Dual channel balancing charger and discharger
- 3.5-inch IPS LCD display with a resolution of 480 x 320 pixels
- Charging current 0.1 to 15 A per channel (asynchronous mode)
- Charging current 0.1 to 25 A with combined channels (synchronous mode)
- Discharging current 0.1 to 15 A per channel in recycling mode
- Discharging current 0.1 to 3 A per channel in normal mode
- Input voltage DC 7 to 28 V at a current of up to 30 A
- Input voltage AC 100 to 240 V at a current of up to 2.5 A
- Maximum AC power 200 W
- Maximum DC power 700 W
- Balancing current 1000 mA for 2 to 6 cells
- Balancing accuracy below 0.005 V according to the product information
- Supported battery types: LiPo, LiHV, LiFe, Li-Ion (1 to 6 cells), NiMH (1 to 16 cells), Pb (1 to 10 cells)
- Individual cell voltage measurement 1.0 to 5.0 V
- Internal resistance measurement of cells 1 to 100 mΩ
- USB-C output up to 20 V / 3.25 A, maximum 65 W
- Support for protocols PD, QC, AFC, FCP, SCP, PE, SFCP, and VOC according to the product information
- Black body with rotary control and separate CH.EXIT button
- Dimensions of the device 12.7 x 10.6 x 5.7 cm
- Weight of the device 520 g
- Packaging dimensions 15.8 x 13.4 x 6.3 cm
- Packaging weight 700 g
- EU plug for European sockets
- Contents of the package: 1x charger

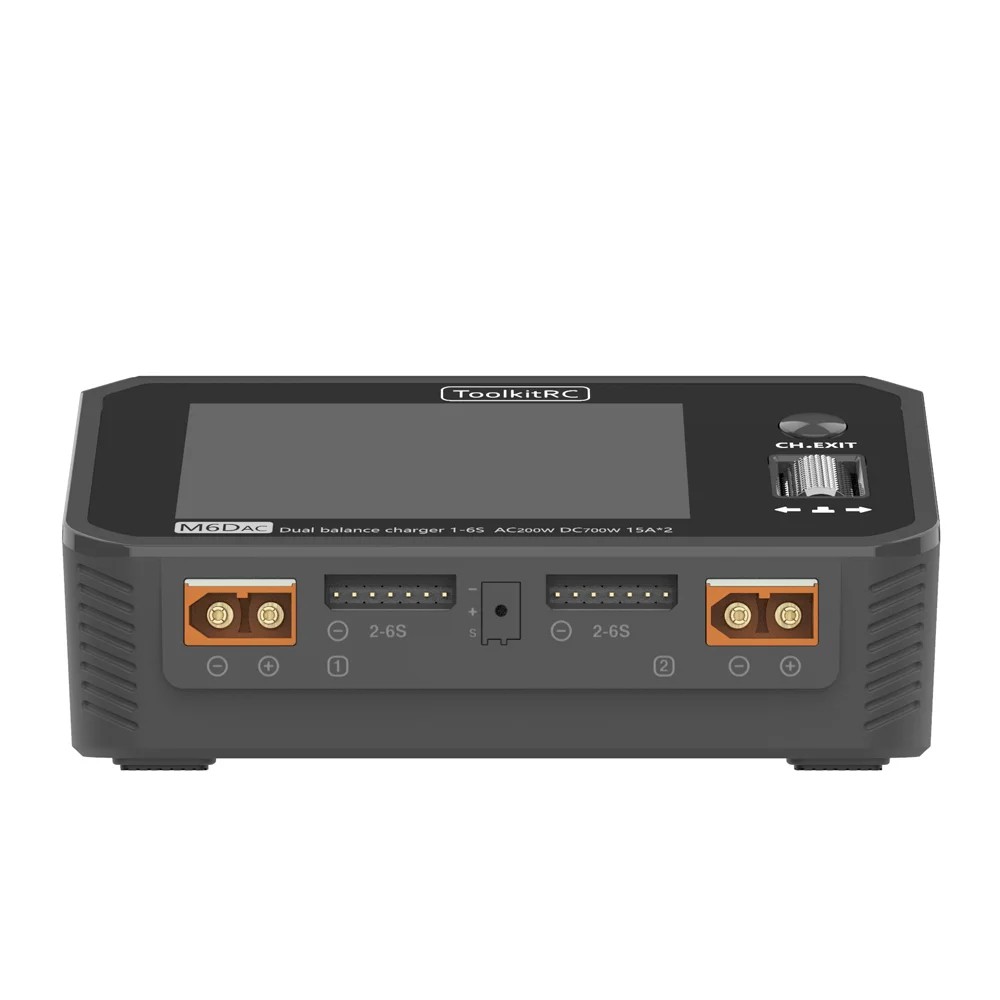

The device is used for charging and discharging batteries in RC models, drones, aircraft models, cars, boats, and other devices with removable rechargeable batteries according to the product information. The USB-C output up to 65 W with support for fast charging protocols (PD, QC and others according to the product information) allows for simultaneous charging of a laptop, tablet, or phone compatible with these protocols. In synchronous mode, both channels can be combined to utilise a higher current of up to 25 A for a single powerful battery, while in asynchronous mode, the channels operate independently with their own settings. For mains power, a power cable with an EU plug for standard European sockets is included, and for powering from a DC source, XT60 connectors are provided on the sides of the device. Higher balancing accuracy below 0.005 V according to the product information is designed for sensitive charging of multi-cell battery packs.
