Dual Channel DC Balancing Charger M8D with 3.5 Inch Touch IPS Display, 2x 30 A, 2x 800 W, Support 1-8S, 13 x 9.7 x 4.2 cm
You already have the maximum available quantity in your cart.

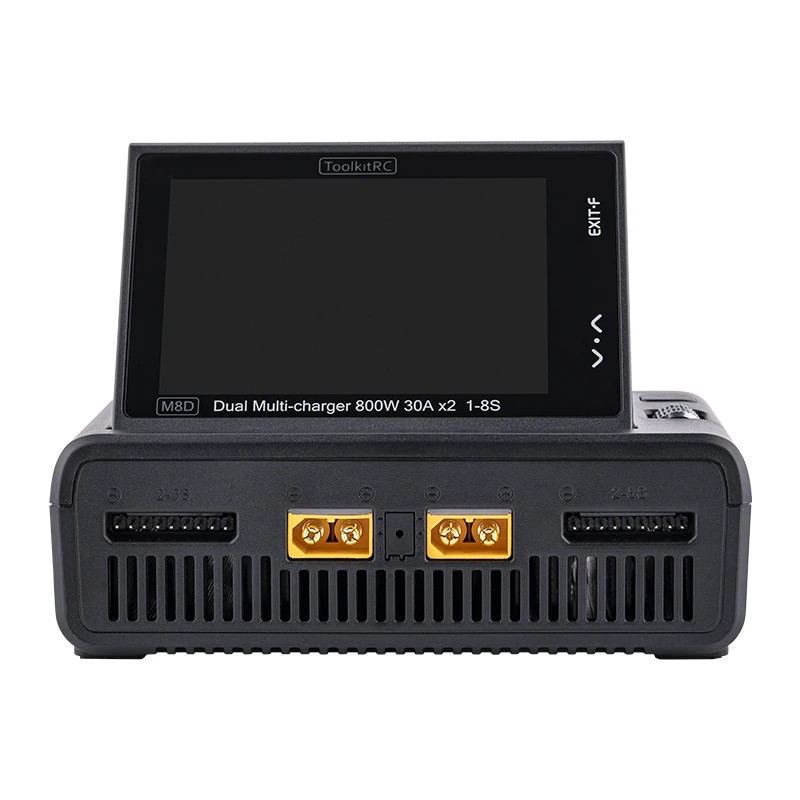

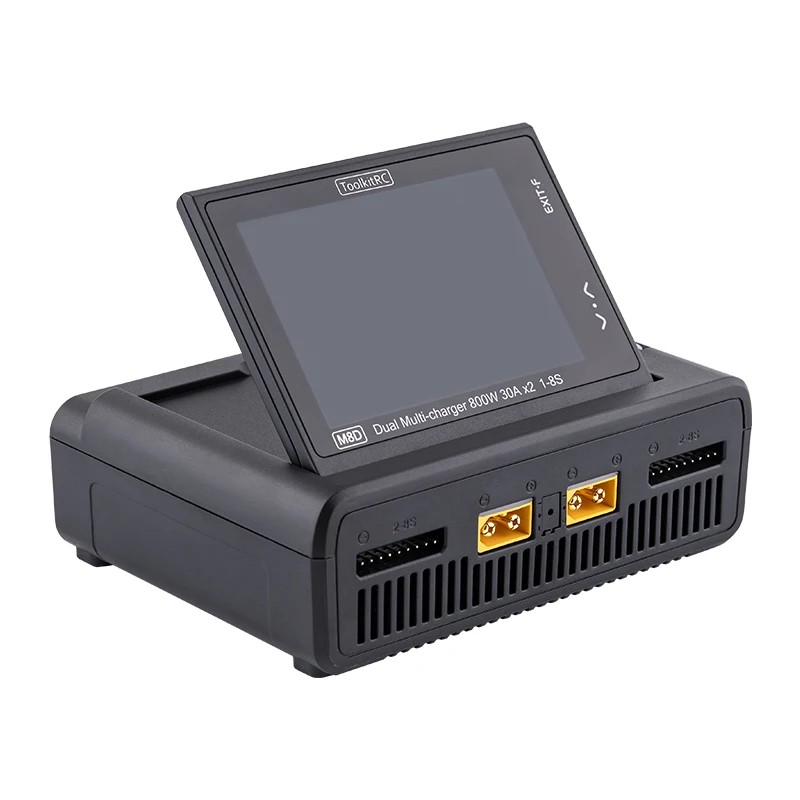

The Dual Channel DC Balancing Charger M8D by ToolkitRC is a device for charging and discharging rechargeable batteries with two independent channels and a 3.5-inch IPS touch display with a resolution of 320 x 480 pixels and capacitive control. The display is tiltable up to 80° for comfortable reading at various angles. The black casing measures 13 x 9.7 x 4.2 cm and weighs 450 g, featuring two fans with adjustable speed for controlled cooling during high charging loads. The device operates only from a direct current source (DC 10 to 49 V at a current of up to 60 A), meaning it does not have a mains plug and requires connection to an external DC station or car battery. In asynchronous mode, each channel reaches 30 A at a power of 800 W (total 1600 W), while in synchronous mode, both channels combine and operate with a current of up to 50 A at a power of 1600 W.
- Dual channel balancing charger and discharger

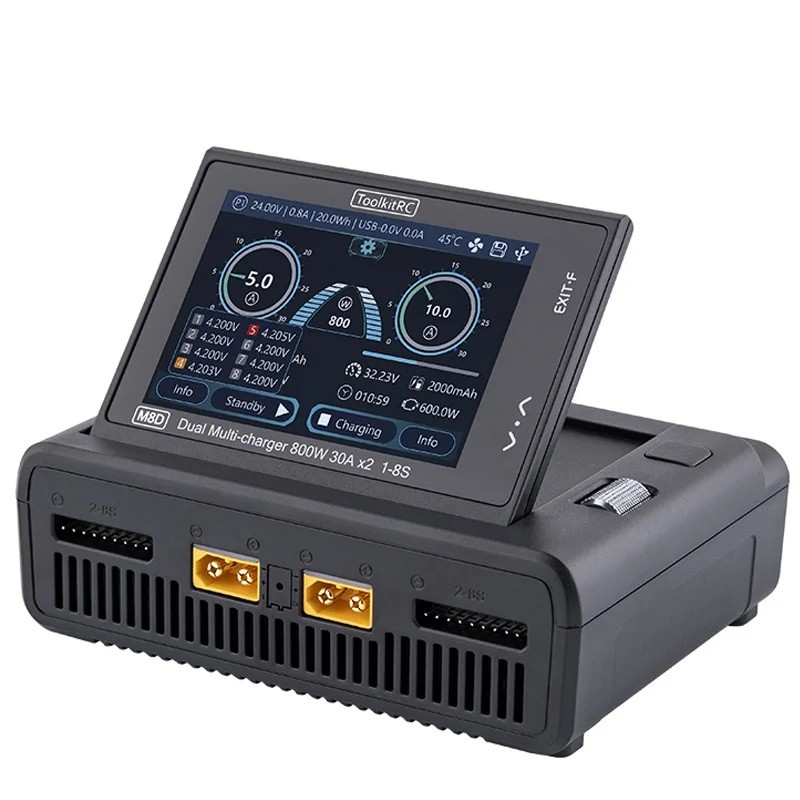

- 3.5-inch IPS LCD display with a resolution of 320 x 480 pixels
- Capacitive touch panel
- Tiltable display up to 80° as per product information
- Input only from DC power source 10 to 49 V at a current of up to 60 A
- No mains plug and no mains power supply
- Input connector XT60 as per product information
- Charging current 0.1 to 30 A per channel in asynchronous mode
- Charging current up to 50 A with combined channels in synchronous mode
- Maximum power 800 W per channel in asynchronous mode (total 1600 W)
- Maximum power 1600 W in synchronous mode
- Discharging power 800 W per channel in recycling mode
- Discharging power 40 W in normal mode at a current of 10 A
- Balancing current 2000 mA at 4.2 V
- Supported battery types: LiPo, LiHV, LiFe, Li-Ion, LTO (1 to 8 cells), NiMH (1 to 20 cells), Pb (1 to 15 cells)
- USB-C output 65 W with a voltage range of 5.0 to 20.0 V as per product information

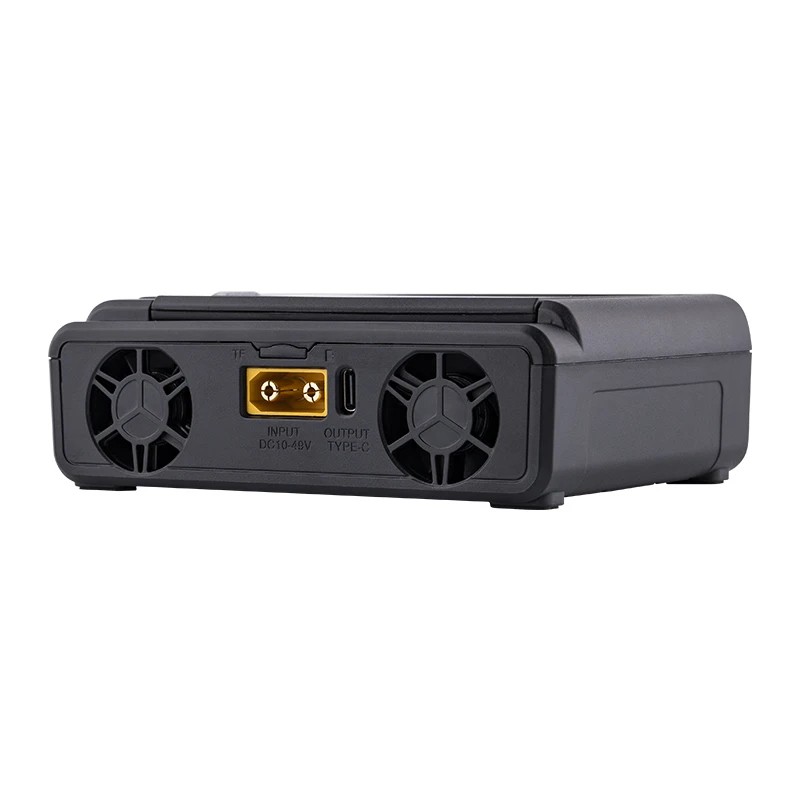

- Two fans with adjustable speed
- TF card slot for recording charging and discharging data
- Battery destruction function for disposal of worn-out cells as per product information
- Black plastic casing

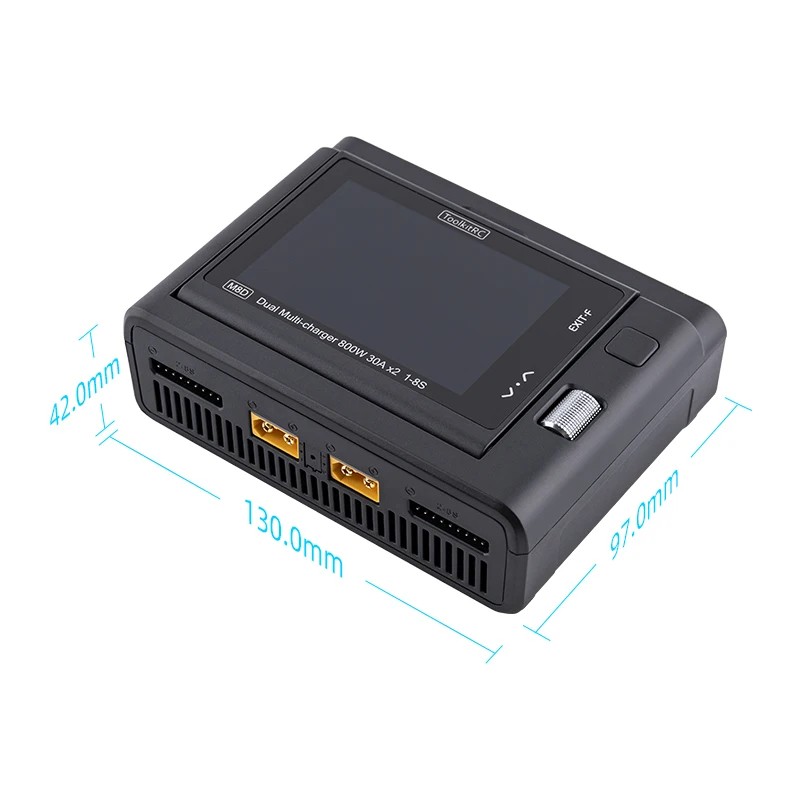

- Device dimensions 13 x 9.7 x 4.2 cm
- Device weight 450 g
- Packaging dimensions 14 x 11 x 5 cm
- Packaging weight 700 g

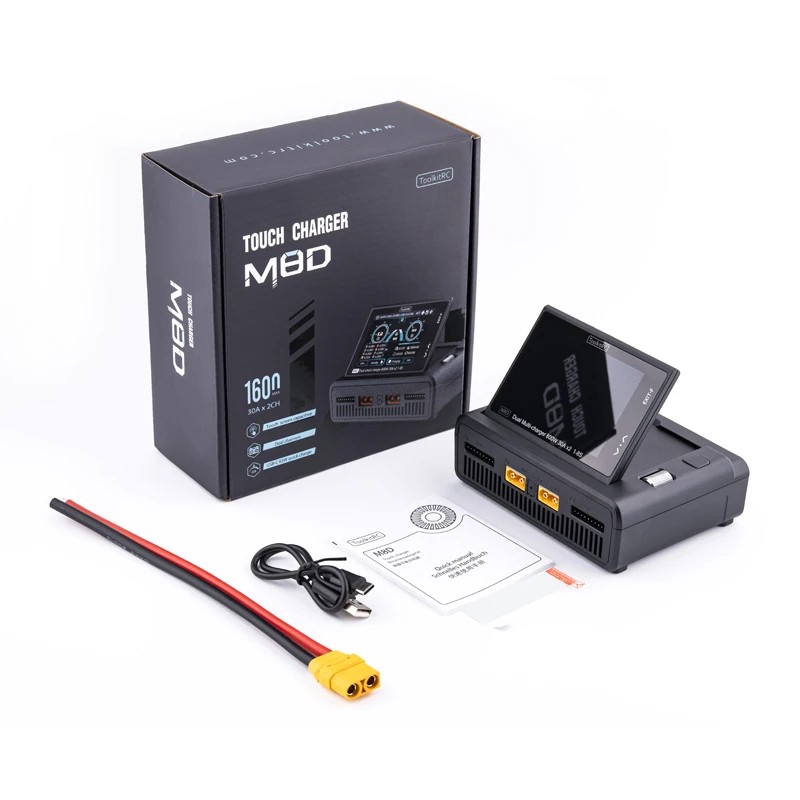

- Contents: 1x charger
The device is used for charging and discharging batteries in RC models (cars, boats, aircraft, drones), in professional drones, robots, and in other devices with higher battery capacities. The higher power of 1600 W across two channels reduces the charging time of larger battery packs compared to weaker models. The TF card slot allows for recording data on individual charging and discharging cycles as per product information. To power the device, a strong DC power supply with a voltage of 10 to 49 V (for example, a power station or car battery) with an XT60 connector, which corresponds to the input cable in the package, must be purchased separately. The USB-C output supporting up to 65 W is used for charging laptops, tablets, or phones as per product information.
