30 W Fibre Laser for Marking with LightBurn Software Galvo Scanner 1064 nm at 8000 mm/s and USB Computer Connection
You already have the maximum available quantity in your cart.

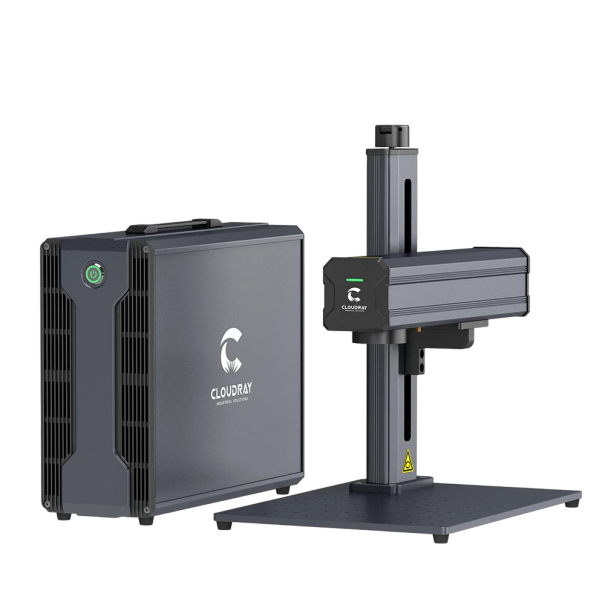

The assembly consists of a laser unit and a marking head on a column with a flat working table, making the machine ready for operation immediately after being placed on a table. The source operates with 30 W power at a wavelength of 1064 nm, with a frequency of 40-60 kHz and a pulse width of 100 ±10 ns at 45 kHz. The delivery includes LightBurn software, where graphics, texts, and serial numbers are prepared and sent directly to the machine. It is complemented by the BSL Lite marking program and the CorFile2 correction tool, both for Windows computers from XP to Windows 11 connected via USB cable. The size of the working area changes according to the installed F-Theta lens and corresponds to areas of 110 x 110 mm, 175 x 175 mm, or 200 x 200 mm.
- LightBurn software included – preparation of materials and sending to the machine occurs in one program, eliminating the need to search for and purchase a licence after buying the machine.
- 30 W source at 1064 nm – power can be smoothly adjusted from 1 to 100 %, allowing for the depth and contrast of the marking to be tailored to the specific surface.
- Galvo scanner with a speed of 8000 mm/s – positioning speed of 12 m/s at F=160 mm and repeatability under 13 µrad maintains a short time per piece.
- Field according to F-Theta lens – using a different lens creates a field of 110 x 110 mm, 175 x 175 mm, or 200 x 200 mm depending on the size of the parts.
- Operation without water cooling – the laser is air-cooled, so there is no need for an external cooling circuit or regular maintenance, making preparation for operation faster.
- Power supply and protection – single-phase network 110-230 V and 50/60 Hz with a power consumption of up to 400 W, the marking head has an IP54 rating and the laser unit IP20.
Contents of the package:
- 1x fibre laser marking machine
- 1x LightBurn software licence
The machine is suitable for workshops, production, and operations where tools, labels, parts, or gift items are marked in small series. The marking head moves along the column, allowing the focus to be adjusted according to the height of the object, and holes in the working table facilitate the clamping of fixtures. The operating environment is a standard workshop with temperature +5 to +35 °C and humidity up to 90 % without condensation, away from dusty operations. Before first use, it is advisable to install LightBurn and the correction file and test the settings on a sample piece to fine-tune the power and speed. The combination of a 30 W laser, fast galvo, and ready-to-use software reduces the time from idea to finished marking to mere minutes. Additionally, marking does not require inks or labels, so after the initial purchase, the costs for consumables are eliminated.
