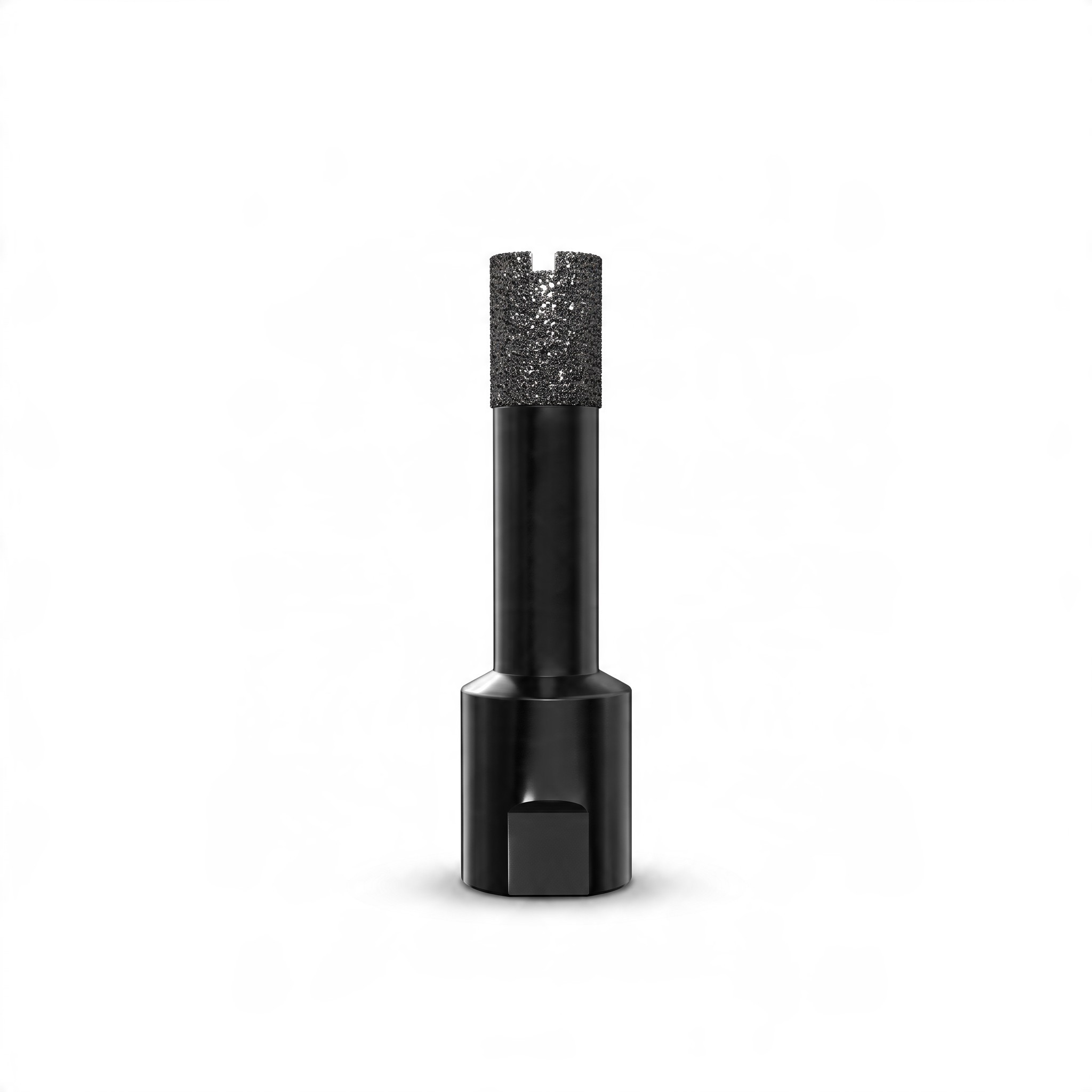

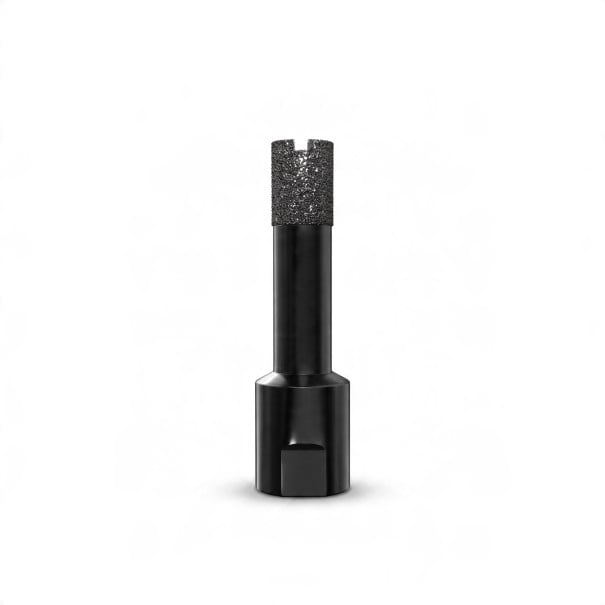

10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass
10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 1
10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 1
10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 2
10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass 3

10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass

10 mm Diamond Drill Bit with M10 Thread for Angle Grinder. Soldered diamond for dry drilling holes into tiles, marble, granite, concrete and glass. Full description
In stock
€16.55
Safe shopping Safe shopping
Overview
10 mm Diamond Drill Bit with M10 Thread for Angle Grinder Soldered Diamond Black Dry Drilling into Tiles, Marble, Granite and Glass

The diamond drill bit with a diameter of 10 mm is designed for drilling holes into hard construction materials using an angle grinder. It features an internal thread M10 on the clamping side, allowing it to be screwed directly onto the spindle of the grinder without the need for a chuck or additional adapters. The cutting part is covered with soldered diamond grains, which can handle ceramic tiles, slabs, sintered tiles, marble, granite, concrete, and glass. The diameter of 10 mm indicates the size of the hole that will be created after drilling, so please select the diameter according to the pipe or element that will pass through the hole. The drill bit is intended for dry drilling, without the need to add water. It is suitable for holes for dowels, anchors, cables, and thin conduits in tiles and slabs, and will be useful for tilers, plumbers, and DIY enthusiasts during bathroom or kitchen renovations.

  • Diameter – 10 mm.
  • M10 Thread – attachment directly to the angle grinder with an M10 spindle thread.
  • Soldered Diamond – diamond grains firmly bonded to the tool body across the entire cutting section.
  • Dry Drilling – drilling without water; cooling with water can extend the lifespan.
  • Materials – ceramic tiles, slabs, sintered tiles, marble, granite, concrete and glass.
  • Colour – black.
  • Package Contents – 1 piece of 10 mm diamond drill bit.

When drilling, hold the grinder initially at an angle of approximately 45 degrees and carefully create a shallow groove in the surface in the shape of a crescent. Once the drill bit catches, gradually straighten the grinder to a vertical position of 90 degrees and drill with slight pressure. This procedure will prevent slipping on the smooth glaze and keep the edge of the hole clean. Allow the drill bit to work under the weight of the machine and do not apply excessive force to avoid overheating the diamond layer. Before first use, ensure that the drill bit is securely tightened on the spindle and that the grinder runs without vibrations or wobbling. During prolonged drilling, take short breaks, or you may cool the cutting part with water, which will extend the tool's lifespan. Use protective goggles, gloves, and a respirator, as fine dust is generated during dry drilling.

The 10 mm diamond drill bit with M10 thread is a practical addition to any angle grinder. Thanks to the soldered diamond, it can handle hard tiles and natural stone, creating a clean hole without chipped edges. It is suitable for work on construction sites as well as at home, where you need to quickly make holes for dowels, anchors, cables, and thin conduits in tiles and slabs. The attachment to the angle grinder M10 is quick, and the drill bit can be easily replaced with another diameter. The tool is compact, making it easy to store in a toolbox, and it is always at hand. Dry drilling saves time, as you do not need to prepare water or cooling. The result is precise holes in tiles, marble, and granite without the need to purchase an expensive core drilling machine.

Price incl. VAT €16.55
