Wireless Camera for Lorries and Buses Transmitter and Receiver 2.4 GHz Range up to 200 m Field of View 120° CCD Sensor Voltage 12 to 24 V RCA Output
You already have the maximum available quantity in your cart.

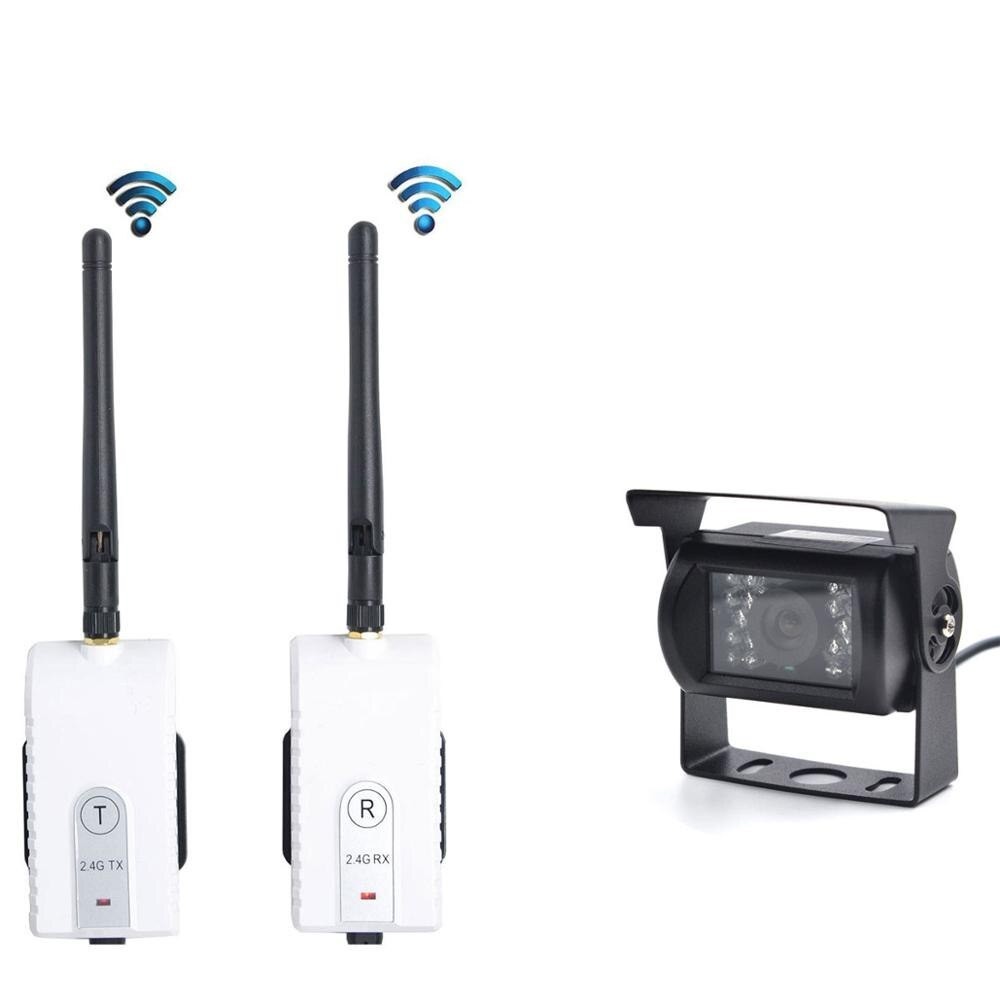

The wireless camera with transmitter and receiver is designed for lorries and buses. The image from the camera is transmitted by wireless transmitter and receiver on a frequency of 2.4 GHz with a range of up to 200 metres. Thus, you do not need to run a long video cable throughout the vehicle. The camera features a CCD image sensor, a 1.9 mm lens, and a 120° field of view. The receiver has a video output with an RCA connector, through which you can connect the image to the monitor.
- Wireless Transmission — the transmitter connected to the camera sends the image to the receiver on a frequency of 2.4 GHz. The transmission range is up to 200 metres. You place the receiver near the monitor and the transmitter near the camera, both have a cable length of 1.5 m.
- Image Quality — the camera uses a CCD image sensor with a horizontal resolution of 480 TVL. The TVL value indicates how many vertical lines the camera can distinguish in the image. The effective resolution is 720 x 576 px in PAL format and 720 x 480 px in NTSC format. The signal-to-noise ratio is 48 dB, a higher value means less interference in the image.
- Wide Coverage — the lens with a focal length of 1.9 mm captures a field of view of 120°. The camera thus covers a wide area, and you will see more in the image than with a narrow lens. A short focal length is typical for wide-angle cameras.
- Connection to Monitor — the receiver has a video output with an RCA connector, a signal level of 1.0 Vp-p, and an impedance of 75 ohms. You can connect the image to a monitor or display with an RCA video input. The camera supports both PAL and NTSC formats, so it works with monitors for both standards.
- Power Supply — the set operates with a direct voltage of 12 to 24 V. You can power it from the vehicle's onboard network with either 12 V or 24 V. The connection is described in the user manual, which is included in the package.
- Camera Design — the camera has a sunshade above the lens and is mounted in a U-shaped holder. You can attach it to the vehicle using the holder.
- Usage — the camera is intended for lorries and buses. For such long vehicles, wireless transmission saves the hassle of running a cable from the camera to the driver's seat.
- Package Contents — 1x camera, 1x receiver, 1x transmitter, 1x user manual. The monitor is not included in the package.
The wireless camera with transmitter and receiver simplifies the installation of the camera on lorries and buses, as you do not run a video cable between the camera and the monitor. The transmission on a frequency of 2.4 GHz has a range of up to 200 metres. The CCD sensor has a resolution of 480 TVL, and the lens with a 120° field of view ensures wide coverage. You connect the RCA output receiver to a monitor with the corresponding input, and the set operates with a voltage of 12 to 24 V. The camera supports both PAL and NTSC formats.
