Universal Car Air Conditioning 24 V Cooling Only 13700 Btu/h 32-Pass All-Aluminium Coil Black Under-Dashboard Kit
You already have the maximum available quantity in your cart.
The universal car air conditioning system is a complete kit for retrofitting cooling into vehicles with a 24 V onboard network. The system operates in cooling only mode and achieves a cooling capacity of 13700 Btu/h. The base of the evaporator unit consists of a 32-pass all-aluminium coil that transfers heat between the refrigerant and the air flowing into the cabin. The unit in black is installed under the dashboard and offers four adjustable centre vents as well as two side circular vents at the front. The kit includes a compressor, condenser, a pair of fans, a dehydrator, and connecting hoses, thus forming a complete cooling circuit.
Features:
- Cooling capacity — the kit achieves a capacity of 13700 Btu/h and operates exclusively in cooling mode; heating function is not part of the system.

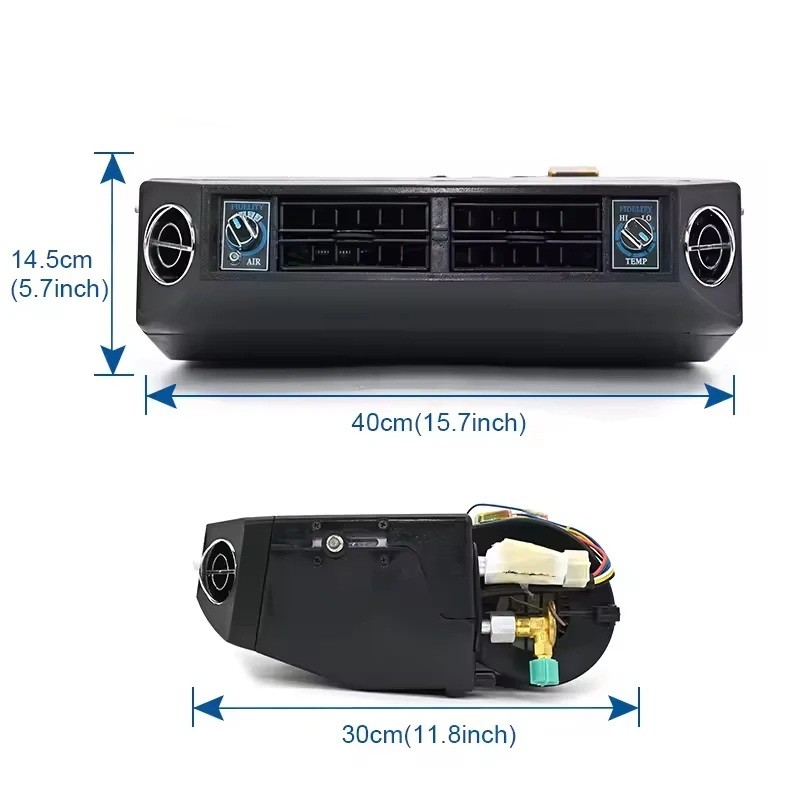

- Evaporator unit — compact cabinet measuring 40 x 14.5 x 30 cm in black with two rotary controls for fan speed and air temperature.
- All-aluminium coil — the evaporator uses a 32-pass all-aluminium construction designed for heat transfer in the cooling circuit.

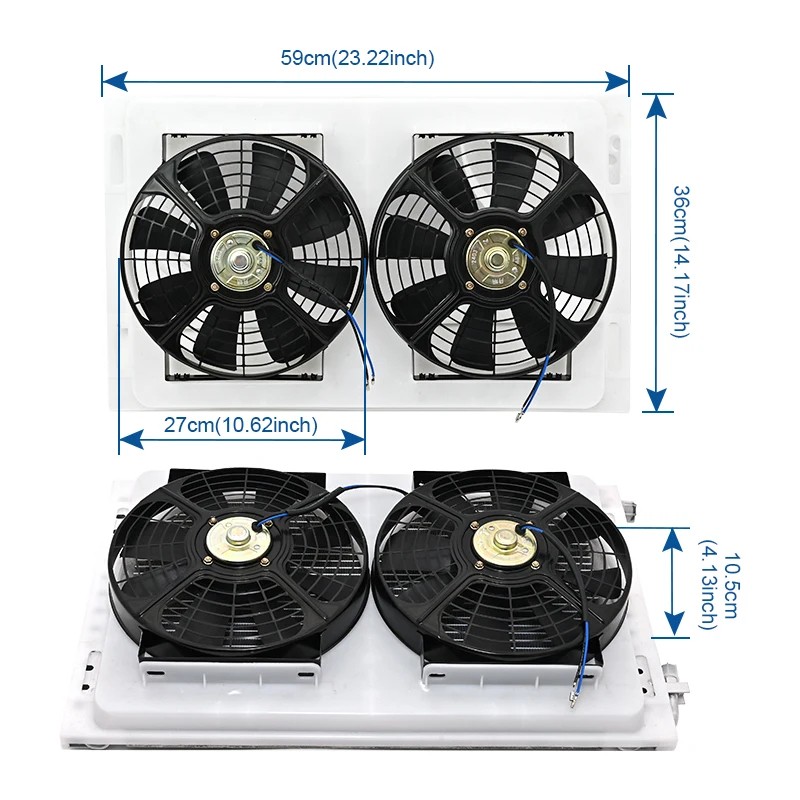

- Condenser with fans — the assembly housing the fans measures 59 x 36 x 10.5 cm, with individual fans having a diameter of 27 cm.

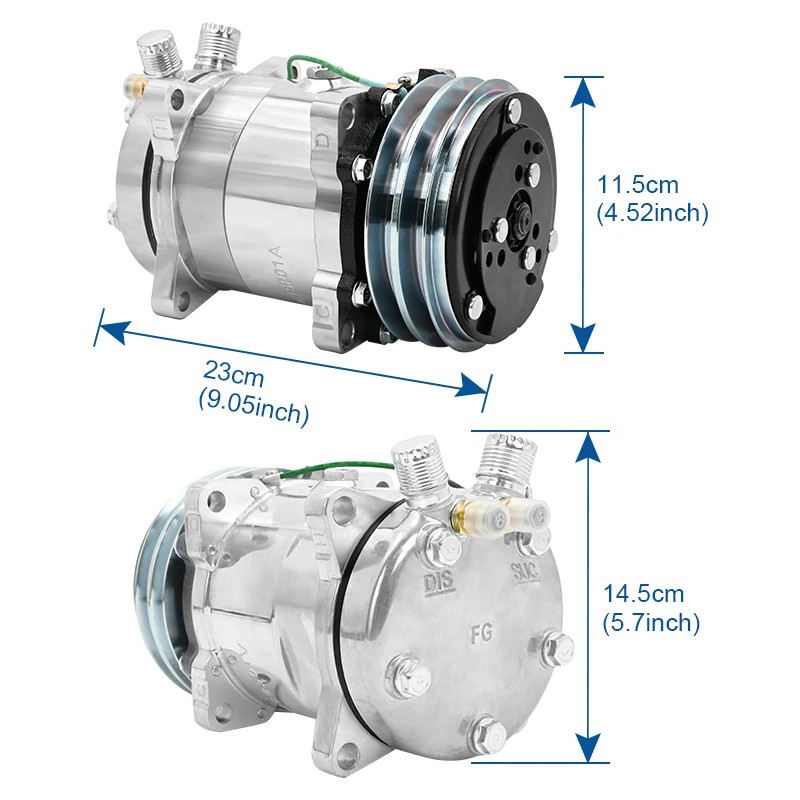

- Compressor — dimensions 23 x 14.5 x 11.5 cm, with a dual-groove pulley and electromagnetic clutch.
- Air vents — the front panel features four adjustable centre vents and two circular vents on the sides, allowing airflow to be directed as needed.
- Power supply 24 V — the fans, relay, and compressor clutch are designed for a 24 V onboard network, with electrical connections facilitated by a pair of relays with wiring.
- Mounting accessories — the delivery includes hose clamps, metal brackets, a dehydrator bracket, and a set of sealing O-rings for circuit joints.
- Universal design — the kit is not tied to a specific vehicle model and is installed under the dashboard.

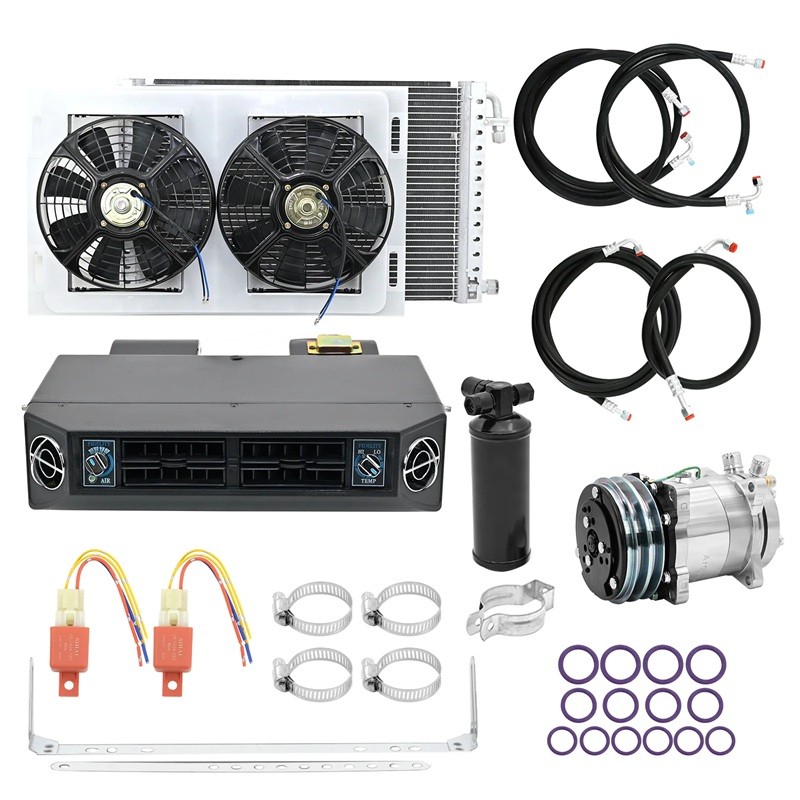

Package contents:
- 1x evaporator unit
- 1x condenser
- 1x fan cover
- 2x fans
- 1x compressor
- 1x dehydrator
- 1x dehydrator bracket
- 4x hoses
- 2x relays with wiring
- 4x hose clamps
- 2x mounting rails
- 15x O-ring
The universal air conditioning kit is designed for retrofitting cooling into vehicles that do not have air conditioning from the factory. The core of the system is the 32-pass all-aluminium coil of the evaporator complemented by a condenser with two fans of 27 cm diameter. The evaporator unit, 40 cm wide, is placed under the dashboard and is operated using two rotary controls on the black front panel. The package includes a compressor, hoses, dehydrator, relays, and small mounting materials, so there is no need to purchase individual parts separately. The entire system is designed for a 24 V onboard network, and refrigerant charging as well as circuit commissioning should be entrusted to a professional service.
