Universal Car Air Conditioning 24 V Cooling and Heating 13700 Btu/h 32-Pass All-Aluminium Coil Black Under-Dashboard Kit
You already have the maximum available quantity in your cart.
The universal car air conditioning system is a complete kit for retrofitting air conditioning in vehicles with a 24 V onboard network. The system provides cooling and heating and achieves a cooling capacity of 13700 Btu/h, making it usable all year round. The core of the evaporator unit consists of a 32-pass all-aluminium coil that transfers heat between the medium and the air flowing into the cabin. The unit, in black, is installed under the dashboard and offers four adjustable central vents as well as two side circular vents at the front. The kit includes a compressor, condenser, a pair of fans, a dehydrator, and connecting hoses, thus forming a complete circuit.
Features:
- Cooling and heating — the unit operates in two modes, with a cooling capacity of 13700 Btu/h and the temperature can be smoothly adjusted using the HI-LO controller.

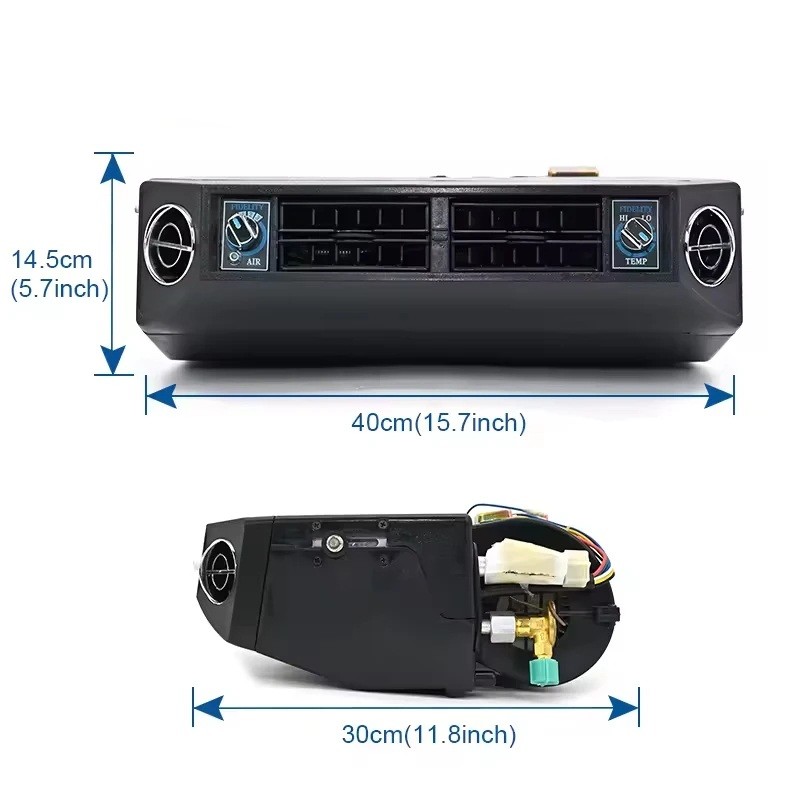

- Evaporator unit — compact housing measuring 40 x 14.5 x 30 cm in black with two rotary controls for airflow and temperature.
- All-aluminium coil — the evaporator uses a 32-pass all-aluminium design intended for heat transfer in the circuit.

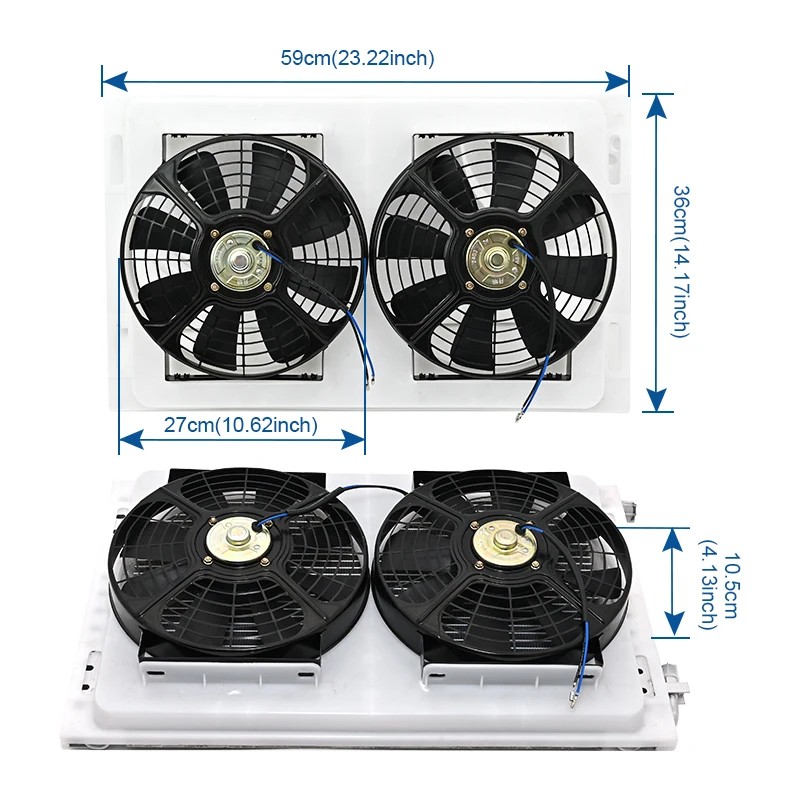

- Condenser with fans — the assembly with fans measures 59 x 36 x 10.5 cm, with individual fans having a diameter of 27 cm.

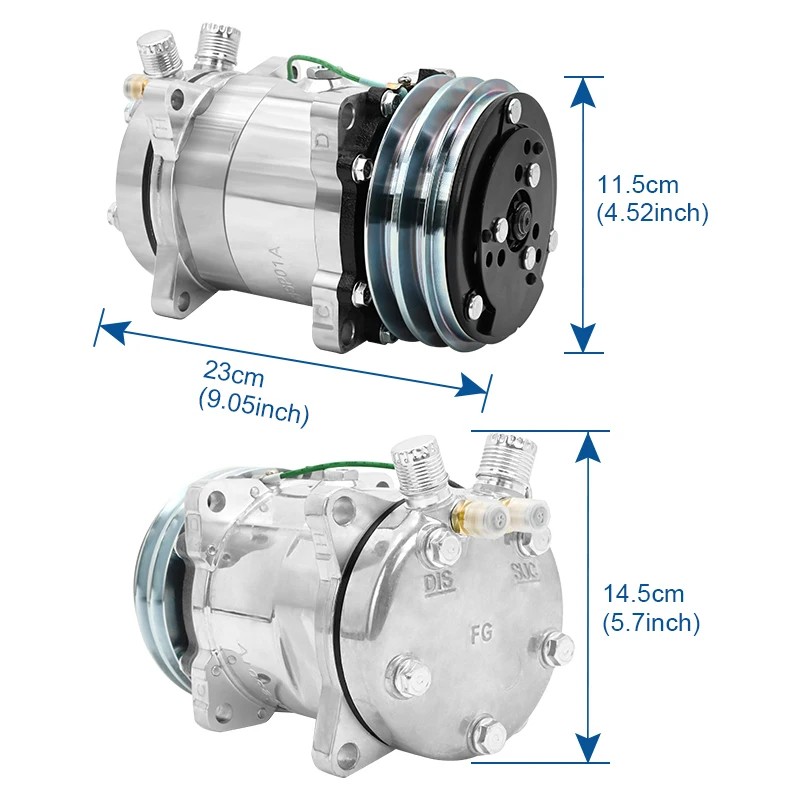

- Compressor — dimensions 23 x 14.5 x 11.5 cm, dual-groove pulley and electromagnetic clutch.
- Air vents — the front panel features four adjustable central vents and two circular vents on the sides, allowing airflow to be directed as needed.
- 24 V power supply — fans, relays, and the compressor clutch are designed for a 24 V onboard network, with electrical connections facilitated by a pair of relays with wiring.
- Mounting accessories — the delivery includes hose clamps, metal brackets, dehydrator bracket, and a set of sealing O-rings for circuit connections.
- Universal design — the kit is not tied to any specific vehicle model and is installed under the dashboard.

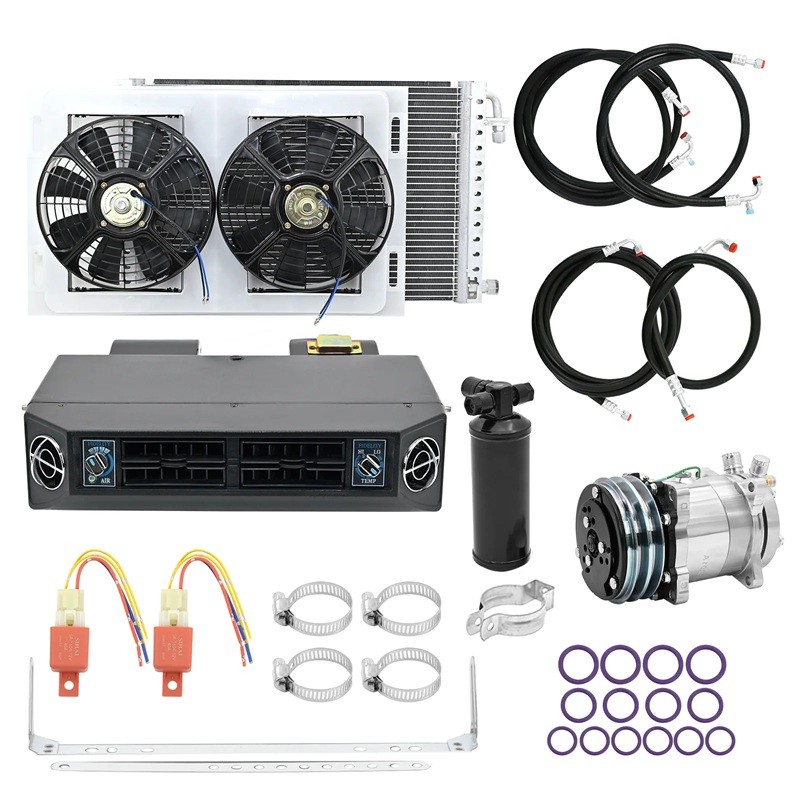

Package contents:
- 1x evaporator unit
- 1x condenser
- 1x fan cover
- 2x fans
- 1x compressor
- 1x dehydrator
- 1x dehydrator bracket
- 4x hoses
- 2x relays with wiring
- 4x hose clamps
- 2x mounting rails
- 15x O-rings
The universal air conditioning kit is designed for retrofitting in vehicles that do not have factory-installed air conditioning, and thanks to the heating mode, it also serves in cold periods. The core of the system is the 32-pass all-aluminium coil of the evaporator complemented by a condenser with two 27 cm diameter fans. The evaporator unit, with a width of 40 cm, is placed under the dashboard and is operated using two rotary controls on the black front panel. The package includes a compressor, hoses, dehydrator, relays, and small mounting materials, so there is no need to purchase individual parts separately. The entire system is designed for a 24 V onboard network, and filling with refrigerant and commissioning the circuit is best entrusted to a professional service.
