Universal Car Air Conditioning 12 V Cooling Only 13700 Btu/h 32-Passage All-Aluminium Coil Black Under-Dashboard Kit
You already have the maximum available quantity in your cart.
The universal car air conditioning system is a complete kit for retrofitting cooling into vehicles with a 12 V onboard system. The system operates in cooling only mode and achieves a cooling capacity of 13700 Btu/h. The base of the evaporator unit consists of a 32-passage all-aluminium coil that transfers heat between the refrigerant and the air flowing into the cabin. The unit, finished in black, is mounted under the dashboard and features four adjustable central vents and two side circular vents on the front. The kit includes a compressor, condenser, a pair of fans, a dehydrator, and connecting hoses, forming a complete cooling circuit.
Features:
- Cooling Capacity — the kit achieves a capacity of 13700 Btu/h and operates exclusively in cooling mode; heating functionality is not included in the system.

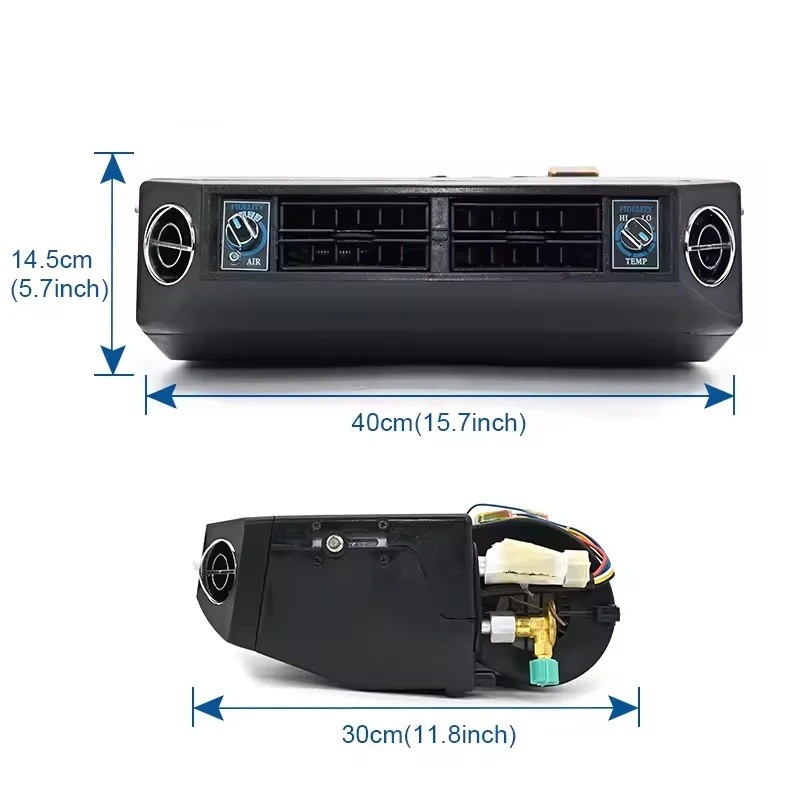

- Evaporator Unit — compact cabinet measuring 40 x 14.5 x 30 cm in black with two rotary controls for fan speed and air temperature.
- All-Aluminium Coil — the evaporator utilises a 32-passage all-aluminium construction designed for heat transfer in the cooling circuit.

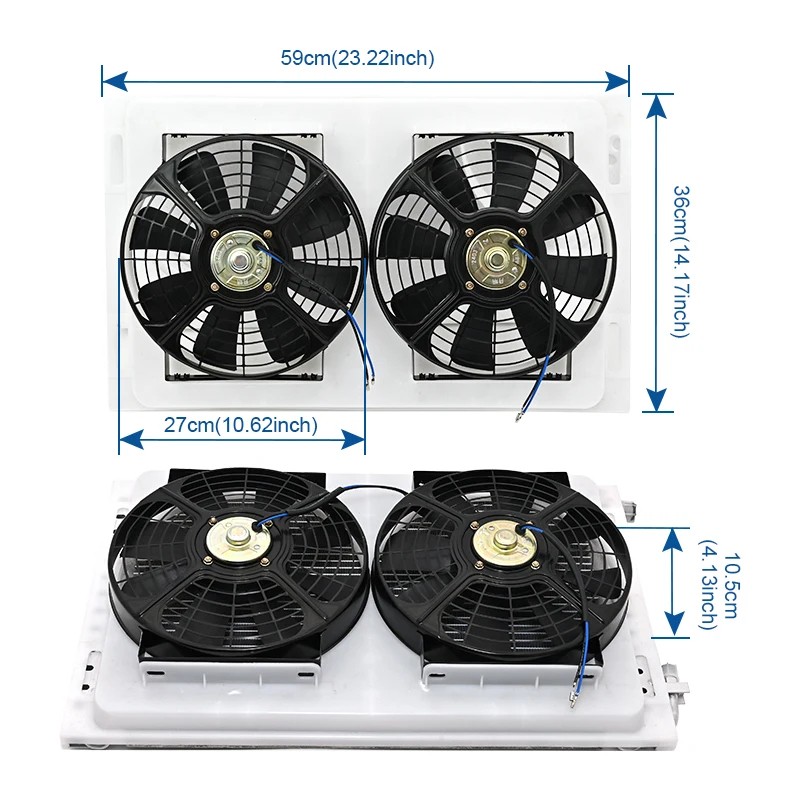

- Condenser with Fans — the assembly of the cover with fans measures 59 x 36 x 10.5 cm, with individual fans having a diameter of 27 cm.

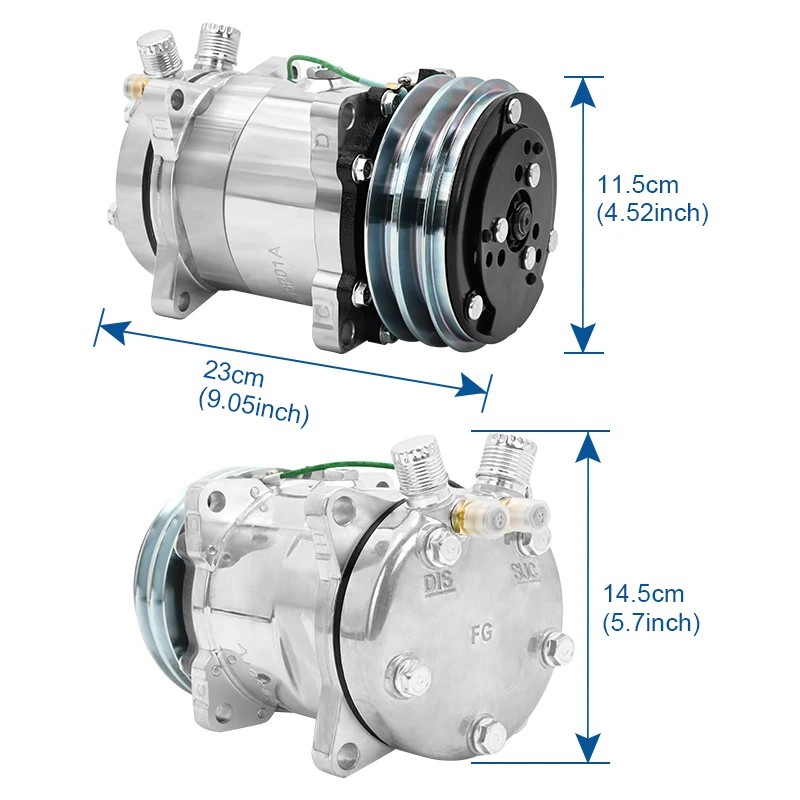

- Compressor — dimensions of 23 x 14.5 x 11.5 cm, with a dual-groove pulley and electromagnetic clutch.
- Air Vents — the front panel offers four adjustable central vents and two circular vents on the sides, allowing airflow to be directed as needed.
- 12 V Power Supply — the fans, relay, and compressor clutch are designed for a 12 V onboard system, with electrical connections facilitated by a pair of relays with wiring.
- Mounting Accessories — the delivery includes hose clamps, metal brackets, dehydrator bracket, and a set of sealing O-rings for circuit connections.
- Universal Design — the kit is not tied to a specific vehicle model and is installed under the dashboard.

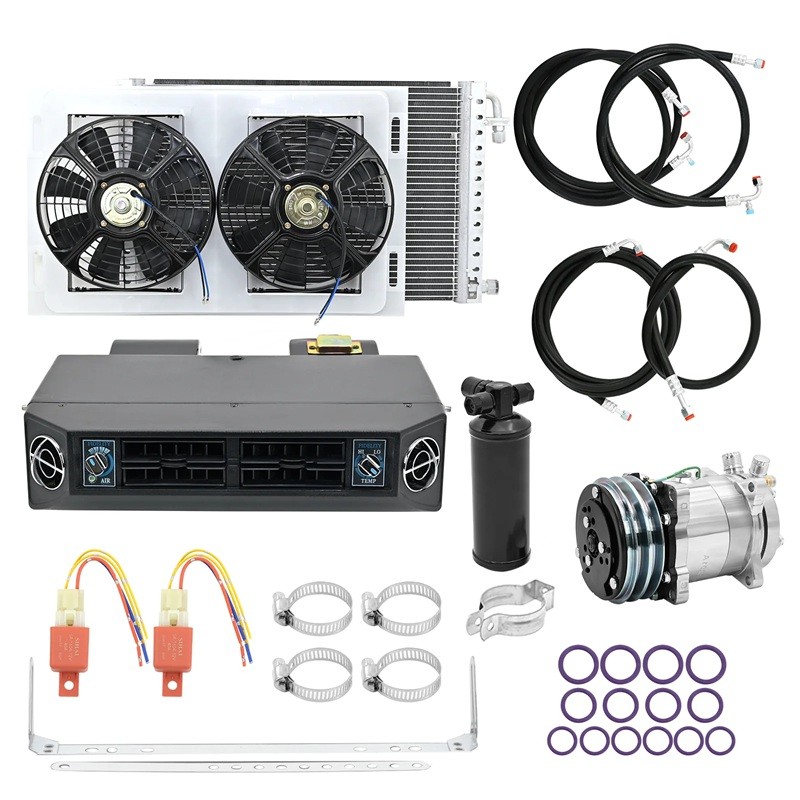

Package Contents:
- 1x evaporator unit
- 1x condenser
- 1x fan cover
- 2x fans
- 1x compressor
- 1x dehydrator
- 1x dehydrator bracket
- 4x hoses
- 2x relays with wiring
- 4x hose clamps
- 2x mounting rails
- 15x O-ring
The universal air conditioning kit is designed for retrofitting cooling into vehicles that do not have factory-installed air conditioning. The core of the system is the 32-passage all-aluminium coil of the evaporator complemented by a condenser with two fans of 27 cm diameter. The evaporator unit, measuring 40 cm in width, is positioned under the dashboard and is operated using two rotary controls on the black front panel. The packaging includes a compressor, hoses, dehydrator, relays, and small mounting materials, so there is no need to purchase individual parts separately. The entire system is designed for a 12 V onboard network, and the refrigerant filling and commissioning of the circuit are best entrusted to a professional service.
