Universal Car Air Conditioning 12 V Cooling and Heating 13700 Btu/h 32-Pass All-Aluminium Coil Black Dashboard Kit
You already have the maximum available quantity in your cart.
The universal car air conditioning is a complete kit for retrofitting air conditioning in vehicles with a 12 V onboard network. The system handles cooling and heating and achieves a cooling capacity of 13700 Btu/h, making it usable all year round. The foundation of the evaporator unit is a 32-pass all-aluminium coil that transfers heat between the medium and the air flowing into the cabin. The unit, finished in black, is installed under the dashboard and offers four adjustable central vents and two circular side vents on the front. The kit includes a compressor, condenser, a pair of fans, a dehydrator, and connecting hoses, thus forming a complete circuit.
Features:
- Cooling and heating — the unit operates in two modes, with a cooling capacity of 13700 Btu/h and temperature adjustable via the HI-LO controller.

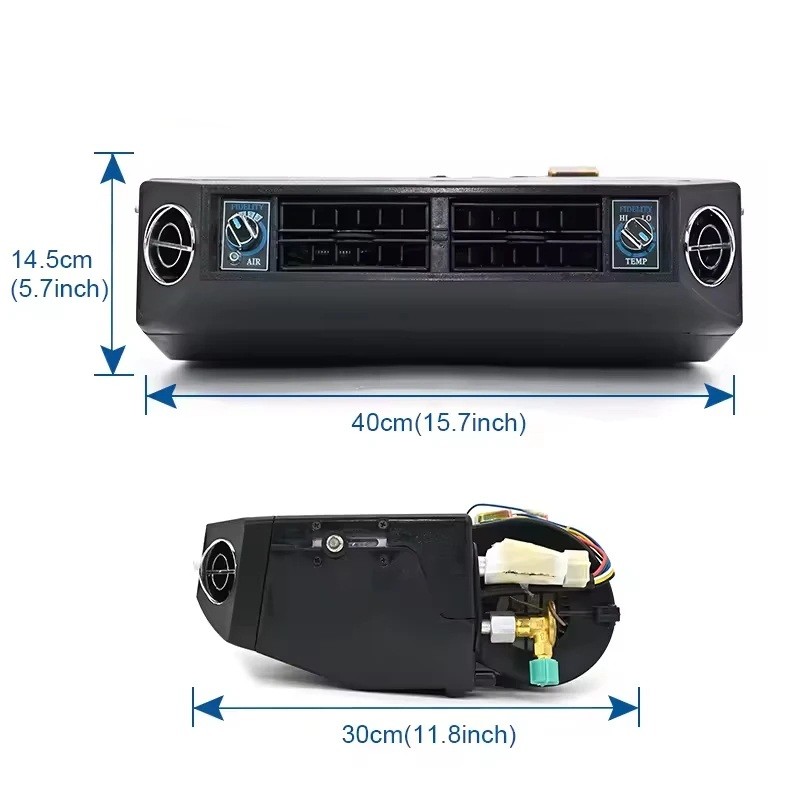

- Evaporator unit — compact casing measuring 40 x 14.5 x 30 cm in black, with two rotary controls for airflow and temperature.
- All-aluminium coil — the evaporator uses a 32-pass all-aluminium construction designed for heat transfer in the circuit.

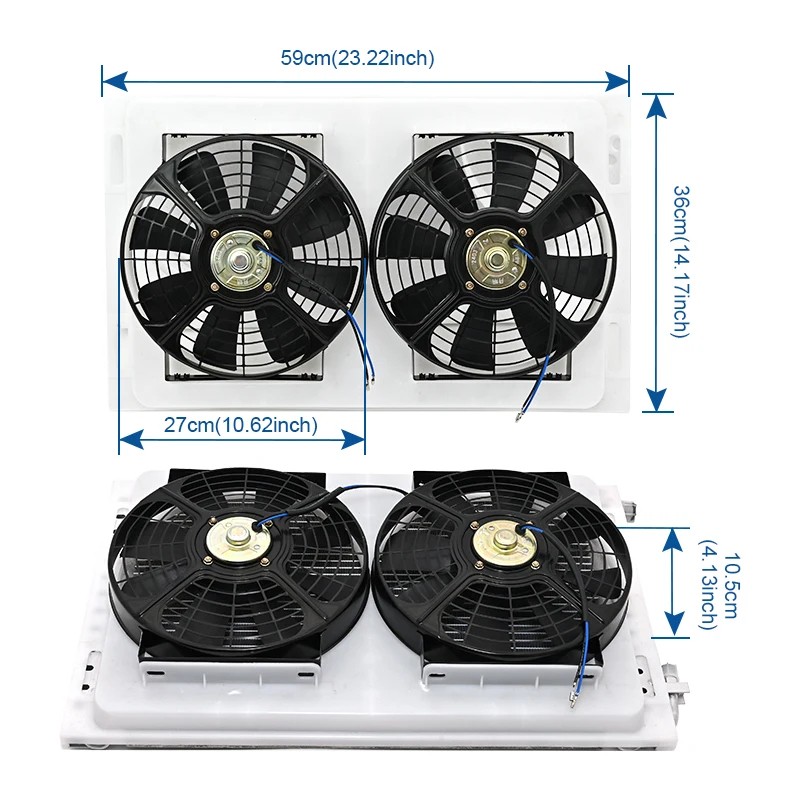

- Condenser with fans — the assembly of the casing with fans measures 59 x 36 x 10.5 cm, with individual fans having a diameter of 27 cm.

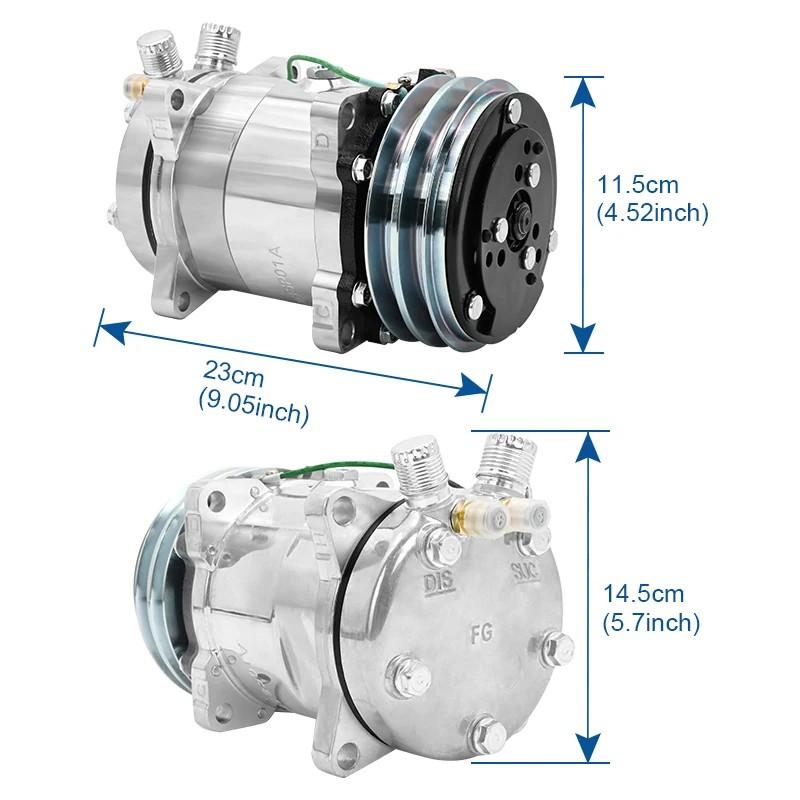

- Compressor — dimensions of 23 x 14.5 x 11.5 cm, featuring a dual-groove pulley and electromagnetic clutch.
- Air vents — the front panel offers four adjustable central vents and two circular vents on the sides, allowing airflow to be directed as needed.
- 12 V power supply — the fans, relay, and compressor clutch are designed for a 12 V onboard network, with electrical connections facilitated by a pair of relays with wiring.
- Mounting accessories — the delivery includes hose clamps, metal brackets, a dehydrator bracket, and a set of sealing O-rings for circuit connections.
- Universal design — the kit is not tied to a specific vehicle model and is installed under the dashboard.

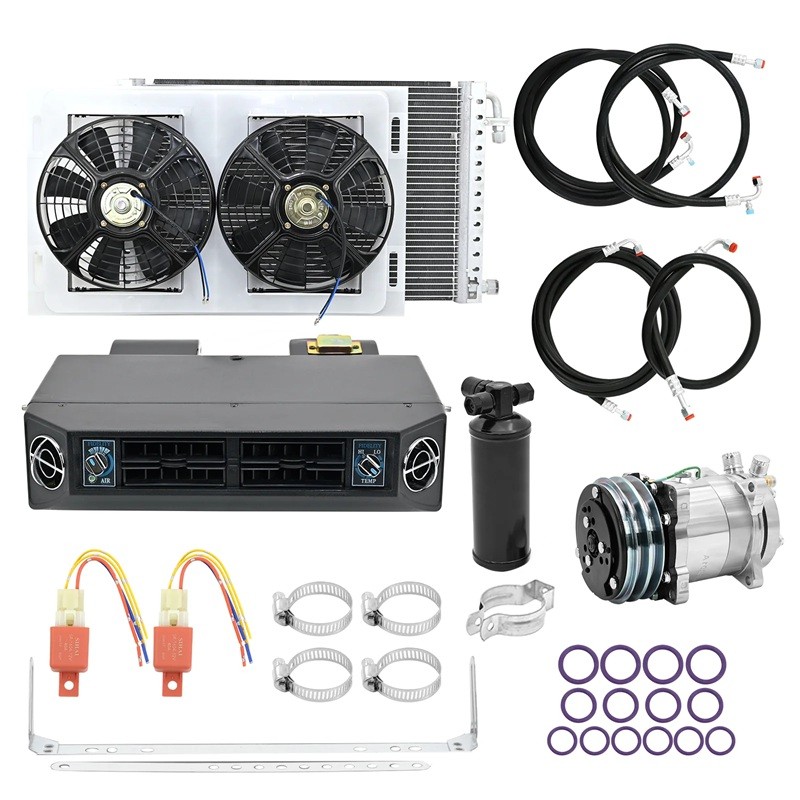

Package contents:
- 1x evaporator unit
- 1x condenser
- 1x fan cover
- 2x fans
- 1x compressor
- 1x dehydrator
- 1x dehydrator bracket
- 4x hoses
- 2x relays with wiring
- 4x hose clamps
- 2x mounting rails
- 15x O-rings
The universal air conditioning kit is designed for retrofitting in vehicles that do not have factory-installed air conditioning, and thanks to the heating mode, it also serves during the colder months. The core of the system is a 32-pass all-aluminium coil of the evaporator complemented by a condenser with two 27 cm diameter fans. The evaporator unit, measuring 40 cm in width, is placed under the dashboard and is operated using two rotary controls on the black front panel. The package includes a compressor, hoses, a dehydrator, relays, and minor mounting materials, so there is no need to purchase individual parts separately. The entire system is designed for a 12 V onboard network, and it is advisable to entrust the refrigerant filling and circuit commissioning to a professional service.
