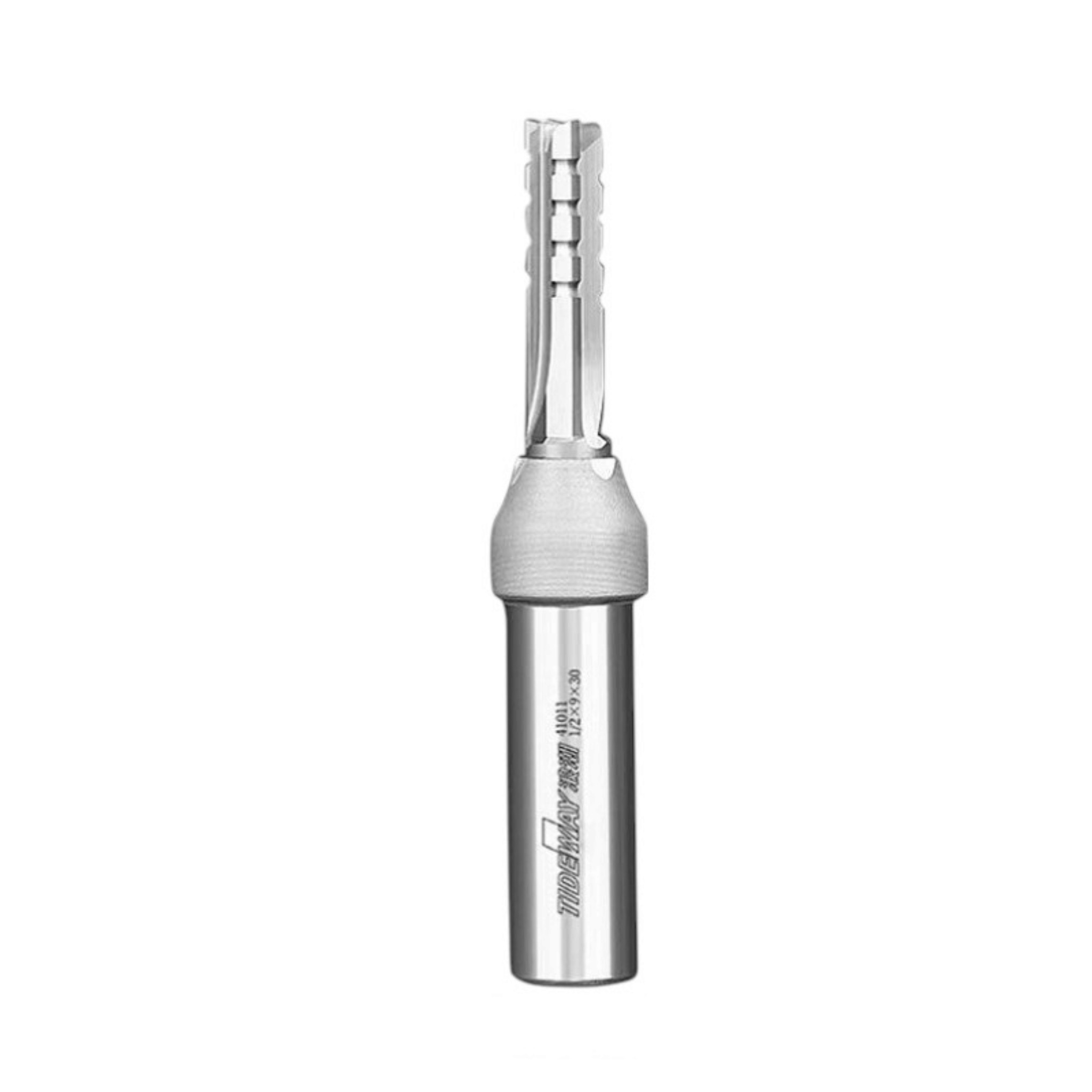

TCT Groove Cutter 9 x 30 mm Straight Three-Blade Shank 12.7 mm 1/2 Inch Tungsten Carbide Router and CNC Silver Wood and Chipboard
You already have the maximum available quantity in your cart.
The TCT groove cutter with dimensions 9 x 30 mm is a straight three-blade cutter for milling wider and deeper grooves, rebates, and cut-outs in wood. The cutting diameter is 9 mm and the blade length is 30 mm, allowing the cutter to handle thicker boards and beams. The blades are made of tungsten carbide and the cutter is clamped with a shank diameter of 12.7 mm, which is 1/2 inch. It can be used in a router, CNC milling machine, or engraving machine. The cutter is silver with a light grey transition between the shank and the blades.
- Groove 9 mm — the cutter creates a groove 9 mm wide with a flat bottom and vertical walls. It is suitable for joints and recessing thicker boards, strips, and infills.
- Deeper Cut 30 mm — the blades allow milling to a depth of up to 30 mm. Always mill deeper grooves gradually in multiple passes and increase the depth in smaller increments.
- Smooth Three-Blade Cut — during rotation, three blades gradually engage in the cut, each removing smaller chips. The cut is therefore smoother than with cutters with fewer blades.
- Tungsten Carbide Edge — the abbreviation TCT denotes cutting edges made of tungsten carbide. This material is harder than tool steel and is commonly used for wood and chipboard cutters.
- 1/2 Inch Shank — the shank with a diameter of 12.7 mm fits into a collet of the same diameter. A 12 mm collet is not suitable for it, so please check your machine's equipment before purchasing.
- Total Length — the cutter measures 87 mm. The thick shank provides the tool with good rigidity even with a longer cutting part, and the depth of insertion should be chosen according to the machine's manual.
- Hand Routers and CNC Machines — the cutter can be used in a hand-held router, a milling table, a CNC milling machine, or an engraving machine, provided they have a collet for 1/2 inch.
- Thick Boards and Beams — the cutter is designed for wood and multilayer chipboard. The longer blades are useful for thicker boards and beams when making furniture, frames, and doors.
- Milling Procedure — securely tighten the cutter in the collet, safely clamp the workpiece, and choose an appropriate feed rate. Always wear protective eyewear when working.
- Package Contents — 1x TCT groove cutter 9 x 30 mm with a shank of 12.7 mm.
The TCT groove cutter 9 x 30 mm is suitable for wider and deeper grooves and cut-outs in wood and multilayer chipboard. The blade length of 30 mm allows machining of thicker materials, provided the depth is increased gradually. The three tungsten carbide TCT blades remove material smoothly and create a groove with a flat bottom. The 1/2 inch shank fits into a router, CNC milling machine, or engraving machine. You will find this cutter useful in the workshop and at home when making furniture and other wooden products.
