TCMT110204 US735 Turning Inserts 10 pcs Triangular Carbide Inserts Gold With Three Cutting Edges For Metal Machining
You already have the maximum available quantity in your cart.

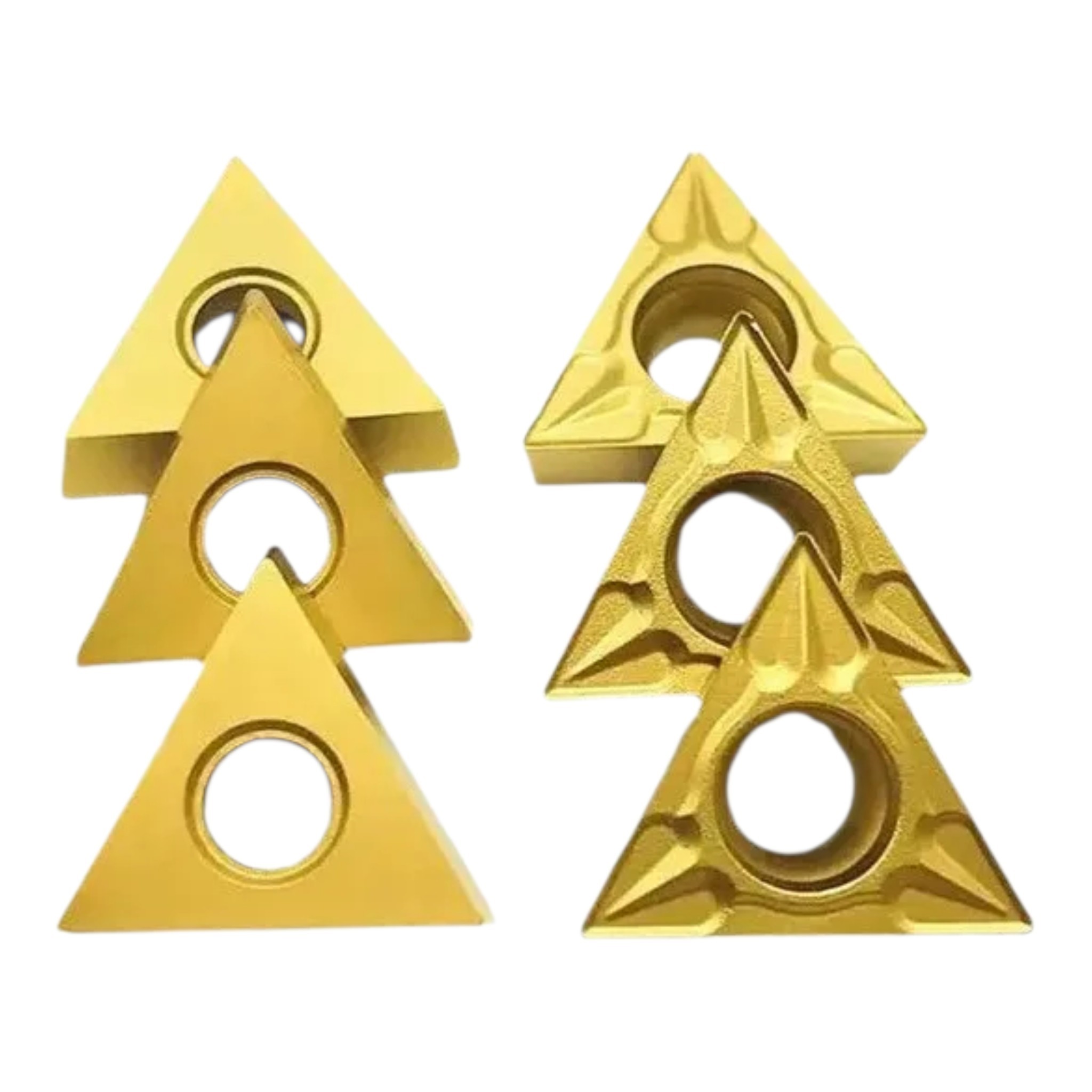

TCMT110204 US735 turning inserts are triangular interchangeable cutting edges made from sintered carbide. Each box contains 10 pcs of gold-coloured inserts, which are secured with a screw into the turning tool. The insert has three identical cutting corners, so after one corner wears out, you simply rotate it. The designation TCMT110204 US735 can be found on the label of the box, making it easy to select a compatible holder and the same inserts for your next purchase. The inserts are designed for turning metal workpieces in both workshop and production environments.
- Three cutting corners — each insert offers three usable corners. From one pack, you have a total of 30 cutting corners available before needing to open another box. Rotating the insert to a new corner is quicker and cheaper than replacing the entire tool.
- Code TCMT110204 — this ISO code specifies the shape, relief angle, and dimensions of the insert. Inserts with this code fit into holders designed for the TCMT110204 type.
- Class US735 — the second part of the designation indicates the grade of carbide. If you have had good experiences with this grade, you can easily reorder it based on the designation. The same type of inserts is also available in other grades, so it is worth checking the entire designation when ordering.
- Gold colour — the inserts have a gold surface, making them easily distinguishable from inserts of other grades and colours in the workshop.
- Centre hole — the insert is secured with a screw through the hole in the centre. The attachment is firm, and changing the insert takes only a moment. A key corresponding to the screw of the holder is used to loosen and tighten the screw.
- Shaped corners — each corner has grooves on the top side that help direct the chip during turning. The grooves are the same on all three corners, so each corner works equally well.
- Carbide material — sintered carbide is a hard material commonly used to manufacture cutting inserts for metal machining. Carbide is significantly harder than standard tool steel.
- Compatible tools — the inserts are suitable for turning tools and boring bars for TCMT type inserts size 11. The tool and holder are not included in the package.

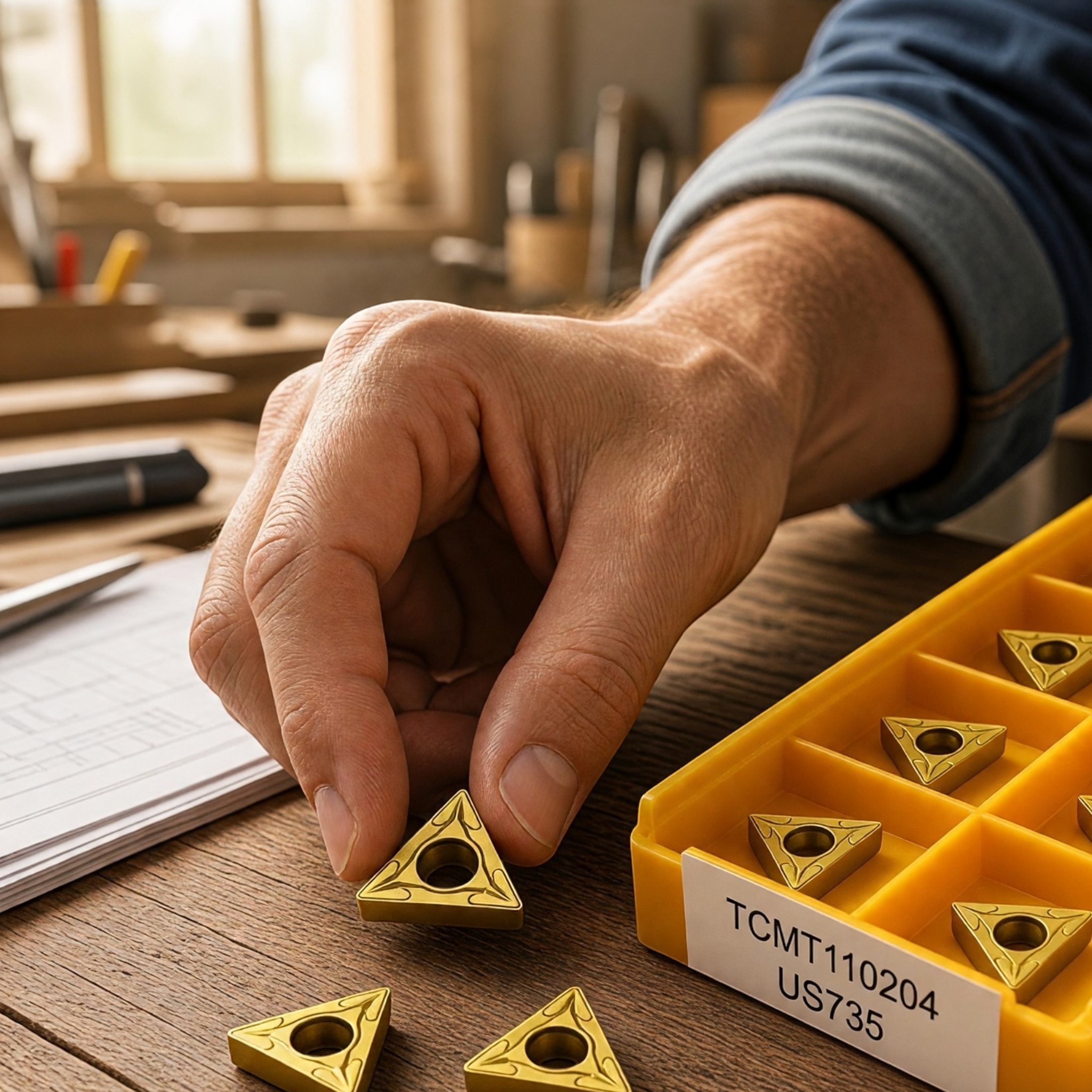

- Storage — the inserts are stored in a yellow plastic box with compartments. The edges are thus protected, and the box fits into a drawer or toolbox.
- Package contents — 10x TCMT110204 US735 turning insert, 1x plastic box.
TCMT110204 US735 turning inserts are a practical consumable for lathe work. The triangular shape with three cutting corners extends the time you can use one insert. The inserts made from sintered carbide have a gold surface and are secured with a screw into the holder. The package contains ten pieces in a clear box with compartments. Before ordering, please ensure you have a tool for TCMT inserts of the corresponding size.
