Submersible Brushless Pump 12 V with DC Connector for Flow Rate 700 l/h to Height 5 m at Power Consumption 14 W with IP68 Rating and Black Body
You already have the maximum available quantity in your cart.

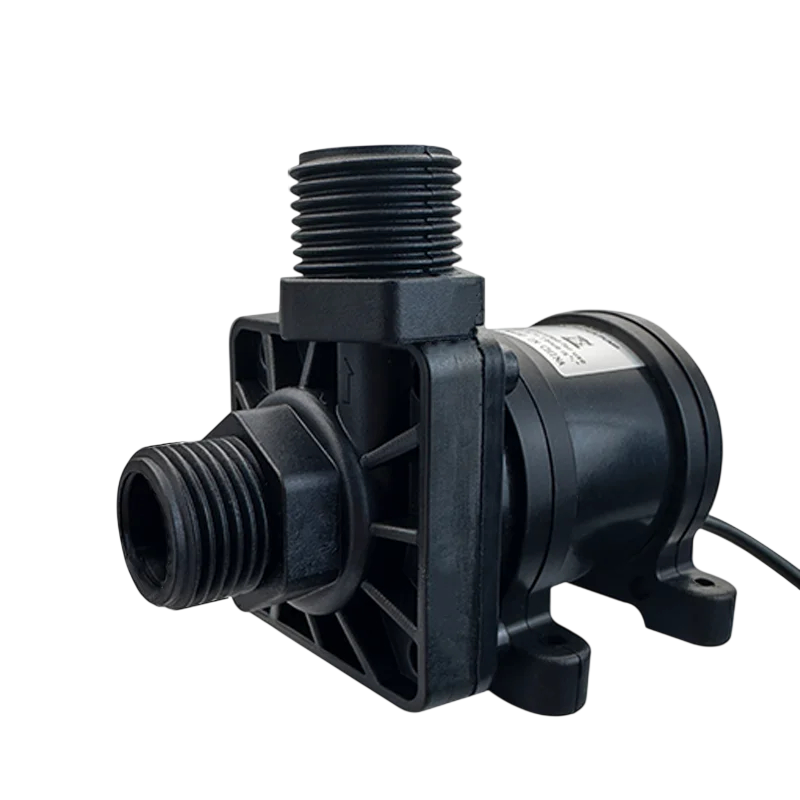

The submersible pump with a brushless motor is designed for circuits powered by 12 V, suitable for batteries, transformers, and laboratory power supplies with a direct current output. The centrifugal impeller transports 700 litres of liquid per hour, with the flow gradually decreasing as the discharge height increases. Under full load, the pump has a power consumption of 14 W and current draw of 1.4 A. The power cable ends with a DC connector, so there is no need to connect and insulate individual wires when connecting. The body is black, with feet on the sides that have holes for screws, and it can be permanently submerged underwater.
- The volume of liquid pumped reaches 700 litres per hour
- Maximum discharge height of 5 m when powered by 12 V direct current
- Power consumption of 14 W corresponds to a current draw of 1.4 A
- The brushless motor mechanically wears less and does not require brush replacement
- The cable is terminated with a DC connector for connection to a power source or battery
- Waterproof rating IP68 allows the entire pump to be submerged in liquid
- Operating noise remains at a level below 35 dB even during prolonged operation

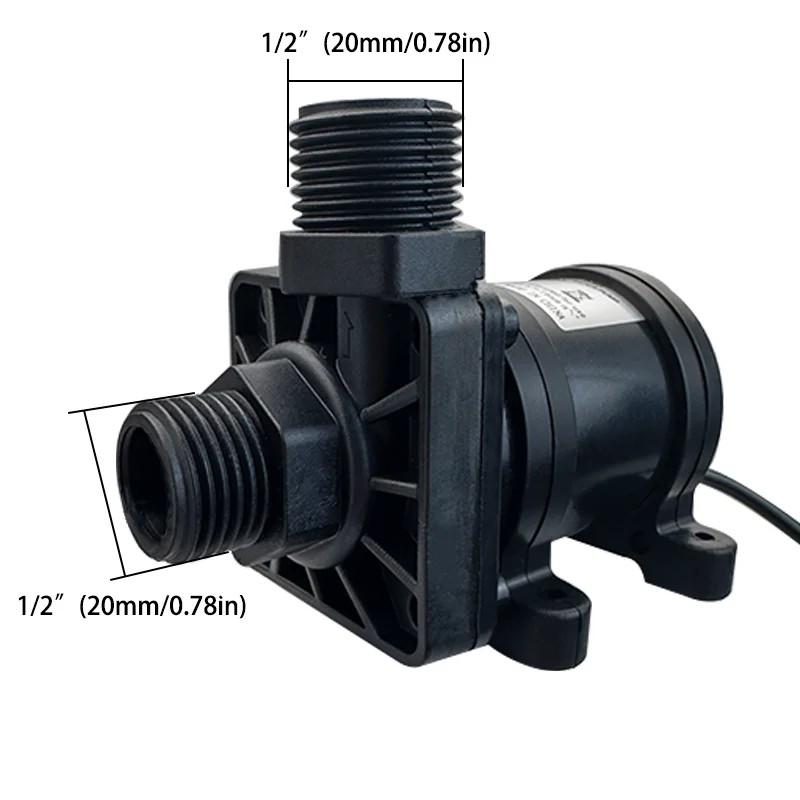

- Suction and discharge ports with an external thread of 1/2 inch with a diameter of 20 mm
- The shaft made of stainless steel 316 is housed inside the pumping chamber
- The pump operates on a centrifugal principle with a closed impeller
- Temperature range for the environment and pumped medium from -20 to 100 °C
- Can withstand relative humidity of the surrounding environment up to 90 %
- Insulation has passed a voltage test of 1500 V for 60 seconds
- Can pump not only water but also alcohol or diesel
- Acids and alkaline solutions are unsuitable for the pump
- Impurities and magnetic particles larger than 0.35 mm must be removed from the chamber
- Motor lifespan exceeds 30,000 hours of operation
- The feet on the sides of the body allow for bolting to a base
- The power source must be direct current and within the voltage range of the pump
- Submersible operation requires that the pump is always submerged
- Running the pump dry permanently damages it and is prohibited
- The entire body and feet are in black finish
- The inlet and outlet ports each point in different directions
- The power cable exits from the rear of the motor
Contents of the package:
1x submersible brushless pump
Powering at 12 V opens up usage where there is no mains socket available, such as in solar setups, caravans, and portable water tanks. The pump lifts water to a height of 5 metres, making it suitable for showers, instantaneous water heaters, and smaller cooling circuits. The threaded ports of 1/2 inch connect with hoses via a standard fitting or a reducer to a different diameter. Quiet operation and flood resistance allow the pump to run for long hours unattended, provided it remains fully submerged in liquid. Before the first start, the chamber must be filled with liquid, and regular cleaning will remove any accumulated dirt.
