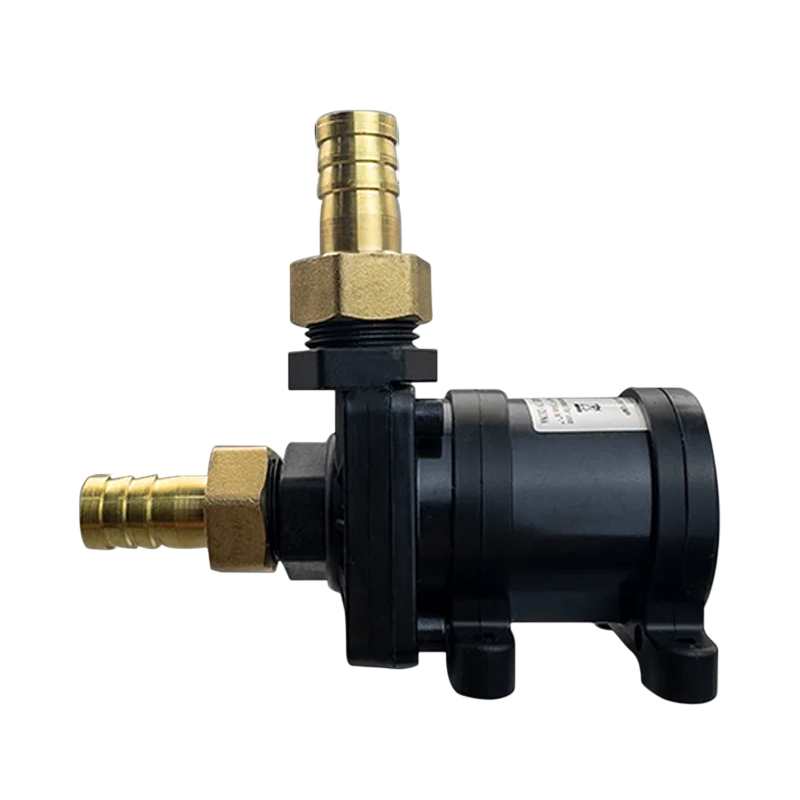

Submersible Brushless Pump 12 V with DC Connector and 14 mm Hose Fittings for Flow Rate of 700 l/h and Lift of 5 m with IP68 Rating in Black
You already have the maximum available quantity in your cart.
The brushless submersible pump transfers water in circuits powered by 12 V and has a power consumption of 14 W at full load. The power cable is terminated with a DC connector, so the individual wires are not connected or insulated manually. Both the suction and discharge ports feature a brass fitting with a diameter of 14 mm, onto which a hose of the corresponding size is fitted. The centrifugal impeller can deliver up to 700 l/h to a height of 5 m, with flow decreasing as height increases. The black body has side feet with holes, and with an IP68 rating, it operates fully submerged.
- The pumped volume reaches 700 litres per hour at 12 V
- Liquid lift of up to 5 metres above the pump's level
- Current draw of 1.4 A corresponds to a power consumption of 14 W
- The power cable is fitted with a DC connector for quick connection
- Brass hose fittings are attached to both ports

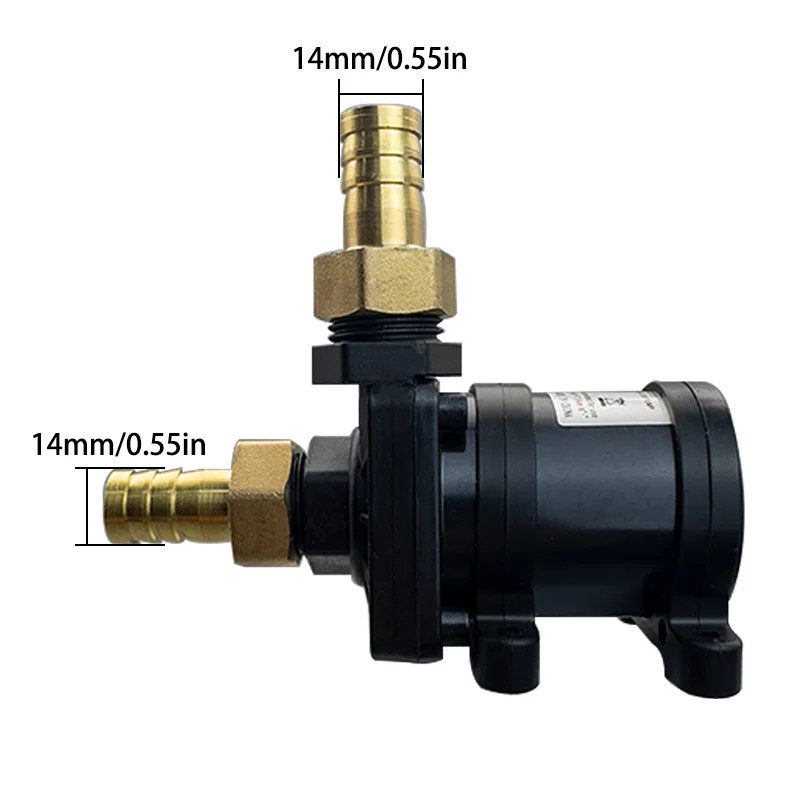

- Fitting size of 14 mm corresponds to 0.55 inches
- Fittings are secured to the ports with a locknut
- The brushless motor is housed within the body
- Waterproof design rated IP68 allows for submersion
- Noise during normal operation does not exceed 35 dB
- Stainless steel 316 shaft is housed in the pumping chamber
- The pumping principle is centrifugal with a closed impeller
- Can withstand temperatures from -20 to 100 °C for both the environment and the pumped medium
- Ambient humidity can reach 90 %
- Insulation has been tested at 1500 V for 60 seconds
- In addition to water, the pump can also handle alcohol or diesel
- Acidic or alkaline solutions cannot be pumped with this pump
- Sludge and particles larger than 0.35 mm must be removed from the chamber
- Side feet with holes are used for bolting to a base
- The power source must be direct current and voltage within the specified range
- Before starting, the pump must be filled with the pumped liquid
- Running the pump without liquid causes irreversible damage
- Both the body and feet are black
- Ports emerge from two different sides of the pump body
- The power cable exits from the rear side of the motor
- The pump can be removed without disconnecting the wires
Contents of the package:
1x brushless pump
2x brass hose fitting 14 mm
The connector on the cable and the push-fit fittings simplify installation, as individual wires are not connected nor are threaded joints sealed. The brushless motor lasts over 30,000 hours of operation, making it suitable for long-running circuits. A 12 V power supply can be provided by a car battery, solar setup, or a standard mains adapter with a direct current output within the appropriate range. It is applicable for heating and distributing water, in small water features, in cooling loops, and for transferring containers. The pump must be submerged before starting and operates without unnecessary wear on the impeller in clean liquid without coarse particles.
