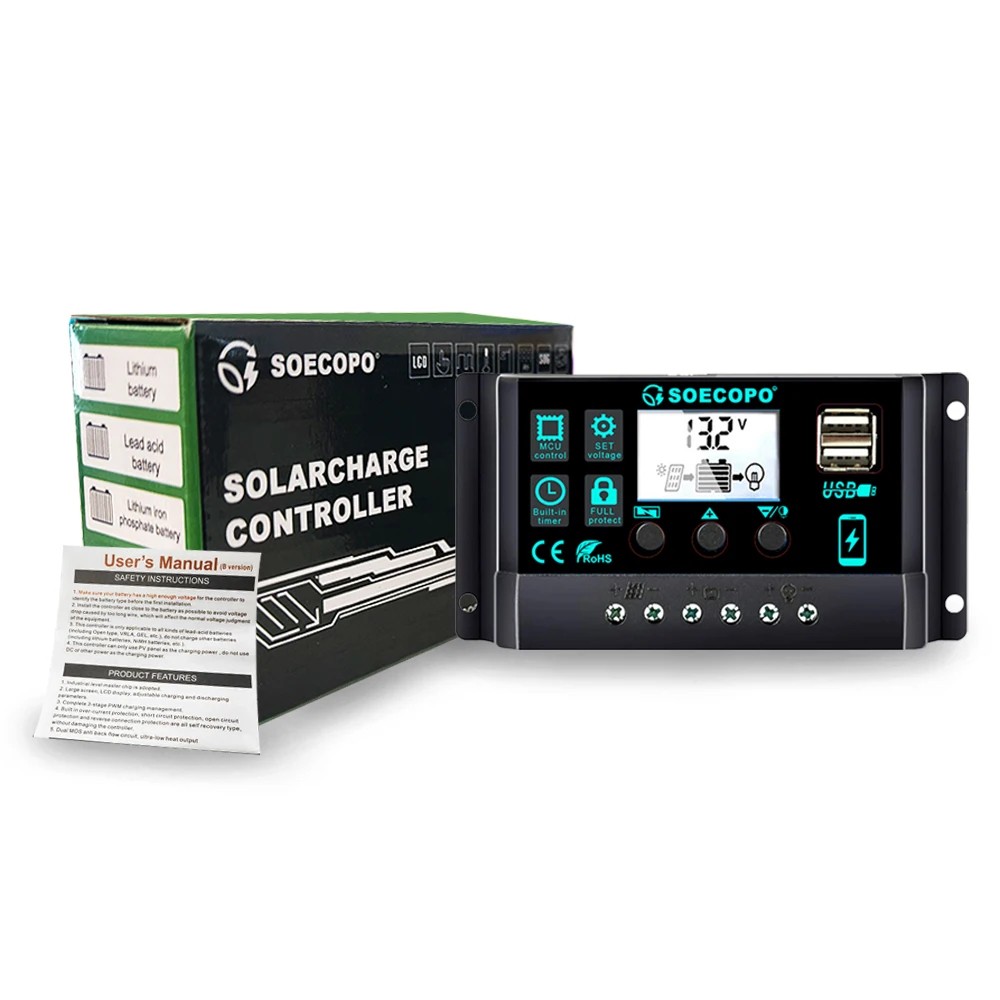

Solar Charge Controller PWM 60 A 12 V and 24 V Automatic Detection LCD 2.4 Inches Two USB for AGM, Gel and LiFePO4 Black for Caravan
You already have the maximum available quantity in your cart.
The solar charge controller with rated current of 60 A manages the flow of energy from photovoltaic panels to the battery. 12 V or 24 V system is automatically detected, so there is no need for manual switching. Charging occurs in three phases according to an intelligent algorithm. The 2.4-inch LCD display shows voltage, current, temperature, and charging status on one screen. The controller works with AGM batteries, gel batteries, and LiFePO4, as well as panels with a power output of 100 to 400 W. The body is black with two USB ports.
Features:
- Rated current 60 A — capacity for larger photovoltaic systems.
- Automatic detection of 12 V and 24 V — no manual system adjustment required.
- Three-stage charging — gentle process for battery replenishment.
- 2.4-inch LCD display — voltage, current, temperature, and charging status.
- Support for AGM batteries — universal application in the system.
- Support for gel batteries — type selection in settings.
- Support for LiFePO4 batteries — lithium iron phosphate cells.
- Panels 100 to 400 W — recommended power output for photovoltaic array.
- Overcharge protection — safeguards the battery when fully charged.
- Short circuit protection — secures the output circuit.
- Reverse polarity protection — prevents damage from reversed polarity.
- Overload protection — monitors output consumption.
- Low temperature compensation — adjusts charging voltage in cold conditions.
- Two USB ports — for charging small electronics.
- Built-in timer — controls output based on time.
- Control buttons — trio of elements beneath the display.
- Black colour — body with mounting holes on the sides.
Package contents:
- 1x solar charge controller
- 1x user manual
The controller can be used in a motorhome, caravan, on a boat, at a cottage, or in a garden shed without a grid connection. Automatic detection of 12 V and 24 V simplifies installation and eliminates the risk of incorrect settings. Support for AGM, gel, and LiFePO4 batteries means that the device will serve even after later replacement of the storage with a different type of cells. The set of protections against overcharging, short circuits, reverse polarity, and overload ensures the safety of the entire system. Two USB ports allow you to charge your phone or flashlight directly from the controller without an additional adapter.
