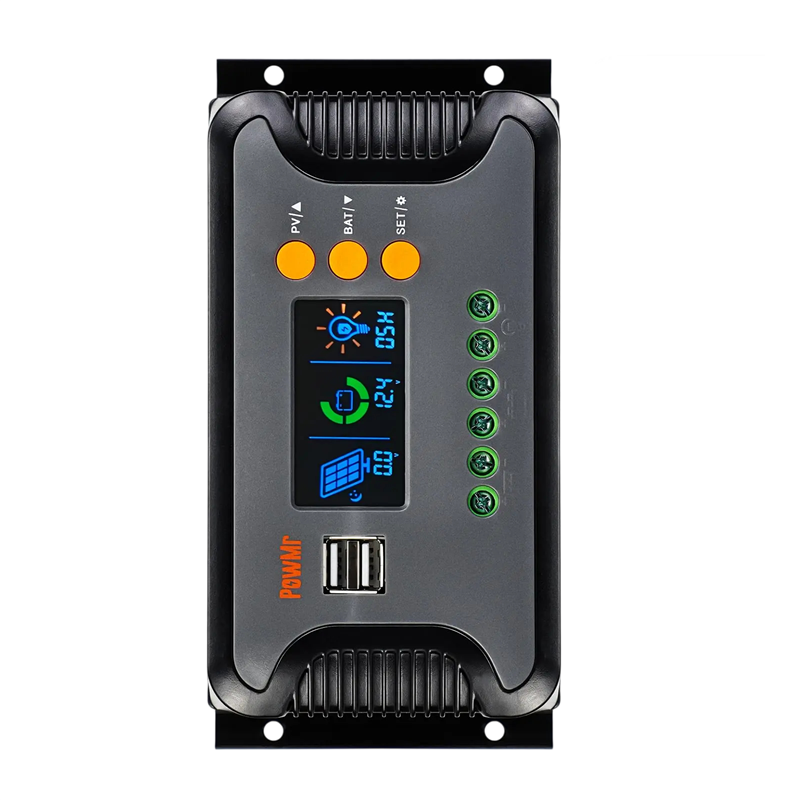

Solar Charge Controller PWM 30 A 12 V and 24 V and 36 V and 48 V PV up to 100 V two USB 5 V colour display black for photovoltaics and caravans
You already have the maximum available quantity in your cart.
The solar charge controller with PWM technology manages the flow of energy from photovoltaic panels to the battery and protects it from overcharging. The rated charging current is 30 A and the controller works with battery systems of 12 V, 24 V, 36 V, and 48 V. The maximum open-circuit voltage of the panels is 100 V. Charging occurs in three stages, and the self-consumption does not exceed 20 mA. The colour display shows the status of the load, battery, and panels, and there are also two 5 V and 2 A USB ports available. The body is black.
Features:
- PWM Technology — pulse width modulation for charging control.
- Rated Charging Current 30 A — capacity for medium setups.
- System Voltage 12 V to 48 V — supports four battery levels.
- Maximum Panel Voltage 100 V — open-circuit voltage at PV input.
- Rated Output Current 20 A — direct current output for load.
- Three-Stage Charging — gentle process for replenishing the battery.
- Self-Consumption up to 20 mA — low standby consumption.
- Two USB Ports — 5 V and 2 A output for charging small electronics.
- Colour Display — graphical representation of load, battery, and panels.
- Control Buttons — PV, BAT, and SET on the front panel.
- Operating Temperature -20 to 55 °C — wide range of deployment.
- Weight 0.49 kg — lightweight device.
- Screw Terminals — for connecting panels, batteries, and load.
- Black Colour — body with ribbed cooling surfaces.
Contents of the Package:
- 1x solar charge controller
The controller can be used in a home photovoltaic setup, at a cottage, in a caravan, on a boat, or in a garden shed, where you charge batteries from solar panels. Support for 12 V, 24 V, 36 V, and 48 V systems means that the device will also serve well after later expansion of storage. The colour display shows the panels, battery, and load on one screen, so you have an overview of the entire circuit. Low self-consumption of up to 20 mA saves battery even during periods without sunlight. The operating temperature of -20 to 55 °C allows for installation in unheated spaces.
