PWM Solar Charge Controller 80 A 12 V and 24 V and 36 V and 48 V PV up to 100 V two USB 5 V colour display black for photovoltaic and caravan
You already have the maximum available quantity in your cart.

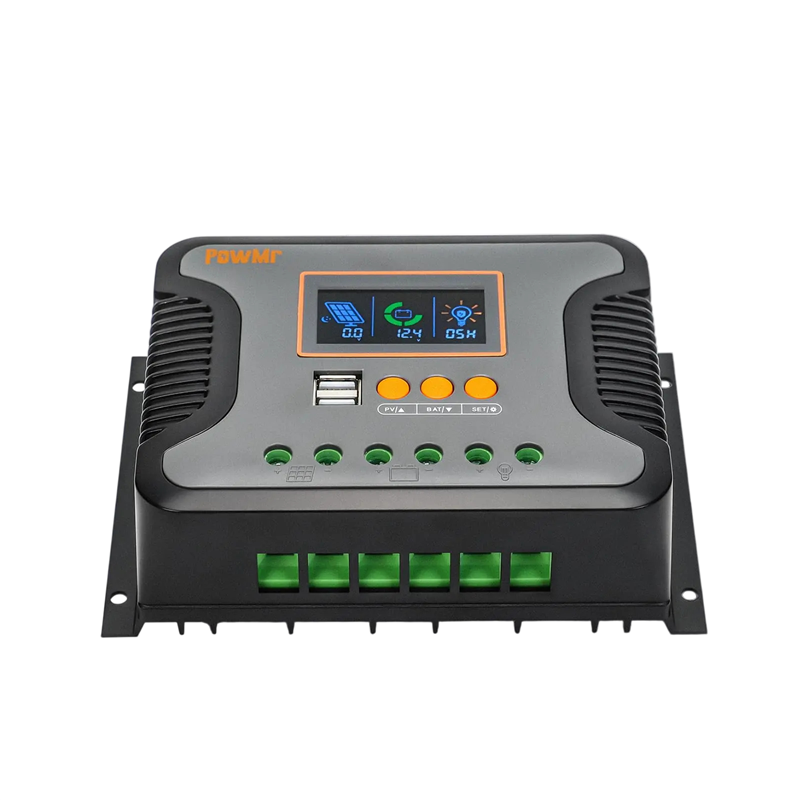

The solar charge controller with PWM technology manages the flow of energy from photovoltaic panels to the battery and protects it from overcharging. The rated charging current is 80 A and the controller works with battery systems of 12 V, 24 V, 36 V, and 48 V. The maximum open-circuit voltage of the panels is 100 V. Charging occurs in three stages and the self-consumption does not exceed 20 mA. The colour display shows values for the panels, battery, and load, and there are also two 5 V and 2 A USB ports available. The body is black and weighs 0.75 kg.
Features:
- PWM Technology — pulse width modulation charging.
- Rated charging current 80 A — capacity for extensive photovoltaic systems.
- System voltage 12 V to 48 V — supports four battery levels.
- Maximum panel voltage 100 V — open-circuit voltage at the PV input.
- Rated output current 50 A — DC output for load.
- Three-stage charging — gentle process for replenishing the battery.
- Self-consumption up to 20 mA — low standby consumption.
- Two USB ports — 5 V and 2 A output for charging small electronics.
- Colour display — graphical representation of panels, battery, and load.
- Control buttons — PV, BAT, and SET below the display.
- Operating temperature -20 to 55 °C — wide range of deployment.
- Weight 0.75 kg — net weight of the device.
- Screw terminals — connection for panels, battery, and load.
- Black colour — body with ribbed cooling surfaces and mounting brackets.
Package contents:
- 1x solar charge controller
The controller can be used in a home photovoltaic system, at a cottage, in a caravan, on a boat, or in a garden shed where you charge batteries from solar panels. Support for 12 V, 24 V, 36 V, and 48 V systems means that the device will also serve after later storage expansion. Charging current of 80 A with an output of 50 A will cover an extensive array of panels and more demanding loads. The colour display shows the panels, battery, and load on one screen, giving you an overview of the entire circuit. The mounting brackets on the sides facilitate attachment to the wall of the technical room.
