PWM Solar Charge Controller 60 A 12 V and 24 V and 36 V and 48 V PV up to 100 V two USB 5 V colour display black for photovoltaic and caravan
You already have the maximum available quantity in your cart.

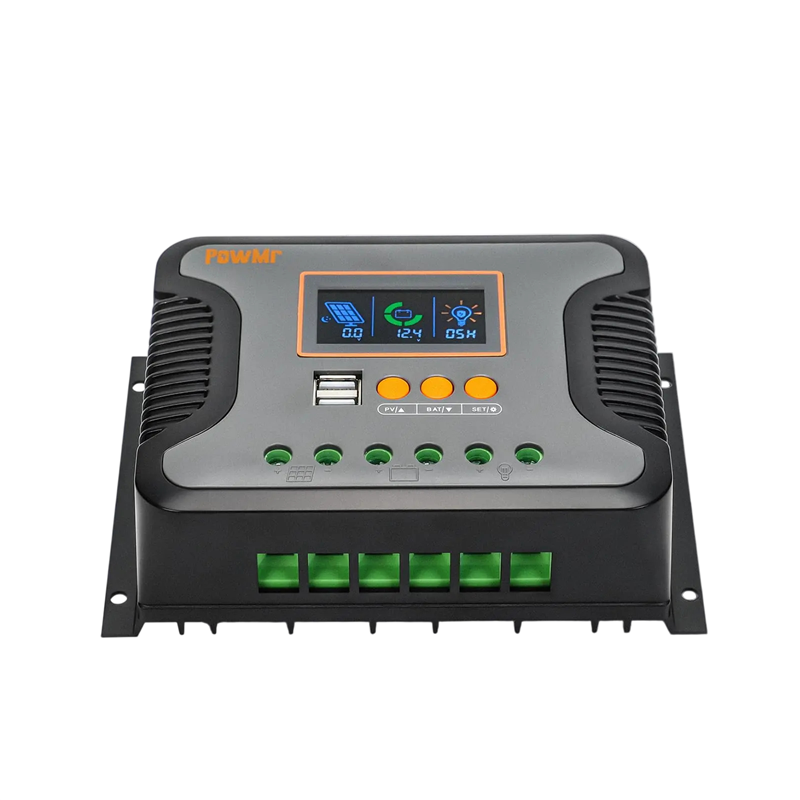

The solar charge controller with PWM technology manages the flow of energy from photovoltaic panels to the battery and protects it from overcharging. The rated charging current is 60 A and the controller operates with battery systems of 12 V, 24 V, 36 V, and 48 V. The maximum open-circuit voltage of the panels is 100 V. Charging occurs in three stages and the self-consumption does not exceed 20 mA. The colour display shows the values of the panels, battery, and load, and there are also two 5 V and 2 A USB ports available. The body is black and weighs 0.7 kg.
Features:
- PWM Technology — pulse width modulation for charging control.
- Rated charging current 60 A — capacity for larger photovoltaic systems.
- System voltage 12 V to 48 V — support for four battery levels.
- Maximum panel voltage 100 V — open-circuit voltage at the PV input.
- Rated output current 35 A — direct current output for load.
- Three-stage charging — gentle process for battery replenishment.
- Self-consumption up to 20 mA — low standby consumption.
- Two USB ports — 5 V and 2 A output for charging small electronics.
- Colour display — graphical display of panels, battery, and load.
- Control buttons — PV, BAT, and SET below the display.
- Operating temperature -20 to 55 °C — wide range of deployment.
- Weight 0.7 kg — net weight of the device.
- Screw terminals — for connecting panels, battery, and load.
- Black colour — body with ribbed cooling surfaces and mounting brackets.
Contents of the package:
- 1x solar charge controller
The controller can be used in a home photovoltaic system, at a cottage, in a caravan, on a boat, or in a garden shed, where you charge batteries from solar panels. Support for 12 V, 24 V, 36 V, and 48 V systems means that the device will also serve after later expansion of storage. Charging current 60 A with an output of 35 A will cover larger arrays of panels and more demanding loads. The colour display shows the panels, battery, and load on one screen, giving you an overview of the entire circuit. The mounting brackets on the sides facilitate attachment to the wall of the technical room.
