Narrow Grooving Cutter 5 x 20 mm Shank 1/2 Inch 12.7 mm Three Carbide TCT Blades Straight CNC Cutter Silver Wood and Chipboard
You already have the maximum available quantity in your cart.

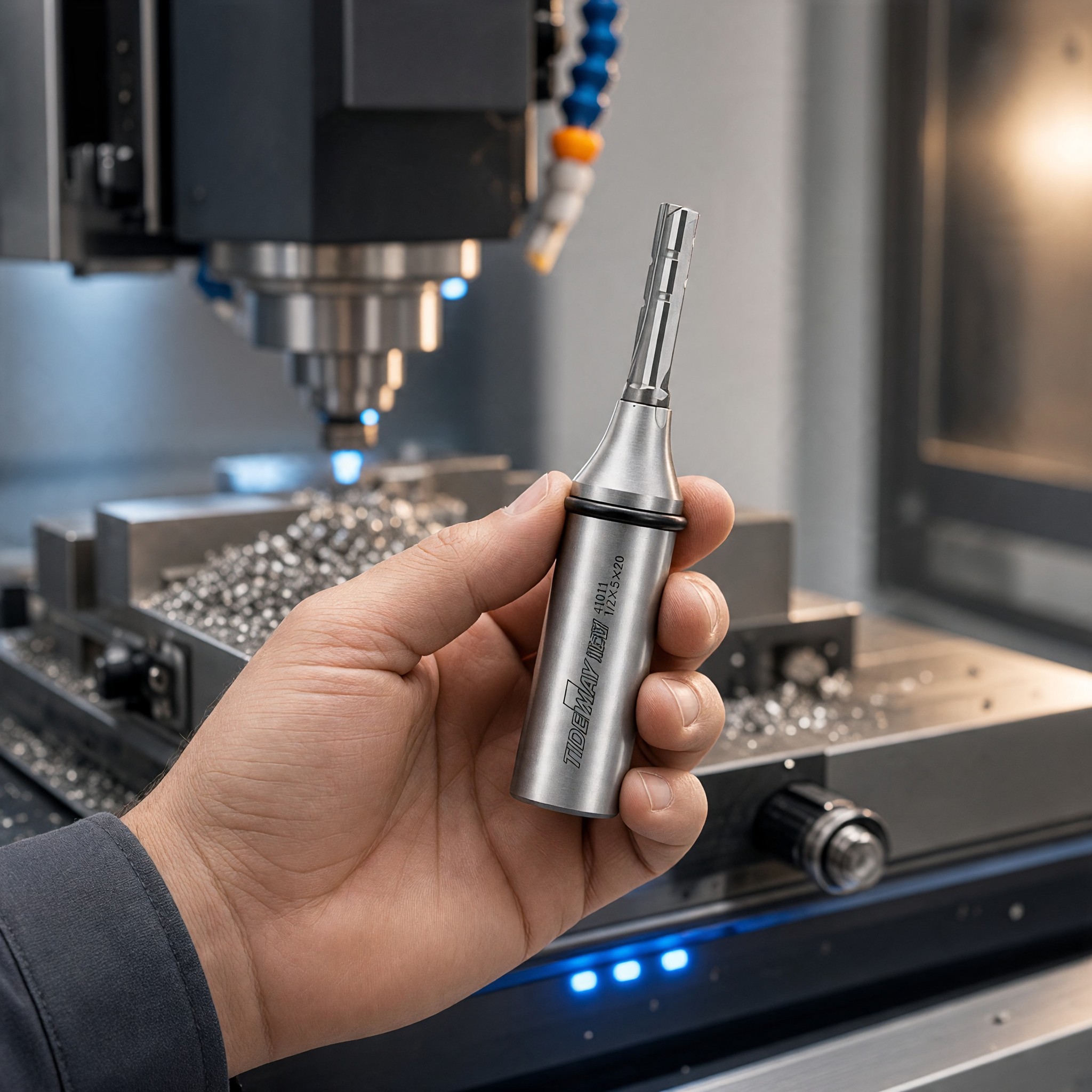

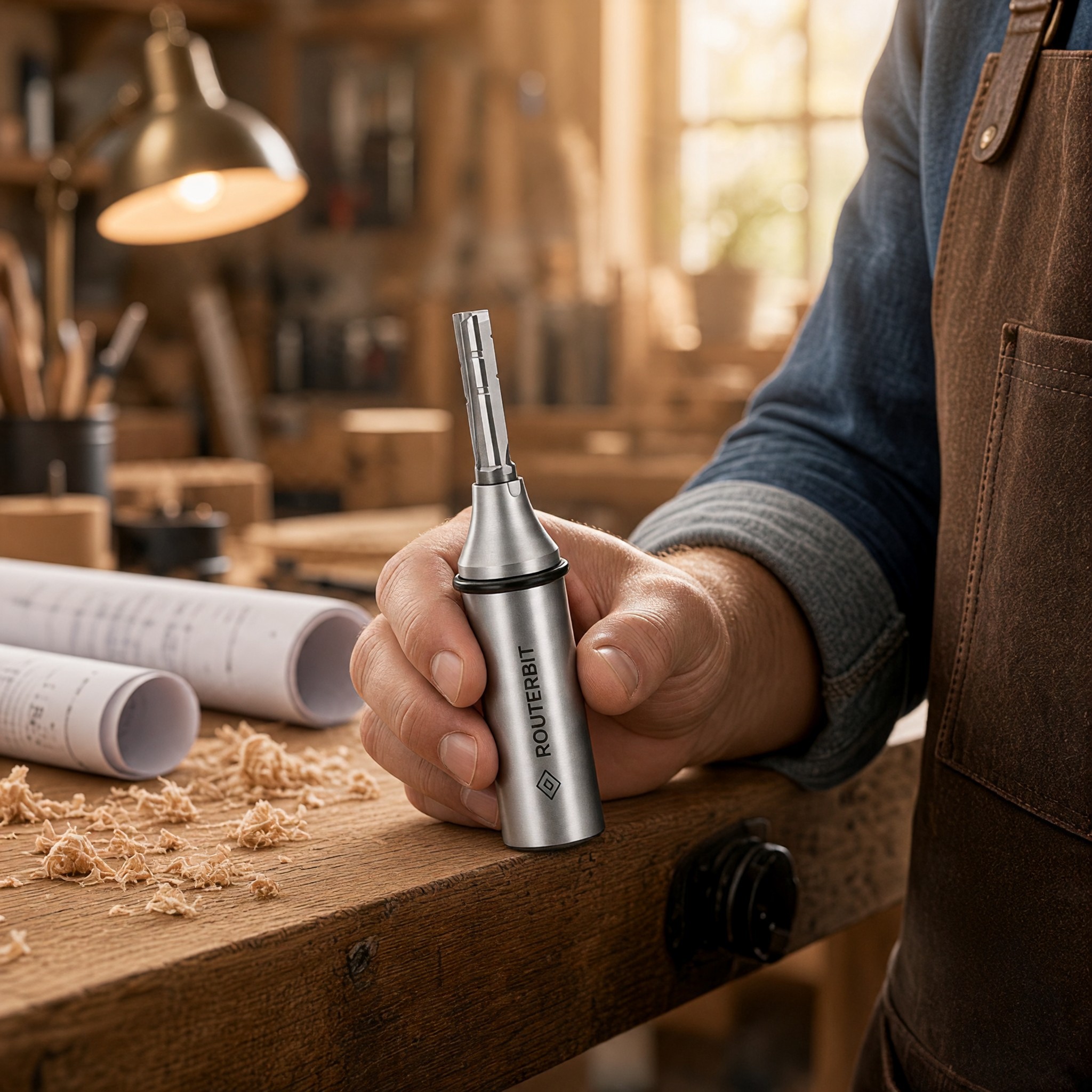

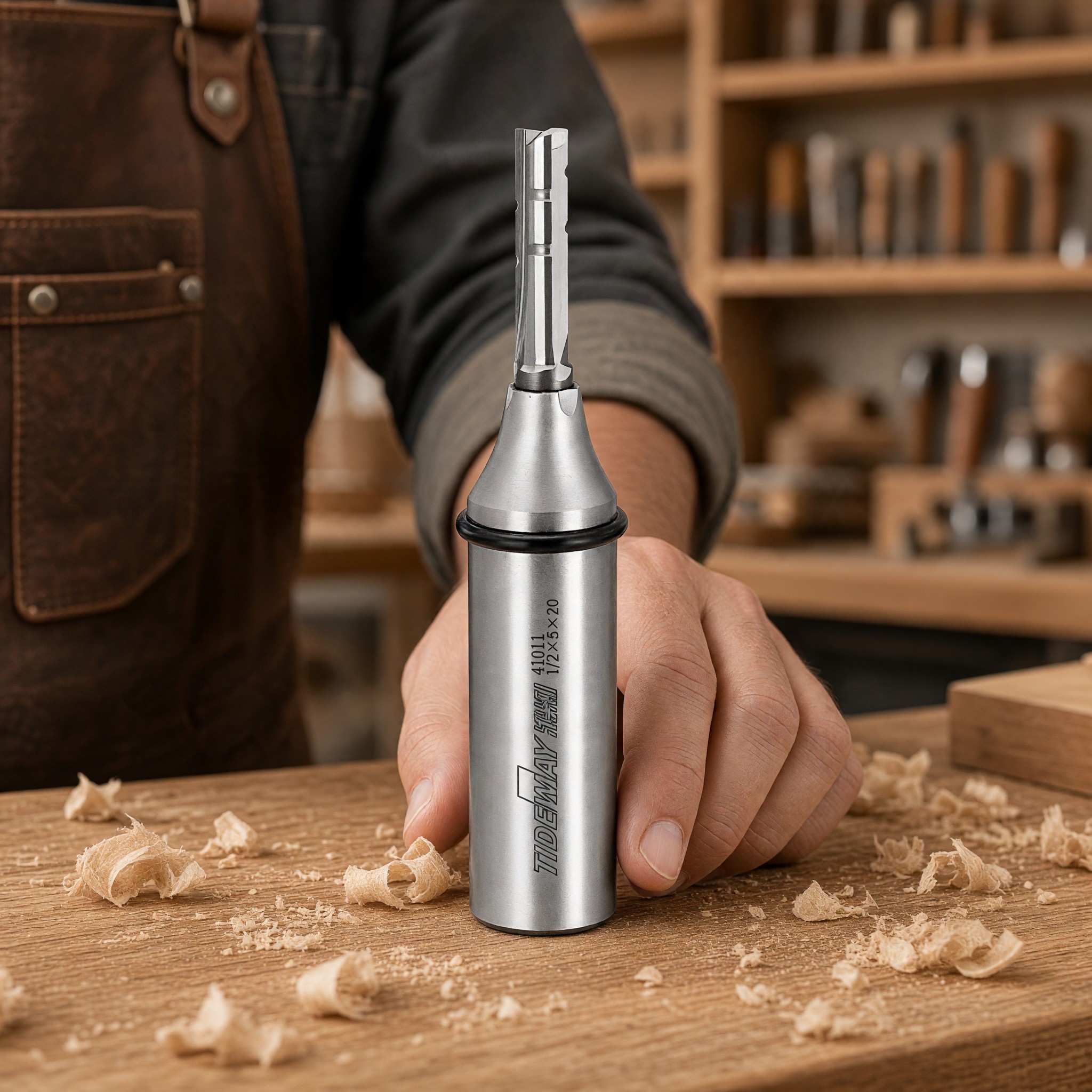

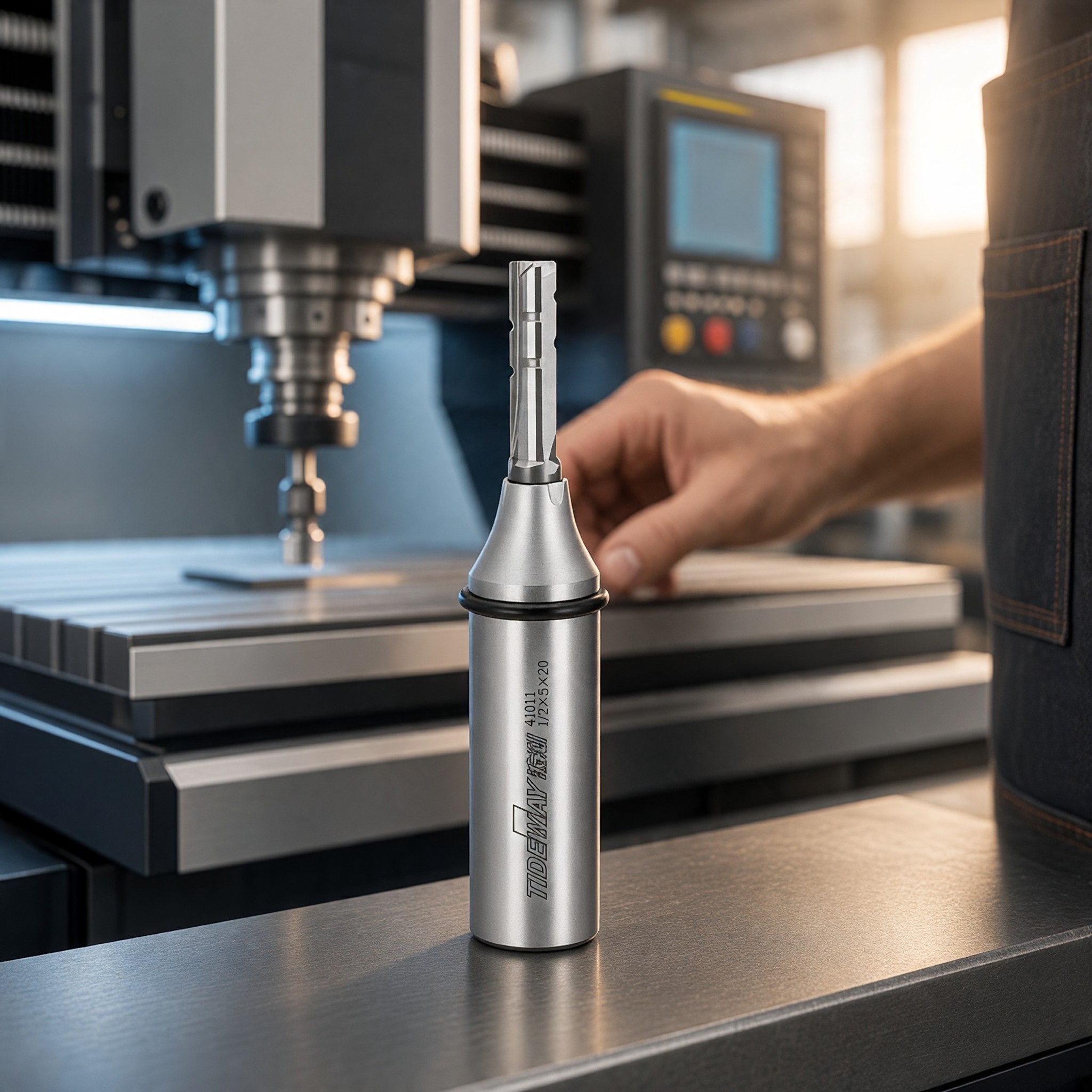

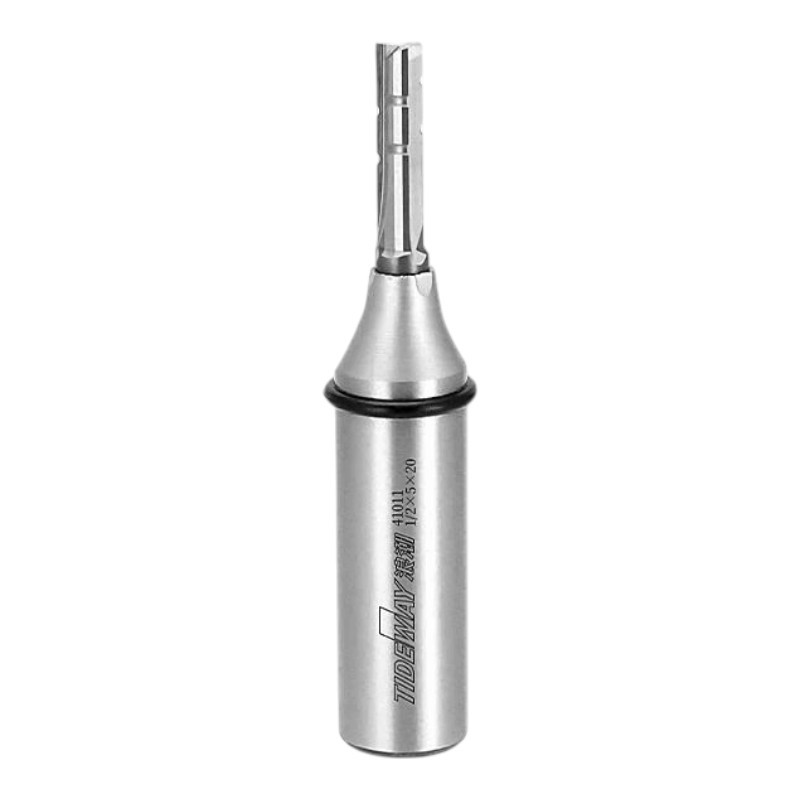

The narrow grooving cutter with dimensions 5 x 20 mm is designed for milling straight grooves and precise cuts in wood and multilayer chipboard. The cutting diameter is 5 mm and the blade length is 20 mm. The cutter features three carbide (TCT) blades and a 1/2 inch shank with a diameter of 12.7 mm. It is clamped into a router, CNC milling machine, or engraving machine. The entire cutter is silver, with a tapered transition from the shank to the cutting part, and a black ring at the top of the shank.
- Width 5 mm — the cutter creates a groove 5 mm wide with a flat bottom and vertical walls. This width is suitable for narrower joints, recessing thin parts, and finer cuts.
- Blades 20 mm — the working part allows milling to a depth of up to 20 mm. For a narrow cutter, it is advisable to add depth gradually in multiple shallower passes.
- Three-Flute Cutting Part — the three blades alternate in engagement during rotation, so each removes a smaller chip. The cut is therefore smoother than with cutters with fewer blades.
- Carbide Cutting Edges — the blades are made of carbide, which is harder than tool steel. This material is commonly used for cutters for wood and chipboard.
- Clamping Diameter 12.7 mm — the 1/2 inch shank is clamped into a 12.7 mm collet. A 12 mm collet is not suitable for it, so please check what type of collet your machine has.
- Tapered Transition — the shank gradually narrows to the cutting part. The thick shank transitions smoothly into the narrow working part without a sharp change in diameter.
- Cutter Size — the total length of the tool is 71 mm. The compact cutter is easy to set up and the depth of shank insertion is chosen according to your machine's instructions.
- Suitable Machines — the cutter can be used in a handheld router, in a milling table, in a CNC milling machine, and in an engraving machine, provided they have a collet for 1/2 inch.
- Narrow Grooves — the cutter is suitable for wood and multilayer chipboard where you need a narrower groove than the usual 6 mm. It can be used in furniture production, boxes, frames, and other parts.
- Careful Operation — do not overload the narrow tool with too fast feed. Securely tighten the cutter in the collet, safely clamp the workpiece, and wear protective glasses while working.
- Package Contents — 1x grooving cutter 5 x 20 mm with a 1/2 inch shank.
The narrow grooving cutter 5 x 20 mm is suitable for straight grooves and precise cuts in wood and multilayer chipboard. The working length of 20 mm is sufficient for commonly deep grooves, provided you add depth gradually. The three blades made of carbide remove material smoothly and create a groove with a flat bottom. The 1/2 inch shank is clamped into a router, CNC milling machine, or engraving machine. The cutter can be used in furniture production and smaller wooden products.
