MM Phono Preamp with 6A2 Valves, 95×116×33 mm, RIAA Correction, 3.5mm AUX Input, Black, for Vinyl Turntable
You already have the maximum available quantity in your cart.

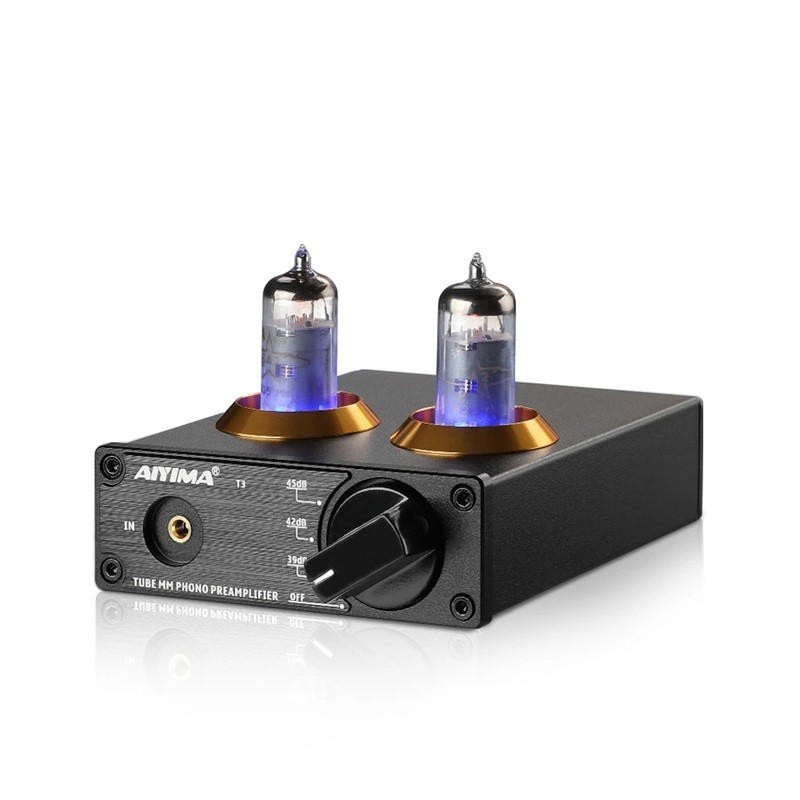

The valve phono preamp is designed for connecting a turntable with an MM cartridge to an amplifier or active speakers. It adjusts the signal from the vinyl record according to the RIAA correction curve and amplifies it to line level. The preamp works with standard MM turntable cartridges and complements setups where the turntable or amplifier does not have a phono input. In addition to the phono input, it also offers a 3.5mm AUX input, allowing you to connect a phone, tablet, laptop, CD player, DAC decoder, or television. The pair of 6A2 valves is mounted in socket bases with blue backlighting, and the compact black body measuring 95×116×33 mm fits on a desk or shelf alongside other audio equipment.
- Adjustable amplification in three levels – 39 dB, 42 dB, and 45 dB – plus an OFF position directly on the front rotary switch
- 6A2 valves in socket design, replaceable with types 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6*1N or 6AK5
- Frequency response compatible with RIAA correction and distortion of 0.1%
- Signal-to-noise ratio ≥98 dB and output level of 600 mV at an input of 3 mV / 1 kHz
- MM phono input via RCA connectors and ground terminal GND for connecting a turntable with an MM cartridge
- Audio output RCA for amplifiers with passive speakers as well as for active speakers (red for right channel, white for left channel)

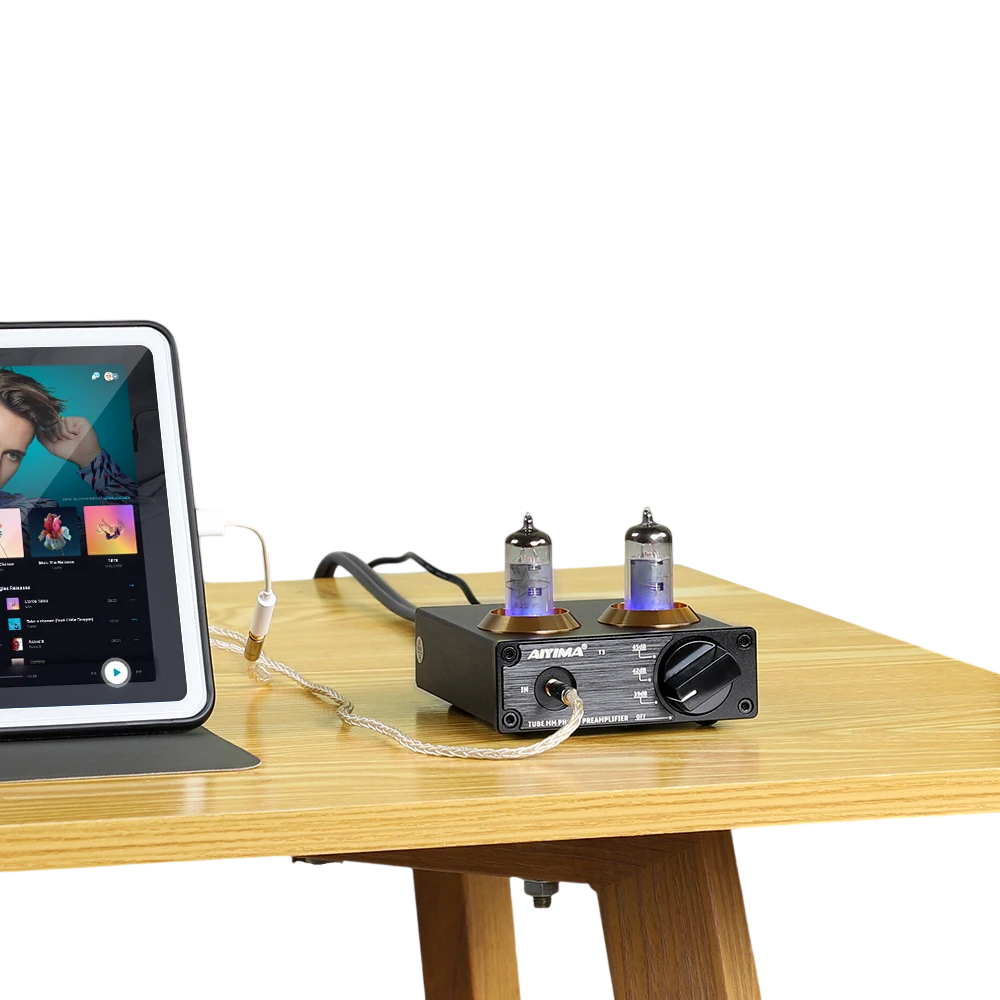

- Front 3.5mm AUX input for phone, laptop, tablet, CD player, DAC, or television
- When a signal is applied to the preamplifier input, the phono input automatically switches to this input
- Power supply DC 12 V / 1.5 A via coaxial connector 5.5×2.1 mm

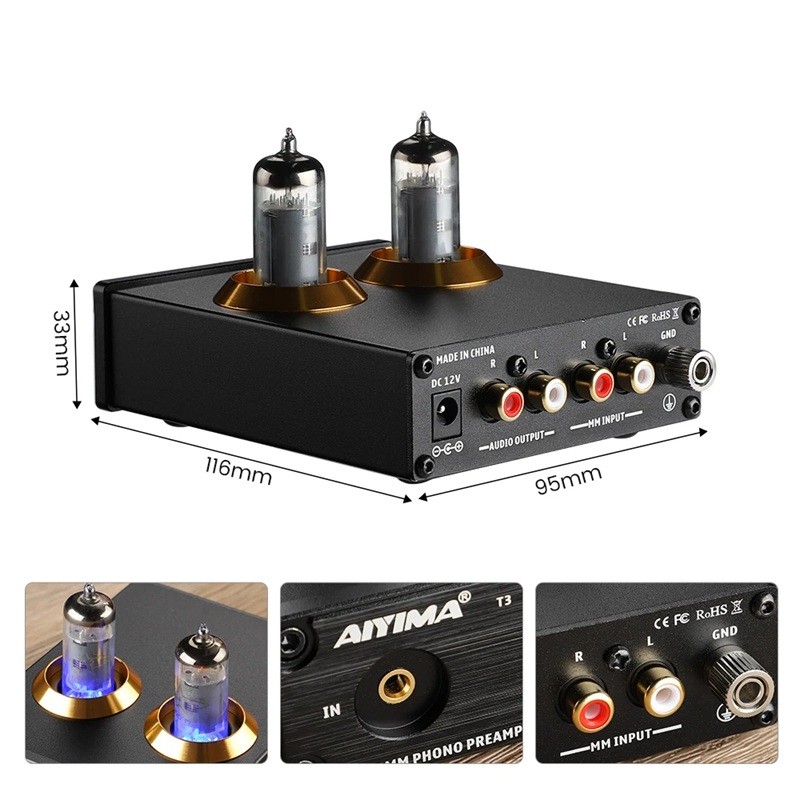

- Product dimensions 95×116×33 mm, dimensions without protruding knobs and terminals 118.5×98×33 mm
- Packaging dimensions 255×215×65 mm and packaging weight with product 550 g

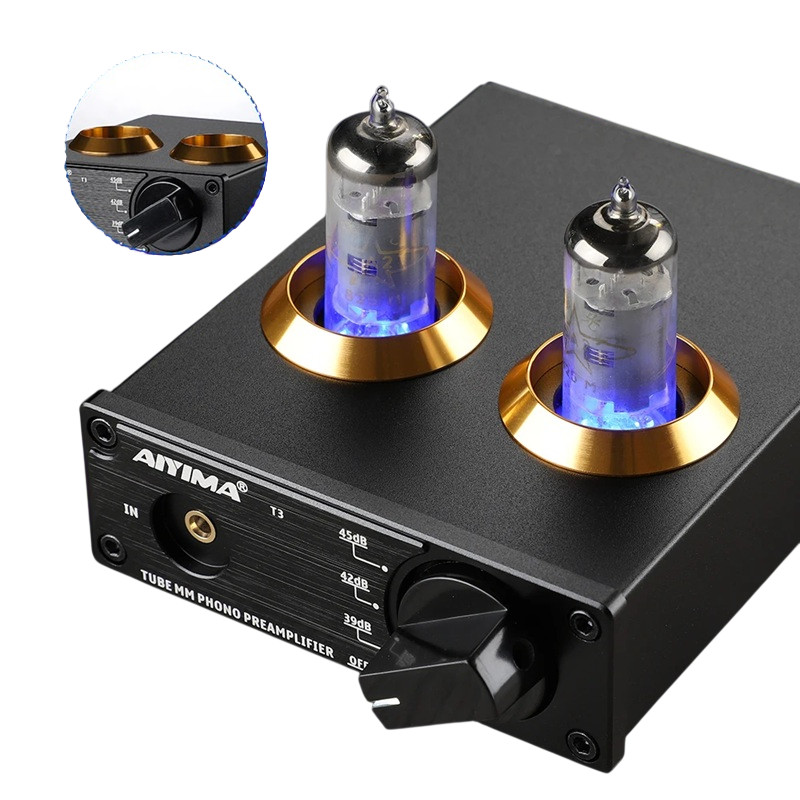

- Blue LED backlighting for valve sockets
- CE, FCC, and RoHS certification
Package contents: phono preamp and two supplied 6A2 valves

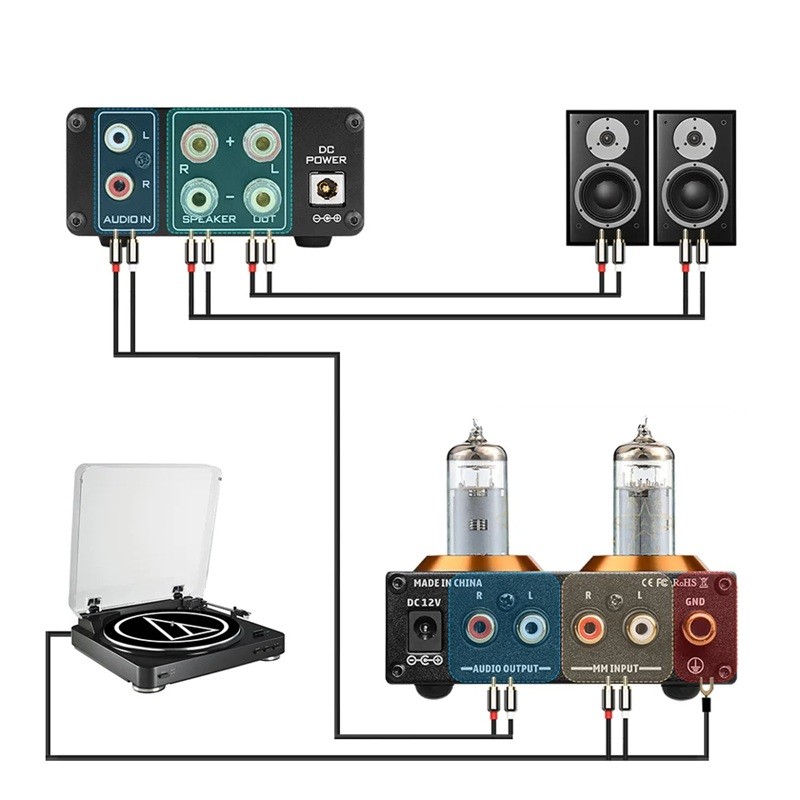

Connect the preamp between the turntable and amplifier or active speakers using RCA cables, the ground wire from the turntable should go to the GND terminal. Before the first power-up, leave the switch in the OFF position, insert the valves into the sockets and check that the bottom pins are not deformed; any deformation can be carefully adjusted by hand. Then connect the DC 12 V power supply and select the gain of 39, 42, or 45 dB using the rotary switch according to the sensitivity of the cartridge and the subsequent amplifier. Thanks to the 3.5mm AUX input, it can also serve as a valve preamp for a phone, laptop, or television. Compact dimensions and low weight make it easy to position in a setup with a turntable, and the blue backlighting of the valves enhances the appearance of the audio equipment.
