Mini Metal Lathe 180 x 400 mm 800 W Brushless Motor Variable Speed Digital Display Cast Iron HT200 Grey For Workshop
You already have the maximum available quantity in your cart.

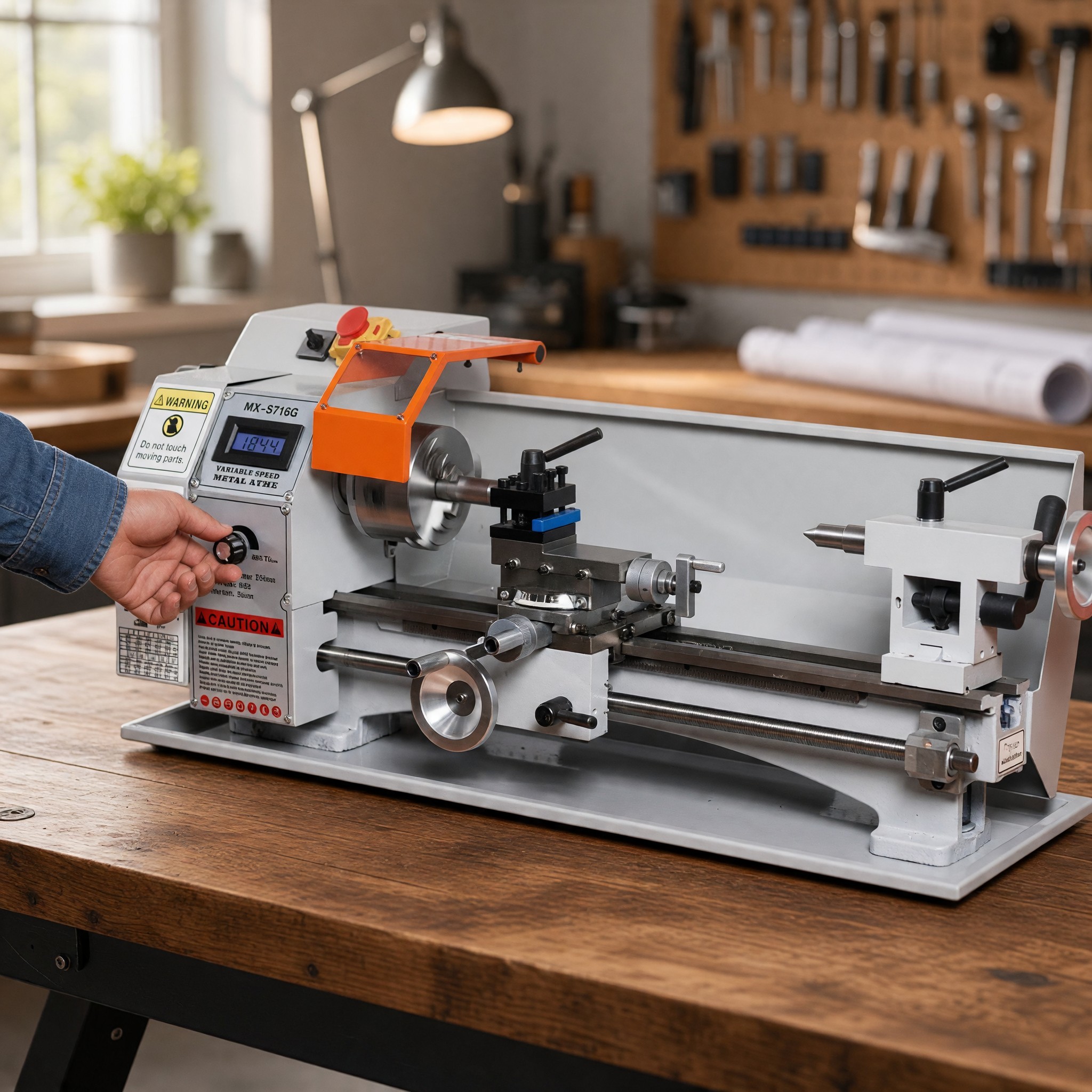

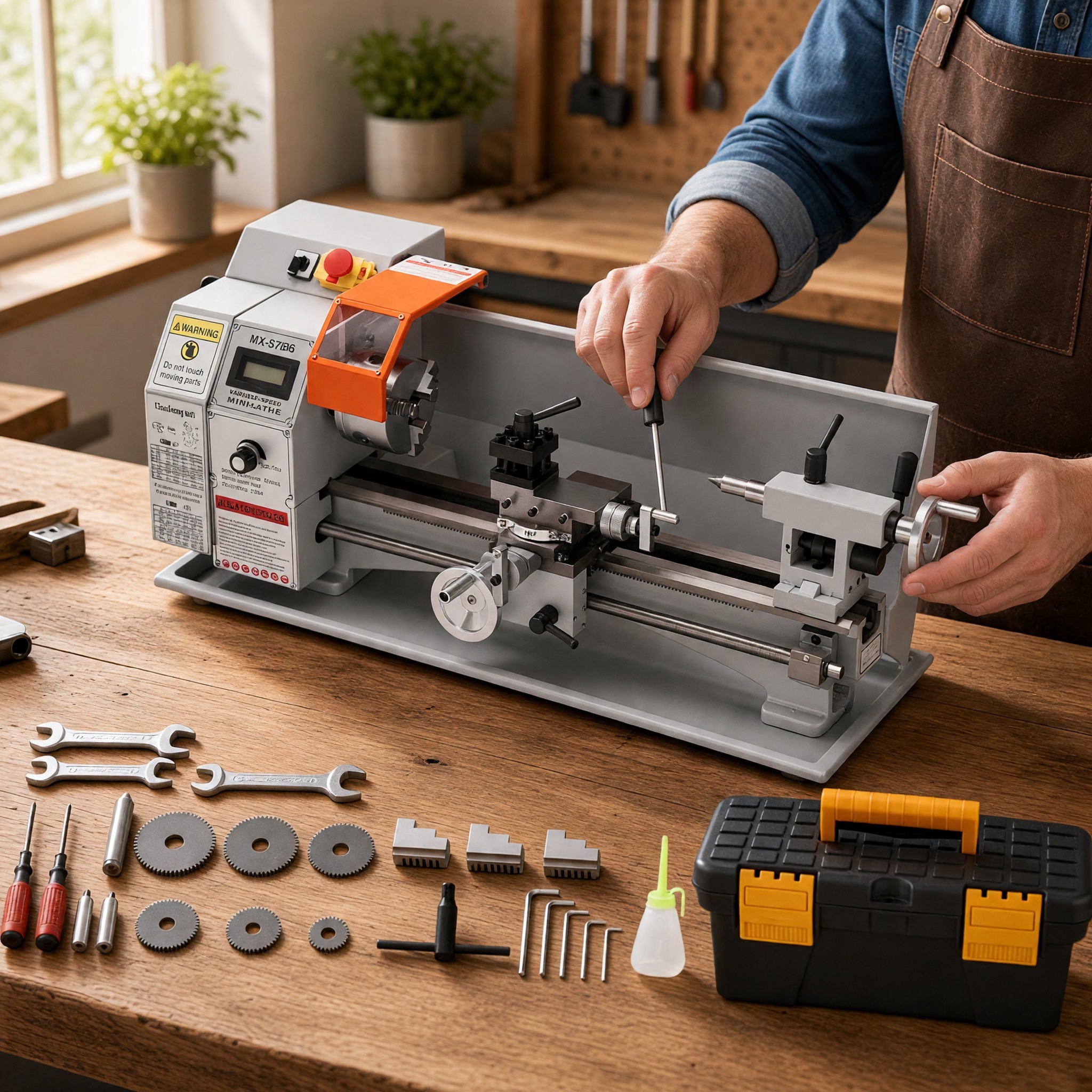

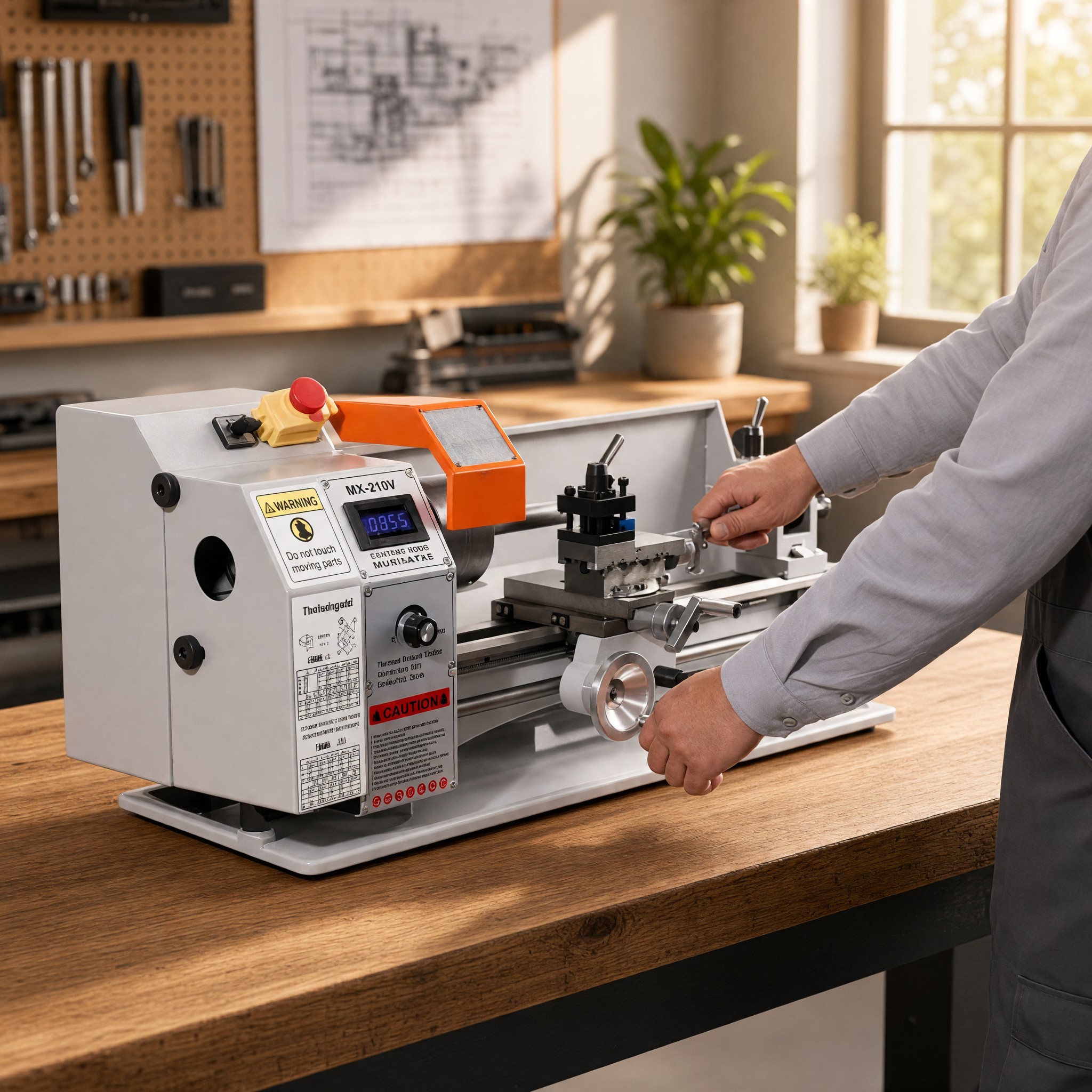

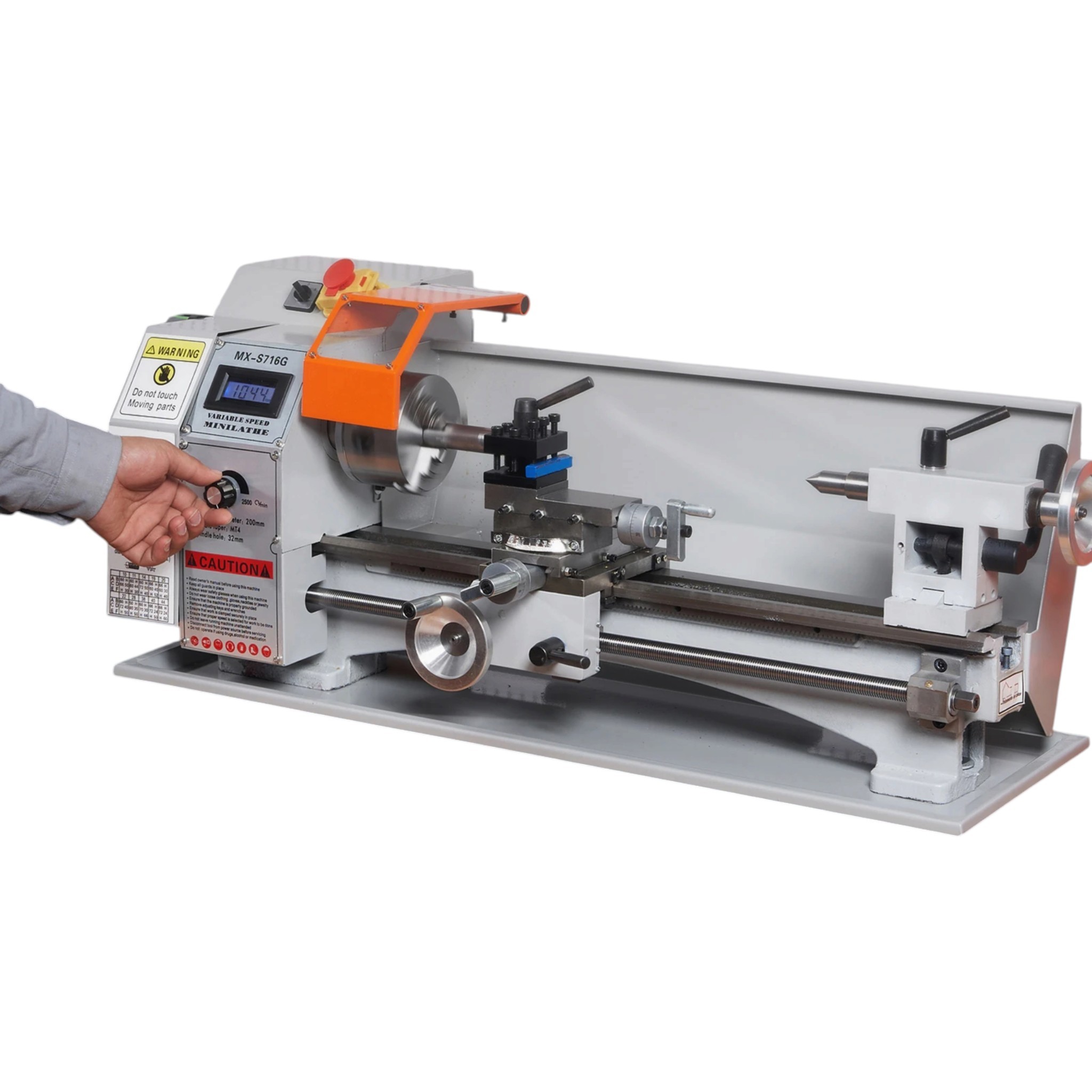

The mini metal lathe is a bench machine for precise machining of smaller metal parts in a home workshop, garage, or small facility. It is powered by a brushless motor with a power of 800 W featuring variable speed control and a digital display. The swing over bed and the distance between centres correspond to the size of 180 x 400 mm, which is 7 x 16 inches. The lathe's construction is made of HT200 cast iron, and the spindle has a bore of 32 mm. The machine is in grey with an orange chuck cover.
- Brushless Motor 800 W — the motor without carbon brushes drives the spindle and is powered from the mains at 220 V, 50 Hz. Thanks to the brushless design, there is no need for carbon replacement.
- Variable Speed Control — spindle speeds can be adjusted smoothly in the range of 150–2500 rpm using a rotary knob. The current value is displayed on the digital screen.
- Working Range — the swing over bed is 180 mm and the distance between centres is 400 mm. The lathe can thus handle workpieces up to this size, such as shafts, pins, bushes, or rings.
- Chuck 100 mm — the machine is equipped with a chuck with a diameter of 100 mm, into which you can clamp the workpiece. Longer workpieces can be supported on the other side by a centre in the tailstock.
- Spindle and Tailstock — the spindle has a bore of 32 mm and a MT4 taper, while the tailstock has a MT2 taper. You can clamp a centre or additional accessories with this taper into the tailstock.
- Cast Iron Construction — the main parts of the lathe are made of HT200 cast iron, which is commonly used in lathes due to its weight and rigidity. This ensures the machine remains stable during machining.
- Safety Features — the lathe has a chuck cover and a prominent emergency stop button for quick machine shutdown.
- Thread Cutting — on the front of the machine, there is a table for setting up thread cutting, and a set of interchangeable gears is included in the packaging.
- Dimensions — the lathe measures 800 x 340 x 360 mm (length x width x height) and fits on a sturdy workbench.

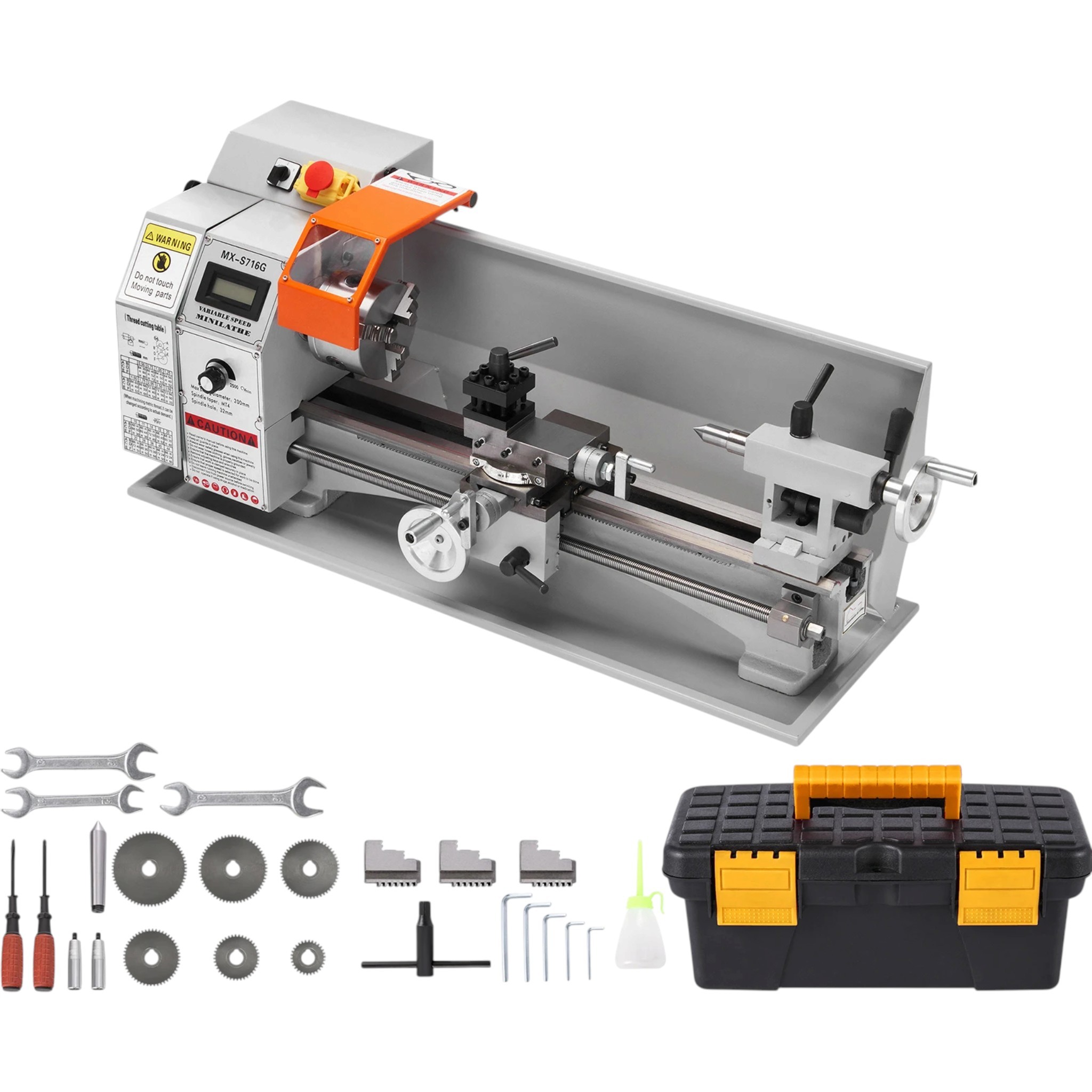

- Package Contents — 1x lathe with chip tray, 1x chuck key, 3x spare chuck jaws, 6x interchangeable gears, 1x fixed centre, 3x open-end wrenches, 2x screwdrivers (cross and flat), 5x hex keys, 1x oil can, 1x toolbox, small spare parts.
The mini metal lathe is suitable for DIY enthusiasts, modellers, and small facilities that need to machine smaller metal parts. The 800 W brushless motor with variable speed control of 150–2500 rpm and digital display makes it easy to set the speed according to the material. The HT200 cast iron construction provides the machine with strength. The working range of 180 x 400 mm and the 100 mm chuck are suitable for machining smaller parts in a home workshop or garage. The package includes basic tools and accessories for machine maintenance.
