Long Grooving Cutter 7 x 30 mm Shank 1/2 inch 12.7 mm Triple Blade with TCT Cutting Edges Silver Deep Grooves for Wood and Panels
You already have the maximum available quantity in your cart.

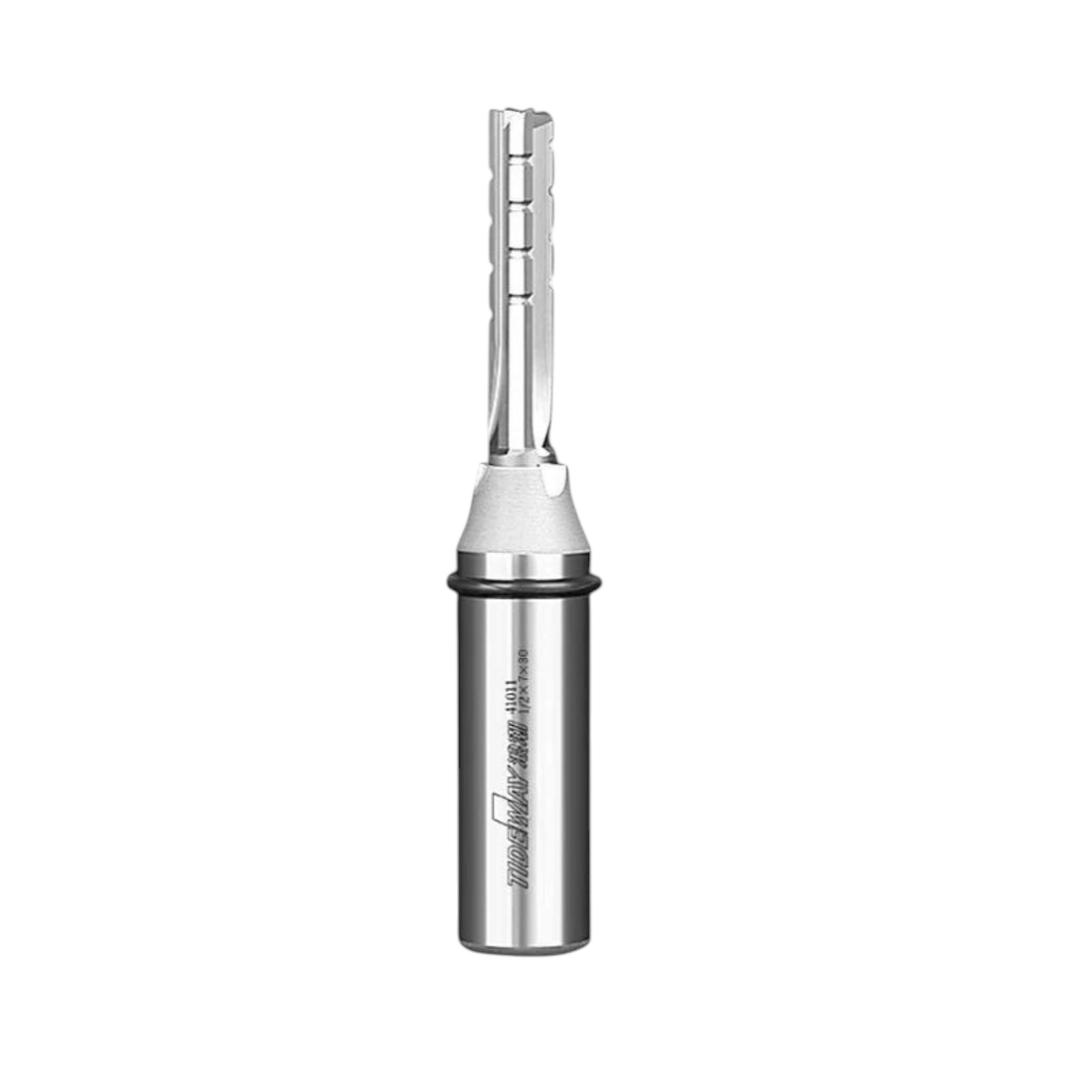

The long grooving cutter with dimensions 7 x 30 mm is designed for deep straight grooves, rebates, and cutouts in wood. The cutting diameter is 7 mm and the edges have a length of 30 mm, allowing the cutter to handle thicker materials. It features three TCT cutting edges and a shank diameter of 12.7 mm, or 1/2 inch. It is clamped into a router, CNC milling machine, or engraving machine. The cutter is silver and has a black ring at the top of the shank.
- Groove Width 7 mm — the cutter creates a groove 7 mm wide with a flat bottom and vertical walls. It is suitable for joints and recessing parts where a 6 mm groove is too narrow.
- Deep Cut 30 mm — the long edges allow for milling to a depth of up to 30 mm. Always mill such deep grooves gradually in multiple passes, increasing the depth in smaller increments.
- Triple Blade Action — the three blades alternate during rotation, each removing a smaller chip. This results in a smoother cut than cutters with fewer blades.
- Hard Cutting Material — the blades are made of carbide, which is harder than tool steel. Carbide is commonly used for wood cutters and multi-layer chipboard.
- Correct Collet — the 1/2 inch shank fits into a 12.7 mm collet. A 12 mm collet is not suitable, so please check what collet your machine has before purchasing.
- Total Length of Cutter — the cutter measures 78 mm. The thick shank provides rigidity to the tool even with a long working part. Choose the depth of the shank insertion into the collet according to the machine's manual.
- Applicable Machines — the cutter can be clamped into a handheld router, milling table, CNC milling machine, or engraving machine with a 1/2 inch collet.
- Strong Material — the longer edges are suitable for thicker boards and beams made of wood as well as multi-layer chipboard. You will use them in furniture making, frames, and wooden constructions.
- Gradual Deepening — do not overload the long cutter with too much depth in one pass. Tighten the cutter securely, clamp the workpiece safely, and wear protective glasses while working.
- Package Contents — 1x grooving cutter 7 x 30 mm with a 12.7 mm shank.
The long grooving cutter 7 x 30 mm is suitable for deep grooves and cutouts in wood and multi-layer chipboard. The edge length of 30 mm allows for machining even thicker materials when the depth is added gradually. The three TCT cutting edges remove material smoothly and create a groove with a flat bottom. The 1/2 inch shank is clamped into a router, CNC milling machine, or engraving machine. You will find the cutter useful in a carpentry workshop for furniture making and wooden constructions.
