Invisible Floor Drain for Bathroom with Tile Tray 27 x 7 cm External Dimensions 30 x 10 cm Drainage 4 cm Outlet in the Centre of the Body
| Colour:
|
You already have the maximum available quantity in your cart.

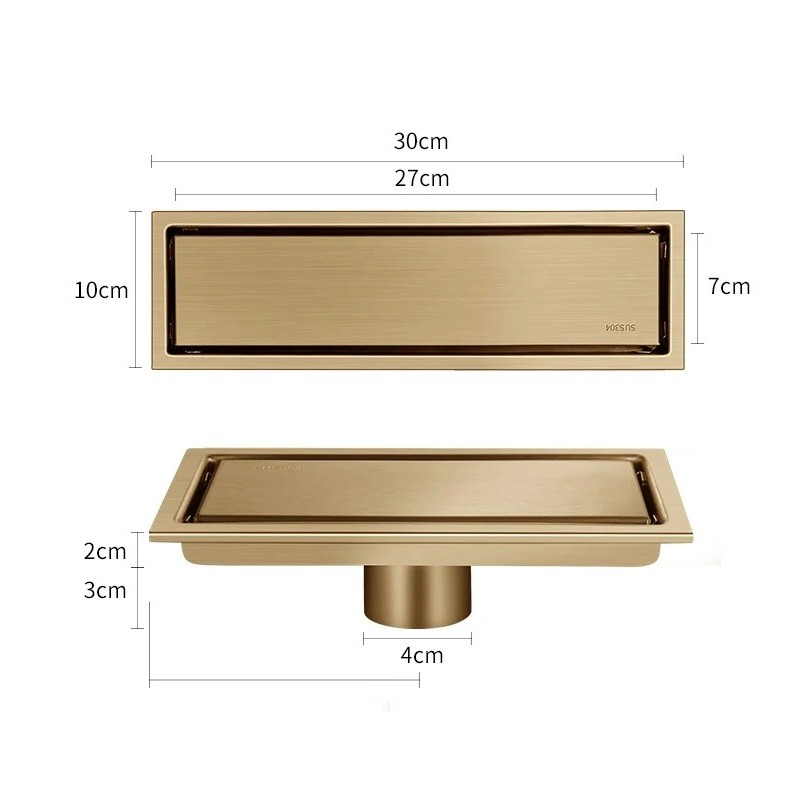

The floor drain with external dimensions of 30 x 10 cm features a shallow tray instead of a traditional grate, into which a piece of tile is fitted. Once the floor is completed, only a thin stainless steel frame surrounding the inserted tile is visible, allowing the tile pattern to continue seamlessly. The tray measures 27 x 7 cm and is 2 cm deep. The 4 cm diameter outlet is positioned in the centre of the body, 15 cm from the edge, and protrudes 3 cm below the base of the tray. The material is stainless steel 304, which withstands constant moisture and warm steam in the bathroom. The installation depth specified for this drain starts at 60 mm, and it is intended for use in bathrooms, shower cubicles, WCs, or balconies.
- Discreet Solution – the upper surface consists of a tray for tiles, not a perforated cover, so the drain does not attract attention, leaving only a narrow line around the perimeter in the floor. It is suitable for large format tiles as well as mosaics, where a metal grate would be distracting.
- External Dimension 30 x 10 cm – the elongated rectangle covers a longer stretch of floor than square drains while maintaining a width of only ten centimetres. The elongated shape fits well along a wall or in the transition between the shower and the rest of the bathroom.
- Tray 27 x 7 cm – the internal area for the tile is 2 cm deep, allowing the tile to fit in with the adhesive layer while the top edge remains level with the surroundings. The frame around the tray holds the tile in place and creates a clean transition to the floor.
- Outlet in the Centre – the outlet is precisely in the middle of the body, 15 cm from both ends, allowing for symmetrical waste connection regardless of how the drain is rotated in the floor. Water from both ends travels the same distance to the outlet.
- Drainage 4 cm – the outlet with a diameter of 4 cm protrudes 3 cm below the base of the tray and connects to waste pipes of corresponding diameter. A diameter of 4 cm is common for bathroom drains, so there is no need to source unusual parts.
- Stainless Steel 304 – both the frame and tray resist water, steam, and common bathroom chemicals, do not corrode, and the surface can be wiped dry with a regular cloth. Stainless steel does not absorb, so stains from water and soap do not penetrate.
Contents of the Package:
- 1x floor drain
The longer tile drain is suitable for shower cubicles and bathrooms where it is necessary to drain a narrow strip of floor while maintaining a cohesive appearance of the tiles. The inserted tile forms a single plane with the surroundings, allowing normal foot traffic over the drain and enabling the floor to be cleaned in one sweep. The stainless steel design accounts for daily contact with water and soap, and after rinsing, the surface remains smooth without dull spots. The central outlet location simplifies waste planning, as the pipes lead directly under the middle of the body. Dimension 30 x 10 cm provides a larger catchment area without creating a wide strip of different material in the floor, and the frame remains unobtrusive in the tiles.
