Hybrid Solar Inverter MPPT 6200 W 48 V Output 230 V AC Charging 120 A and PV 6500 W at 500 V DC Parallel 12 Units Blue with WiFi
You already have the maximum available quantity in your cart.

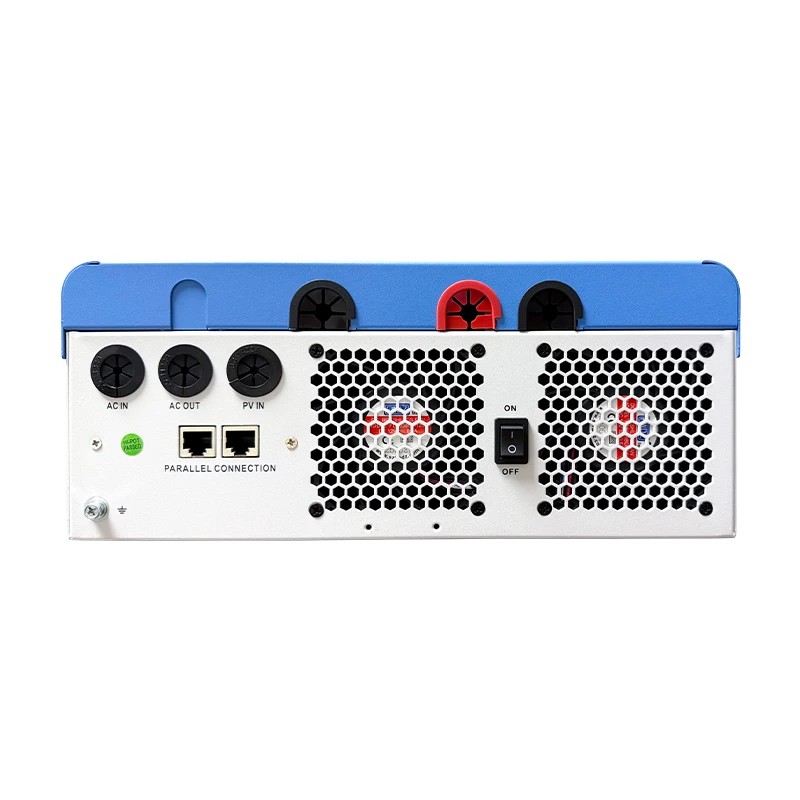

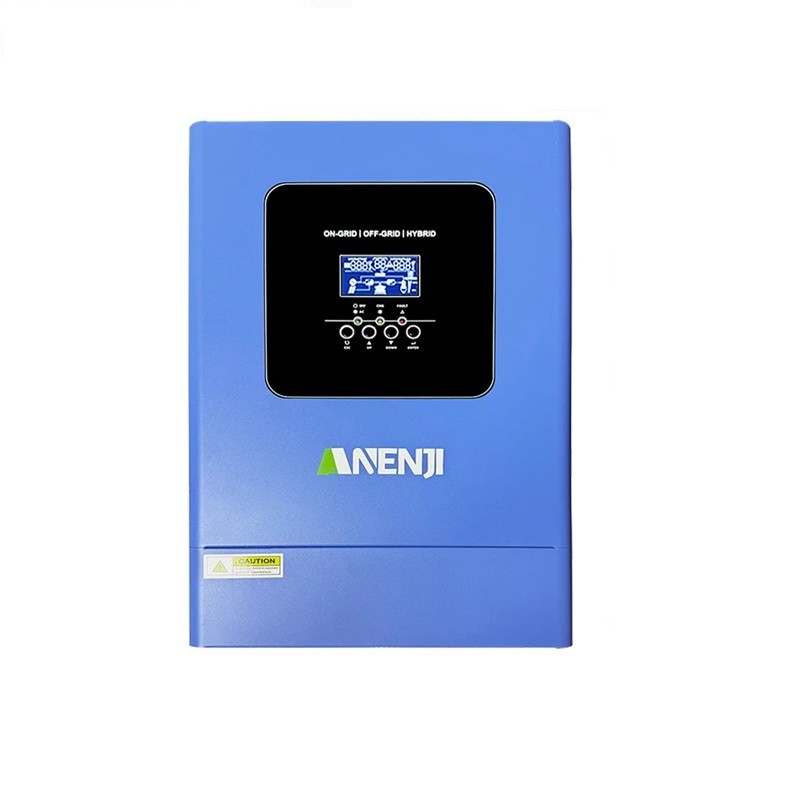

The hybrid solar inverter with MPPT technology offers a power output of 6200 W for 48 V battery systems with an output voltage of 230 V AC. It supports operation in on-grid, off-grid, and hybrid modes, and can function even without a connected battery. The maximum charging current reaches 120 A, the photovoltaic array can have a power of up to 6500 W and an input voltage of up to 500 V DC. Up to 12 units can be connected in parallel, allowing you to expand the system according to increasing demand. The model ANJ-6200W-48PL-WIFI includes features for activating lithium batteries, RS485 BMS communication, WiFi, and a CT sensor.
Features:
- MPPT Technology — maximum power point tracking of the photovoltaic array.
- Power 6200 W — solution for 48 V battery systems with 230 V AC output.
- Charging Current 120 A — maximum current for charging batteries.
- PV Array Power 6500 W — maximum power of connected photovoltaic panels.
- Input Voltage PV 500 V DC — voltage window for the photovoltaic array.
- Parallel Connection — connect up to 12 units into one system.
- ON-GRID, OFF-GRID and HYBRID Modes — choice depending on energy usage.
- Operation Without Battery — ability to work even in a setup without a connected accumulator.
- Activation of Lithium Batteries — function for reviving lithium accumulators.
- RS485 BMS Communication — connection with battery management.
- CT Sensor — current sensor for measuring consumption in the setup.
- WiFi Connection — remote monitoring of operation.
- Blue Colour — design with a black panel around the display.
Contents of the Package:
- 1x hybrid solar inverter
- 1x CT sensor
The inverter can be used in a home photovoltaic setup, at a cottage, in a workshop, or in a business where higher consumption needs to be covered. Parallel connection of up to 12 units means that the system can be built gradually, increasing power by adding another unit instead of replacing the entire inverter. RS485 BMS communication along with the CT sensor opens the way for precise charging control and measuring household consumption. Operation without a battery with activation of lithium cells provides flexibility in building the system and later adding an accumulator. WiFi connectivity keeps track of production and consumption even remotely.
