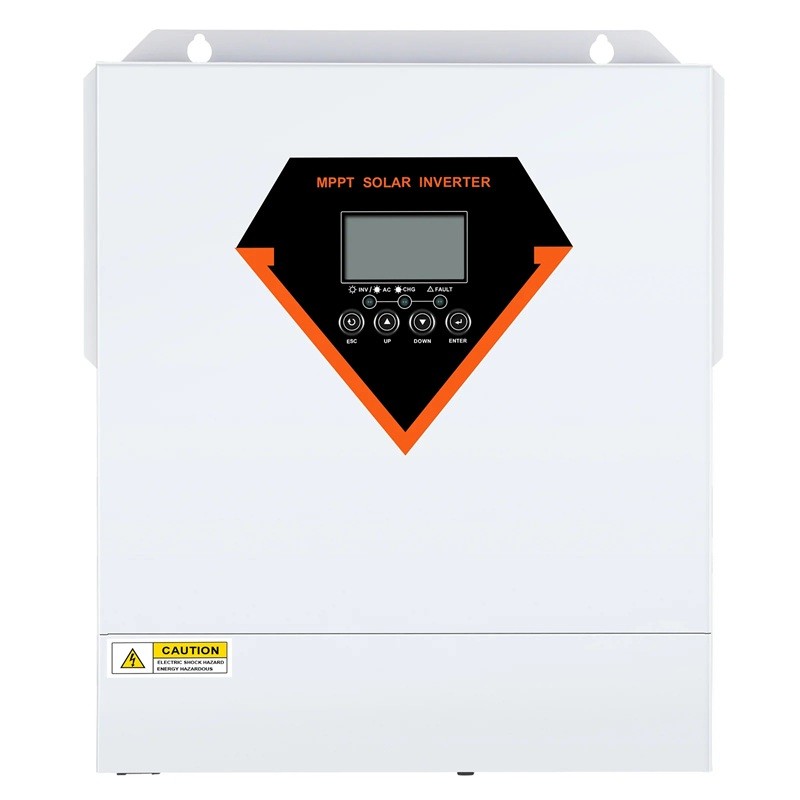

Hybrid Solar Inverter MPPT 5500 W 48 V Pure Sine Wave AC 230 V 50 Hz Charging 100 A PV 500 V DC White for Photovoltaics and Home
You already have the maximum available quantity in your cart.
The hybrid solar inverter with MPPT technology has a rated power of 5500 W ±10 % and works with 48 V battery systems, both lead and lithium batteries. The input voltage is 220 or 230 V AC, and the output provides 230 V AC at 50 Hz with a pure sine wave, suitable for more sensitive appliances. The maximum voltage of the photovoltaic array is 500 V DC, and the charging current reaches 100 A from the panels, 80 A from the grid, or 100 A when combining both sources. The inverter body is white and weighs 8.35 kg.
Features:
- MPPT Technology — maximum power point tracking of the photovoltaic array.
- Rated Power 5500 W ±10 % — capacity for home and smaller business use.
- Pure Sine Wave — output waveform suitable for more sensitive electronics.
- 48 V Batteries — support for both lead and lithium cells.
- Input Voltage 220 V and 230 V AC — connection to the standard grid.
- Output Voltage 230 V AC at 50 Hz — powering standard household appliances.
- Response Time 10 ms in UPS Mode — 20 ms when powering appliances.
- Charging Current 100 A from Panels — 80 A from the grid and 100 A when combining both sources.
- Maximum Voltage PV Array 500 V DC — ability to connect multiple panels in series.
- Dimensions 445 x 313 x 107 mm — compact body for wall mounting.
- Weight 8.35 kg — net weight of the device.
- White Colour — design with display and buttons on the front.
Package Contents:
- 1x hybrid solar inverter
The inverter can be used in a home photovoltaic system, at a cottage, in a workshop, or in a business where it is necessary to cover standard consumption. Support for 48 V lead and lithium batteries provides flexibility in building storage and during later replacement of cells. Response time of 10 ms in UPS mode means that in the event of a power outage, it takes over the load almost immediately. The PV array voltage of up to 500 V DC allows for connecting multiple panels into one string and simplifies cabling. Dimensions of 445 x 313 x 107 mm and a weight of 8.35 kg enable wall installation in a technical room.
