Hybrid Solar Inverter Dual MPPT 12 kW 48 V Single-Phase and Three-Phase Output 230 and 400 V AC Charging 260 A Grey Orange Without WiFi for Home
You already have the maximum available quantity in your cart.

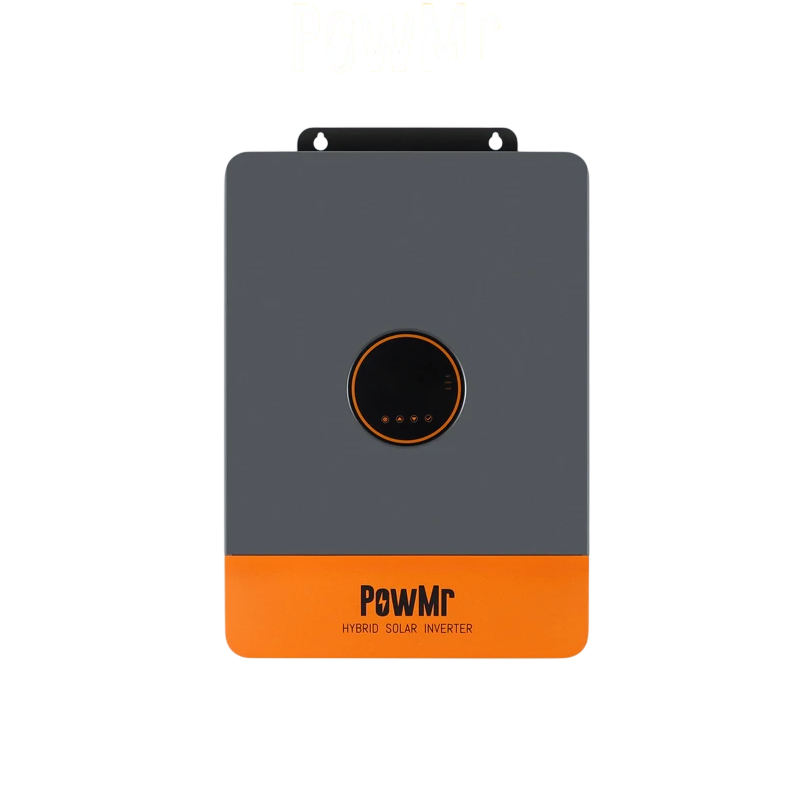

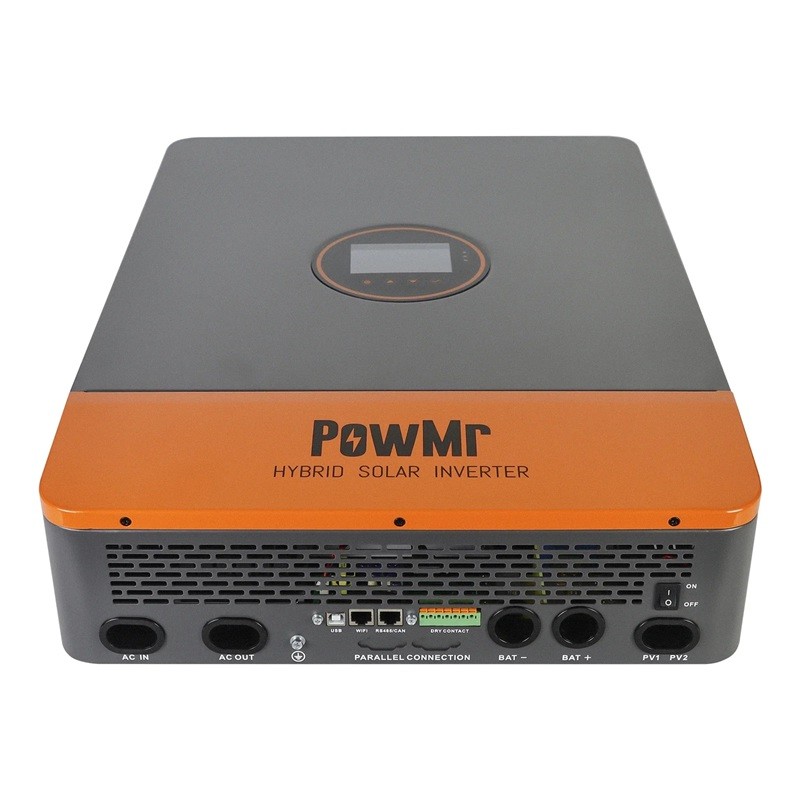

The hybrid solar inverter with rated power of 12 kW is designed for 48 V battery systems and features two built-in MPPT controllers. It supports single-phase and three-phase output of 230 V and 400 V AC, making it suitable for both residential and commercial use with three-phase appliances. The output waveform is a pure sine wave, and the inverter works with both lead-acid and lithium batteries, or can operate entirely without batteries. Batteries can be charged from panels, the grid, or a generator. The casing is grey and orange with a circular display, and the model does not include WiFi.
Features:
- Rated power 12 kW — capacity for larger homes and commercial premises.
- 48 V battery system — rated input voltage for batteries.
- Dual MPPT — two independent inputs for panel arrays with different orientations.
- Single-phase and three-phase output — 230 V and 400 V AC depending on connected appliances.
- Pure sine wave — output waveform suitable for sensitive electronics.
- Support for lead-acid and lithium batteries — flexibility in storage construction.
- Operation without batteries — possibility of a setup based solely on panels and the grid.
- Charging from panels, the grid, and a generator — three sources for replenishing batteries.
- Maximum charging current 260 A — hybrid and solar charging.
- Maximum PV input power 9 kW — space for a larger panel array.
- PV startup voltage above 150 V DC — maximum open-circuit voltage 800 V DC.
- Maximum PV input current 22 A — parameter for string sizing.
- Circular display — graphical representation of energy flow with buttons below the screen.
- Side cooler — ribbed grille for heat dissipation.
- Grey and orange colour — design with an orange lower section.
Contents of the package:
- 1x hybrid solar inverter
The inverter can be used in a family home, on a farm, in a workshop, or in a commercial setting where three-phase technology is running. Single-phase and three-phase output of 230 V and 400 V AC means that one device covers standard sockets and motors without needing a second setup. Charging from panels, the grid, and a generator ensures reliability even in winter months with low yields. Two MPPT controllers allow for connecting panel arrays with different orientations and spreading the yield throughout the day. The circular display shows at a glance where the current is coming from and where it is going.
